E-180 2022
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

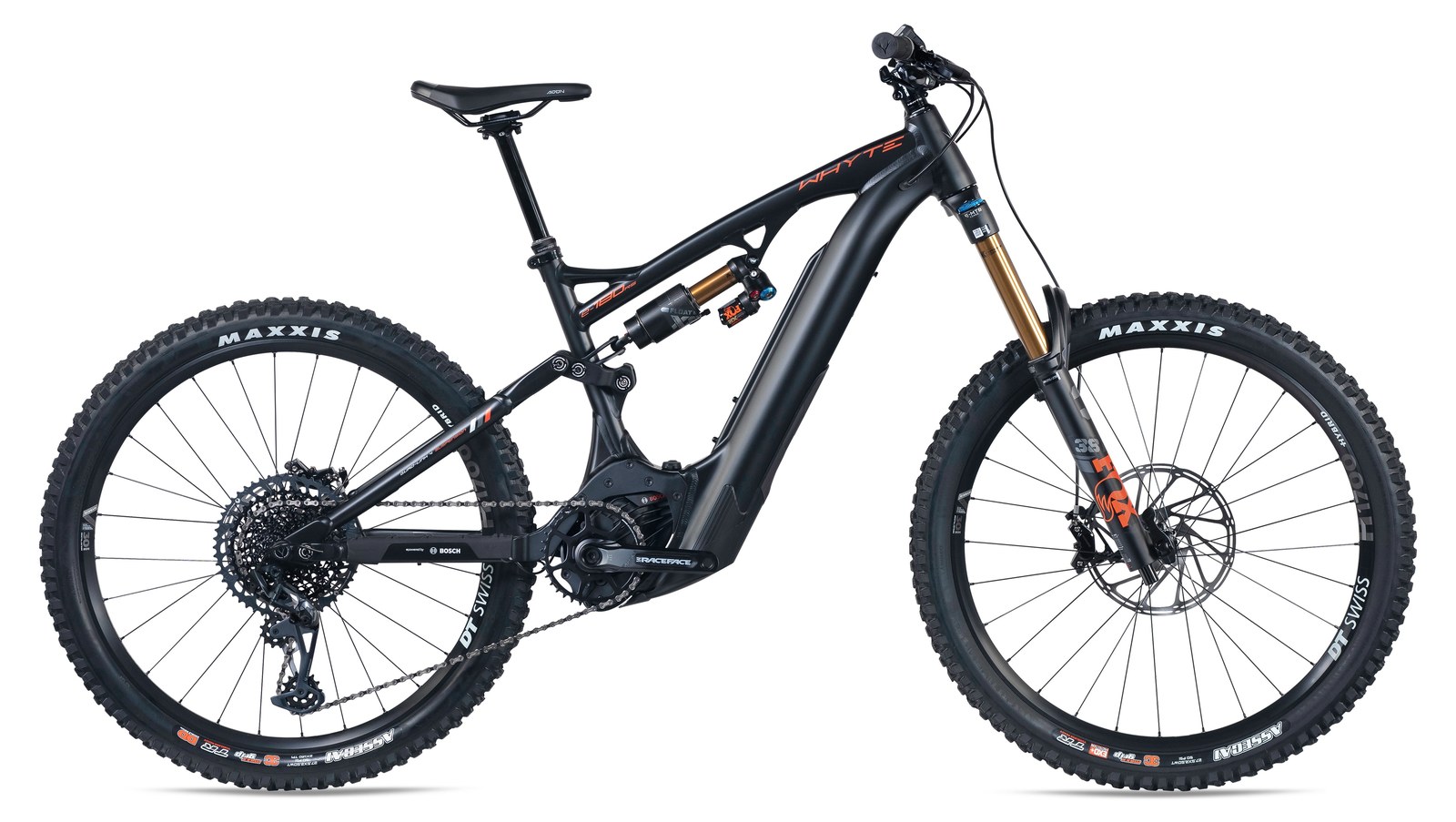

The E-180 V3 was the flagship of Whyte's 'Go Gravity' eMTB range for 2022: an alloy super enduro and bike park machine with 180mm of travel at both ends, 27.5in wheels front and rear, and a Bosch Performance Line CX Gen 4 motor fed by a 625Wh internal PowerTube. Whyte's rolled-motor frame design put the battery and motor unusually low in the frame, and the Shape.it Link offered geometry adjustment from 64.6 to 64.0 degrees at the head angle.
Two builds were sold. The E-180 S (£5,999 at launch) ran a RockShox ZEB fork, Super Deluxe Select shock, SRAM Code R brakes and a GX Eagle drivetrain. The E-180 RS (£7,250 at launch, later £7,699) stepped up to Fox Factory suspension with a Kashima-coated 38 and Float X2, SRAM X01 Eagle shifting, Code RSC brakes and DT Swiss 350 hubs. Both trims shared the burly Maxxis Assegai EXO+/Double Down tyre pairing and a 220mm front rotor.
Geometry was aggressive for the period: 455 to 505mm reach across the three sizes (M, L, XL), 444mm chainstays, a low 335 to 344mm bottom bracket and a long 1241 to 1302mm wheelbase, all on dual 27.5in wheels for a playful, slammed stance rather than outright rollover speed.
The E-180 V3 is discontinued. Whyte moved the platform to a mixed-wheel format with the E-180 S MX for 2023, and the company's gravity-focused e-bikes have since been superseded by newer ranges.
Geometry · hover a row to highlight the measurement on the bike
| M | L | XL | |
|---|---|---|---|
| Reach | 455 mm | 480 mm | 505 mm |
| Stack | 626.3 mm | 635.2 mm | 648.7 mm |
| Seattube | 431.8 mm | 457.2 mm | 482.5 mm |
| Chainstay | 444 mm | 444 mm | 444 mm |
| Headtube Angle | 64.6° | 64.6° | 64.6° |
| Seattube Angle (eff) | 75.5° | 75.3° | 75.1° |
| Wheelbase | 1241.4 mm | 1270 mm | 1302 mm |
| Headtube | 120 mm | 130 mm | 145 mm |
| BB Height | 344 mm | 344 mm | 344 mm |
| Standover | 841 mm | 841 mm | 841 mm |
| Front Centre | 797.4 mm* | 826 mm* | 858 mm* |
Trims · 2
S £5,999 | RS £7,250 | |
|---|---|---|
| Motor | Bosch Performance Line CX Gen 4 · 85 Nm · all trims | |
| Battery | Bosch PowerTube 625 · 625 Wh · all trims | |
| Travel F/R | 180/180 mm · all trims | |
| Frame | Alloy · all trims | |
| Fork | RockShox ZEB 27.5", 180mm Travel, 44mm Offset, DebonAir, Charger R Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate | Fox Float 38, Factory 27.5", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Kashima Coating, 110mm x 15mm Boost, E-Thru Axle |
| Shock | RockShox Super Deluxe Select, DebonAir, Fast Black Coating, Adjustable Rebound | Fox Float X2, Factory, independently adjustable Compression and Rebound damping, Kashima coating |
| Headset | FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings · all trims | |
| Stem | Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension | Race Face Atlas, 35mm Bar Bore, 35mm Extension |
| Handlebar | Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 800mm Wide | Race Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide |
| Grips | Whyte Lock-on Enduro Grip · all trims | |
| Saddle | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail · all trims | |
| Seatpost | Whyte drop.it II Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever | Crank Brothers High-Line 3, 30.9mm, M/L 150mm Travel, XL 170mm Travel, High-Line Ball Socket Remote Lever |
| Brakes | SRAM Code R, 4 Piston with Sintered Metal Pads, 220mm front / 200mm rear disc, SRAM Code R MMX levers | SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm front / 200mm rear disc, SRAM Code RSC MMX levers |
| Rear derailleur | SRAM GX Eagle, 12 Speed | SRAM X01 Eagle, 12 Speed |
| Crank | Whyte, forged alloy, 165mm, X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black | Race Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T for Bosch Performance Line CX, Black |
| Shifters | SRAM GX-E, Eagle, Single Click, MMX, 12 Speed | SRAM X01-E Eagle, Single Click, MMX, 12 Speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 Speed | SRAM XG-1275 Eagle, 10-52, 12 Speed |
| Chain | SRAM GX Eagle, 12 Speed · all trims | |
| Drivetrain | SRAM GX Eagle, 12 Speed; Whyte, forged alloy, 165mm, X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black; SRAM GX-E, Eagle, Single Click, MMX, 12 Speed; SRAM PG-1210 Eagle, 11-50, 12 Speed; SRAM GX Eagle, 12 Speed | SRAM X01 Eagle, 12 Speed; Race Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T for Bosch Performance Line CX, Black; SRAM X01-E Eagle, Single Click, MMX, 12 Speed; SRAM XG-1275 Eagle, 10-52, 12 Speed; SRAM GX Eagle, 12 Speed |
| Wheels | DT Swiss Hybrid 30, Sleeved Joint, 32 Hole; alloy e-bike specific hubs, DT Swiss Champion 2.0mm spokes | DT Swiss Hybrid 30, Sleeved Joint, 28 Hole; DT Swiss 350 hubs (rear Straightpull with 24T Ratchet System), DT Swiss Hybrid triple butted spokes |
| Tyres | Maxxis Assegai WT, TR, 27.5" x 2.5" 120TPI, EXO+ Sidewall Protection, 3C Maxx Terra front; Maxxis Assegai WT, TR, 27.5" x 2.5" 120TPI, Double Down Casing, 3C Maxx Terra rear · all trims | |
| Price | £5,999 | £7,250 |
