E-160 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

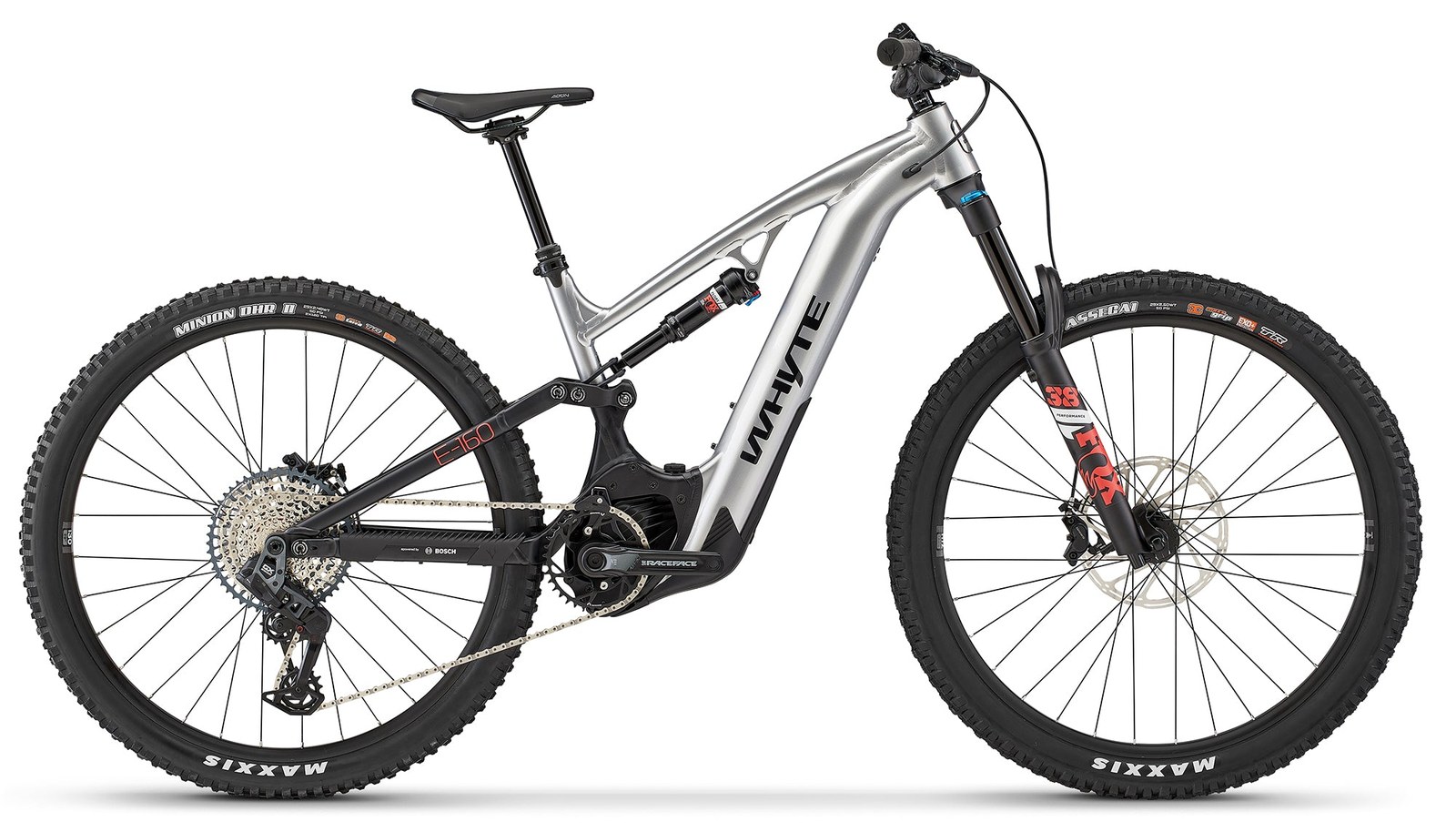

The E-160 is Whyte's full power alloy trail and enduro platform: 160mm Fox or RockShox fork, 155mm rear travel, a Bosch Performance Line CX Gen 4 motor and a big 750Wh in-tube battery in a multi-butted 6061 T6 aluminium frame. Whyte pitches it as a trail/enduro all-rounder, and every E-160 with the fourth generation BDU37 motor gets the free Bosch software update that unlocks E-MTB+ mode from July 2025.
The £6,399 RS is the value pick of the range: SRAM GX T-Type AXS wireless shifting, a Fox 38 Performance fork with custom-tuned Float DPS shock, Code R four-piston brakes on 220/200mm rotors and Double Down rear tyre casing. The £6,999 RSX adds Performance Elite Fox suspension with a Grip 2 damper and Float X shock, DT Swiss 350 hubs on HX 1700 rims and Code RSC brakes for £600 more, though it only comes in M to XL. The £5,499 S keeps the wireless GX AXS drivetrain but moves to a RockShox ZEB and Deluxe Select R with Guide RE brakes, making it one of the cheaper routes to a 750Wh Bosch full-suspension bike.
Geometry follows Whyte's Total Geometry approach: a 64.8 degree head angle, 455mm reach on a Medium and long 444 to 446mm rear centres, with XS and S sizes on 27.5in wheels and M to XL on 29ers. The Shape.It Link flip chip slackens the head angle by 0.6 degrees and drops the bottom bracket 8mm from the stock High setting. At 26.3 to 27kg claimed these are not light bikes, but the low-slung battery and motor placement is central to Whyte's handling pitch.
Geometry · hover a row to highlight the measurement on the bike
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Reach | 405 mm | 425 mm | 455 mm | 483 mm | 510 mm |
| Stack | 607.8 mm | 619.7 mm | 631.5 mm | 645.1 mm | 658.6 mm |
| Seattube | 360 mm | 395 mm | 420 mm | 445 mm | 470 mm |
| Chainstay | 444 mm | 444 mm | 446 mm | 446 mm | 446 mm |
| Headtube Angle | 64.8° | 64.8° | 64.8° | 64.8° | 64.8° |
| Seattube Angle (eff) | 76.1° | 75.7° | 75.5° | 75.3° | 75.1° |
| Wheelbase | 1181.2 mm | 1200.4 mm | 1234.8 mm | 1269.2 mm | 1302.7 mm |
| Headtube | 120 mm | 130 mm | 105 mm | 120 mm | 135 mm |
| BB Height | 347 mm | 347 mm | 340 mm | 340 mm | 340 mm |
| Standover | 768 mm | 769 mm | 771 mm | 773 mm | 776 mm |
| Front Centre | 737.2 mm* | 756.4 mm* | 788.8 mm* | 823.2 mm* | 856.7 mm* |
Trims · 3
S £5,499 | RS £6,399 | RSX £6,999 | |
|---|---|---|---|
| Motor | Bosch Performance Line CX Gen 4 · 85 Nm · all trims | ||
| Battery | Bosch PowerTube 750 · 750 Wh · all trims | ||
| Travel F/R | 160/155 mm · all trims | ||
| Frame | 6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link, 12x148mm Boost dropouts · all trims | ||
| Fork | RockShox ZEB, 160mm travel, 44mm offset, DebonAir, Rush RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Ultimate | Fox Float 38 Performance, 160mm travel, 44mm offset with Grip damper, three-position adjustable, tapered steerer, 110mm x 15mm Boost, E-thru-axle | Fox Float 38 Performance Elite 29in, 160mm travel, 44mm offset with Grip 2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle |
| Shock | RockShox Deluxe Select R, Fast Black coating, adjustable rebound | Fox Float Performance DPS, EVOL LV, custom tuned for Whyte, three position adjustable compression and rebound damping | Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte |
| Headset | FSA No. 55R/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings | FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings | FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings |
| Stem | Whyte Enduro stem, 35mm bar bore, 35mm extension | Whyte Enduro, 35mm extension, 35mm bar bore | Whyte Enduro, 35mm extension, 35mm bar bore |
| Handlebar | Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 780mm wide | Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 780mm wide | Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide |
| Grips | Whyte lock-on Enduro grip | Whyte Enduro lock-on | Whyte Enduro lock-on |
| Saddle | Whyte Custom, dual density, triple panel design | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
| Seatpost | Whyte drop.it Adjust, 30.9mm, M/L 140-170mm travel, XL 170-200mm travel, MMX paddle remote lever | Crank Brothers HighLine 3, 30.9mm (sizes XS/S/M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever | Crank Brothers HighLine 3, 30.9mm (sizes M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever |
| Brakes | SRAM Guide RE, 4 piston with sintered metal pads, 220mm front / 200mm rear discs; SRAM Guide RE MMX levers | SRAM Code R, four piston hydraulic with sintered metal pads, 220mm front / 200mm rear rotors; SRAM Code R MMX levers | SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm front / 200mm rear rotors; SRAM Code RSC MMX levers |
| Rear derailleur | SRAM GX AXS Eagle, 12 speed | SRAM GX T-Type AXS, 12 speed | SRAM GX T-Type AXS, 12 speed |
| Crank | Whyte, forged alloy, 165mm, direct mount 36T | Whyte, forged alloy, 155mm, direct mount 36T chainring | Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T chainring for Bosch Performance Line CX, black |
| Shifters | SRAM GX AXS Eagle, 2 button, MMX, 12 speed | SRAM AXS Pod, two button MMX, 12 speed | SRAM AXS Pod, two button MMX, 12 speed |
| Cassette | SRAM PG1210, 11-50, 12 speed | SRAM XS-1275 Eagle, 10-52T, 12 speed | SRAM XS-1275 Eagle, 10-52T, 12 speed |
| Chain | SRAM GX Eagle, 12 speed | SRAM GX T-Type Eagle, 12 speed | SRAM GX T-Type Eagle, 12 speed |
| Drivetrain | SRAM GX AXS Eagle, 12 speed; Whyte, forged alloy, 165mm, direct mount 36T; SRAM GX AXS Eagle, 2 button, MMX, 12 speed; SRAM PG1210, 11-50, 12 speed; SRAM GX Eagle, 12 speed | SRAM GX T-Type AXS, 12 speed; Whyte, forged alloy, 155mm, direct mount 36T chainring; SRAM AXS Pod, two button MMX, 12 speed; SRAM XS-1275 Eagle, 10-52T, 12 speed; SRAM GX T-Type Eagle, 12 speed | SRAM GX T-Type AXS, 12 speed; Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T chainring for Bosch Performance Line CX, black; SRAM AXS Pod, two button MMX, 12 speed; SRAM XS-1275 Eagle, 10-52T, 12 speed; SRAM GX T-Type Eagle, 12 speed |
| Wheels | WTB HTZ i30 TCS 2.0 System, asymmetric, sleeved joint, super tough construction, tubeless ready, 32 hole; DT Swiss New Champion 2.0mm spokes | WTB HTZ i30 TCS 2.0 System, asymmetric, sleeved joint, super tough construction, tubeless ready, 32 hole; DT Swiss New Champion 2.0mm spokes | DT HX 1700 alloy, hooked 30mm internal width; DT Swiss 350 hubs, DT Swiss Hybrid straight pull spokes |
| Tyres | Maxxis Assigai WT, TR, 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, Dual Compound, front; Maxxis Minion DHR II WT, TR, 2.4in 120TPI, Double Down, 3C Maxx Terra, Dual Compound, folding bead, rear | Maxxis Assigai WT, TR, 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, Dual Compound, front; Maxxis Minion DHR II WT, TR, 2.4in 120TPI, Double Down, 3C Maxx Terra, Dual Compound, folding bead, rear | Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, Dual Compound, front; Maxxis Minion DHR II WT, TR, 29in x 2.4in 120TPI, Double Down, 3C Maxx Terra, Dual Compound, folding bead, rear |
| Weight | 27 kg | 26.7 kg | 26.3 kg |
| Price | £5,499 | £6,399 | £6,999 |
