Descending
81
Slack 64° head angle, 160mm travel and a long 1280mm wheelbase — composed in the chunk, confident when it gets steep, and stable through fast corners.
Transition

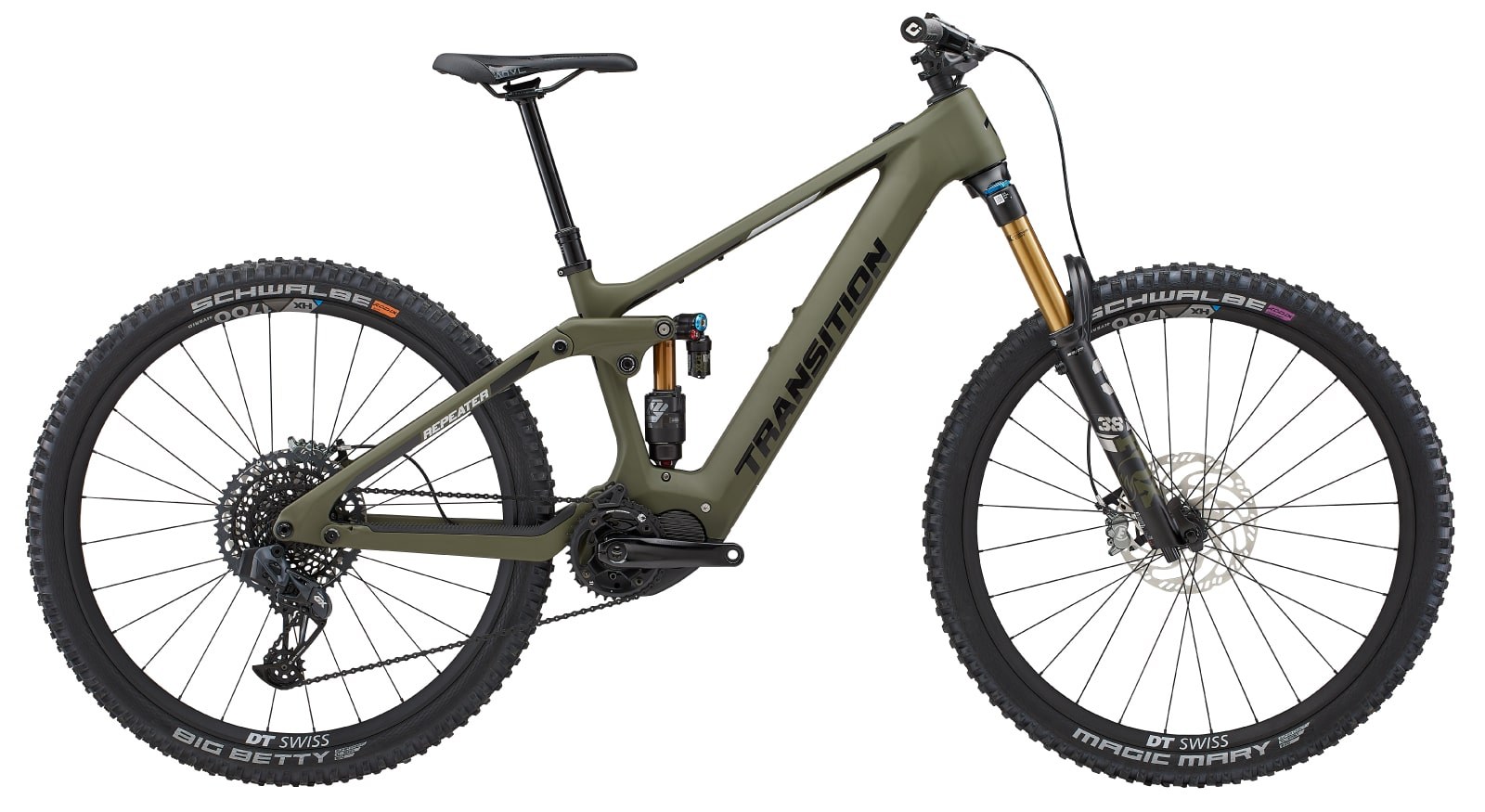

Repeater 2022
Discontinued✎Full Power · EnduroLegacy · 0.4/10iFreshness 0.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Fun-first carbon enduro that stays composed when things steepen
Motor
Shimano EP8 (DU-EP800) · 85Nm · 500W↗
Battery
Shimano BT-E8036 630Wh
Travel F/R
160/160mm
Wheels
29F / 29R✎
Frame
Full carbon✎
Weight
22.3 kg
Price
From £7,200
From £7,199
EMTB Forums verdict
The 2022 Transition Repeater is the first-generation Repeater, the Bellingham brand's first full-power electric mountain bike. Every build shares one Toray-carbon frame with 160mm of GiddyUp travel front and rear, 29in wheels and Transition's SBG geometry, driven by the Shimano EP8 (DU-EP800) motor rated at 85Nm and a removable 630Wh Shimano BT-E8036 battery with a full-colour SC-EM800 display.
Three builds were offered, all in Mossy Green. The NX (£7,199.95) runs a RockShox ZEB R fork, Fox Float X Performance shock, a SRAM NX Eagle mechanical drivetrain and Magura MT5 brakes. The GX (£8,499.95) steps up to a ZEB Ultimate fork, Float X Performance Elite shock, GX Eagle shifting and Magura MT7 stoppers. The flagship AXS (£9,199.95) pairs a Fox Float 38 Grip2 Factory fork and Float X2 Factory shock with SRAM GX AXS wireless shifting, DT Swiss Hybrid HX 1700 wheels and a OneUp carbon bar.
Geometry is shared across the four sizes (S to XL): a 64 degree head angle, 455mm chainstays, a 340mm estimated BB height and reach from 425mm to 510mm, with effective seat angles steepening on the smaller frames. Claimed weights are 22.3kg for the GX and AXS and 23.1kg for the NX in Size MD. All builds run Schwalbe Super Gravity tyres (Magic Mary front, Big Betty rear) and ship with a Shimano EC-E6002 charger.
This was the Repeater's launch model year and is now discontinued, later superseded by newer Repeater generations. UK pricing was set through Transition's distributor and confirmed by period UK dealer listings.
Geometry read
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
Size
Playfulness
66
Short 455mm rear and a lighter build — easy to pop, manual and throw around.
Size balance
93
Balanced front-to-rear in L (FC:RC 1.81) — weight sits evenly between the wheels.
Technical climbing
77
Shimano EP8 (DU-EP800) and a steep 77.4° seat angle keep the weight planted over the front — a proper winch. 500W of peak power and 85Nm of torque — a strong full-power motor.
Easy to throw around; happiest when you're active on the bike.
The numbers are well balanced for its category.
How it stacks up vs other Full Power · Enduro bikes (from 160 bikes in the database)
Weight22.3 kg1.5 kg lighter than average
Battery630 Wh94 Wh below average
Motor torque85 Nm17 Nm below average
Value for money50/100from £7,200 · most Shimano EP8 (DU-EP800) bikes ~£7,200
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
💬 Forum discussion
Transition Repeater Owners Thread
22 replies · 8.8k views · last reply 10 months ago
Join the discussion →
“The bike is so good that nobody has anything to write about ;) I'am loving mine. I'ts a real beast of a bike.”
— Lantz · ♥ 4 · most-liked post
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Stack | 631 mm | 631 mm | 640 mm | 649 mm |
| Seattube | 375 mm | 400 mm | 440 mm | 470 mm |
| Chainstay | 455 mm | 455 mm | 455 mm | 455 mm |
| Headtube Angle | 64° | 64° | 64° | 64° |
| Seattube Angle (eff) | 78.4° | 77.9° | 77.4° | 77.1° |
| Wheelbase | 1221 mm | 1251 mm | 1280 mm | 1315 mm |
| Headtube | 110 mm | 110 mm | 120 mm | 130 mm |
| BB Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Standover | 705 mm | 715 mm | 720 mm | 725 mm |
| Front Centre | 766 mm* | 796 mm* | 825 mm* | 860 mm* |
| FC:RC | 1.68 | 1.75 | 1.81 | 1.89 |
Trims · 3
NX £7,200 | GX £8,500 | AXS £9,200 | |
|---|---|---|---|
| Motor | Shimano EP8 (DU-EP800) · 85 Nm · all trims | ||
| Battery | Shimano BT-E8036 630Wh · 630 Wh · all trims | ||
| Travel F/R | 160/160 mm · all trims | ||
| Frame | Carbon · all trims | ||
| Fork | RockShox ZEB R, 160mm, 44mm Offset, 1.8 taper | RockShox ZEB Ultimate, 160mm, 44mm Offset, 1.8 taper | Fox Float 38 Grip 2 Factory, 160mm, 44mm Offset, 1.5 taper |
| Shock | Fox Float X Performance (205x65mm) | Fox Float X Performance Elite (205x65mm) | Fox Float X2 Factory 2 Position (205x65mm) |
| Headset | Acros ICR · all trims | ||
| Stem | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) |
| Handlebar | Raceface Chester Alloy, SM/MD (780x20) LG/XL (780x35) | ANVL Mandrel Alloy, SM (800x20) MD/LG (800x30) XL (800x40) | OneUp Carbon, SM/MD (800x20) LG/XL (800x35) |
| Grips | ODI Elite Flow Lock-On · all trims | ||
| Saddle | ANVL Forge Cromo · all trims | ||
| Seatpost | OneUp Dropper Post, SM (150mm) MD (180mm) LG/XL (210mm) · all trims | ||
| Brakes | Magura MT5 w/ HC1 Levers; rotors: Magura MDR-C (203mm) | Magura MT7 w/ HC1 Levers; rotors: Magura MDR-C (203mm) | Magura MT7 w/ HC1 Levers; rotors: Magura MDR-C (203mm) |
| Rear derailleur | SRAM NX Eagle | SRAM GX Eagle | SRAM GX AXS |
| Crank | Shimano EM600 (34t/160mm) | Shimano EM900 (34t/160mm) | Shimano EM900 (34t/160mm) |
| Shifters | SRAM NX Eagle Single Click | SRAM GX Eagle Single Click | SRAM GX AXS (Rocker Paddle) |
| Cassette | SRAM PG 1230 (10-50t) | SRAM XG 1275 (10-52t) | SRAM XG 1295 (10-52t) |
| Chain | SRAM NX Eagle | SRAM GX Eagle | SRAM XX1 Black |
| Drivetrain | SRAM NX Eagle; Shimano EM600 (34t/160mm); SRAM NX Eagle Single Click; SRAM PG 1230 (10-50t); SRAM NX Eagle | SRAM GX Eagle; Shimano EM900 (34t/160mm); SRAM GX Eagle Single Click; SRAM XG 1275 (10-52t); SRAM GX Eagle | SRAM GX AXS; Shimano EM900 (34t/160mm); SRAM GX AXS (Rocker Paddle); SRAM XG 1295 (10-52t); SRAM XX1 Black |
| Wheels | Stans Flow D (Novatec D791SB-B15 / D902SB-B12 hubs, Pillar 2.0mm straight-gauge spokes) | DT Swiss Hybrid H 1900 (DT Swiss Hybrid 370 hubs, DT Swiss Hybrid 1 spokes) | DT Swiss Hybrid HX 1700 (DT Swiss Hybrid 350 hubs, DT Swiss Hybrid 1 spokes) |
| Tyres | Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft (29x2.4); Rear: Schwalbe Big Betty, Super Gravity, Soft (29x2.4) · all trims | ||
| Weight | 23.1 kg | 22.3 kg | 22.3 kg |
| Price | £7,200 | £8,500 | £9,200 |
