Descending
72
Slack 63.9° head angle, 155mm travel and a long 1285mm wheelbase — composed in the chunk, confident when it gets steep, and stable through fast corners.

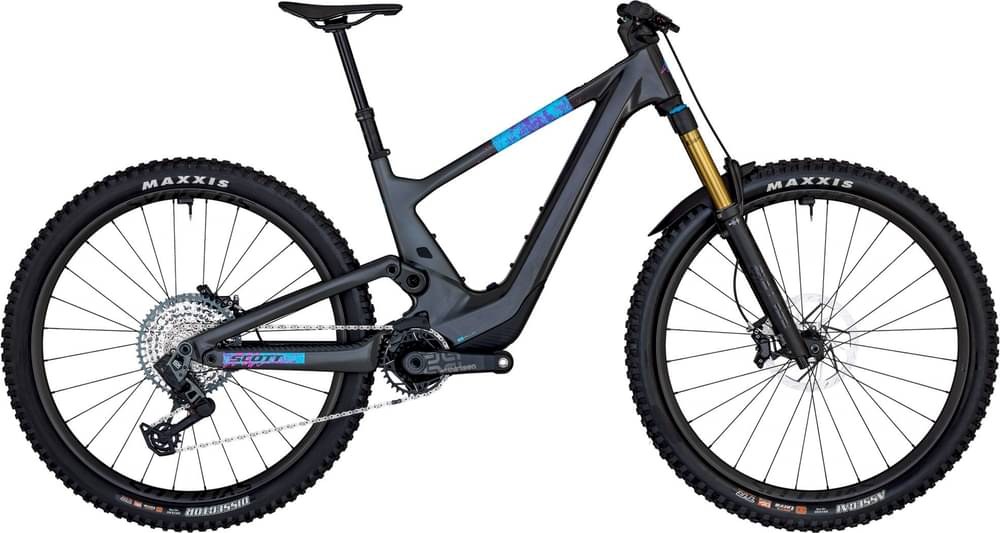

Scott
Voltage eRIDE 2024
Discontinued✎Lightweight · TrailLegacy · 1.4/10iFreshness 1.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Motor
TQ HPR50 · 50Nm · 300W↗
Battery
TQ Internal 360Wh
Travel F/R
160/155mm
Wheels
29F / 29R✎
Frame
Full carbon✎
Weight
18.6 kg
Price
From £6,099
From £6,099
EMTB Forums verdict
The 2024 Voltage eRIDE was Scott's first dedicated lightweight trail e-MTB, pairing a Genius-derived carbon chassis with the compact TQ HPR50 mid-motor (50Nm) and a 360Wh internal battery. With 160mm up front and 155mm out back, a 63.9 degree slack head angle and 455mm chainstays across all sizes, it sat closer to all-mountain than the cross-country Lumen, trading outright range for a quiet, natural ride feel.
The line spanned six builds: the flagship 900 SL (FOX 36 Factory, SRAM XX AXS, included 160Wh range extender) and 900 Tuned (FOX 36 Grip 2, FLOAT X NUDE shock, SRAM GX AXS) at the top, the 910 and 920 on Shimano and SRAM mechanical kit, plus two women's Contessa versions in S/M/L. Notably the 920 and Contessa 910 ran a 150mm Marzocchi Z2 fork rather than the 160mm FOX of the rest.
This model year is discontinued. Scott still sells a Voltage eRIDE today, but the 2026 Voltage eRIDE is the current successor; anyone shopping new should look there, with the 2024 bikes now found only on the used market or as run-out stock.
Geometry read
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
Size
Playfulness
39
More planted than poppy — better on steep terrain than tight, fiddly singletrack.
Size balance
90
Balanced front-to-rear in L (FC:RC 1.82) — weight sits evenly between the wheels.
Technical climbing
63
Climbs well — a 77.1° seat keeps the front planted. 300W of peak power and 50Nm of torque.
Rewards commitment; it should feel calmer as the speed rises.
Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.
How it stacks up vs other Lightweight · Trail bikes (from 82 bikes in the database)
Weight18.6 kgabout average weight
Battery360 Wh77 Wh below average
Motor torque50 Nm8 Nm below average
Value for money24/100from £6,099 · most TQ HPR50 bikes ~£5,199
⚙️ Adjustable geometry: this frame has a high/low setting — low drops the BB and slackens the head angle for more descending stability; high lifts the BB and steepens slightly for clearance and a perkier, more playful feel.
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 437 mm | 457 mm | 485 mm | 513 mm |
| Stack | 622 mm | 622 mm | 631 mm | 640 mm |
| Seattube | 405 mm | 425 mm | 450 mm | 480 mm |
| Chainstay | 455 mm | 455 mm | 455 mm | 455 mm |
| Headtube Angle | 63.9° | 63.9° | 63.9° | 63.9° |
| Seattube Angle (eff) | 77.1° | 77.1° | 77.1° | 77.1° |
| Wheelbase | 1233 mm | 1253 mm | 1285 mm | 1317 mm |
| Headtube | 110 mm | 110 mm | 120 mm | 130 mm |
| BB Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Standover | 765 mm | 765 mm | 772 mm | 788 mm |
| Front Centre | 778 mm* | 798 mm* | 830 mm* | 862 mm* |
| FC:RC | 1.71 | 1.75 | 1.82 | 1.89 |
Trims · 6
920 £6,099 | Contessa 910 £6,099 | 910 £6,599 | Contessa 900 £6,599 | 900 Tuned £10,099 | 900 SL £11,899 | |
|---|---|---|---|---|---|---|
| Motor | TQ HPR50 · 50 Nm · all trims | |||||
| Battery | TQ Internal 360Wh · 360 Wh · all trims | |||||
| Travel F/R | 160/155 mm · all trims | |||||
| Frame | Carbon HMF · all trims | |||||
| Fork | Marzocchi Z2 Air Rail; 3 modes / 15x110mm QR axle / tapered steerer; 44mm offset / Reb. Adj. / Lockout / 150mm travel | Marzocchi Z2 Air Rail; 3 modes / 15x110mm QR axle / tapered steerer; 44mm offset / Reb. Adj. / Lockout / 150mm travel | FOX 36 Float Rhythm Air Grip; 3 modes / 15x110mm QR axle / tapered steerer; 44mm offset / Reb. Adj. / Lockout / 160mm travel | FOX 36 Float Rhythm Air Grip; 3 modes / 15x110mm QR axle / tapered steerer; 44mm offset / Reb. Adj. / Lockout / 160mm travel | FOX 36 Float Factory Grip 2 Air / Kashima; HSC - LSC - HSR - LSR adjustable / Kabolt 15x110mm axle; 44mm offset / tapered steerer; 160mm travel | FOX 36 Float Factory Air / Kashima FIT4; 3 modes with low Speed adj. / Kabolt 15x110mm axle; 44mm offset / tapered steerer / Reb. Adj. / Lockout; 160mm travel |
| Shock | FOX Float Custom EVOL Performance Trunnion; 3 modes / Lockout-Trail-Descend; DPS / Reb. Adj.; Travel 155mm / T185X55mm | FOX Float Custom EVOL Performance Trunnion; 3 modes / Lockout-Trail-Descend; DPS / Reb. Adj.; Travel 155mm / T185X55mm | FOX NUDE 6T EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Low Speed Adj. / Custom large Air volume / Reb. Adj.; Travel 155-100-Lockout / T185X55mm | FOX NUDE 6T EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Low Speed Adj. / Custom large Air volume / Reb. Adj.; Travel 155-100-Lockout / T185X55mm | FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion; Kashima / SCOTT custom w. travel / geo adj.; 3 modes: Climb-Ramp Control-Descend; Custom large Air volume / Comp & Reb. Adj.; Travel 155-100-Climb / T185X55mm | FOX NUDE 6T Factory EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Low Speed Adj. / Custom large Air volume / Kashima / Reb. Adj.; Travel 155-100-Lockout / T185X55mm |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System; Stainless / +-0.6 degree head angle adjustment; ZS56/28.6 - ZS56/40 MTB · all trims | |||||
| Stem | Syncros AM 2.0; Syncros Cable Integration System; 4 degree rise / 6061 Alloy / 31.8mm / 1 1/8" | Syncros AM 2.0; Syncros Cable Integration System; 4 degree rise / 6061 Alloy / 31.8mm / 1 1/8" | Syncros AM 1.5; Syncros Cable Integration System; 4 degree rise / 7050 Alloy / 31.8mm / 1 1/8" | Syncros AM 1.5; Syncros Cable Integration System; 4 degree rise / 7050 Alloy / 31.8mm / 1 1/8" | Syncros Hixon iC Carbon one-piece cockpit | Syncros Hixon iC Carbon one-piece cockpit |
| Handlebar | Syncros Hixon 2.0 Alloy 6061 D.B.; 12mm Rise / back sweep 8 degrees / 780mm | Syncros Hixon 2.0 Alloy 6061 D.B.; 12mm Rise / back sweep 8 degrees / 780mm | Syncros Hixon 1.5 Alloy 7050; Size S & M 15mm rise / Size L & XL 25mm rise; back sweep 8 degrees / 780mm | Syncros Hixon 1.5 Alloy 7050; Size S & M 15mm rise / Size L & XL 25mm rise; back sweep 8 degrees / 780mm | Syncros Hixon iC Carbon; Size S & M 15mm rise / Size L & XL 25mm rise; back sweep 8 degrees / 780mm | Syncros Hixon iC Carbon; Size S & M 15mm rise / Size L & XL 25mm rise; back sweep 8 degrees / 780mm |
| Grips | Syncros Endurance lock-on grips · all trims | |||||
| Saddle | Syncros Tofino 2.0 Regular | Syncros Savona 2.0 | Syncros Tofino 1.5 Regular; Titanium rails | Syncros Tofino 1.5 Regular; Titanium rails | Syncros Tofino 1.5 Regular; Titanium rails | Syncros Tofino SL Regular 1.0; Carbon rails |
| Seatpost | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm; S 140mm / M 180mm / L & XL 210mm | Syncros Duncan Dropper Post 2.5; 31.6mm / S 125mm / M 150mm / L 170mm | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm; S 140mm / M 180mm / L & XL 210mm | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm; S 140mm / M 180mm / L 210mm | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm; S 140mm / M 180mm / L & XL 210mm | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm; S 140mm / M 180mm / L & XL 210mm |
| Brakes | SRAM DB8 4 Piston Disc; SRAM Centerline CL Rotors F&R 200mm | SRAM DB8 4 Piston Disc; SRAM Centerline CL Rotors F&R 200mm | Shimano Deore M6120 4-Piston Disc; Shimano SM-RT64 CL / F&R 203mm | Shimano Deore M6120 4 Piston Disc; Shimano SM-RT64 CL / F&R 203mm | SRAM Code Silver Stealth 4-Piston Disc; SRAM HS2 Rotors F&R 200mm | SRAM Code Ultimate Stealth 4-Piston Disc; SRAM HS2 Rotors F&R 200mm |
| Rear derailleur | Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed | Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed | Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed | Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed | SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System | SRAM XX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System |
| Crank | FSA Alloy crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide | FSA Alloy crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide | FSA Alloy crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide | FSA Alloy crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide | e*thirteen e*spec Race Carbon / 34T; e*thirteen e*spec Slider chainguide | FSA Carbon crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide |
| Shifters | Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp | Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp | Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp | Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp | SRAM GX Eagle AXS Rocker Controller | SRAM AXS Pod Ultimate Controller |
| Cassette | Shimano CS-M6100 / 10-51T | Shimano CS-M6100 / 10-51T | Shimano CS-M6100 / 10-51T | Shimano CS-M6100 / 10-51T | SRAM GX Eagle XS 1275 Transmission 10-52 | SRAM XX Eagle XS 1297 Transmission 10-52 |
| Chain | Shimano CN-M6100 | Shimano CN-M6100 | Shimano CN-M6100 | Shimano CN-M6100 | SRAM CN GX Eagle Transmission | SRAM CN XX Eagle Transmission |
| Drivetrain | Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed; FSA Alloy crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide; Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp; Shimano CS-M6100 / 10-51T; Shimano CN-M6100 | Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed; FSA Alloy crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide; Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp; Shimano CS-M6100 / 10-51T; Shimano CN-M6100 | Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed; FSA Alloy crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide; Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp; Shimano CS-M6100 / 10-51T; Shimano CN-M6100 | Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed; FSA Alloy crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide; Shimano Deore SL-M6100-IR / Rapidfire Plus; I-spec EV clamp; Shimano CS-M6100 / 10-51T; Shimano CN-M6100 | SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System; e*thirteen e*spec Race Carbon / 34T; e*thirteen e*spec Slider chainguide; SRAM GX Eagle AXS Rocker Controller; SRAM GX Eagle XS 1275 Transmission 10-52; SRAM CN GX Eagle Transmission | SRAM XX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System; FSA Carbon crankset / 175mm / 34T; e*thirteen e*spec Slider chainguide; SRAM AXS Pod Ultimate Controller; SRAM XX Eagle XS 1297 Transmission 10-52; SRAM CN XX Eagle Transmission |
| Wheels | Syncros X-30S / 32H / 30mm / Sleeve Joint; Tubeless ready | Syncros X-30S / 32H / 30mm / Sleeve Joint; Tubeless ready | Syncros X-30S / 32H / 30mm / Sleeve Joint; Tubeless ready | Syncros X-30S / 32H / 30mm / Sleeve Joint; Tubeless ready | Syncros Revelstoke 1.0-30 CL; F: 15x110mm; R: 12x148mm; 30mm Tubeless ready Carbon rim 28H; DT Swiss Ratchet Hubs / XD Driver; SRAM TyreWiz / Syncros Axle w/Removable Lever | Syncros Revelstoke 1.0S-30 CL; F: 15x110mm; R: 12x148mm; 30mm Tubeless ready Carbon rim 28H; DT Swiss 240 Ratchet EXP 36 / XD Driver; SRAM TyreWiz / Syncros Axle w/Removable Lever |
| Tyres | Front: Maxxis Dissector / 29x2.6" / 60TPI Wire Bead; EXO; Dual, Rear: Maxxis Dissector / 29x2.6" / 60TPI Wire Bead; EXO; Dual | Front: Maxxis Dissector / 29x2.6" / 60TPI Wire Bead; EXO; Dual, Rear: Maxxis Dissector / 29x2.6" / 60TPI Wire Bead; EXO; Dual | Front: Maxxis Dissector / 2.6" / 60TPI Foldable; Tubeless Ready / EXO 3C maxx Terra, Rear: Maxxis Dissector / 2.6" / 60TPI Foldable; Tubeless Ready / EXO 3C maxx Terra | Front: Maxxis Dissector / 2.6" / 60TPI Foldable; Tubeless Ready / EXO 3C maxx Terra, Rear: Maxxis Dissector / 2.6" / 60TPI Foldable; Tubeless Ready / EXO 3C maxx Terra | Front: Maxxis Assegai / 2.6" / 60TPI Foldable; Tubeless Ready / EXO+ 3C maxx Terra, Rear: Maxxis Dissector / 2.6" / 60TPI Foldable; Tubeless Ready / EXO+ 3C maxx Terra | Front: Maxxis Dissector / 2.6" / 60TPI Foldable; Tubeless Ready / EXO 3C maxx Terra, Rear: Maxxis Dissector / 2.6" / 60TPI Foldable; Tubeless Ready / EXO 3C maxx Terra |
| Weight | — | — | — | — | 18.6 kg | — |
| Price | £6,099 | £6,099 | £6,599 | £6,599 | £10,099 | £11,899 |
