Scott

Lumen 2023

Discontinued✎Lightweight · Cross-CountryLegacy · 0.7/10iFreshness 0.7/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

TQ HPR50 · 50Nm · 300W↗

Battery

TQ HPR 360 · 360Wh

Travel F/R

130/130mm

Wheels

29F / 29R✎

Frame

Full carbon✎

Weight

15.5 kg

Price

From £6,499

View the Scott Lumen on Scott’s site

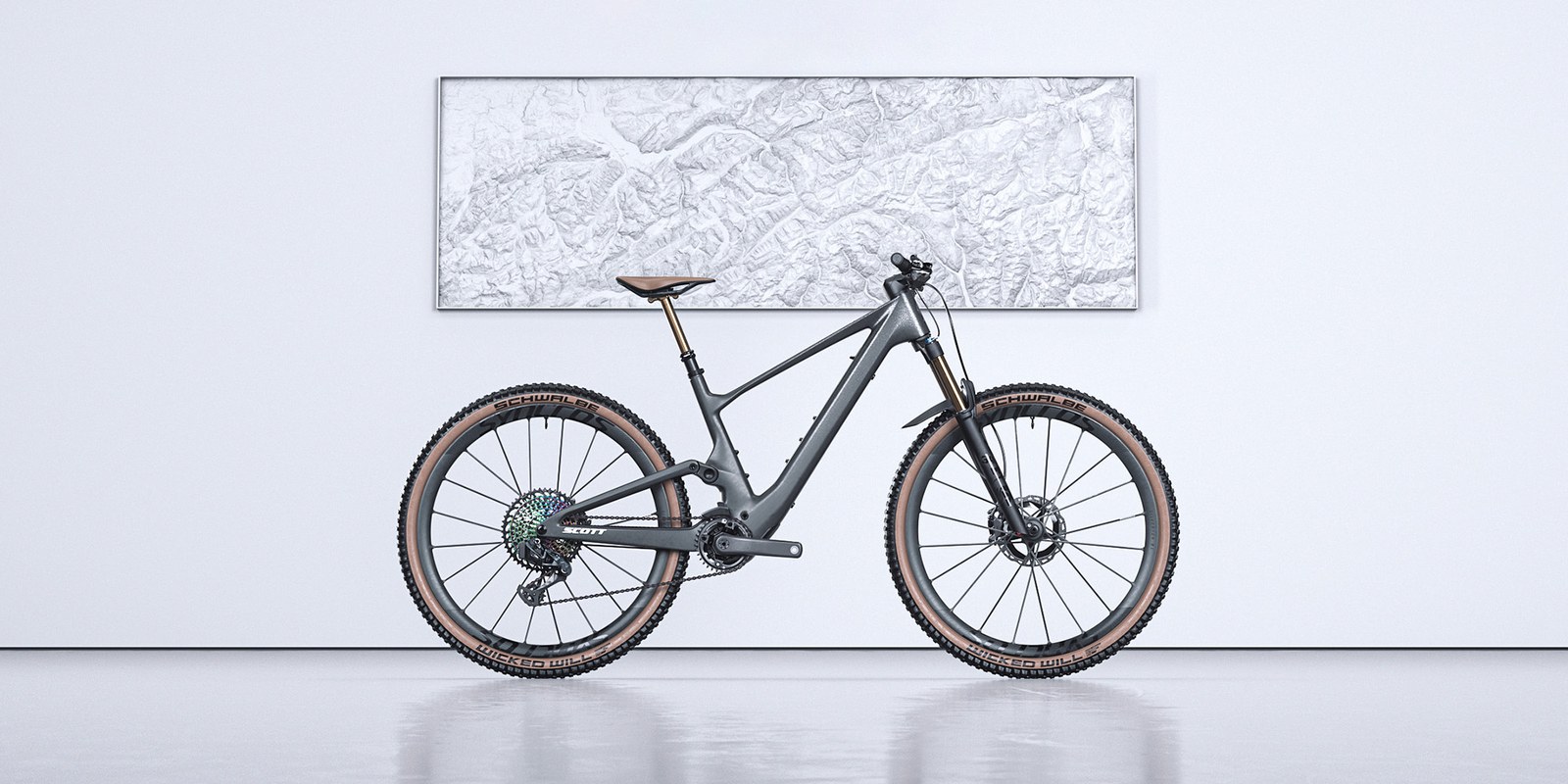

Scott Lumen 2023

From £6,499

The Scott Lumen eRIDE arrived in mid-2022 as a model-year 2023 bike and was Scott's first lightweight trail eMTB. The HMX carbon frame hides a TQ HPR50 motor (50 Nm) and a 360Wh internal battery, with a 160Wh range extender as an option, and runs 130mm of travel front and rear on 29in wheels. The rear shock is buried inside the frame and driven by a flex-stay link, controlled by Scott's TwinLoc remote for on-the-fly lockout. A 65.5-degree head angle (plus or minus 0.6 degrees via the adjustable headset) and 450mm chainstays across all sizes give it a stable trail rather than racy XC stance.The range ran from the flagship 900 SL (FOX Factory 34, SRAM XX1 AXS, Syncros Silverton carbon wheels, Shimano XTR brakes, around 15.5kg) down through the SRAM GX AXS-equipped 900, the Shimano-built 910 (FOX 34 Rhythm, Deore brakes with an XT rear mech, Syncros X-30SE wheels) and the women's Contessa 900, which shared the 910's Deore/XT build with a women's saddle and S to L sizing. UK pricing spanned roughly £6,499 for the 910 and Contessa to £13,699 for the 900 SL.For its era it was one of the lightest and most discreet assisted trail bikes on the market, leaning on a near-silent TQ drive and a genuine analogue feel rather than outright power. It has since been discontinued and replaced by a later-generation Lumen, so any examples now are end-of-line or used stock.

EMTB Forums verdict

The Scott Lumen eRIDE arrived in mid-2022 as a model-year 2023 bike and was Scott's first lightweight trail eMTB. The HMX carbon frame hides a TQ HPR50 motor (50 Nm) and a 360Wh internal battery, with a 160Wh range extender as an option, and runs 130mm of travel front and rear on 29in wheels. The rear shock is buried inside the frame and driven by a flex-stay link, controlled by Scott's TwinLoc remote for on-the-fly lockout. A 65.5-degree head angle (plus or minus 0.6 degrees via the adjustable headset) and 450mm chainstays across all sizes give it a stable trail rather than racy XC stance.

The range ran from the flagship 900 SL (FOX Factory 34, SRAM XX1 AXS, Syncros Silverton carbon wheels, Shimano XTR brakes, around 15.5kg) down through the SRAM GX AXS-equipped 900, the Shimano-built 910 (FOX 34 Rhythm, Deore brakes with an XT rear mech, Syncros X-30SE wheels) and the women's Contessa 900, which shared the 910's Deore/XT build with a women's saddle and S to L sizing. UK pricing spanned roughly £6,499 for the 910 and Contessa to £13,699 for the 900 SL.

For its era it was one of the lightest and most discreet assisted trail bikes on the market, leaning on a near-silent TQ drive and a genuine analogue feel rather than outright power. It has since been discontinued and replaced by a later-generation Lumen, so any examples now are end-of-line or used stock.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (65.5° head angle, 130mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

Short 450mm rear and a lighter build — easy to pop, manual and throw around.

Size balance

Rear-long with a planted front in L (FC:RC 1.76) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Climbs well — a 77.2° seat keeps the front planted. 300W of peak power and 50Nm of torque.

Best suited toPlayful trail riding — jumps, pumps and tight, techy singletrack.

Easy to throw around; happiest when you're active on the bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Lightweight · Cross-Country bikes (from 63 bikes in the database)

Weight15.5 kg3.1 kg lighter than average

Battery360 Wh75 Wh below average

Motor torque50 Nm9 Nm below average

Value for money59/100from £6,499 · most TQ HPR50 bikes ~£6,910

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

💬 Forum discussion

Scott Lumen eRide 2023

18 replies · 6.9k views · last reply 30 months ago

Join the discussion →

“There's quite a bit in Knut's article about it.”

— Zimmerframe · ♥ 4 · most-liked post

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	416 mm	446 mm	476 mm	501 mm
Stack	615 mm	615 mm	625 mm	638 mm
Chainstay	450 mm	450 mm	450 mm	450 mm
Headtube Angle	65.5°	65.5°	65.5°	65.5°
Seattube Angle (eff)	76.8°	77°	77.2°	77.5°
Wheelbase	1176 mm	1206 mm	1240 mm	1270 mm
Headtube	110 mm	110 mm	120 mm	135 mm
BB Height	338.5 mm	338.5 mm	338.5 mm	338.5 mm
Standover	765 mm	767 mm	780 mm	800 mm
Front Centre	726 mm*	756 mm*	790 mm*	820 mm*
FC:RC	1.61	1.68	1.76	1.82

Trims · 4

	910 £6,499	Contessa 900 £6,499	900 £9,199	900 SL £13,699
Motor	TQ HPR50 · 50 Nm · all trims
Battery	TQ HPR 360 · 360 Wh · all trims
Travel F/R	130/130 mm · all trims
Frame	Carbon · all trims
Fork	FOX 34 Float Rhythm, GRIP, 130 mm, 44 mm offset, remote lockout	FOX 34 Float Rhythm, GRIP, 130 mm, 44 mm offset, remote lockout	FOX 34 Float Performance Elite, FIT4, 130 mm, 44 mm offset, remote lockout	FOX 34 Float Factory, FIT4, 130 mm, 44 mm offset
Shock	FOX NUDE 5T EVOL Trunnion, 165x45 mm, TwinLoc 3-mode · all trims
Headset	Syncros/ACROS angle-adjust, +/-0.6 deg, ZS56/28.6 upper + ZS56/40 lower · all trims
Stem	Syncros DC 2.0, alloy, 0 deg, 31.8 mm	Syncros DC 2.0, alloy, 0 deg, 31.8 mm	Syncros Fraser iC SL DC Carbon, integrated, 0 deg	Syncros Fraser iC SL DC Carbon, integrated, 0 deg
Handlebar	Syncros Fraser 2.0 DC, alloy 6061, 760 mm, 8 deg backsweep	Syncros Fraser 2.0 DC, alloy 6061, 760 mm, 8 deg backsweep	Syncros Fraser iC SL DC Carbon, integrated cockpit, 760 mm, 8 deg backsweep	Syncros Fraser iC SL DC Carbon, integrated cockpit, 760 mm
Grips	Syncros Performance XC lock-on · all trims
Saddle	Syncros Tofino Regular 1.5, titanium rails	Syncros Savona 1.5 V-Concept (women's saddle)	Syncros Tofino Regular 1.5, titanium rails	Syncros Tofino Regular 1.0, carbon rails
Seatpost	Syncros Duncan Dropper 2.0, 31.6 mm (travel by size: S/M 125 / L 150 / XL 170 mm)	Syncros Duncan Dropper 2.0, 31.6 mm (travel by size: S/M 125 / L 150 mm)	FOX Transfer dropper, 31.6 mm (travel by size: S 125 / M 140 / L 150 / XL 175 mm)	FOX Transfer Factory dropper (travel by size: S 125 / M 140 / L 150 / XL 175 mm)
Brakes	Shimano Deore M6120, 4-piston hydraulic disc; rotors 180 mm front (SM-RT64) / 180 mm rear (RT-EM600)	Shimano Deore M6120, 4-piston hydraulic disc; rotors 180 mm front (SM-RT64) / 180 mm rear (RT-EM600)	Shimano Deore XT M8120, 4-piston hydraulic disc; rotors 180 mm front (RT-MT800) / 180 mm rear (RT-EM810), Centerlock	Shimano XTR M9120, 4-piston hydraulic disc; Shimano Centerlock rotors 180 mm front / 180 mm rear
Rear derailleur	Shimano Deore XT RD-M8100 SGS, 12-speed	Shimano Deore XT RD-M8100 SGS, 12-speed	SRAM GX Eagle AXS, 12-speed wireless	SRAM XX1 Eagle AXS, 12-speed wireless
Crank	FSA alloy, 175 mm, 34 T chainring	FSA alloy, 175 mm, 34 T chainring	FSA Carbon, 175 mm, 34 T chainring	FSA Carbon, 175 mm, 34 T chainring
Shifters	Shimano Deore SL-M6100-IR, Rapidfire Plus	Shimano Deore SL-M6100-IR, Rapidfire Plus	SRAM GX Eagle AXS Rocker controller	SRAM Eagle AXS Rocker controller
Cassette	Shimano Deore CS-M6100, 10-51 T	Shimano Deore CS-M6100, 10-51 T	SRAM GX Eagle XG-1275, 10-52 T	SRAM XX1 Eagle XG-1299, 10-52 T
Chain	Shimano CN-M6100	Shimano CN-M6100	SRAM NX Eagle, 12-speed	SRAM XX1 Eagle
Drivetrain	Shimano Deore XT RD-M8100 SGS, 12-speed; FSA alloy, 175 mm, 34 T chainring; Shimano Deore SL-M6100-IR, Rapidfire Plus; Shimano Deore CS-M6100, 10-51 T; Shimano CN-M6100	Shimano Deore XT RD-M8100 SGS, 12-speed; FSA alloy, 175 mm, 34 T chainring; Shimano Deore SL-M6100-IR, Rapidfire Plus; Shimano Deore CS-M6100, 10-51 T; Shimano CN-M6100	SRAM GX Eagle AXS, 12-speed wireless; FSA Carbon, 175 mm, 34 T chainring; SRAM GX Eagle AXS Rocker controller; SRAM GX Eagle XG-1275, 10-52 T; SRAM NX Eagle, 12-speed	SRAM XX1 Eagle AXS, 12-speed wireless; FSA Carbon, 175 mm, 34 T chainring; SRAM Eagle AXS Rocker controller; SRAM XX1 Eagle XG-1299, 10-52 T; SRAM XX1 Eagle
Wheels	Syncros X-30SE, 30 mm, 32h, tubeless ready, on Formula CL hubs	Syncros X-30SE, 30 mm, 32h, tubeless ready (Formula CL-811 front / CL-148M Micro Spline rear hubs)	Syncros Silverton 1.5-30, alloy, 30 mm, 28h, tubeless ready	Syncros Silverton SL2-30 CL, full-carbon one-piece wheelset, 30 mm, Centerlock
Tyres	Front: Schwalbe Wicked Will, EVO, Super Race, Addix Speed Soft, 29 x 2.4; Rear: Schwalbe Wicked Will, EVO, Super Race, Addix Speed Grip, 29 x 2.4	Front: Schwalbe Wicked Will, EVO, Super Race, Addix Speed Soft, TLE, 67 EPI, 29 x 2.4; Rear: Schwalbe Wicked Will, EVO, Super Race, Addix Speed Soft, TLE, 67 EPI, 29 x 2.4	Front: Schwalbe Wicked Will, EVO, Super Race, Addix Speed Soft, TLE, 67 EPI, 29 x 2.4; Rear: Schwalbe Wicked Will, EVO, Super Race, Addix Speed Grip, TLE, 67 EPI, 29 x 2.4	Front: Schwalbe Wicked Will, EVO, Super Race, Addix Speed Soft, TLE, 67 EPI, 29 x 2.4; Rear: Schwalbe Wicked Will, EVO, Super Race, Addix Speed Grip, TLE, 67 EPI, 29 x 2.4
Weight	17.6 kg	17.6 kg	16.3 kg	15.5 kg
Price	£6,499	£6,499	£9,199	£13,699
