Salsa Moraine C
Salsa

Moraine C 2026

CurrentTrail eMTBAgeing · 4.4/10iFreshness 4.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Motor
Fazua Ride 60 · 60Nm · 450W
Battery
Fazua Energy 480 · 480Wh
Travel F/R
160/145mm
Wheels
29F / 29R
Frame
Full carbon
Weight
20.04 kg
View the Salsa Moraine C on Salsa’s site

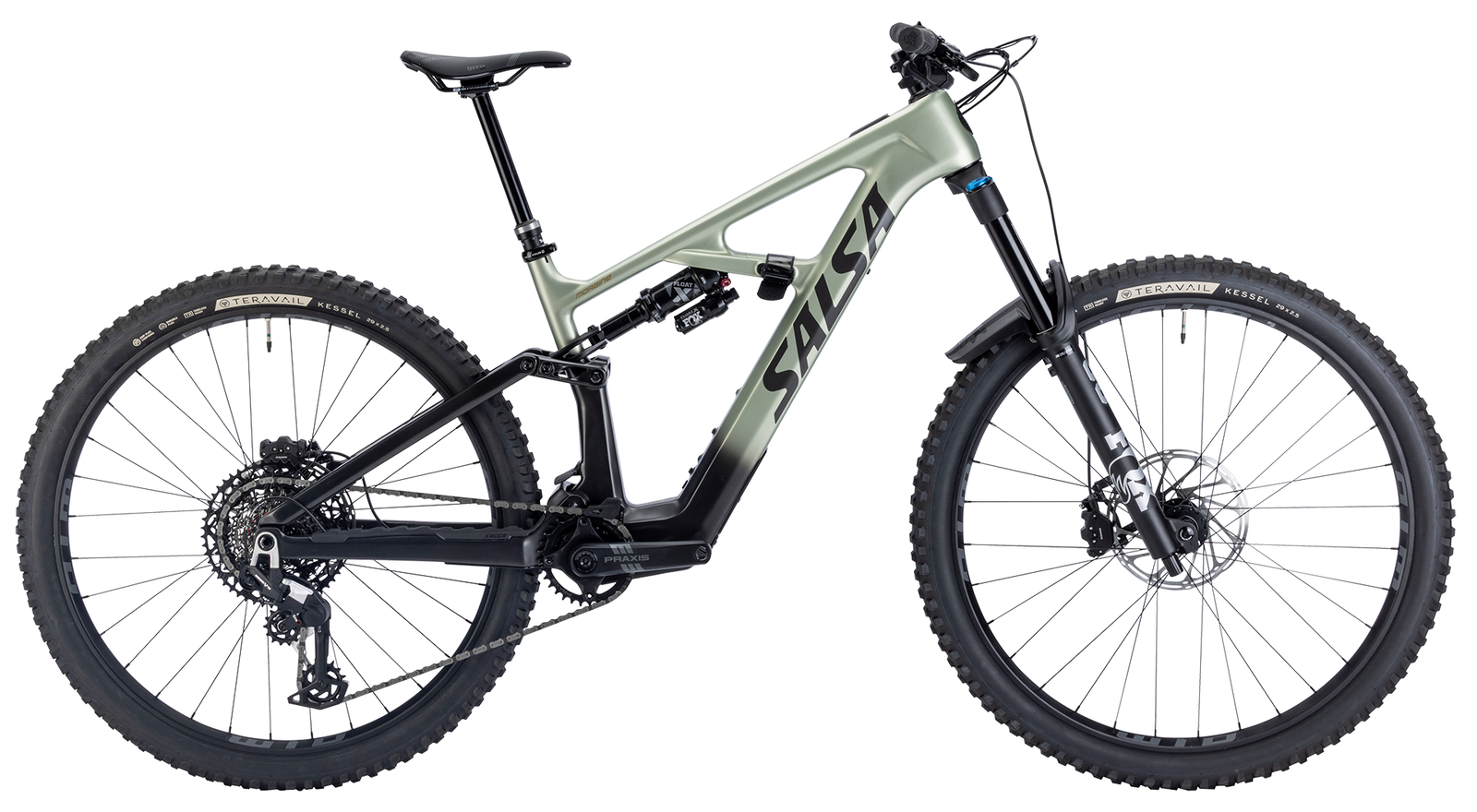

Salsa Moraine C 2026
EMTB Forums verdict

The Salsa Moraine C is a light-assist carbon all-mountain eMTB built around the Fazua Ride 60 drive unit, giving 60Nm of torque, a 450W peak (with Boost) and a 480Wh internal battery. With 160mm of fork travel and 145mm at the rear through Salsa's Split Pivot linkage, plus a 63.9 degree head angle and a 77.4 degree effective seat angle, it sits at the trail-to-all-mountain end of the lightweight category rather than the full-power enduro end.

Two carbon builds are offered. The Eagle 90 Transmission pairs a Fox 36 Performance Series fork and Float X Performance shock with SRAM's mechanical Eagle 90 Transmission, Maven Base brakes on 200mm rotors and aluminium WTB KOM Tough rims, at a claimed 46lb 4oz (about 21kg). The X0 Transmission steps up to a Fox 36 Performance Elite fork with GRIP X2, wireless SRAM X0 AXS Transmission, Maven Silver Stealth brakes and WTB CZR carbon rims, shedding around a kilo to a claimed 44lb 3oz. The price gap is wide, so the Eagle 90 is the value pick unless the carbon wheels, electronic shifting and higher-end damper are priorities.

A flip chip lets riders switch between a High and Low geometry position and accommodate mixed wheel and tyre setups, with reach moving by a few millimetres and the head angle shifting between 63.9 and 63.6 degrees. Chainstays stay consistent at roughly 435mm and the wheelbase grows steadily from 1225mm on the Small to 1298mm on the X-Large. On-bike storage and frame protection round out a platform aimed at long, varied days rather than outright power.

Geometry · hover a row to highlight the measurement on the bike

Bike geometry diagram
SMLXL
Reach453 mm473 mm494 mm513 mm
Stack613.6 mm622.6 mm631.6 mm640.5 mm
Seattube405 mm430 mm455 mm480 mm
Chainstay435.3 mm435.3 mm435.3 mm435.3 mm
Headtube Angle63.9°63.9°63.9°63.9°
Seattube Angle (eff)77.4°77.4°77.4°77.4°
Wheelbase1225 mm1249.4 mm1274.8 mm1298.2 mm
Headtube100 mm110 mm120 mm130 mm
BB Height351 mm351 mm351 mm351 mm
Standover754 mm754 mm754 mm754 mm
Front Centre789.7 mm*814.1 mm*839.5 mm*862.9 mm*

Trims · 2

Eagle 90 Transmission
X0 Transmission
MotorFazua Ride 60 · 60 Nm · all trims
BatteryFazua Energy 480 · 480 Wh · all trims
Travel F/R160/145 mm · all trims
FrameCarbon · all trims
ForkFox 36 Performance Series, GRIP 3-position, 160mmFox 36 Performance Elite, GRIP X2, 160mm
ShockFox Float X Performance Series, 3-position, 210 x 55mmFox Float X Performance Elite, 2-position, 210 x 55mm
HeadsetFSA Orbit 1.5E ZS NO.57E · all trims
StemSalsa Guide Trail, 35.0TranzX alloy
HandlebarRace Face Chester, 35.0mm clamp, 780mm wide, SM-MD: 20mm rise; LG-XL: 35mm riseSalsa Guide 35.0 Carbon
GripsWTB Wavelength Lock-On · all trims
SaddleWTB Solano, Medium, Steel SL, Fusion Form · all trims
SeatpostTranzX REVERSE YSI35 RAD+, travel adjustable, SM: 160mm; MD: 180mm; LG-XL: 210mmTranzX REVERSE, SM: 160mm; MD: 180mm; LG-XL: 210mm
BrakesSRAM Maven Base (levers and calipers)SRAM Maven Silver Stealth (levers and calipers)
Rear derailleurSRAM Eagle 90 TransmissionSRAM X0 Eagle Transmission
CrankPraxis TYPE6 ETOR Crank Arms w/ eSpider and Fazua 32t NW 104 BCD eRingPraxis TYPE6 ETOR Carbon Crank Arm w/ eSpider and SRAM 32t 104 BCD T-Type chainring
ShiftersSRAM Eagle 90 TransmissionSRAM AXS Pod Controller, right w/ MatchMaker X Clamp
CassetteSRAM XS-1270, 10-52t, 12-speedSRAM X0 Eagle Transmission, 10-52t, 12-speed
ChainSRAM X0 Eagle Transmission Flattop · all trims
DrivetrainSRAM Eagle 90 Transmission; Praxis TYPE6 ETOR Crank Arms w/ eSpider and Fazua 32t NW 104 BCD eRing; SRAM Eagle 90 Transmission; SRAM XS-1270, 10-52t, 12-speed; SRAM X0 Eagle Transmission FlattopSRAM X0 Eagle Transmission; Praxis TYPE6 ETOR Carbon Crank Arm w/ eSpider and SRAM 32t 104 BCD T-Type chainring; SRAM AXS Pod Controller, right w/ MatchMaker X Clamp; SRAM X0 Eagle Transmission, 10-52t, 12-speed; SRAM X0 Eagle Transmission Flattop
WheelsWTB KOM Tough i30 TCS, 32h, 29"WTB CZR carbon, i30, 28h, 29"
TyresTeravail Kessel 29 x 2.5", 120 TPI Durable Plus casing, Grip Plus compound (front and rear) · all trims
Weight20.98 kg20.04 kg
