Rotwild

R.X735 2024

Discontinued✎Full Power · TrailLegacy · 1.6/10iFreshness 1.6/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Shimano EP801 · 85Nm · 600W↗

Battery

Rotwild IPU735 720 · 720Wh

Travel F/R

150/144mm

Wheels

29F / 29R✎

Frame

Carbon front, aluminium rear✎

Weight

21.2 kg

Price

From €8,490

View the Rotwild R.X735 on Rotwild’s site

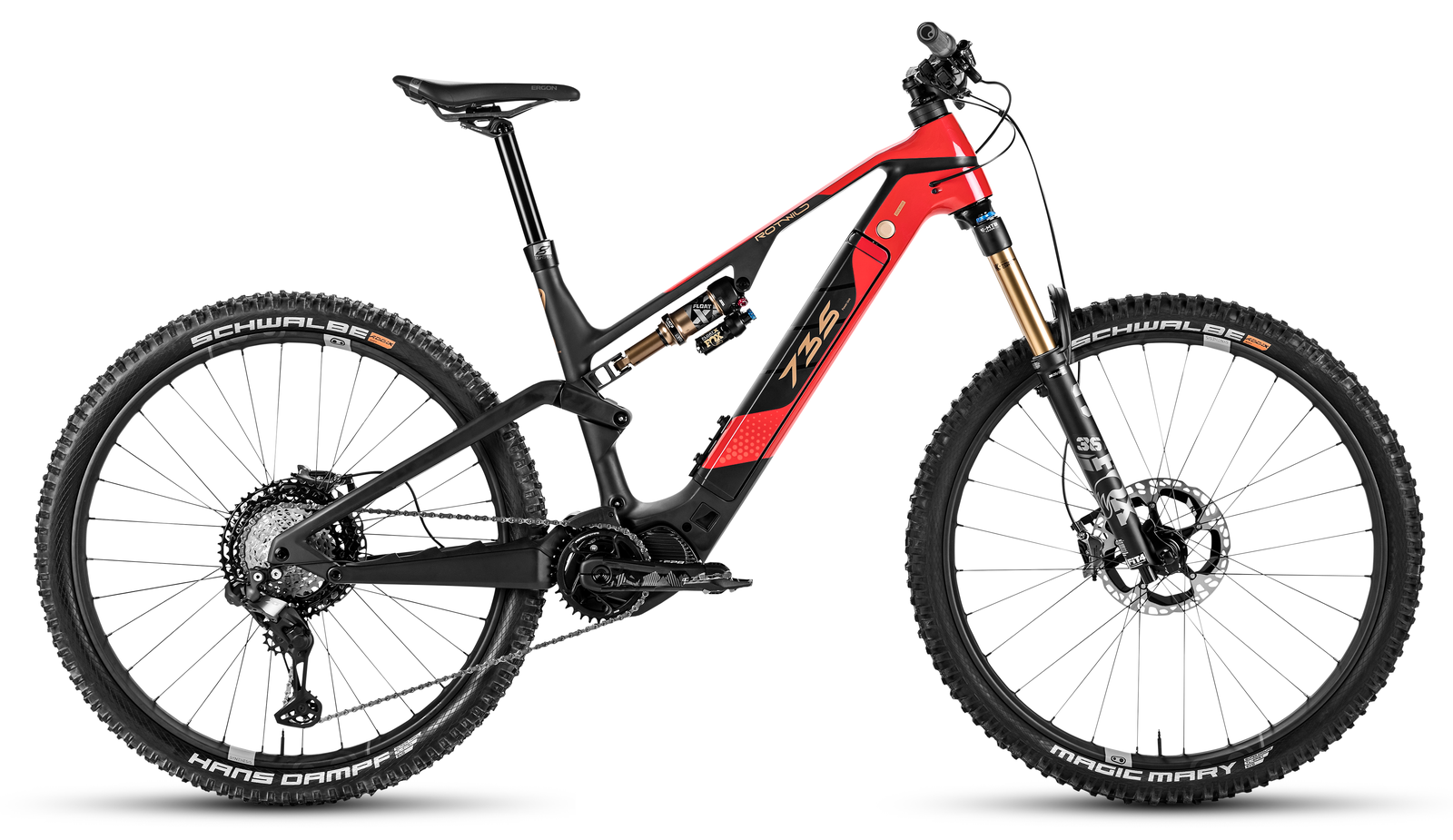

Rotwild R.X735 2024

The 2024 Rotwild R.X735 was the German brand's versatile All Mountain full-power eMTB, built on the handmade high-modulus carbon IPU735 platform with 150mm of fork travel and 144mm at the rear on 29in wheels. It paired a Shimano EP801 motor (85Nm, 600W) with a quick-release 720Wh ROTWILD IPU735 carbon-cased battery, yet kept weight remarkably low for a big-battery full-power bike at around 21.2kg for the ULTRA.Geometry is more all-rounder than outright enduro bruiser: a 67 degree head angle, 75 degree seat angle, a consistent 450mm chainstay and a low 345mm bottom bracket, with reach growing from 430mm on the S to 500mm on the XL across four sizes. The wheelbase stays compact (1,200mm to 1,282mm), which Rotwild positioned as a bike that climbs efficiently yet stays composed on technical descents rather than a slack gravity sled.The 2024 range ran three carbon trims off one frame. The CORE used a Fox 36 Performance fork, mechanical Shimano XT 8100, Magura MT5 brakes and Crankbrothers Synthesis Enduro wheels; the PRO stepped up to a Fox 36 Performance Elite, Shimano XT Di2 electronic shifting and XT 8120 brakes; and the flagship ULTRA ran Fox Factory Kashima suspension, XT Di2 with an XTR cassette, Shimano XTR brakes and a full carbon e*thirteen Race Carbon cockpit on Crankbrothers Synthesis Enduro I9 wheels. All three shared the EP801 motor, the EM800 display, an 8Pins integrated dropper and Schwalbe Magic Mary / Hans Dampf tyres.This generation has since been discontinued and superseded by the current R.X735, with Rotwild clearing the original 2024 stock at reduced prices. Prices listed here are the original 2024 EUR RRP. Rotwild is a German brand with no native GBP pricing, so price_gbp is left null per the no-FX-convert rule.

EMTB Forums verdict

The 2024 Rotwild R.X735 was the German brand's versatile All Mountain full-power eMTB, built on the handmade high-modulus carbon IPU735 platform with 150mm of fork travel and 144mm at the rear on 29in wheels. It paired a Shimano EP801 motor (85Nm, 600W) with a quick-release 720Wh ROTWILD IPU735 carbon-cased battery, yet kept weight remarkably low for a big-battery full-power bike at around 21.2kg for the ULTRA.

Geometry is more all-rounder than outright enduro bruiser: a 67 degree head angle, 75 degree seat angle, a consistent 450mm chainstay and a low 345mm bottom bracket, with reach growing from 430mm on the S to 500mm on the XL across four sizes. The wheelbase stays compact (1,200mm to 1,282mm), which Rotwild positioned as a bike that climbs efficiently yet stays composed on technical descents rather than a slack gravity sled.

The 2024 range ran three carbon trims off one frame. The CORE used a Fox 36 Performance fork, mechanical Shimano XT 8100, Magura MT5 brakes and Crankbrothers Synthesis Enduro wheels; the PRO stepped up to a Fox 36 Performance Elite, Shimano XT Di2 electronic shifting and XT 8120 brakes; and the flagship ULTRA ran Fox Factory Kashima suspension, XT Di2 with an XTR cassette, Shimano XTR brakes and a full carbon e*thirteen Race Carbon cockpit on Crankbrothers Synthesis Enduro I9 wheels. All three shared the EP801 motor, the EM800 display, an 8Pins integrated dropper and Schwalbe Magic Mary / Hans Dampf tyres.

This generation has since been discontinued and superseded by the current R.X735, with Rotwild clearing the original 2024 stock at reduced prices. Prices listed here are the original 2024 EUR RRP. Rotwild is a German brand with no native GBP pricing, so price_gbp is left null per the no-FX-convert rule.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (67° head angle, 144mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

Short 450mm rear and a lighter build — easy to pop, manual and throw around.

Size balance

Rear-long with a planted front in L (FC:RC 1.78) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Shimano EP801 and a steep 75° seat angle keep the weight planted over the front — a proper winch. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toPlayful trail riding — jumps, pumps and tight, techy singletrack.

Easy to throw around; happiest when you're active on the bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Trail bikes (from 246 bikes in the database)

Weight21.2 kg1.8 kg lighter than average

Battery720 Whabout average capacity

Motor torque85 Nm13 Nm below average

⚙️ Adjustable geometry: this frame has a high/low setting — low drops the BB and slackens the head angle for more descending stability; high lifts the BB and steepens slightly for clearance and a perkier, more playful feel.

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	430 mm	450 mm	475 mm	500 mm
Stack	625 mm	625 mm	643 mm	652 mm
Seattube	410 mm	440 mm	470 mm	506 mm
Chainstay	450 mm	450 mm	450 mm	450 mm
Headtube Angle	67°	67°	67°	67°
Seattube Angle (eff)	75°	75°	75°	75°
Wheelbase	1200 mm	1219 mm	1253 mm	1282 mm
Headtube	110 mm	110 mm	130 mm	140 mm
BB Height	345 mm	345 mm	345 mm	345 mm
Standover	729 mm	729 mm	729 mm	729 mm
Front Centre	750 mm*	769 mm*	803 mm*	832 mm*
FC:RC	1.67	1.71	1.78	1.85

Trims · 3

	CORE €8,490	PRO €9,990	ULTRA €11,990
Motor	Shimano EP801 · 85 Nm · all trims
Battery	Rotwild IPU735 720 · 720 Wh · all trims
Travel F/R	150/144 mm · all trims
Frame	Carbon (full carbon, high-modulus carbon fibre, handmade; carbon linkage and shock yoke with weight-optimised aluminium yoke) · all trims
Fork	FOX 36 Float Performance, 150mm, E-tuned (air)	FOX 36 Float Performance Elite, 150mm, Fit4, 3-Position Micro Adjust, E-tuned (air)	FOX 36 Float Factory Kashima, 150mm (air)
Shock	FOX Float X Performance, 210 x 52.5mm, 3-Position adjust	FOX Float X Performance, 210 x 52.5mm, 3-Position adjust	FOX Float X Factory Kashima, 210 x 52.5mm
Headset	ACROS RW735 1.5 · all trims
Stem	e*thirteen Plus	e*thirteen Plus, 35mm clamp, 50mm, AL7050 I.C.R.	e*thirteen Plus
Handlebar	e*thirteen Plus alloy bar	e*thirteen Plus, 35mm clamp, 20mm rise, 780mm width, AL7050 I.C.R	e*thirteen Race Carbon
Grips	ERGON GD10	ERGON GD10 Slim Factory Frozen	ERGON GD10
Saddle	ERGON SM SPORT	ERGON SM Comp	ERGON SM30 PRO (also listed ERGON SM Pro)
Seatpost	8PINS H01 integrated dropper, 34.9mm, 25mm offset (size-specific travel)	8PINS H01 integrated dropper, 34.9mm, 25mm offset, 145mm (S) / 160mm (M) / 180mm (L) / 200mm (XL)	8PINS NGS 2 integrated dropper
Brakes	Magura MT5 (HC-W) 4-piston hydraulic disc, Magura MDR-P rotors front and rear (front rotor 203mm)	Shimano XT 8120 4-piston hydraulic disc with Fin pads; front rotor SHIMANO RT-MT800 ICE 203mm, rear rotor SHIMANO RT-EM810 ICE 203mm	Shimano XTR 9120 4-piston hydraulic disc; front rotor SHIMANO RT-MT900 (203mm), rear rotor SHIMANO RT-MT910
Rear derailleur	Shimano XT 8100 (mechanical)	Shimano XT Di2 8150 SGS HYPERGLIDE+ (electronic)	Shimano XT Di2 8150 SGS HYPERGLIDE+ (electronic)
Crank	Crankset ethirteen Plus; ethirteen Direct Mount Chainring 34T; e*thirteen TRS chain guide	Crankset ethirteen Plus, 160mm (S) / 165mm (M, L) / 170mm (XL); ethirteen Direct Mount Chainring 34T; e*thirteen TRS chain guide	Crankset ethirteen Race Carbon; ethirteen Direct Mount Chainring; e*thirteen TRS chain guide
Shifters	Shimano XT 8100	Shimano XT Di2 8150	Shimano XT Di2 8150
Cassette	Shimano CS 6100 (Deore XT-level, 12-speed)	Shimano CS 7100 (SLX-level, 12-speed)	Shimano XTR 9100 (12-speed)
Chain	Shimano HG 7100 · all trims
Drivetrain	Shimano XT 8100 (mechanical); Crankset ethirteen Plus; ethirteen Direct Mount Chainring 34T; e*thirteen TRS chain guide; Shimano XT 8100; Shimano CS 6100 (Deore XT-level, 12-speed); Shimano HG 7100	Shimano XT Di2 8150 SGS HYPERGLIDE+ (electronic); Crankset ethirteen Plus, 160mm (S) / 165mm (M, L) / 170mm (XL); ethirteen Direct Mount Chainring 34T; e*thirteen TRS chain guide; Shimano XT Di2 8150; Shimano CS 7100 (SLX-level, 12-speed); Shimano HG 7100	Shimano XT Di2 8150 SGS HYPERGLIDE+ (electronic); Crankset ethirteen Race Carbon; ethirteen Direct Mount Chainring; e*thirteen TRS chain guide; Shimano XT Di2 8150; Shimano XTR 9100 (12-speed); Shimano HG 7100
Wheels	CRANKBROTHERS Synthesis Enduro wheelset	CRANKBROTHERS Synthesis Enduro I9 wheelset (31.5/29.5mm, 110-15/148-12 TAS, Centerlock)	CRANKBROTHERS Synthesis Enduro I9 wheelset
Tyres	SCHWALBE Magic Mary (front) / Hans Dampf (rear), 29in (29x2.40 F / 29x2.35 R class, knobby MTB tyres)	SCHWALBE Magic Mary / Hans Dampf EVO Super Ground / Trail TLE Soft, 29 x 2.40 (front) / 29 x 2.35 (rear)	SCHWALBE Magic Mary (front) / Hans Dampf (rear), 29in knobby MTB tyres
Weight	22.8 kg	21.8 kg	21.2 kg
Price	€8,490	€9,990	€11,990
