R.X375 2026
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

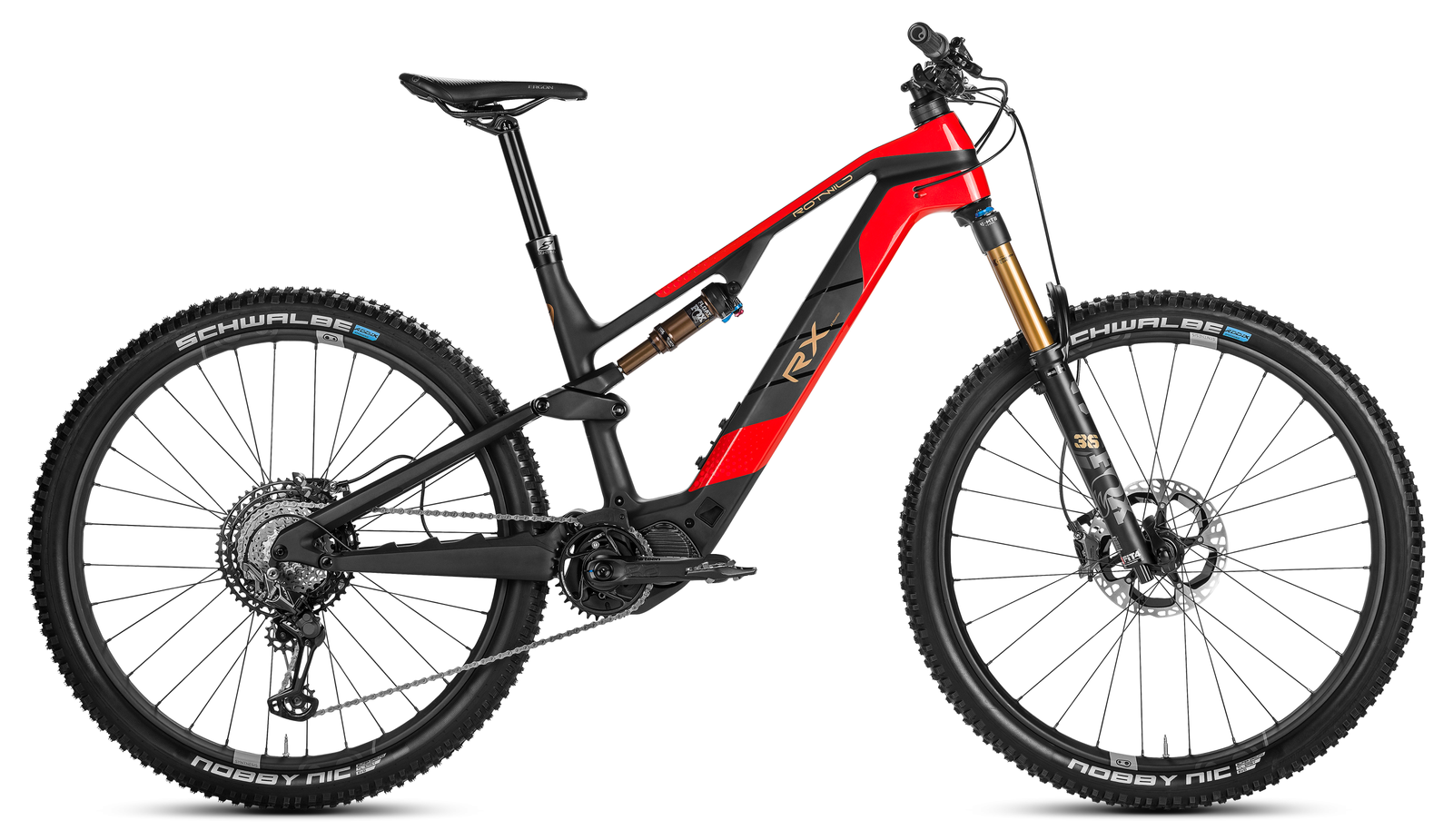

The Rotwild R.X375 is a lightweight all-mountain eMTB built around a handmade high-modulus carbon frame, a Shimano EP8 motor (85 Nm) and the brand's compact 360 Wh IPU375 carbon battery. With 150 mm of fork travel, 140 mm at the rear and claimed weights from 19.1 to 19.8 kg, it sits firmly in the light-assist trail category rather than chasing full-power range.
Three builds share the same frame, motor, battery and geometry, so the choice is purely about kit. The Core (EUR 6,490) pairs a FOX 36 Performance fork with Magura MT5 brakes and Shimano XT shifting on alloy-rim Crankbrothers wheels. The Pro (EUR 7,490) upgrades to a FOX 36 Performance Elite fork and full Shimano XT brakes with I9 hubs. The Ultra (EUR 8,990) tops the range with FOX Factory Kashima suspension, Shimano XTR throughout, carbon Crankbrothers wheels and a carbon bar, which accounts for its lower claimed weight.
Geometry is consistent and middle-of-the-road for the segment, with a 66.5 degree head angle, a 75.5 degree effective seat angle and 450 mm chainstays across all four sizes. Reach runs from 430 mm on the S to 500 mm on the XL on a full 29in wheel setup. The figures point to a balanced, agile trail bike rather than an aggressive enduro machine, in line with Rotwild's "Trail King" positioning.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Stack | 618 mm | 620 mm | 636 mm | 645 mm |
| Seattube | 410 mm | 440 mm | 470 mm | 506 mm |
| Chainstay | 450 mm | 450 mm | 450 mm | 450 mm |
| Headtube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Seattube Angle (eff) | 75.5° | 75.5° | 75.5° | 75.5° |
| Wheelbase | 1184 mm | 1205 mm | 1237 mm | 1266 mm |
| Headtube | 110 mm | 110 mm | 130 mm | 140 mm |
| BB Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Standover | 730 mm | 730 mm | 730 mm | 730 mm |
| Front Centre | 734 mm* | 755 mm* | 787 mm* | 816 mm* |
Trims · 3
Core | Pro | Ultra | |
|---|---|---|---|
| Motor | Shimano EP8 (DU-EP800) · 85 Nm · all trims | ||
| Battery | Rotwild IPU375 · 360 Wh · all trims | ||
| Travel F/R | 150/140 mm · all trims | ||
| Frame | Carbon · all trims | ||
| Fork | FOX 36 Float Performance, 150 mm, Fit Grip 3-POS Micro Adjust, E-Tuned | FOX 36 Float Performance Elite, 150 mm, Fit4, 3-Pos Adjust | FOX 36 Float Factory Kashima, 150 mm, Fit4, 3-Pos Adjust |
| Shock | FOX Float DPS Performance, 210 x 50 mm, 3-POS | FOX Float DPS Performance, 210 x 50 mm, 3-POS | FOX Float DPS Factory Kashima, 210 x 50 mm, 3-Pos Adjust |
| Headset | ACROS RW375 1.5 · all trims | ||
| Stem | e*thirteen Plus 35, 50 mm Length, AL7050 · all trims | ||
| Handlebar | e*thirteen Plus, 35 mm, 20 mm Rise, 780 mm Width, AL7050 | e*thirteen Plus, 35 mm, 20 mm Rise, 780 mm Width, AL7050 | e*thirteen Race Carbon, 35 mm, 20 mm Rise, 780 mm Width, Carbon |
| Grips | ERGON GD10 Slim Factory Frozen · all trims | ||
| Saddle | ERGON SM10 Stealth | ERGON SM Pro | ERGON SM Pro |
| Seatpost | 8PINS H01, 34.9 mm, 25 mm Offset, 145 mm (S) / 160 mm (M) / 180 mm (L) / 200 mm (XL) | 8PINS H01, 34.9 mm, 25 mm Offset, 145 mm (S) / 160 mm (M) / 180 mm (L) / 200 mm (XL) | 8PINS NGS 2, 34.9 mm, 25 mm Offset, 170 mm (S) / 190 mm (M) / 210 mm (L) / 230 mm (XL) |
| Brakes | MAGURA MT5 HC-W (front), MAGURA MT5 HC-W Shiftmix (rear) | SHIMANO XT 8120 Fin Pad (front and rear) | SHIMANO XTR 9120 Fin Pad (front and rear) |
| Rear derailleur | SHIMANO XT 8100, 12-Speed, SGS, Hyperglide+ | SHIMANO XT 8100, 12-Speed, SGS, Hyperglide+ | SHIMANO XTR 9100 SGS, 12-Speed, Hyperglide+ |
| Crank | e*thirteen Plus, 160 mm (S) / 165 mm (M, L) / 170 mm (XL), 34T direct mount chainring, e*thirteen TRS chain guide | e*thirteen Plus, 160 mm (S) / 165 mm (M, L) / 170 mm (XL), 34T direct mount chainring, e*thirteen TRS chain guide | e*thirteen Race Carbon, 165 mm (S, M, L) / 170 mm (XL), 34T direct mount chainring, e*thirteen TRS chain guide |
| Shifters | SHIMANO XT 8100, I-Spec EV | SHIMANO XT 8100, I-Spec EV | SHIMANO XTR 9100, I-Spec EV |
| Cassette | SHIMANO CS 6100, 10-51 T., 12-Speed | SHIMANO CS 7100, 10-51 T., 12-Speed | SHIMANO CS 9100, 10-51 T., 12-Speed |
| Chain | SHIMANO HG 7100, 12-Speed · all trims | ||
| Drivetrain | SHIMANO XT 8100, 12-Speed, SGS, Hyperglide+; e*thirteen Plus, 160 mm (S) / 165 mm (M, L) / 170 mm (XL), 34T direct mount chainring, e*thirteen TRS chain guide; SHIMANO XT 8100, I-Spec EV; SHIMANO CS 6100, 10-51 T., 12-Speed; SHIMANO HG 7100, 12-Speed | SHIMANO XT 8100, 12-Speed, SGS, Hyperglide+; e*thirteen Plus, 160 mm (S) / 165 mm (M, L) / 170 mm (XL), 34T direct mount chainring, e*thirteen TRS chain guide; SHIMANO XT 8100, I-Spec EV; SHIMANO CS 7100, 10-51 T., 12-Speed; SHIMANO HG 7100, 12-Speed | SHIMANO XTR 9100 SGS, 12-Speed, Hyperglide+; e*thirteen Race Carbon, 165 mm (S, M, L) / 170 mm (XL), 34T direct mount chainring, e*thirteen TRS chain guide; SHIMANO XTR 9100, I-Spec EV; SHIMANO CS 9100, 10-51 T., 12-Speed; SHIMANO HG 7100, 12-Speed |
| Wheels | CRANKBROTHERS Synthesis Enduro, 31.5 mm front / 29.5 mm rear, 6-Bolt | CRANKBROTHERS Synthesis Enduro I9, 31.5 mm front / 29.5 mm rear, Centerlock | CRANKBROTHERS Synthesis Enduro I9 Carbon, 31.5 mm front / 29.5 mm rear, Centerlock |
| Tyres | SCHWALBE Nobby Nic Evo, Super Ground, Soft (front) / Speedgrip (rear), TLE, 29x2.4 · all trims | ||
| Weight | 19.8 kg | 19.5 kg | 19.1 kg |
