R.X375 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

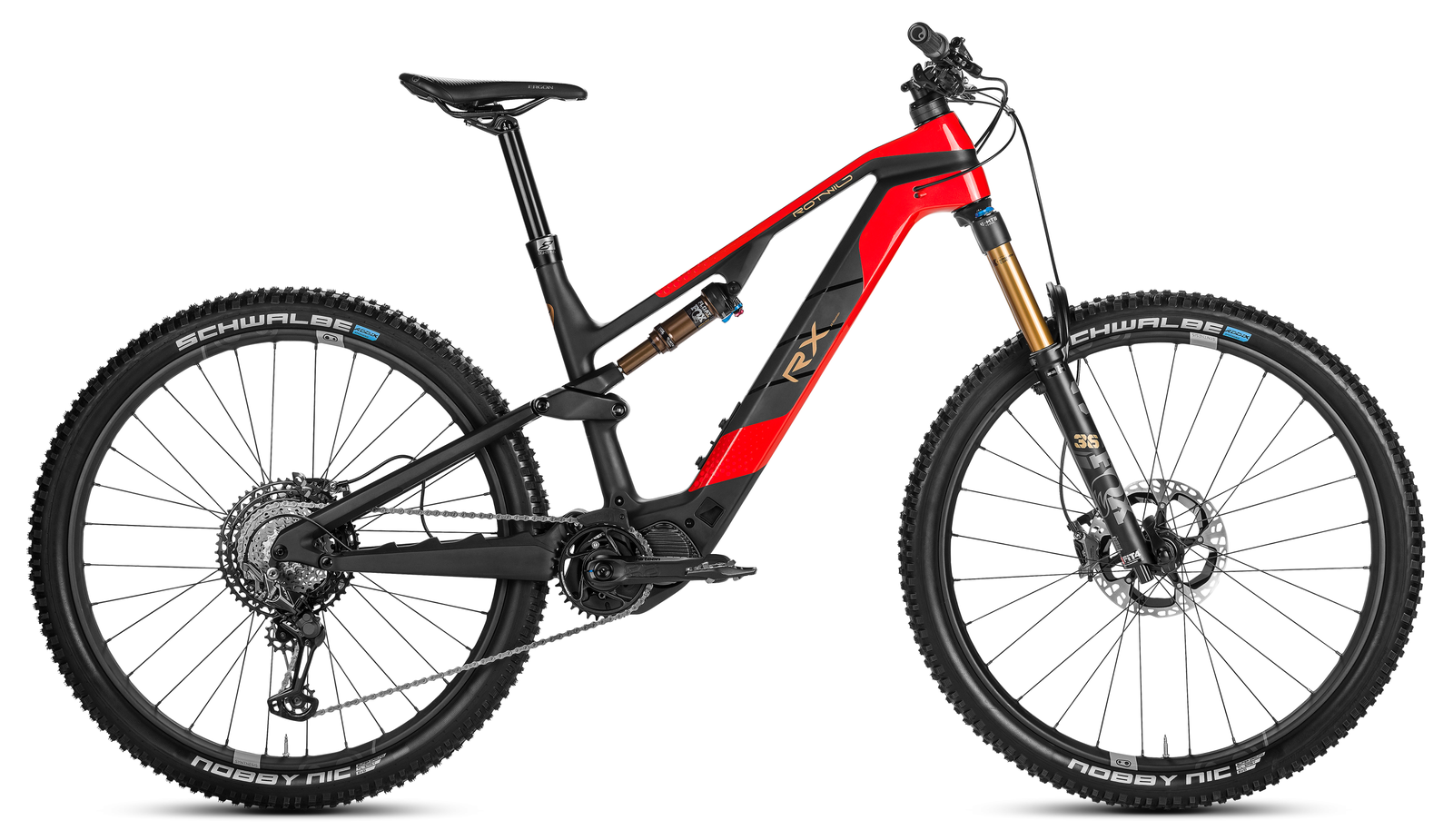

The Rotwild R.X375 is a deliberately lightweight, full-carbon trail eMTB that pairs a 150/140 mm 29er chassis with a compact 360 Wh IPU375 battery and a Shimano EP8 motor rated at 85 Nm. Claimed weights from 19.1 to 19.8 kg are notably low for a full-power machine, and Rotwild positions it for riders who want an analogue-feeling bike with assistance held in reserve for an extra lap rather than all-day range.
The geometry is moderate by current standards: a 66.5 degree head angle, 75.5 degree effective seat angle and a fixed 450 mm chainstay across all four sizes, with reach growing from 430 mm (S) to 500 mm (XL). The 345 mm BB height and 1184 to 1266 mm wheelbase point to an agile, playful character rather than an outright descender, in keeping with the small-battery, low-weight brief.
All three trims share the same frame, motor and battery, so the choice is purely about parts. Core gets a FOX Performance fork, Magura MT5 brakes and Shimano XT shifting at 6,490 euro. Pro steps up to a Performance Elite fork and full Shimano XT brakes for 7,490 euro. Ultra at 8,990 euro adds FOX Factory Kashima suspension, XTR drivetrain and brakes, e*thirteen Race Carbon cranks and bar, and a longer-drop 8PINS NGS 2 dropper. The Pro looks the value pick, with the Ultra reserved for those wanting the Factory suspension and carbon finishing kit.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Stack | 618 mm | 620 mm | 636 mm | 645 mm |
| Seattube | 410 mm | 440 mm | 470 mm | 506 mm |
| Chainstay | 450 mm | 450 mm | 450 mm | 450 mm |
| Headtube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Seattube Angle (eff) | 75.5° | 75.5° | 75.5° | 75.5° |
| Wheelbase | 1184 mm | 1205 mm | 1237 mm | 1266 mm |
| Headtube | 110 mm | 110 mm | 130 mm | 140 mm |
| BB Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Standover | 730 mm | 730 mm | 730 mm | 730 mm |
| Front Centre | 734 mm* | 755 mm* | 787 mm* | 816 mm* |
Trims · 3
Core | Pro | Ultra | |
|---|---|---|---|
| Motor | Shimano EP8 (DU-EP800) · 85 Nm · all trims | ||
| Battery | Rotwild IPU375 · 360 Wh · all trims | ||
| Travel F/R | 150/140 mm · all trims | ||
| Frame | Carbon · all trims | ||
| Fork | FOX 36 Float Performance / 150 mm / Fit Grip 3-POS Micro Adjust / E-Tuned | FOX 36 Float Performance Elite / 150 mm / Fit4 / 3-Pos Adjust | FOX 36 Float Factory Kashima / 150 mm / Fit4 / 3-Pos Adjust |
| Shock | FOX Float DPS Performance / 210 x 50 mm / 3-POS | FOX Float DPS Performance / 210 x 50 mm / 3-POS | FOX Float DPS Factory Kashima / 210 x 50 mm / 3-Pos Adjust |
| Headset | ACROS RW375 1.5 · all trims | ||
| Stem | e*thirteen Plus 35 / 50 mm / AL7050 · all trims | ||
| Handlebar | e*thirteen Plus / 35 mm / 20 mm rise / 780 mm / AL7050 | e*thirteen Plus / 35 mm / 20 mm rise / 780 mm / AL7050 | e*thirteen Race Carbon / 35 mm / 20 mm rise / 780 mm / Carbon |
| Grips | ERGON GD10 Slim Factory Frozen · all trims | ||
| Saddle | ERGON SM10 Stealth | ERGON SM Pro | ERGON SM Pro |
| Seatpost | 8PINS H01 / 34.9 mm / 25 mm offset / 145 mm (S) / 160 mm (M) / 180 mm (L) / 200 mm (XL) | 8PINS H01 / 34.9 mm / 25 mm offset / 145 mm (S) / 160 mm (M) / 180 mm (L) / 200 mm (XL) | 8PINS NGS 2 / 34.9 mm / 25 mm offset / 170 mm (S) / 190 mm (M) / 210 mm (L) / 230 mm (XL) |
| Brakes | MAGURA MT5 HC-W (front), MAGURA MT5 HC-W Shiftmix (rear) | Shimano XT 8120 Fin Pad (front and rear) | Shimano XTR 9120 Fin Pad (front and rear) |
| Rear derailleur | Shimano XT 8100 / 12-Speed / SGS / Hyperglide+ | Shimano XT 8100 / 12-Speed / SGS / Hyperglide+ | Shimano XTR 9100 SGS / 12-Speed / Hyperglide+ |
| Crank | e*thirteen Plus / 160 mm (S) / 165 mm (M, L) / 170 mm (XL) / 34T direct-mount chainring / e*thirteen TRS chain guide | e*thirteen Plus / 160 mm (S) / 165 mm (M, L) / 170 mm (XL) / 34T direct-mount chainring / e*thirteen TRS chain guide | e*thirteen Race Carbon / 165 mm (S, M, L) / 170 mm (XL) / 34T direct-mount chainring / e*thirteen TRS chain guide |
| Shifters | Shimano XT 8100 / I-Spec EV | Shimano XT 8100 / I-Spec EV | Shimano XTR 9100 / I-Spec EV |
| Cassette | Shimano CS 6100 / 10-51 T / 12-Speed | Shimano CS 7100 / 10-51 T / 12-Speed | Shimano CS 9100 / 10-51 T / 12-Speed |
| Chain | Shimano HG 7100 / 12-Speed · all trims | ||
| Drivetrain | Shimano XT 8100 / 12-Speed / SGS / Hyperglide+; e*thirteen Plus / 160 mm (S) / 165 mm (M, L) / 170 mm (XL) / 34T direct-mount chainring / e*thirteen TRS chain guide; Shimano XT 8100 / I-Spec EV; Shimano CS 6100 / 10-51 T / 12-Speed; Shimano HG 7100 / 12-Speed | Shimano XT 8100 / 12-Speed / SGS / Hyperglide+; e*thirteen Plus / 160 mm (S) / 165 mm (M, L) / 170 mm (XL) / 34T direct-mount chainring / e*thirteen TRS chain guide; Shimano XT 8100 / I-Spec EV; Shimano CS 7100 / 10-51 T / 12-Speed; Shimano HG 7100 / 12-Speed | Shimano XTR 9100 SGS / 12-Speed / Hyperglide+; e*thirteen Race Carbon / 165 mm (S, M, L) / 170 mm (XL) / 34T direct-mount chainring / e*thirteen TRS chain guide; Shimano XTR 9100 / I-Spec EV; Shimano CS 9100 / 10-51 T / 12-Speed; Shimano HG 7100 / 12-Speed |
| Wheels | CRANKBROTHERS Synthesis Enduro / 31.5 mm front, 29.5 mm rear / 6-Bolt | CRANKBROTHERS Synthesis Enduro I9 / 31.5 mm front, 29.5 mm rear / Centerlock | CRANKBROTHERS Synthesis Enduro I9 Carbon / 29" / 31.5 mm front, 29.5 mm rear / Centerlock |
| Tyres | Schwalbe Nobby Nic Evo Super Ground Soft TLE 29x2.4 (front), Super Ground Speedgrip TLE 29x2.4 (rear) · all trims | ||
| Weight | 19.8 kg | 19.5 kg | 19.1 kg |
