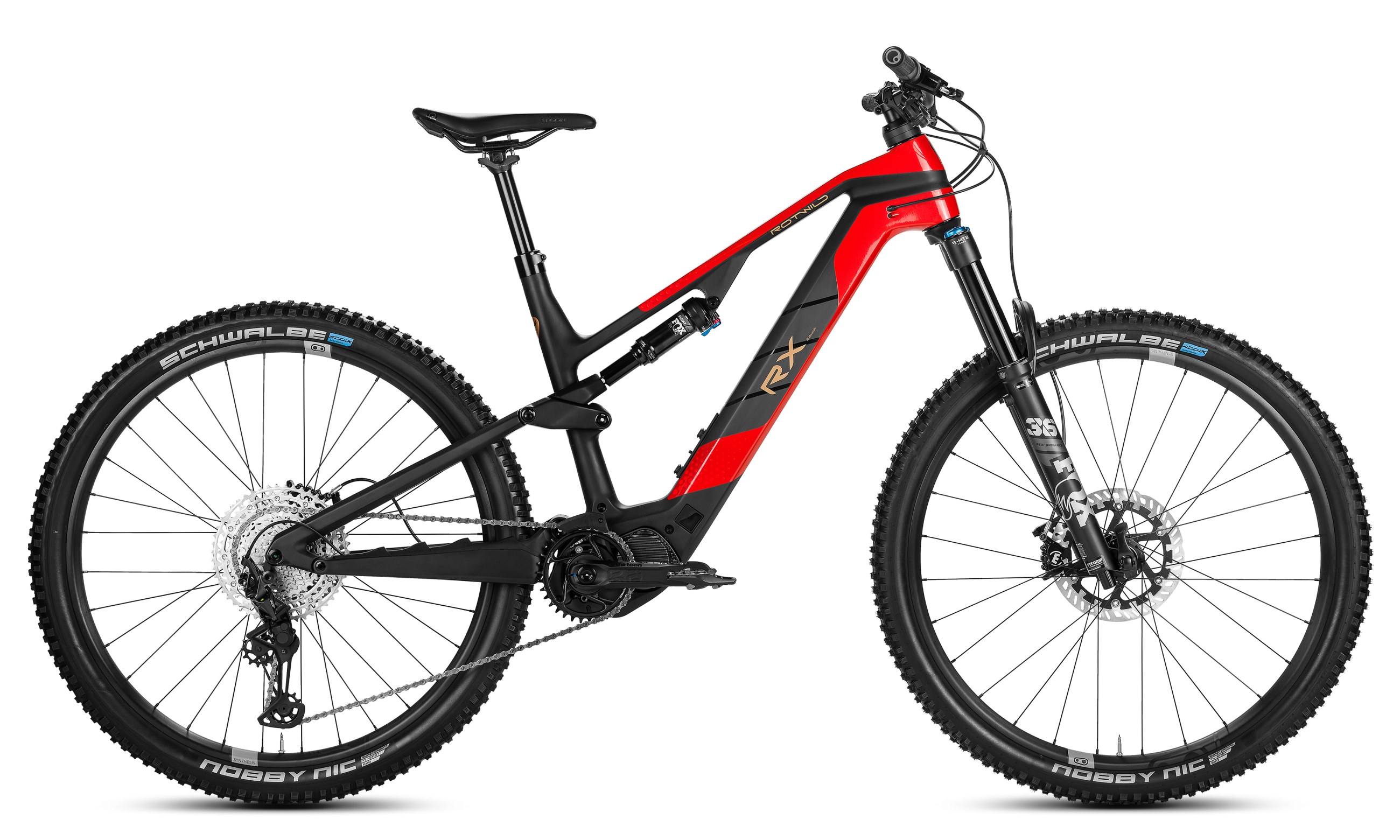

Rotwild

R.X375 2022

Discontinued✎Full Power · TrailLegacy · 0.4/10iFreshness 0.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Trim carbon all-mountain bike with a small battery and light feel

Motor

Shimano EP8 (DU-EP800) · 85Nm · 500W↗

Battery

Rotwild IPU375 375 · 375Wh

Travel F/R

150/140mm

Wheels

29F / 29R✎

Frame

Full carbon✎

Weight

—

Price

From €7,499

View the Rotwild R.X375 on Rotwild’s site

Rotwild R.X375 2022

The Rotwild R.X375 was the German brand's lightweight all-mountain eMTB for 2022, built around a handmade high-modulus carbon frame, a Shimano EP8 motor and a compact 375 Wh IPU375 carbon battery. Rotwild pitched it as the king of the trail: 150 mm of fork travel and 140 mm out back on 29in wheels, with a low weight and lively handling aimed at riders who want an analogue mountain bike feel with just a bit of assistance.Geometry is modern-trail rather than radical, with a 66.5 degree head angle, 75.5 degree effective seat angle, a consistent 450 mm chainstay and reach spanning 430 to 500 mm across S to XL. The quick-release carbon battery drops out tool-free for easy charging or swapping.Three trims covered a wide spread: the Core (7,499 EUR) on FOX Performance suspension with Magura MT5 brakes, the Pro (8,999 EUR) stepping up to a full Shimano XT drivetrain and I9 wheels, and the flagship Ultra (11,999 EUR) with FOX Factory Kashima, Shimano XTR and Crankbrothers Synthesis carbon wheels.The R.X375 is now discontinued. Rotwild has since revised its lightweight line, but the original 2022 R.X375 remains a genuinely light, short-travel carbon eMTB for riders who prize agility over outright range.

EMTB Forums verdict

The Rotwild R.X375 was the German brand's lightweight all-mountain eMTB for 2022, built around a handmade high-modulus carbon frame, a Shimano EP8 motor and a compact 375 Wh IPU375 carbon battery. Rotwild pitched it as the king of the trail: 150 mm of fork travel and 140 mm out back on 29in wheels, with a low weight and lively handling aimed at riders who want an analogue mountain bike feel with just a bit of assistance.

Geometry is modern-trail rather than radical, with a 66.5 degree head angle, 75.5 degree effective seat angle, a consistent 450 mm chainstay and reach spanning 430 to 500 mm across S to XL. The quick-release carbon battery drops out tool-free for easy charging or swapping.

Three trims covered a wide spread: the Core (7,499 EUR) on FOX Performance suspension with Magura MT5 brakes, the Pro (8,999 EUR) stepping up to a full Shimano XT drivetrain and I9 wheels, and the flagship Ultra (11,999 EUR) with FOX Factory Kashima, Shimano XTR and Crankbrothers Synthesis carbon wheels.

The R.X375 is now discontinued. Rotwild has since revised its lightweight line, but the original 2022 R.X375 remains a genuinely light, short-travel carbon eMTB for riders who prize agility over outright range.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (66.5° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance

Rear-long with a planted front in L (FC:RC 1.75) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Shimano EP8 (DU-EP800) and a steep 75.5° seat angle keep the weight planted over the front — a proper winch. 500W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Trail bikes (from 271 bikes in the database)

Battery375 Wh329 Wh below average

Motor torque85 Nm13 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	430 mm	450 mm	475 mm	500 mm
Stack	618 mm	620 mm	636 mm	645 mm
Seattube	410 mm	440 mm	470 mm	506 mm
Chainstay	450 mm	450 mm	450 mm	450 mm
Headtube Angle	66.5°	66.5°	66.5°	66.5°
Seattube Angle (eff)	75.5°	75.5°	75.5°	75.5°
Wheelbase	1184 mm	1205 mm	1237 mm	1266 mm
Headtube	110 mm	110 mm	130 mm	140 mm
BB Height	345 mm	345 mm	345 mm	345 mm
Standover	730 mm	730 mm	730 mm	730 mm
Front Centre	734 mm*	755 mm*	787 mm*	816 mm*
FC:RC	1.63	1.68	1.75	1.81

Trims · 3

	Core €7,499	Pro €8,999	Ultra €11,999
Motor	Shimano EP8 (DU-EP800) · 85 Nm · all trims
Battery	Rotwild IPU375 375 · 360 Wh · all trims
Travel F/R	150/140 mm · all trims
Frame	Carbon · all trims
Fork	FOX 36 FLOAT PERFORMANCE 150 MM / FIT GRIP 3-POS MICRO ADJUST / E-TUNED	FOX 36 FLOAT PERFORMANCE 150 MM / FIT GRIP 3-POS MICRO ADJUST / E-TUNED	FOX 36 FLOAT FACTORY KASHIMA 150 MM / FIT4 3-POS ADJUST / E-TUNED
Shock	FOX FLOAT DPS PERFORMANCE 210 X 50 MM / 3-POS	FOX FLOAT DPS PERFORMANCE 210 X 50 MM / 3-POS	FOX FLOAT DPS FACTORY KASHIMA 210 X 50 MM / 3-POS
Headset	ACROS RW375 1.5 HEADSET W/ BLOCKLOCK · all trims
Stem	ROTWILD S140 AL7075 Ø35 MM / 50 MM · all trims
Handlebar	ROTWILD B280 AL7075 Ø35 MM / 15 MM RISE / 780 MM WIDTH	ROTWILD B220 CARBON Ø35 MM / 15 MM RISE / 780 MM WIDTH	ROTWILD B220 CARBON Ø35 MM / 15 MM RISE / 780 MM WIDTH
Grips	ERGON GD10 SLIM FACTORY FROZEN · all trims
Saddle	ERGON SM · all trims
Seatpost	E*THIRTEEN VARIO COVERT INFINITE INDIVIDUAL UP TO 260 MM (XL)	EIGHTPINS H01 Ø34.9 mm / 25 mm OFFSET / 145 mm (S) / 160 mm (M) / 180 mm (L) / 200 mm (XL)	EIGHTPINS NGS 2 Ø34.9 MM / 25 mm OFFSET / 170 mm (S) / 190 mm (M) / 210 mm (L) / 230 mm (XL)
Brakes	MAGURA MT5 HC-W SHIFT MIX	SHIMANO XT 8120 FIN PAD	SHIMANO XTR 9120 FIN PAD
Rear derailleur	SHIMANO XT 8100 12-Speed	SHIMANO XT 8100 12-Speed	SHIMANO XTR 9100 12-Speed
Crank	E*THIRTEEN PLUS 160 mm (S) / 165 mm (M, L) / 170 mm (XL)	E*THIRTEEN PLUS 160 mm (S) / 165 mm (M, L) / 170 mm (XL)	E*THIRTEEN RACE CARBON 160 mm (S) / 165 mm (M, L) / 170 mm (XL)
Shifters	SHIMANO XT I-SPEC EV · all trims
Cassette	SHIMANO CS 6100 10-51 T. / 12-SPEED	SHIMANO CS 7100 10-51T. 12-SPEED	SHIMANO XTR 9100 10-51T. 12-SPEED
Drivetrain	SHIMANO XT 8100 12-Speed; E*THIRTEEN PLUS 160 mm (S) / 165 mm (M, L) / 170 mm (XL); SHIMANO XT I-SPEC EV; SHIMANO CS 6100 10-51 T. / 12-SPEED	SHIMANO XT 8100 12-Speed; E*THIRTEEN PLUS 160 mm (S) / 165 mm (M, L) / 170 mm (XL); SHIMANO XT I-SPEC EV; SHIMANO CS 7100 10-51T. 12-SPEED	SHIMANO XTR 9100 12-Speed; E*THIRTEEN RACE CARBON 160 mm (S) / 165 mm (M, L) / 170 mm (XL); SHIMANO XT I-SPEC EV; SHIMANO XTR 9100 10-51T. 12-SPEED
Wheels	CRANKBROTHERS SYNTHESIS ENDURO (31.5/29.5) / 110-15/148-12 TAS / 6-BOLT	CRANKBROTHERS SYNTHESIS ENDURO I9 (31,5/29,5) / 110-15/148-12 TAS / CL	CRANKBROTHERS SYNTHESIS ENDURO I9 CARBON (31.5/29.5) / 110-15/148-12 TAS / CL
Tyres	SCHWALBE NOBBY NIC EVO SUPER GROUND TLE SPEEDGRIP 29x2.4 · all trims
Price	€7,499	€8,999	€11,999
