R.X275 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

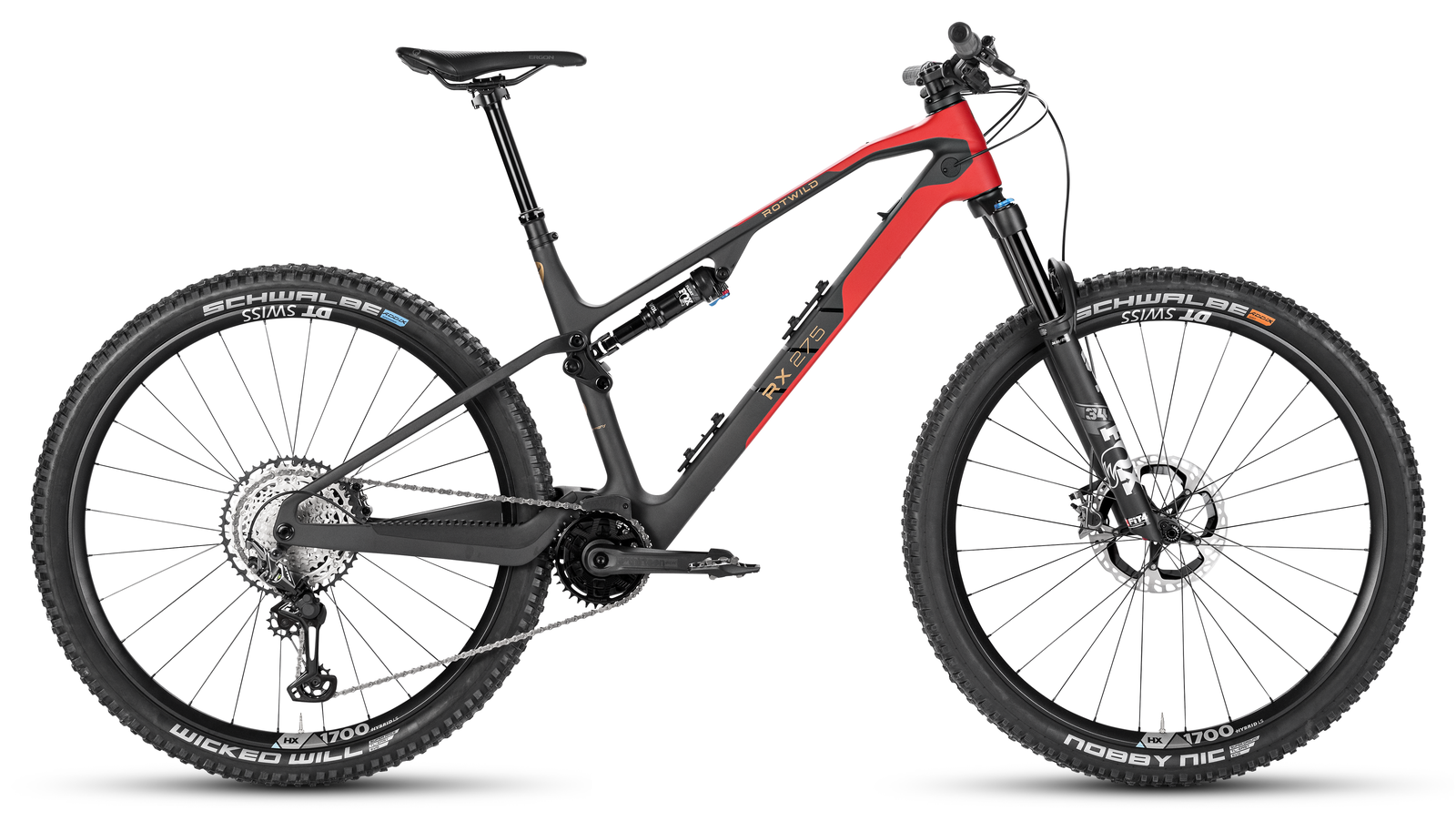

The Rotwild R.X275 is the German marque's lightweight TQ-powered trail eMTB, built around a handmade high-modulus carbon frame and the quiet, compact TQ HPR50 motor. With 130 mm of fork travel and 120 mm at the rear, plus a full 29in wheelset, it sits firmly in the light-and-lively category rather than the big-hitting enduro space. The headline figure is weight: the range tops out at a claimed 15.3 kg for the ULTRA, which makes it one of the lightest full-power-feel trail eMTBs available.
Geometry is measured rather than radical: a 66 degree head angle, 75.5 degree effective seat angle and short 437 mm chainstays across all four sizes point to an agile, climb-happy bike. Reach runs from 430 mm (S) to 510 mm (XL), so sizing is conventional. The 252 Wh integrated IPU275 battery and 50 Nm motor mean this is a bike that rewards a strong rider with eco-friendly assistance and an on-demand Boost button rather than one that flatters with raw grunt.
The three builds share the same frame, motor and geometry, so the choice is purely about kit. The CORE (EUR 7,990) runs a Shimano XT drivetrain, FOX Performance suspension and alloy wheels at a claimed 16.2 kg. The PRO (EUR 8,990) steps up to XTR shifting and brakes for a marginal weight change. The ULTRA (EUR 9,990) is where the weight tumbles, adding FOX Factory Kashima suspension, full XTR, DT Swiss carbon wheels, e*thirteen Race Carbon cranks and Rotwild's integrated RIC280 carbon cockpit to reach the headline 15.3 kg.
Note that Rotwild has no UK distributor, so prices are quoted in euros and a buyer would be importing. For riders chasing the lightest possible trail eMTB with a natural, rider-led power delivery, the R.X275 is a credible alternative to the likes of the TQ-powered Trek Fuel EXe and Scott Lumen.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 430 mm | 460 mm | 485 mm | 510 mm |
| Stack | 618 mm | 627 mm | 636 mm | 645 mm |
| Seattube | 400 mm | 430 mm | 460 mm | 490 mm |
| Chainstay | 437 mm | 437 mm | 437 mm | 437 mm |
| Headtube Angle | 66° | 66° | 66° | 66° |
| Seattube Angle (eff) | 75.5° | 75.5° | 75.5° | 75.5° |
| Wheelbase | 1174 mm | 1207 mm | 1237 mm | 1266 mm |
| Headtube | 110 mm | 120 mm | 130 mm | 140 mm |
| BB Height | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm |
| Standover | 738 mm | 738 mm | 738 mm | 738 mm |
| Front Centre | 737 mm* | 770 mm* | 800 mm* | 829 mm* |
Trims · 3
CORE | PRO | ULTRA | |
|---|---|---|---|
| Motor | TQ HPR50 · 50 Nm · all trims | ||
| Battery | Rotwild IPU275 · 252 Wh · all trims | ||
| Travel F/R | 130/120 mm · all trims | ||
| Frame | Carbon · all trims | ||
| Fork | FOX 34 Float Performance Elite, 130 mm, FIT4, 44 mm offset, 110x15 mm | FOX 34 Float Performance Elite, 130 mm, FIT4, 3-Pos Adjust | FOX 34 Float Factory Kashima, 130 mm, FIT4, 3-Pos Adjust |
| Shock | FOX Float DPS Performance, 190 x 45 mm, 3-Pos | FOX Float DPS Performance, 190 x 45 mm, 3-Pos | FOX Float DPS Factory Kashima, 190 x 45 mm, 3-Pos Adjust |
| Headset | ACROS RW375 1.5 · all trims | ||
| Stem | ROTWILD S140 | ROTWILD S140, 35 mm, 50 mm, AL7075 | ROTWILD RIC280 Carbon, integrated stem and bar, 50 mm Length |
| Handlebar | ROTWILD B280 | ROTWILD B220 Carbon, 35 mm, 15 mm Rise, 780 mm Width | ROTWILD RIC280 Carbon, integrated stem and bar, 15 mm Rise, 780 mm Width |
| Grips | ERGON GD10 | ERGON GD10 Slim Factory Frozen | ERGON GD10 Slim Factory Frozen |
| Saddle | ERGON SM Sport | ERGON SM Sport | ERGON SM Pro Carbon |
| Seatpost | FOX Transfer SL Performance Elite | FOX Transfer SL Performance Elite, 31.6 mm, up to 150 mm (XL) | FOX Transfer SL Factory Kashima, 31.6 mm, up to 150 mm (XL) |
| Brakes | SHIMANO XT 8120 (front) / SHIMANO XT 8110 (rear) | SHIMANO XTR 9100 Fin Pad (front and rear) | SHIMANO XTR 9100 Fin Pad (front) / SHIMANO XTR 9110 Flat Mount (rear) |
| Rear derailleur | SHIMANO XT 8100, 12-Speed | SHIMANO XTR 9100 SGS, 12-Speed, Hyperglide+ | SHIMANO XTR 9100 SGS, 12-Speed, Hyperglide+ |
| Crank | e*thirteen Plus, 165 mm (S) / 170 mm (M, L, XL), e*thirteen Direct Mount Chainring, e*thirteen TRS chain guide | e*thirteen Plus, 165 mm (S) / 170 mm (M, L, XL), e*thirteen Direct Mount Chainring 34T, e*thirteen TRS chain guide | e*thirteen Race Carbon, 165 mm (S) / 170 mm (M, L, XL), e*thirteen Direct Mount Chainring 34T, e*thirteen TRS chain guide |
| Shifters | SHIMANO XT 8100 | SHIMANO XTR 9100, I-Spec EV | SHIMANO XTR 9100, I-Spec EV |
| Cassette | SHIMANO CS 7100, 10-51 T, 12-Speed | SHIMANO CS 7100, 10-51 T, 12-Speed | SHIMANO CS 9100, 10-51 T, 12-Speed |
| Chain | SHIMANO HG 7100, 12-Speed · all trims | ||
| Drivetrain | SHIMANO XT 8100, 12-Speed; e*thirteen Plus, 165 mm (S) / 170 mm (M, L, XL), e*thirteen Direct Mount Chainring, e*thirteen TRS chain guide; SHIMANO XT 8100; SHIMANO CS 7100, 10-51 T, 12-Speed; SHIMANO HG 7100, 12-Speed | SHIMANO XTR 9100 SGS, 12-Speed, Hyperglide+; e*thirteen Plus, 165 mm (S) / 170 mm (M, L, XL), e*thirteen Direct Mount Chainring 34T, e*thirteen TRS chain guide; SHIMANO XTR 9100, I-Spec EV; SHIMANO CS 7100, 10-51 T, 12-Speed; SHIMANO HG 7100, 12-Speed | SHIMANO XTR 9100 SGS, 12-Speed, Hyperglide+; e*thirteen Race Carbon, 165 mm (S) / 170 mm (M, L, XL), e*thirteen Direct Mount Chainring 34T, e*thirteen TRS chain guide; SHIMANO XTR 9100, I-Spec EV; SHIMANO CS 9100, 10-51 T, 12-Speed; SHIMANO HG 7100, 12-Speed |
| Wheels | DT SWISS HX1700 LS Spline (30) | DT SWISS HX1700 LS Spline (30) | DT SWISS HXC1501 LS Spline1 Carbon, OS 30, Ratchet EXP |
| Tyres | SCHWALBE Nobby Nic Evo Super Ground Soft 29x2.4 (front) / SCHWALBE Wicked Will Evo Super Race Speed 29x2.4 (rear), TLE | SCHWALBE Nobby Nic Evo Super Ground Soft 29x2.4 (front) / SCHWALBE Wicked Will Evo Super Race Speed 29x2.4 (rear), TLE | SCHWALBE Nobby Nic Evo Super Ground Soft 29x2.4 Aerothan (front) / SCHWALBE Wicked Will Evo Super Race Speed 29x2.4 Aerothan (rear), TLE |
| Weight | 16.2 kg | 16.3 kg | 15.3 kg |
