Rotwild

R.X275 2024

Discontinued✎Lightweight · Cross-CountryLegacy · 1.3/10iFreshness 1.3/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

TQ HPR50 · 50Nm · 300W↗

Battery

Rotwild IPU275 252 · 252Wh

Travel F/R

130/120mm

Wheels

29F / 29R✎

Frame

Full carbon✎

Weight

15.3 kg

Price

From €8,990

View the Rotwild R.X275 on Rotwild’s site

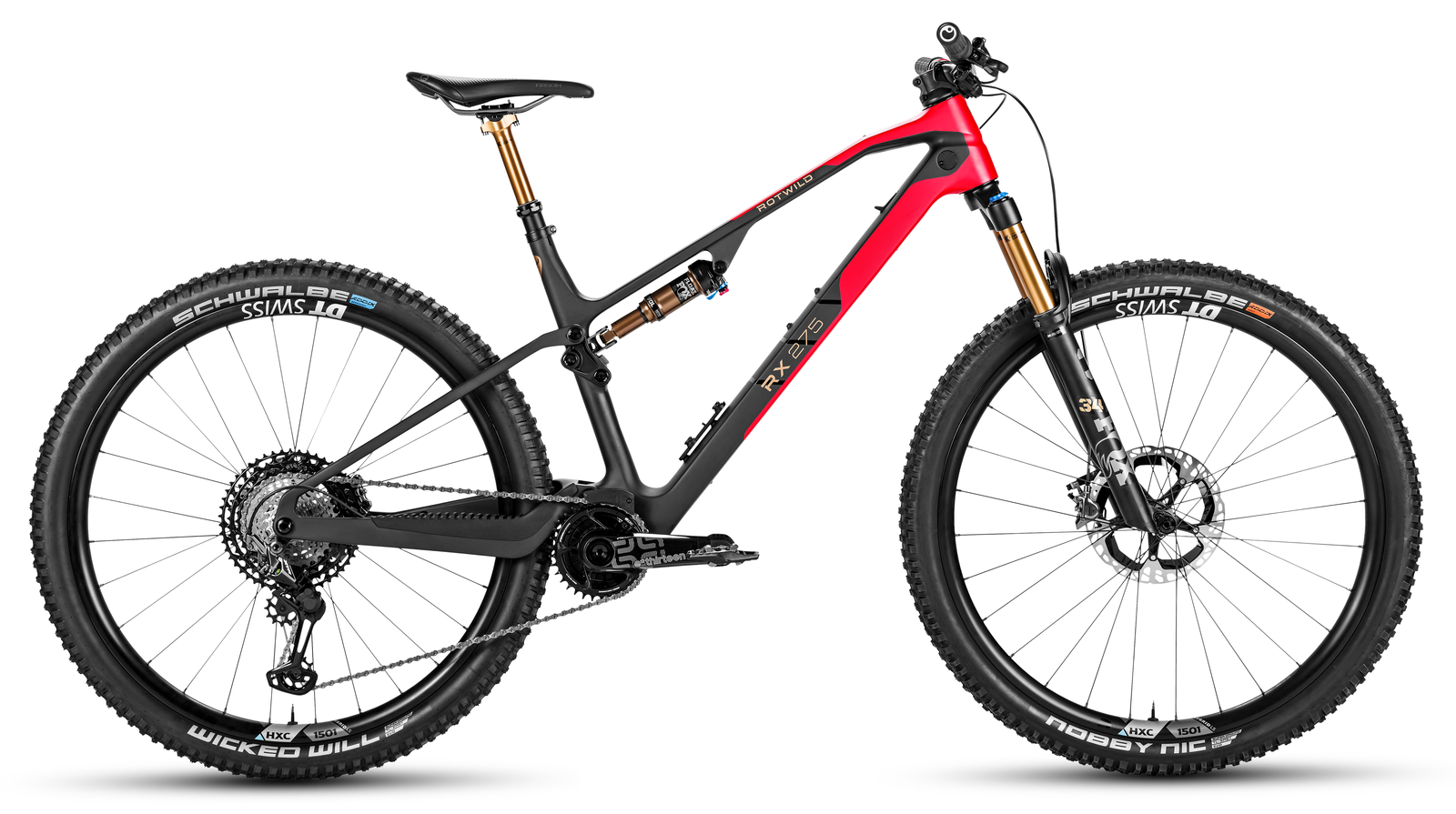

Rotwild R.X275 2024

The Rotwild R.X275 was the German brand's lightweight trail and downcountry play, slotting under the ATHLETIC / ALL MOUNTAIN banner. A handmade high-modulus carbon frame with a flexstay rear end gives 120 mm travel out back paired to a 130 mm fork, on full 29in wheels. Despite the 275 in the name it is not a 27.5in or mullet bike. The quiet TQ HPR50 motor (50 Nm, up to 250 W) and a permanently integrated 252 Wh IPU275 pack keep the ULTRA build down to a claimed 15.3 kg, with a bottle-mount range extender on offer for longer days.Geometry is moderate and natural rather than aggressive: a 66 degree head angle, 75.5 degree effective seat angle, 437 mm chainstays across the board and reach from 430 mm (S) to 510 mm (XL). That, plus the integrated cockpit and Ergon contact points, leans toward an efficient, regular-MTB feel rather than an enduro sledgehammer.Two trims were offered. The PRO at 8,990 EUR came with a Fox Performance Elite 34 fork, e*thirteen Plus cranks, DT Swiss HX1700 alloy wheels and a Shimano XTR 9100 drivetrain. The flagship ULTRA at 11,490 EUR added a Fox Factory Kashima 34 and DPS shock, e*thirteen Race Carbon cranks, DT Swiss HXC1501 carbon wheels and an XTR 9100/9110 stop kit. Both ran 29x2.4 Schwalbe Nobby Nic front and Wicked Will rear.The R.X275 is now discontinued. For the 2025 model year Rotwild restructured this lightweight line under the R.R275 X naming, so the R.X275 represents the original 2023-2024 generation of the platform.

EMTB Forums verdict

The Rotwild R.X275 was the German brand's lightweight trail and downcountry play, slotting under the ATHLETIC / ALL MOUNTAIN banner. A handmade high-modulus carbon frame with a flexstay rear end gives 120 mm travel out back paired to a 130 mm fork, on full 29in wheels. Despite the 275 in the name it is not a 27.5in or mullet bike. The quiet TQ HPR50 motor (50 Nm, up to 250 W) and a permanently integrated 252 Wh IPU275 pack keep the ULTRA build down to a claimed 15.3 kg, with a bottle-mount range extender on offer for longer days.

Geometry is moderate and natural rather than aggressive: a 66 degree head angle, 75.5 degree effective seat angle, 437 mm chainstays across the board and reach from 430 mm (S) to 510 mm (XL). That, plus the integrated cockpit and Ergon contact points, leans toward an efficient, regular-MTB feel rather than an enduro sledgehammer.

Two trims were offered. The PRO at 8,990 EUR came with a Fox Performance Elite 34 fork, e*thirteen Plus cranks, DT Swiss HX1700 alloy wheels and a Shimano XTR 9100 drivetrain. The flagship ULTRA at 11,490 EUR added a Fox Factory Kashima 34 and DPS shock, e*thirteen Race Carbon cranks, DT Swiss HXC1501 carbon wheels and an XTR 9100/9110 stop kit. Both ran 29x2.4 Schwalbe Nobby Nic front and Wicked Will rear.

The R.X275 is now discontinued. For the 2025 model year Rotwild restructured this lightweight line under the R.R275 X naming, so the R.X275 represents the original 2023-2024 generation of the platform.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (66° head angle, 120mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

Short 437mm rear and a lighter build — easy to pop, manual and throw around.

Size balance

Balanced front-to-rear in L (FC:RC 1.83) — weight sits evenly between the wheels.

Technical climbing

Climbs well — a 75.5° seat keeps the front planted. 300W of peak power and 50Nm of torque.

Best suited toPlayful trail riding — jumps, pumps and tight, techy singletrack.

Easy to throw around; happiest when you're active on the bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Lightweight · Cross-Country bikes (from 63 bikes in the database)

Weight15.3 kg3.3 kg lighter than average

Battery252 Wh183 Wh below average

Motor torque50 Nm9 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	430 mm	460 mm	485 mm	510 mm
Stack	618 mm	627 mm	636 mm	645 mm
Seattube	400 mm	430 mm	460 mm	490 mm
Chainstay	437 mm	437 mm	437 mm	437 mm
Headtube Angle	66°	66°	66°	66°
Seattube Angle (eff)	75.5°	75.5°	75.5°	75.5°
Wheelbase	1174 mm	1207 mm	1237 mm	1266 mm
Headtube	110 mm	120 mm	130 mm	140 mm
BB Height	337.5 mm	337.5 mm	337.5 mm	337.5 mm
Standover	738 mm	738 mm	738 mm	738 mm
Front Centre	737 mm*	770 mm*	800 mm*	829 mm*
FC:RC	1.69	1.76	1.83	1.90

Trims · 2

	PRO €8,990	ULTRA €11,490
Motor	TQ HPR50 · 50 Nm · all trims
Battery	Rotwild IPU275 252 · 252 Wh · all trims
Travel F/R	130/120 mm · all trims
Frame	High Modulus Carbon · all trims
Fork	FOX 34 Float Performance Elite / 130 mm / FIT4 / 3-Pos Adjust	FOX 34 Float Factory Kashima / 130 mm / FIT4 / 3-Pos Adjust
Shock	FOX Float DPS Performance / 190 x 45 mm / 3-Pos	FOX Float DPS Factory Kashima / 190 x 45 mm / 3-Pos Adjust
Headset	ACROS RW375 1.5 · all trims
Stem	ROTWILD S140 / 35 mm / 50 mm / AL7075	ROTWILD RIC280 Carbon integrated stem and bar / 50 mm length
Handlebar	ROTWILD B220 Carbon / 35 mm / 15 mm rise / 780 mm width	ROTWILD RIC280 Carbon integrated stem and bar / 15 mm rise / 780 mm width
Grips	Ergon GD10 Slim Factory Frozen · all trims
Saddle	Ergon SM Sport	Ergon SM Pro Carbon
Seatpost	FOX Transfer SL Performance Elite / 31.6 mm / up to 150 mm (XL)	FOX Transfer SL Factory Kashima / 31.6 mm / up to 150 mm (XL)
Brakes	Shimano XTR 9100 front and rear (Fin Pad); front rotor Shimano RT-MT900 ICE 203 mm, rear rotor Shimano RT-MT910 ICE 180 mm	Shimano XTR 9100 front (Fin Pad) / Shimano XTR 9110 rear (Flat Mount); front rotor Shimano RT-MT900 ICE 203 mm, rear rotor Shimano RT-MT910 ICE 180 mm
Rear derailleur	Shimano XTR 9100 SGS / 12-Speed / Hyperglide+ · all trims
Crank	ethirteen Plus / 165 mm (S) / 170 mm (M, L, XL); ethirteen Direct Mount chainring 34T; e*thirteen TRS chain guide	ethirteen Race Carbon / 165 mm (S) / 170 mm (M, L, XL); ethirteen Direct Mount chainring 34T; e*thirteen TRS chain guide
Shifters	Shimano XTR 9100 / I-Spec EV · all trims
Cassette	Shimano CS 7100 / 10-51 T / 12-Speed	Shimano CS 9100 / 10-51 T / 12-Speed
Chain	Shimano HG 7100 / 12-Speed · all trims
Drivetrain	Shimano XTR 9100 SGS / 12-Speed / Hyperglide+; ethirteen Plus / 165 mm (S) / 170 mm (M, L, XL); ethirteen Direct Mount chainring 34T; e*thirteen TRS chain guide; Shimano XTR 9100 / I-Spec EV; Shimano CS 7100 / 10-51 T / 12-Speed; Shimano HG 7100 / 12-Speed	Shimano XTR 9100 SGS / 12-Speed / Hyperglide+; ethirteen Race Carbon / 165 mm (S) / 170 mm (M, L, XL); ethirteen Direct Mount chainring 34T; e*thirteen TRS chain guide; Shimano XTR 9100 / I-Spec EV; Shimano CS 9100 / 10-51 T / 12-Speed; Shimano HG 7100 / 12-Speed
Wheels	DT Swiss HX1700 LS Spline (30) / Ratchet 24 / 110-15 mm front / 148-12 mm rear / TAS / CL	DT Swiss HXC1501 LS Spline1 Carbon (OS 30, Ratchet EXP, 110-15 mm front / 148-12 mm rear, TAS, CL)
Tyres	Schwalbe Nobby Nic Evo Super Ground Soft TLE 29x2.4 (front) / Schwalbe Wicked Will Evo Super Race Speed TLE 29x2.4 (rear)	Schwalbe Nobby Nic Evo Super Ground Soft TLE 29x2.4 Aerothan (front) / Schwalbe Wicked Will Evo Super Race Speed TLE 29x2.4 Aerothan (rear)
Weight	16.3 kg	15.3 kg
Price	€8,990	€11,490
