Rotwild

R.X275 2023

Discontinued✎Lightweight · Cross-CountryLegacy · 0.7/10iFreshness 0.7/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

TQ HPR50 · 50Nm · 300W↗

Battery

Rotwild IPU 250Wh

Travel F/R

130/120mm

Wheels

29F / 29R✎

Frame

Full carbon✎

Weight

15.3 kg

Price

From €9,499

View the Rotwild R.X275 on Rotwild’s site

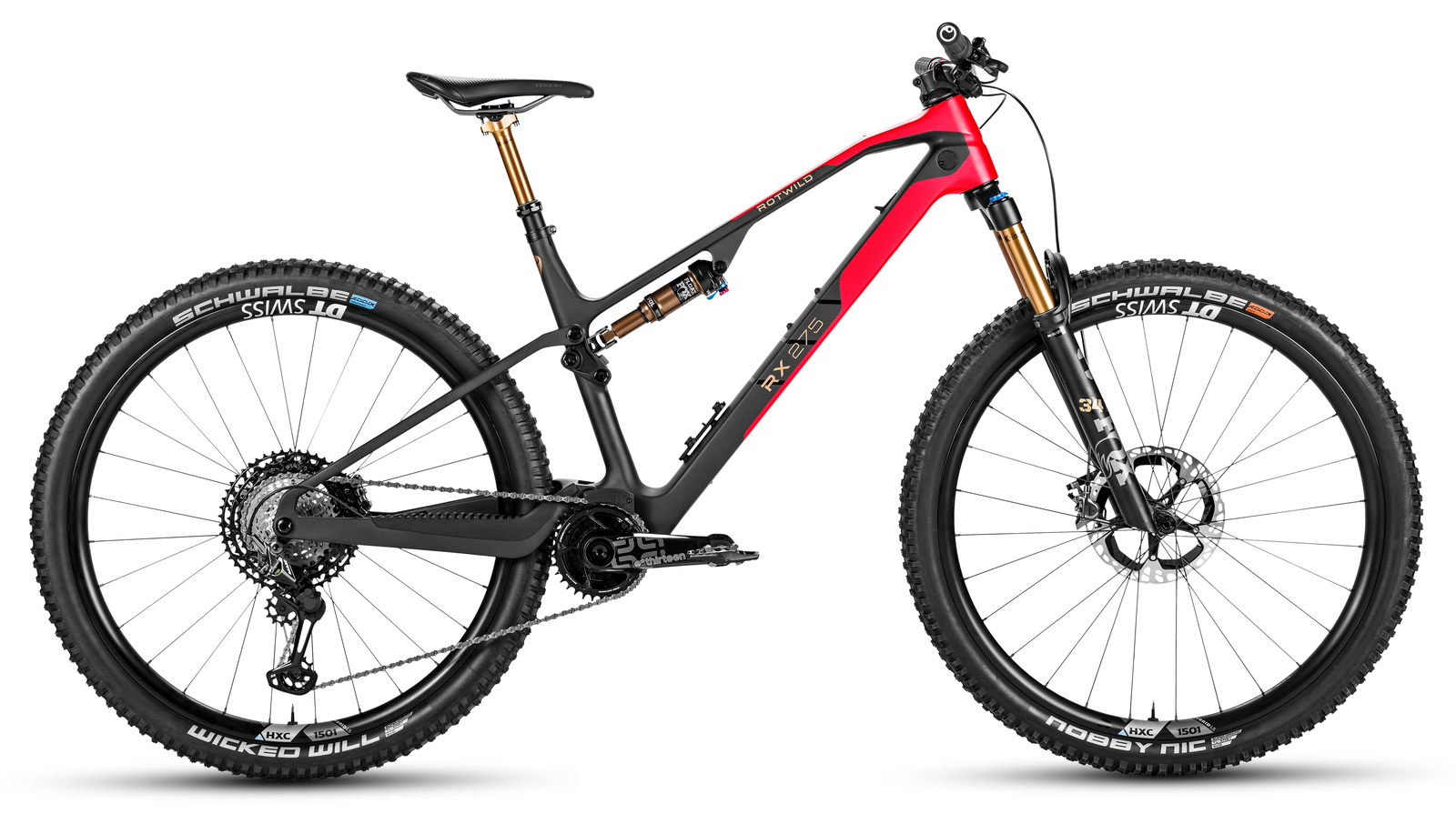

Rotwild R.X275 2023

The 2023 Rotwild R.X275 was the German marque's first lightweight trail e-MTB, and at the time one of the lightest production full-suspension e-bikes available, with the Ultra claimed at 15.3 kg in size M. The full High Modulus carbon frame uses a flex-stay rear end (no rear pivot) to shed weight, paired with 130 mm up front and 120 mm out back on 29in wheels. The drive is a TQ HPR50 (up to 50 Nm) fed by a fully integrated 250 Wh IPU pack, with a handlebar Boost Button that lifts output from a 200 W cap to 300 W for up to 30 seconds.Two trims were offered, both in the RED MATT colourway. The Pro at 9,499 EUR runs Fox Performance Elite suspension and a Shimano XT 12-speed drivetrain with XT four-piston brakes. The Ultra at 12,499 EUR steps up to Fox Factory Kashima, full Shimano XTR, DT Swiss carbon wheels, a one-piece ROTWILD RIC280 carbon cockpit and a carbon e*thirteen chainset, justifying the considerable premium for buyers chasing the lowest weight.Geometry is restrained and trail-oriented rather than slack: a 66 degree head angle, 75.5 degree seat angle and short 437 mm chainstays across all four sizes (S to XL), with reach from 430 to 510 mm and a low BB (37.5 mm drop). That makes it an agile, pedal-focused bike rather than a long-travel descender.This 2023 model is discontinued and was sold only in EUR, with no UK GBP RRP published. Rotwild has since updated the R.X275 line, so this is the original first-generation build.

EMTB Forums verdict

The 2023 Rotwild R.X275 was the German marque's first lightweight trail e-MTB, and at the time one of the lightest production full-suspension e-bikes available, with the Ultra claimed at 15.3 kg in size M. The full High Modulus carbon frame uses a flex-stay rear end (no rear pivot) to shed weight, paired with 130 mm up front and 120 mm out back on 29in wheels. The drive is a TQ HPR50 (up to 50 Nm) fed by a fully integrated 250 Wh IPU pack, with a handlebar Boost Button that lifts output from a 200 W cap to 300 W for up to 30 seconds.

Two trims were offered, both in the RED MATT colourway. The Pro at 9,499 EUR runs Fox Performance Elite suspension and a Shimano XT 12-speed drivetrain with XT four-piston brakes. The Ultra at 12,499 EUR steps up to Fox Factory Kashima, full Shimano XTR, DT Swiss carbon wheels, a one-piece ROTWILD RIC280 carbon cockpit and a carbon e*thirteen chainset, justifying the considerable premium for buyers chasing the lowest weight.

Geometry is restrained and trail-oriented rather than slack: a 66 degree head angle, 75.5 degree seat angle and short 437 mm chainstays across all four sizes (S to XL), with reach from 430 to 510 mm and a low BB (37.5 mm drop). That makes it an agile, pedal-focused bike rather than a long-travel descender.

This 2023 model is discontinued and was sold only in EUR, with no UK GBP RRP published. Rotwild has since updated the R.X275 line, so this is the original first-generation build.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (66° head angle, 120mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

Short 437mm rear and a lighter build — easy to pop, manual and throw around.

Size balance

Balanced front-to-rear in L (FC:RC 1.83) — weight sits evenly between the wheels.

Technical climbing

Climbs well — a 75.5° seat keeps the front planted. 300W of peak power and 50Nm of torque.

Best suited toPlayful trail riding — jumps, pumps and tight, techy singletrack.

Easy to throw around; happiest when you're active on the bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Lightweight · Cross-Country bikes (from 63 bikes in the database)

Weight15.3 kg3.3 kg lighter than average

Battery250 Wh185 Wh below average

Motor torque50 Nm9 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	430 mm	460 mm	485 mm	510 mm
Stack	618 mm	627 mm	636 mm	645 mm
Seattube	400 mm	430 mm	460 mm	490 mm
Chainstay	437 mm	437 mm	437 mm	437 mm
Headtube Angle	66°	66°	66°	66°
Seattube Angle (eff)	75.5°	75.5°	75.5°	75.5°
Wheelbase	1174 mm	1207 mm	1237 mm	1266 mm
Headtube	110 mm	110 mm	130 mm	140 mm
BB Height	337.5 mm	337.5 mm	337.5 mm	337.5 mm
Standover	738 mm	738 mm	738 mm	738 mm
Front Centre	737 mm*	770 mm*	800 mm*	829 mm*
FC:RC	1.69	1.76	1.83	1.90

Trims · 2

	Pro €9,499	Ultra €12,499
Motor	TQ HPR50 · 50 Nm · all trims
Battery	Rotwild IPU 250Wh · 250 Wh · all trims
Travel F/R	130/120 mm · all trims
Frame	Full carbon (High Modulus carbon fibre, handmade) · all trims
Fork	Fox 34 Float Performance Elite, 130 mm / FIT4 3-Pos Adjust	Fox 34 Float Factory Kashima, 130 mm / FIT4 3-Pos Adjust
Shock	Fox Float DPS Perfomance, 190 x 45 mm / 3-Pos / Evol / EV	Fox Float DPS Factory Kashima, 190 x 45 mm / 3-POS / EVOL / EV
Headset	ACROS RW375 1.5 Headset, W/ Blocklock · all trims
Stem	ROTWILD S140, Ø35 mm / 50 mm / AL7075	ROTWILD RIC280 Carbon (integrated one-piece cockpit, 50 mm length)
Handlebar	ROTWILD B220 Carbon, Ø35 mm / 15 mm Rise / 780 mm Width	ROTWILD RIC280 Carbon Integrated Stem and Bar, 50 mm Length / 15 mm Rise / 780 mm Width
Grips	Ergon GD10 Slim	—
Saddle	Ergon SM Pro	Ergon SM Pro Carbon
Seatpost	Fox Transfer SL Performance Elite, Ø31.6 mm / up to 125 mm (S) / 125 mm (M) / 150 mm (L, XL)	Fox Transfer SL Factory Kashima, Ø31.6 mm / up to 125 mm (S) / 125 mm (M) / 150 mm (L, XL)
Brakes	Shimano XT 8120 (front, Fin Pad) / Shimano XT 8110 (rear, Fin Pad); rotors: 203 front / 180 rear	Shimano XTR 9100 (front) / Shimano XTR 9110 (rear, Flat Mount); rotors: 203 front / 180 rear
Rear derailleur	Shimano XT (12-Speed)	Shimano XTR 9100, 12-Speed / Hyperglide +
Crank	ethirteen Plus, 165 mm (S) / 170 mm (M, L, XL), ethirteen Direct Mount Chainring 34t	ethirteen Race Carbon RX275, 165 mm (S) / 170 mm (M, L, XL), ethirteen Direct Mount Chainring 34t
Shifters	Shimano XT 8100, I-Spec EV	Shimano XTR 9100, I-Spec EV
Cassette	Shimano CS 7100, 10-51 T. / 12-Speed	Shimano XTR 9100, 10-51 T. / 12-Speed
Chain	Shimano HG 7100, 12-Speed · all trims
Drivetrain	Shimano XT (12-Speed); ethirteen Plus, 165 mm (S) / 170 mm (M, L, XL), ethirteen Direct Mount Chainring 34t; Shimano XT 8100, I-Spec EV; Shimano CS 7100, 10-51 T. / 12-Speed; Shimano HG 7100, 12-Speed	Shimano XTR 9100, 12-Speed / Hyperglide +; ethirteen Race Carbon RX275, 165 mm (S) / 170 mm (M, L, XL), ethirteen Direct Mount Chainring 34t; Shimano XTR 9100, I-Spec EV; Shimano XTR 9100, 10-51 T. / 12-Speed; Shimano HG 7100, 12-Speed
Wheels	DT Swiss HX1700 LS Spline (30), front 110-15 mm / rear RATCHET 24 / 148-12 mm / TAS / CL	DT Swiss HXC1501 LS Spline1 Carbon, OS 30, front 110-15 mm / rear Ratchet EXP / 142-12 mm / TAS / CL
Tyres	Schwalbe Nobby Nic Evo TLE 29 x 2.4 Super Ground Speedgrip (front) / Schwalbe Wicked Will Evo TLE 29 x 2.4 Super Race Speedgrip (rear)	Schwalbe Nobby Nic Evo TLE 29 x 2.4 Super Ground Speedgrip Aerothan Tube (front) / Schwalbe Wicked Will Evo TLE 29 x 2.4 Super Race Speedgrip Aerothan Tube (rear)
Weight	—	15.3 kg
Price	€9,499	€12,499
