R.E850 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

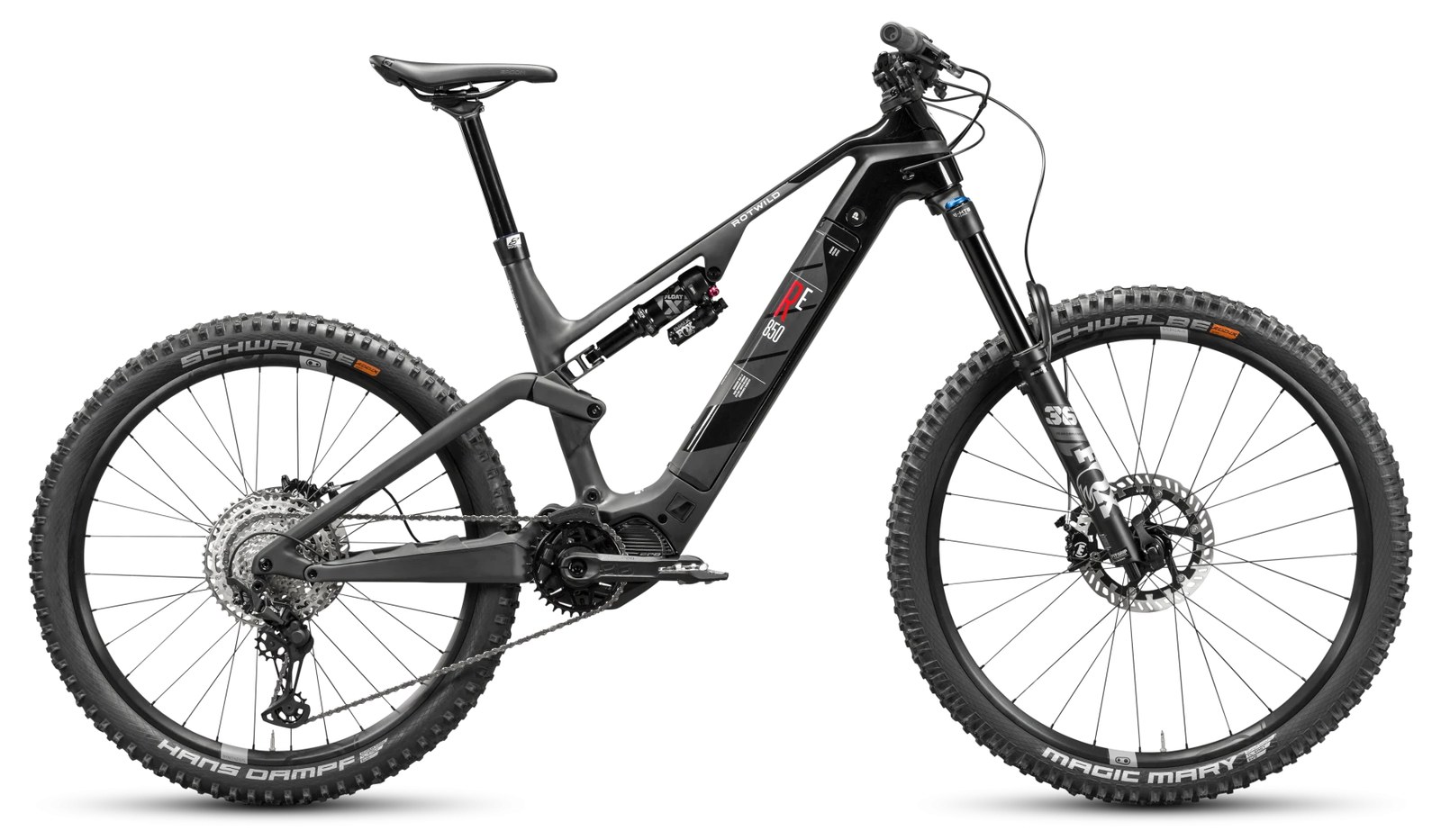

The Rotwild R.E850 is the German brand's full-power mullet enduro, built around a high-modulus carbon frame with carbon linkage. The numbers are firmly enduro: 170 mm up front, 148 mm out back, a 64.5 degree head angle and a 29in front wheel paired with a more playful 27.5in rear. Short 440 mm chainstays are held constant across all four sizes, which should keep the bike lively to manoeuvre even on the longer XL.
Power comes from a Shimano EP801 motor rated at 85 Nm and a sizeable 820 Wh IPU820 carbon battery with a quick-release Push+ system, so range should not be the limiting factor on big days. Geometry stays consistent across the range, with reach growing sensibly from 420 mm on the S to 490 mm on the XL and the seat angle held at a usefully steep 74 degrees throughout.
Two builds are offered. The CORE pairs a Fox 36 Performance fork and Float X Performance shock with a Shimano XT mechanical drivetrain, Magura MT5 brakes and alloy Crankbrothers Synthesis wheels. The ULTRA steps up to Fox Factory Kashima suspension, Shimano XT Di2 electronic shifting, XT brakes and carbon Crankbrothers I9 wheels, with a claimed 22.1 kg weight. The CORE looks the value pick of the two for riders who do not need wireless shifting or carbon hoops.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 420 mm | 440 mm | 465 mm | 490 mm |
| Stack | 633 mm | 633 mm | 651 mm | 661 mm |
| Seattube | 410 mm | 440 mm | 470 mm | 506 mm |
| Chainstay | 440 mm | 440 mm | 440 mm | 440 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seattube Angle (eff) | 74° | 74° | 74° | 74° |
| Wheelbase | 1199 mm | 1219 mm | 1253 mm | 1282 mm |
| Headtube | 110 mm | 110 mm | 130 mm | 140 mm |
| BB Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Standover | 737 mm | 737 mm | 737 mm | 737 mm |
| Front Centre | 759 mm* | 779 mm* | 813 mm* | 842 mm* |
Trims · 2
CORE | ULTRA | |
|---|---|---|
| Motor | Shimano EP801 · 85 Nm · all trims | |
| Battery | Rotwild IPU820 · 820 Wh · all trims | |
| Travel F/R | 170/148 mm · all trims | |
| Frame | Carbon · all trims | |
| Fork | FOX 36 Float Performance, 170 mm / Grip / 3-Pos | FOX 36 Float Factory Kashima, 170 mm / Grip2 / HSC/LSC / HSR/LSR |
| Shock | FOX Float X Performance, 210 x 55 mm / 2-Pos | FOX Float X Factory Kashima, 210 x 55 mm / 2-Pos Adjust |
| Headset | ACROS RW735 1.5 · all trims | |
| Stem | e*thirteen Plus 35, 50 mm length · all trims | |
| Handlebar | e*thirteen Plus, 20 mm rise / 780 mm width | e*thirteen Race Carbon, 20 mm rise / 780 mm width |
| Grips | ERGON GD10, Slim Factory Frozen · all trims | |
| Saddle | ERGON SM Enduro Comp · all trims | |
| Seatpost | 8PINS H01, up to 200 mm (XL), dropper · all trims | |
| Brakes | Front: MAGURA MT5, HC-W; Rear: MAGURA MT5, Shiftmix | Front: SHIMANO XT 8120, Fin Pad; Rear: SHIMANO XT 8120, Fin Pad |
| Rear derailleur | SHIMANO XT 8100 SGS | SHIMANO XT Di2 8150 SGS |
| Crank | e*thirteen Plus, 160 mm (S) / 165 mm (M/L/XL) | e*thirteen Race Carbon, 160 mm (S) / 165 mm (M/L/XL) |
| Shifters | SHIMANO XT 8100, I-Spec EV | SHIMANO XT Di2 8150, I-Spec EV |
| Cassette | SHIMANO CS 6100, 10-51 T. / 12-Speed | SHIMANO CS 7100, 10-51 T. / 12-Speed |
| Chain | SHIMANO HG 7100, 12-Speed · all trims | |
| Drivetrain | SHIMANO XT 8100 SGS; e*thirteen Plus, 160 mm (S) / 165 mm (M/L/XL); SHIMANO XT 8100, I-Spec EV; SHIMANO CS 6100, 10-51 T. / 12-Speed; SHIMANO HG 7100, 12-Speed | SHIMANO XT Di2 8150 SGS; e*thirteen Race Carbon, 160 mm (S) / 165 mm (M/L/XL); SHIMANO XT Di2 8150, I-Spec EV; SHIMANO CS 7100, 10-51 T. / 12-Speed; SHIMANO HG 7100, 12-Speed |
| Wheels | Front: CRANKBROTHERS Synthesis Enduro, 31.5 mm width / 110-15 mm / 6-Bolt; Rear: CRANKBROTHERS Synthesis Enduro, 29.5 mm width / 148-12 mm / 6-Bolt | Front: CRANKBROTHERS Synthesis Enduro I9 Carbon, 31.5 mm width / 110-15 mm / 6-Bolt; Rear: CRANKBROTHERS Synthesis Enduro I9 Carbon, 29.5 mm width / 148-12 mm / 6-Bolt |
| Tyres | Front: SCHWALBE Magic Mary Evo, Super Ground / Soft / TLE / 29x2.4; Rear: SCHWALBE Hans Dampf Evo, Super Trail / Soft / TLE / 27.5x2.6 · all trims | |
| Weight | 22.2 kg | 22.1 kg |
