Bike Finder · Rotwild

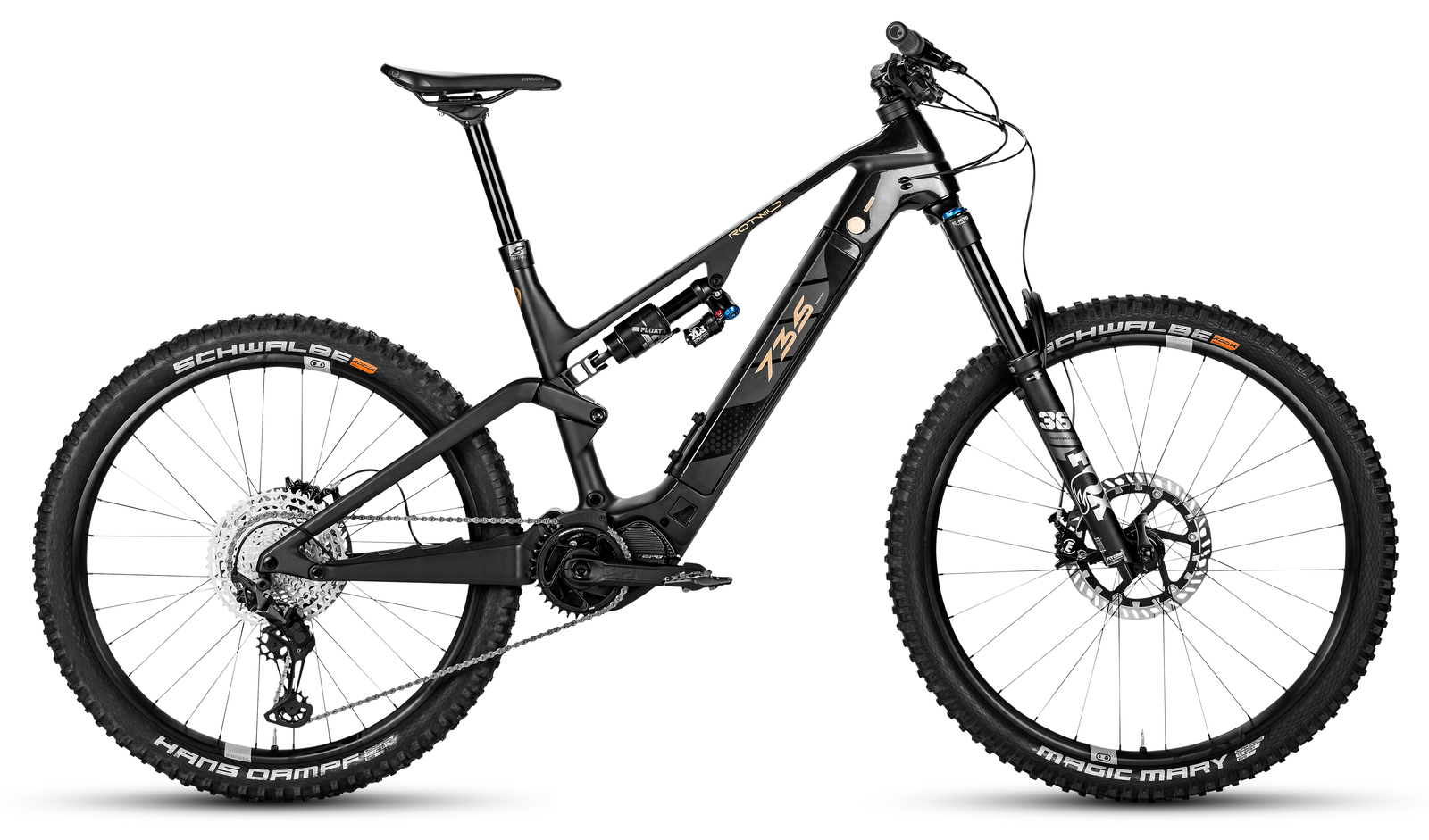

Rotwild R.E735
Rotwild

R.E735 2024

DiscontinuedFull Power · TrailLegacy · 1.7/10iFreshness 1.7/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor
Shimano EP801 · 85Nm · 600W
Battery
Rotwild IPU735 720 · 720Wh
Travel F/R
170/148mm
Wheels
MX (29F / 27.5R)
Frame
Full carbon
Weight
21.6 kg
Price
View the Rotwild R.E735 on Rotwild’s site
Rotwild R.E735 2024
EMTB Forums verdict

The Rotwild R.E735 is the German brand's full-carbon mullet enduro eMTB, sitting under the Enduro category on Rotwild's own product nav where the brand confirms its 'E' designation stands for Enduro. It pairs a 29in front and 27.5in rear wheel with 170 mm up front and 148 mm out back, a slack 64.5 degree head angle and a four-bar linkage with an alloy yoke that allows the short 440 mm chainstays.

Power comes from a Shimano EP801 motor delivering up to 85 Nm, fed by Rotwild's own IPU735 battery: an effective 720 Wh, 21,700-cell pack in a handmade carbon housing with side quick-release, claimed at just 3.5 kg. The two trims share frame and geometry: the Core at 8,490 EUR runs FOX 36 Performance, FOX Float X2 Performance, Magura MT5 brakes and Shimano XT 8100 shifting on Crankbrothers Synthesis Enduro wheels (claimed 22.2 kg), while the Ultra at 11,499 EUR upgrades to FOX Factory Kashima suspension, Shimano XT 8120 brakes, e*thirteen Race Carbon finishing kit and Synthesis i9 Carbon wheels (claimed 21.6 kg).

Geometry is consistent across the S to XL range with reach from 420 to 490 mm and an eMTB-typical wheelbase of 1199 to 1282 mm, marking it as a stable, descent-focused enduro machine rather than an all-day trail bike. It is now discontinued and superseded by later R.E735 model years that continue the same lineage in Rotwild's catalogue.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size
Descending
68

A solid all-round descender (64.5° head angle, 148mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness
64

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance
85

Balanced front-to-rear in L (FC:RC 1.85) — weight sits evenly between the wheels.

Technical climbing
48

Climbs well — a 74° seat keeps the front planted. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Trail bikes (from 223 bikes in the database)

Weight21.6 kg1.4 kg lighter than average
Battery720 Whabout average capacity
Motor torque85 Nm13 Nm below average
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

Bike geometry diagram
SMLXL
Reach420 mm440 mm465 mm490 mm
Stack633 mm633 mm651 mm661 mm
Seattube410 mm440 mm470 mm506 mm
Chainstay440 mm440 mm440 mm440 mm
Headtube Angle64.5°64.5°64.5°64.5°
Seattube Angle (eff)74°74°74°74°
Wheelbase1199 mm1219 mm1253 mm1282 mm
Headtube110 mm110 mm130 mm140 mm
Standover737 mm737 mm737 mm737 mm
Front Centre759 mm*779 mm*813 mm*842 mm*
FC:RC1.731.771.851.91

Trims · 2

Core
Ultra
MotorShimano EP801 · 85 Nm · all trims
BatteryRotwild IPU735 720 · 720 Wh · all trims
Travel F/R170/148 mm · all trims
FrameCarbon · all trims
ForkFOX 36 Float Performance, 170 mmFOX 36 Float Factory Kashima, 170 mm
ShockFOX Float X2 Performance, 148 mm travelFOX Float X2 Factory Kashima, 148 mm travel
HeadsetACROS RW735 1.5 · all trims
Steme*thirteen Plus · all trims
Handlebare*thirteen Pluse*thirteen Race Carbon
GripsErgon GD10 · all trims
SaddleErgon SM Enduro Comp · all trims
Seatpost8PINS H01 dropper · all trims
BrakesMagura MT5 front and rear, Magura MDR-P rotorsShimano XT 8120 four-piston front and rear, Shimano RT800 (front) / RT810 (rear) rotors
Rear derailleurShimano XT 8100 · all trims
Cranke*thirteen Plus with e*thirteen Direct Mount Chainring and e*thirteen TRS chain guidee*thirteen Race Carbon with e*thirteen Direct Mount Chainring and e*thirteen TRS chain guide
ShiftersShimano XT 8100 · all trims
CassetteShimano CS 6100Shimano CS 7100
ChainShimano HG 7100 · all trims
DrivetrainShimano XT 8100; e*thirteen Plus with e*thirteen Direct Mount Chainring and e*thirteen TRS chain guide; Shimano XT 8100; Shimano CS 6100; Shimano HG 7100Shimano XT 8100; e*thirteen Race Carbon with e*thirteen Direct Mount Chainring and e*thirteen TRS chain guide; Shimano XT 8100; Shimano CS 7100; Shimano HG 7100
WheelsCrankbrothers Synthesis Enduro (front and rear)Crankbrothers Synthesis Enduro i9 Carbon (front and rear)
TyresSchwalbe Magic Mary (front) / Schwalbe Hans Dampf Evo (rear), up to 2.6in clearance · all trims
Weight22.2 kg21.6 kg
