Radon

Render 2026

Current✎Full Power · TrailCurrent · 8.5/10iFreshness 8.5/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Bosch Performance Line CX Gen 5 · 100Nm · 750W↗

Battery

Bosch PowerTube 800 · 800Wh

Travel F/R

160/140mm

Wheels

29F / 29R✎

Frame

Carbon front, aluminium rear

Weight

23.4 kg

Price

From £3,890

View the Radon Render on Radon’s site

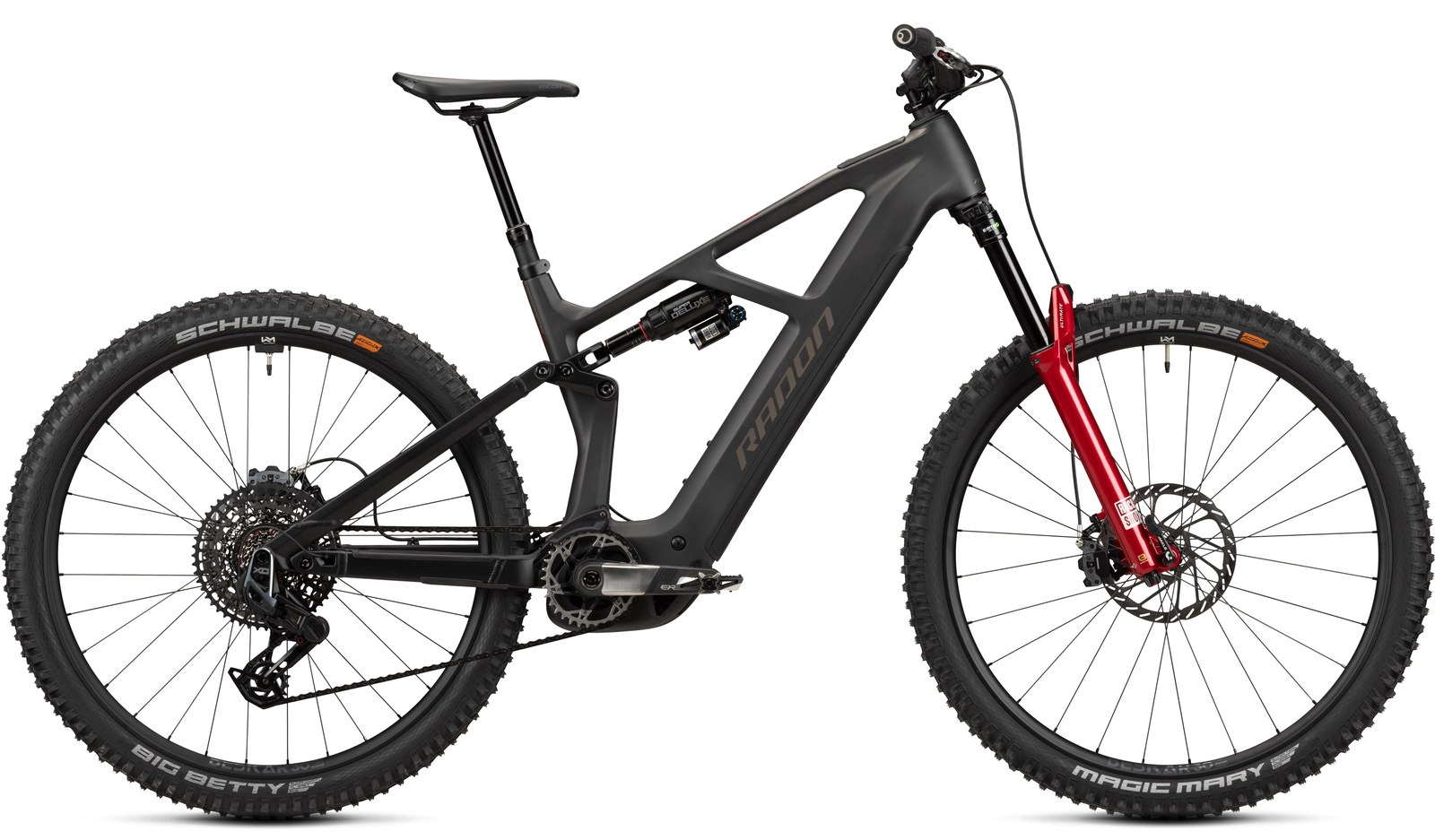

Radon Render 2026

From £3,890

The Render is Radon's full-power trail all-rounder, and for 2026 it gets a ground-up overhaul: a redesigned carbon main frame with an aluminium swingarm, the latest Bosch Performance Line CX Gen5 Smart System motor, and a large 800Wh PowerTube battery quickly removable through an integrated push-lock cover. Travel sits at 160mm front and 140mm rear on 29in wheels, placing it between Radon's lightweight Recap and the longer-travel Deft.Geometry is deliberately long and stable rather than extreme. In size L the reach is 475mm with a 642mm stack, a 65 degree head angle and a 75.5 degree effective seat angle, on 458mm chainstays and a 1268mm wheelbase. An Acros AngleSet headset lets riders tweak the head angle slacker or steeper, so the same frame can be tuned for agility or descending composure. Three sizes (M, L, XL) are offered.The four-bike range is consistently specced and priced sharply for a consumer-direct brand. The 8.0 800 (4499 euro) is the mechanical-shift entry with Fox Rhythm suspension and Magura Louise brakes; the 9.0 800 (5499 euro) steps up to Fox Performance, SRAM Maven brakes and wireless GX Transmission. The 10.0 800 (6299 euro) brings Fox Factory Kashima suspension and Shimano XT Di2, while the descent-focused 10.0 HD 800 (6999 euro) tops the line with RockShox Lyrik Ultimate, Super Deluxe Ultimate, SRAM Maven Ultimate brakes and a UD carbon finish.

EMTB Forums verdict

The Render is Radon's full-power trail all-rounder, and for 2026 it gets a ground-up overhaul: a redesigned carbon main frame with an aluminium swingarm, the latest Bosch Performance Line CX Gen5 Smart System motor, and a large 800Wh PowerTube battery quickly removable through an integrated push-lock cover. Travel sits at 160mm front and 140mm rear on 29in wheels, placing it between Radon's lightweight Recap and the longer-travel Deft.

Geometry is deliberately long and stable rather than extreme. In size L the reach is 475mm with a 642mm stack, a 65 degree head angle and a 75.5 degree effective seat angle, on 458mm chainstays and a 1268mm wheelbase. An Acros AngleSet headset lets riders tweak the head angle slacker or steeper, so the same frame can be tuned for agility or descending composure. Three sizes (M, L, XL) are offered.

The four-bike range is consistently specced and priced sharply for a consumer-direct brand. The 8.0 800 (4499 euro) is the mechanical-shift entry with Fox Rhythm suspension and Magura Louise brakes; the 9.0 800 (5499 euro) steps up to Fox Performance, SRAM Maven brakes and wireless GX Transmission. The 10.0 800 (6299 euro) brings Fox Factory Kashima suspension and Shimano XT Di2, while the descent-focused 10.0 HD 800 (6999 euro) tops the line with RockShox Lyrik Ultimate, Super Deluxe Ultimate, SRAM Maven Ultimate brakes and a UD carbon finish.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (65° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Rear-long with a planted front in L (FC:RC 1.77) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Bosch Performance Line CX Gen 5 and a steep 75.5° seat angle keep the weight planted over the front — a proper winch. 750W of peak power and 120Nm of torque — among the most powerful e-bike motors made.

Best suited toBig-day all-rounders who climb a lot and still descend hard.

Strong up and composed down — a do-it-all, not a specialist.

Watch out forNot a flickable, playful bike at 23.4kg — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Trail bikes (from 223 bikes in the database)

Weight23.4 kgabout average weight

Battery800 Wh93 Wh above average

Motor torque100 Nmabout average torque

Value for money98/100from £3,890 · most Bosch Performance Line CX Gen 5 bikes ~£5,999

⚙️ Adjustable geometry: this frame has a high/low setting — low drops the BB and slackens the head angle for more descending stability; high lifts the BB and steepens slightly for clearance and a perkier, more playful feel.

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

💬 Forum discussion

Radon Render announced from £3500

9 replies · 4k views · last reply 79 months ago

Join the discussion →

Geometry · hover a row to highlight the measurement on the bike

	M	L	XL
Reach	450 mm	475 mm	500 mm
Stack	628 mm	642 mm	656 mm
Seattube	425 mm	450 mm	475 mm
Chainstay	458 mm	458 mm	458 mm
Headtube Angle	65°	65°	65°
Seattube Angle (eff)	75.5°	75.5°	75.5°
Wheelbase	1237 mm	1268 mm	1300 mm
Headtube	105 mm	120 mm	135 mm
Standover	776 mm	776 mm	775 mm
Front Centre	779 mm*	810 mm*	842 mm*
FC:RC	1.70	1.77	1.84

Trims · 4

	8.0 800 £3,890	9.0 800 £4,760	10.0 800 £5,450	10.0 HD 800 £6,050
Motor	Bosch Performance Line CX Gen 5 · 100 Nm · all trims
Battery	Bosch PowerTube 800 · 800 Wh · all trims
Travel F/R	160/140 mm · all trims
Frame	Carbon main frame with aluminium swingarm	Carbon main frame with aluminium swingarm	Carbon main frame with aluminium swingarm	Carbon main frame (UD carbon finish) with aluminium swingarm
Fork	Fox 36 Rhythm, FIT GRIP, 3-Pos., E-Tuned, Boost	Fox 36 Performance, FIT GRIP, 3-Pos., E-Tuned, Boost	Fox 36 Factory, FIT GRIP X, E-Tuned, Boost	Rock Shox Lyrik Ultimate, Charger 3.2 RC2, Boost
Shock	Fox Float Rhythm R, 2-Pos.	Fox Float X Performance, 2-Pos., EVOL LV	Fox Float X Factory, 2-Pos., EVOL LV, Kashima	Rock Shox Super Deluxe Ultimate
Headset	Acros Block-Lock with ICR, ZS56/ZS56 (AngleSet adjustable) · all trims
Stem	RADON Competition stem, 35mm	NEWMEN Evolution SL, 35mm	Race Face Turbine R, 35mm	Race Face Turbine R, 35mm
Handlebar	RADON Trail bar, 35 x 780mm, 35mm rise	NEWMEN Beskar 318.25 VGS, 35 x 760-810mm, 25mm rise	Race Face Turbine, 35 x 780mm, 40mm rise	Race Face Era, 35 x 780mm, 40mm rise
Grips	Acid Disrupt	NEWMEN Slat VGS, 30A	Ergon GDH	Ergon GDH
Saddle	ACID Venec EMTB Trail	ACID Venec EMTB Trail	Ergon SM10 Enduro	Ergon SM10 Enduro
Seatpost	RADON Competition V2 dropper, 31.6mm	RADON Competition V2 dropper, 31.6mm	SDG Tellis V2 dropper, 31.6mm	SDG Tellis V2 dropper, 31.6mm
Brakes	Magura Louise, 4-piston	SRAM Maven, 4-piston	Shimano XT BR-M8220, 4-piston	SRAM Maven Ultimate, 4-piston
Rear derailleur	Shimano XT RD-M8100-SGS, 12-speed	SRAM GX Eagle Transmission, 12-speed	Shimano XT Di2 RD-M8260-SGS, 12-speed	SRAM X0 Eagle Transmission, 12-speed
Crank	Acid E-Crank, 165mm, 34T	Race Face Aeffect R, 165mm, SRAM T-Type Eagle Transmission 34T	Race Face Era, 165mm, 34T	Race Face Era, 165mm, SRAM T-Type Eagle Transmission 34T
Shifters	Shimano DEORE SL-M6100-IR, Shiftmix	SRAM AXS POD Controller	Shimano XT Di2 SW-M8250-IR	SRAM AXS POD Ultimate Controller
Cassette	Shimano DEORE CS-M6100, 10-51	SRAM GX Eagle Transmission XS-1275, 10-52	Shimano XT CS-M8200, 10-51	SRAM GX Eagle Transmission CS-XS-1275, 10-52
Chain	KMC E12	SRAM Eagle 70 Transmission	Shimano XT CN-M8100	SRAM X0 Eagle Transmission
Drivetrain	Shimano XT RD-M8100-SGS, 12-speed; Acid E-Crank, 165mm, 34T; Shimano DEORE SL-M6100-IR, Shiftmix; Shimano DEORE CS-M6100, 10-51; KMC E12	SRAM GX Eagle Transmission, 12-speed; Race Face Aeffect R, 165mm, SRAM T-Type Eagle Transmission 34T; SRAM AXS POD Controller; SRAM GX Eagle Transmission XS-1275, 10-52; SRAM Eagle 70 Transmission	Shimano XT Di2 RD-M8260-SGS, 12-speed; Race Face Era, 165mm, 34T; Shimano XT Di2 SW-M8250-IR; Shimano XT CS-M8200, 10-51; Shimano XT CN-M8100	SRAM X0 Eagle Transmission, 12-speed; Race Face Era, 165mm, SRAM T-Type Eagle Transmission 34T; SRAM AXS POD Ultimate Controller; SRAM GX Eagle Transmission CS-XS-1275, 10-52; SRAM X0 Eagle Transmission
Wheels	SUNringle 309 Enduro Comp, 110/148mm	NEWMEN Performance 30 base/strong, 110/148mm	NEWMEN Beskar 30 base/strong, 110/148mm	NEWMEN Beskar 30 base/strong, 110/148mm
Tyres	Continental Kryptotal Front Enduro soft 29x2.4 (front) / Continental Kryptotal Rear Downhill soft 29x2.4 (rear)	Continental Kryptotal Front Enduro soft 29x2.4 (front) / Continental Kryptotal Rear Downhill soft 29x2.4 (rear)	Schwalbe Magic Mary Addix-Soft Super Trail TLE 29x2.4 (front) / Schwalbe Big Betty Addix-Soft Super Gravity TLE 29x2.4 (rear)	Schwalbe Magic Mary Addix-Soft Super Trail TLE 29x2.4 (front) / Schwalbe Big Betty Addix-Soft Super Gravity TLE 29x2.4 (rear)
Weight	24.85 kg	24.45 kg	23.4 kg	23.4 kg
Price	£3,890	£4,760	£5,450	£6,050
