Descending
63
A solid all-round descender (64.3° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.
Pivot

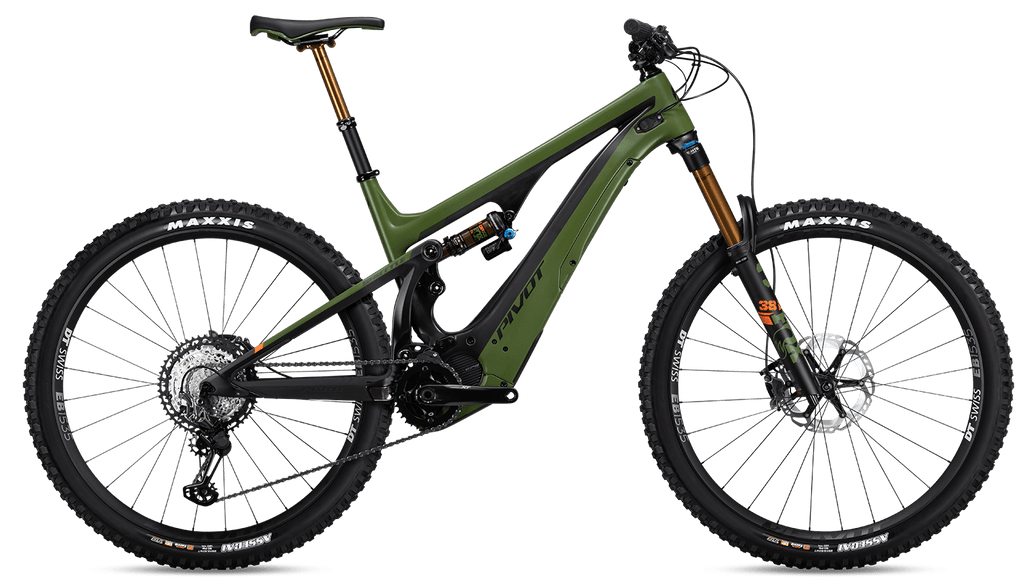

Shuttle AM 2023
Discontinued✎Full Power · TrailLegacy · 0.4/10iFreshness 0.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Premium full-carbon all-mountain bike carrying a very high price
Motor
Shimano EP8 (DU-EP800) · 85Nm · 500W↗
Battery
Shimano 726Wh
Travel F/R
160/140mm
Wheels
29F / 29R✎
Frame
Full carbon✎
Weight
—✎
Price
£12,400✎
From £12,400
EMTB Forums verdict
The 2023 Pivot Shuttle AM was the brand's original full-power eMTB, built around a full-carbon hollow-core chassis with Pivot's dw-link suspension giving 140mm of rear travel through a metric Fox shock, matched to a 160mm Fox 38 fork. Power came from a Shimano EP8 (DU-EP800) drive unit rated at 85Nm, fed by a 726Wh battery with a two-bolt release system, and the frame was also compatible with smaller 635Wh and 508Wh packs.
The bike ran modern all-mountain numbers across four sizes: a 64.3 degree head angle, a 74.0 degree effective seat angle, 441mm chainstays and reach growing from 420mm on the Small to 485mm on the XL, with 29in wheels front and rear and Maxxis Assegai and Minion DHR II rubber. The premium Team XTR build paired Fox Factory 38 GRIP2 and Float X suspension with a full Shimano XTR transmission and brakes, DT Swiss EB 1535 wheels, a Fox Transfer Factory dropper and a Pivot Pro E-Bike saddle, listed in the UK at 12,400 pounds in Treeline Green.
This model is discontinued. In 2023 Pivot replaced it with an all-new Shuttle AM built on the Bosch Performance Line CX (and limited-edition CX Race) platform, with a 750Wh battery and a 148mm-travel dw-link rear end, ending the Shimano EP8 era for this model.
As a research dossier this entry records the published specification and geometry only and makes no claim about long-term ride feel or reliability.
Geometry read
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
Size
Playfulness
64
A fair bit of pop, but happiest on flowing trail rather than trials moves.
Size balance
95
Balanced front-to-rear in L (FC:RC 1.80) — weight sits evenly between the wheels.
Technical climbing
66
Climbs well — a 74° seat keeps the front planted. 500W of peak power and 85Nm of torque — a strong full-power motor.
No single standout trait — a balanced, versatile bike.
The numbers are well balanced for its category.
How it stacks up vs other Full Power · Trail bikes (from 271 bikes in the database)
Battery726 Whabout average capacity
Motor torque85 Nm13 Nm below average
Value for money5/100from £12,400 · most Shimano EP8 (DU-EP800) bikes ~£5,610
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
💬 Forum discussion
2024 Pivot Shuttle AM
119 replies · 32.6k views · last reply 13 months ago
Join the discussion →
“Jumping on the band wagon here. I got the XO package with the T-Type drivetrain, an upgraded X2 shock, and 200mm seatpost for my long legs. I'm really enjoying the bike. The suspension is a little more "lively" than my old Heckler.…”
— RustyIron · ♥ 6 · most-liked post
Geometry · hover a row to highlight the measurement on the bike
| S | MD | L | XL | |
|---|---|---|---|---|
| Reach | 420 mm | 440 mm | 460 mm | 485 mm |
| Stack | 614 mm | 624 mm | 633 mm | 642 mm |
| Seattube | 395 mm | 424 mm | 458 mm | 496 mm |
| Chainstay | 441 mm | 441 mm | 441 mm | 441 mm |
| Headtube Angle | 64.3° | 64.3° | 64.3° | 64.3° |
| Seattube Angle (eff) | 74° | 74° | 74° | 74° |
| Wheelbase | 1187 mm | 1214 mm | 1235 mm | 1264 mm |
| Headtube | 110 mm | 120 mm | 130 mm | 140 mm |
| BB Height | 358 mm | 358 mm | 358 mm | 358 mm |
| Standover | 715 mm | 715 mm | 723 mm | 723 mm |
| Front Centre | 746 mm* | 773 mm* | 794 mm* | 823 mm* |
| FC:RC | 1.69 | 1.75 | 1.80 | 1.87 |
Trims · 1
Team XTR £12,400 | |
|---|---|
| Motor | Shimano EP8 (DU-EP800) · 85 Nm |
| Battery | Shimano 726Wh · 726 Wh |
| Travel F/R | 160/140 mm |
| Frame | Full-carbon (hollow-core moulded carbon fibre) |
| Fork | Fox Factory 38 GRIP2 fork, 44mm offset, 160mm of travel |
| Shock | Metric-sized Fox Factory Float X shock with Kashima coating, 140mm of rear travel |
| Stem | Phoenix Team Enduro/Trail |
| Handlebar | Phoenix Team Low Rise Carbon |
| Saddle | Pivot Pro E-Bike |
| Seatpost | Fox Transfer Factory Series |
| Brakes | Shimano XTR M9120 4-piston calliper |
| Rear derailleur | Shimano XTR SGS 12-Speed |
| Crank | Shimano XT M8150 w/ Shimano E-MTB 34t |
| Shifters | Shimano XTR M9100 12-Speed |
| Cassette | Shimano XT M8100 10-51t |
| Drivetrain | Shimano XTR SGS 12-Speed; Shimano XT M8150 w/ Shimano E-MTB 34t; Shimano XTR M9100 12-Speed; Shimano XT M8100 10-51t |
| Wheels | DT Swiss EB 1535, 30mm - 29"; 15x110 F / 12x157 R |
| Tyres | Maxxis Assegai front, Maxxis Minion DHR II rear |
| Price | £12,400 |
