Bike Finder · Orbea

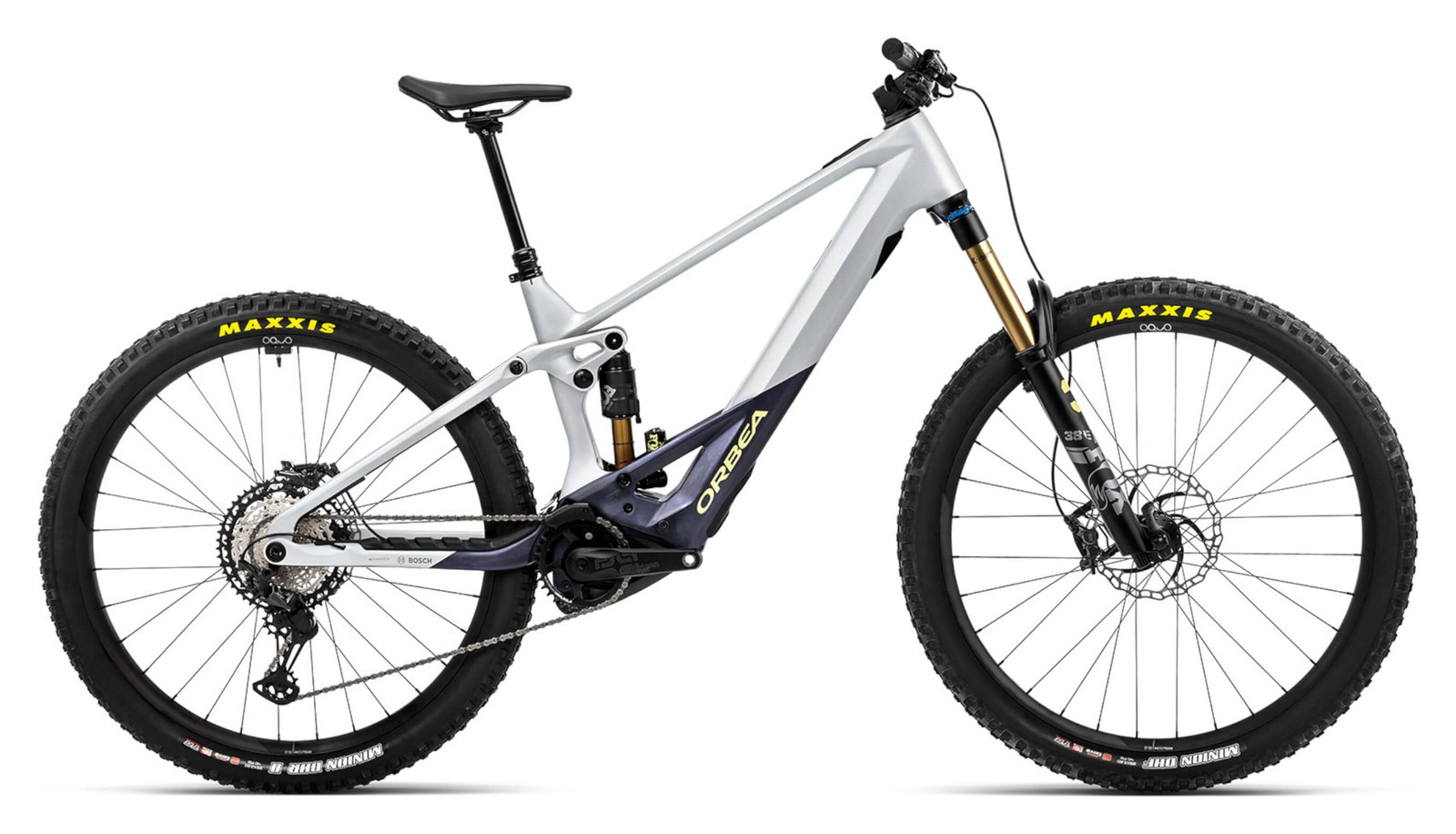

Orbea Wild FS
Orbea

Wild FS 2023

DiscontinuedFull Power · EnduroLegacy · 1/10iFreshness 1/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Travel F/R
160/160mm
Wheels
29F / 29R
Frame
Full carbon / Aluminium
Weight
23 kg
Price
From £7,099
View the Orbea Wild FS on Orbea’s site
Orbea Wild FS 2023
From £7,099
EMTB Forums verdict

The Orbea Wild FS was the brand's outgoing full-power enduro eMTB, an OMR carbon (or hydroformed alloy on H-models) 29er running 160mm of travel front and rear, driven by the Bosch Performance Line CX Gen 4 motor and the then-new Bosch Smart System. It was sold from autumn 2022 and carried as a model-year 2023 machine before Orbea replaced it in early 2023 with the all-new, redesigned Wild.

Geometry is comfortably modern for its era without chasing extremes: a 65.5 degree head angle, a 76 degree effective seat angle and a long 455mm chainstay across all sizes, with reach growing from 430mm on the S/M to 485mm on the XL. The frame was offered in three sizes (S/M, L, XL) rather than a four-size range, which is a notable quirk when sizing against rivals.

Trim value spans a wide ladder. The carbon M-Team headlines with Fox 38 Factory and Float X2 Factory suspension, a full Shimano XT 1x12 transmission, an e*thirteen Plus Alu crank and OQUO carbon wheels; the M10 keeps the carbon frame on Performance-level Fox; and the alloy H20 and entry H30 bring the platform down to RockShox 35 forks and Shimano Deore shifting, with the H30 dropping to the smaller 625Wh battery. All M and most H models use the 750Wh Bosch PowerTube.

As the predecessor to the current Wild, the Wild FS still makes sense for a buyer chasing a discounted, proven 160mm Bosch CX platform, provided they accept the three-size frame range and the older Gen 4 motor rather than the newer Wild's revised chassis.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size
Descending
60

A solid all-round descender (65.5° head angle, 160mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness
35

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance
84

Rear-long with a planted front in L (FC:RC 1.71) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing
77

Bosch Performance Line CX Gen 4 and a steep 76° seat angle keep the weight planted over the front — a proper winch. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toBig-day all-rounders who climb a lot and still descend hard.

Strong up and composed down — a do-it-all, not a specialist.

Watch out forNot a flickable, playful bike at 23kg — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Enduro bikes (from 134 bikes in the database)

Weight23 kg0.8 kg lighter than average
Battery750 Whabout average capacity
Motor torque85 Nm18 Nm below average
Value for money39/100from £7,099 · most Bosch Performance Line CX Gen 4 bikes ~£6,599
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Paste into any thread to embed this live, interactive panel.
OWNERS’ REPORT
Orbea Wild — what owners actually know
4,621 posts · 907 owners · data through May 2026
82023+ spinblock and motor cover plastic breakage · typical onset: First rides to first months on 2023-2025 carbon bikes
62023 paint and finish defects · typical onset: From delivery, 2023 carbon bikes
5WILD FS 2020-22 (legacy): alloy rear-triangle cracking and RaceFace freehub · typical onset: Months to a couple of years (alloy frame); weeks to months (freehub) - 2020-2022 bikes
'It is a remarkably smooth ride with nice power supply' - a 2023 Wild Team modified to XTR, Fox 38, Kiox 300 and a 750Wh battery, called the best bike this…
Inside: the community setup plate · numbered field notes · the used-buyer checklist.
Read the full owners’ report →

Geometry · hover a row to highlight the measurement on the bike

Bike geometry diagram
SLXL
Reach430 mm455 mm485 mm
Stack621 mm630 mm644 mm
Chainstay455 mm455 mm455 mm
Headtube Angle65.5°65.5°65.5°
Seattube Angle (eff)76°76°76°
Wheelbase1203 mm1232 mm1268 mm
BB Height345 mm345 mm345 mm
Standover725 mm740 mm765 mm
Front Centre748 mm*777 mm*813 mm*
FC:RC1.641.711.79

Trims · 5

M10
£7,099
M-Team
£8,099
H20
H30
M20
MotorBosch Performance Line CX Gen 4 · 85 Nm · all trims
BatteryBosch PowerTube 750 · 750 Wh · all trims
Travel F/R160/160 mm · all trims
FrameCarbon (Orbea OMR)Carbon (Orbea OMR)Hydroformed AlloyHydroformed AlloyCarbon (Orbea OMR)
ForkFox 38 Float Performance, Grip2, 160mm BoostFox 38 Float Factory, Grip2, Kashima, 160mm BoostRockShox 35 Silver TK Q15x110 Solo Air 160mmRockShox 35 Silver TK Q15x110 Solo Air 160mmRockShox 35 Silver TK Solo Air 160mm
ShockFox Float X Performance Trunnion 2-Position Adjust, Custom tuneFox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tuneFox Float DPS Performance Trunnion 3-Position Evol LVFox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mmFox Float DPS Performance, custom tune, 3-position lockout, Trunnion mount
HeadsetAlloy 1-1/2", Black Oxidated BearingAlloy 1-1/2", Black Oxidated BearingFSA 1-1/2" Integrated Aluminium CupFSA 1-1/2" Integrated Aluminium CupAlloy 1-1/2", Black Oxidated Bearing
StemOC Mountain Control MC20, 0ºOC Mountain Control MC10 Alu SL, 0ºOC Mountain Control MC20, 0ºOC Mountain Control MC20, 0ºOC Mountain Control MC20, 0º
HandlebarOC Mountain Control MC20 Alu SL, Rise20, Width 800OC Mountain Control MC10 Carbon, Rise 20, Width 800OC Mountain Control MC30, Rise20, Width 800OC Mountain Control MC30, Rise20, Width 800OC Mountain Control MC30, Rise20, Width 800
SaddleFizik Aidon, magnesium railsFizik Aidon 208x145mm manganese railSelle Royal Vivo 145x269mmSelle Royal Vivo 145x269mmSelle Royal Vivo
SeatpostOC Mountain Control MC20, 31.6mm, Dropper · all trims
BrakesShimano M6120 Hydraulic disc brakesShimano XT M8120 Hydraulic disc brakesSRAM DB8 Black Hydraulic DiscShimano M410 Hydraulic Disc BrakesSRAM DB8 Black Hydraulic Disc
Rear derailleurShimano XT M8100, ShadowPlus, 12-SpeedShimano XT M8100, ShadowPlus, 12-SpeedShimano XT M8100, SGS ShadowPlus, 12-SpeedShimano XT M8100 SGS, ShadowPlus, 12-SpeedShimano XT M8100, ShadowPlus, 12-Speed
Cranke*thirteen Plus Alu, 160mm length (e*thirteen e*spec Direct Mount 34T Boost chainring)e*thirteen Plus Alu, 160mm length (e*thirteen e*spec Direct Mount 34T chainring)e*thirteen Plus Alu, 160mm length (e*thirteen e*spec Direct Mount 34T chainring)e*thirteen Plus Alu, 160mm length (e*thirteen e*spec Direct Mount 34T chainring)
ShiftersShimano SLX M7100, 12-SpeedShimano XT M8100, 12-SpeedShimano Deore M6100, 12-SpeedShimano Deore M6100 I-Spec EV, 12-SpeedShimano Deore M6100, 12-Speed
CassetteShimano SLX M7100, 10-51t, 12-SpeedShimano XT M8100, 10-51t, 12-SpeedShimano CS-M7100 10-51t 12-SpeedShimano CS-M6100 10-51t 12-SpeedShimano CS-M7100 10-51t 12-Speed
ChainShimano M6100, 12-SpeedKMC e12 Turbo 12-SpeedShimano M6100 12-SpeedShimano M6100 12-SpeedShimano M6100 12-Speed
DrivetrainShimano XT M8100, ShadowPlus, 12-Speed; Shimano SLX M7100, 12-Speed; Shimano SLX M7100, 10-51t, 12-Speed; Shimano M6100, 12-SpeedShimano XT M8100, ShadowPlus, 12-Speed; e*thirteen Plus Alu, 160mm length (e*thirteen e*spec Direct Mount 34T Boost chainring); Shimano XT M8100, 12-Speed; Shimano XT M8100, 10-51t, 12-Speed; KMC e12 Turbo 12-SpeedShimano XT M8100, SGS ShadowPlus, 12-Speed; e*thirteen Plus Alu, 160mm length (e*thirteen e*spec Direct Mount 34T chainring); Shimano Deore M6100, 12-Speed; Shimano CS-M7100 10-51t 12-Speed; Shimano M6100 12-SpeedShimano XT M8100 SGS, ShadowPlus, 12-Speed; e*thirteen Plus Alu, 160mm length (e*thirteen e*spec Direct Mount 34T chainring); Shimano Deore M6100 I-Spec EV, 12-Speed; Shimano CS-M6100 10-51t 12-Speed; Shimano M6100 12-SpeedShimano XT M8100, ShadowPlus, 12-Speed; e*thirteen Plus Alu, 160mm length (e*thirteen e*spec Direct Mount 34T chainring); Shimano Deore M6100, 12-Speed; Shimano CS-M7100 10-51t 12-Speed; Shimano M6100 12-Speed
WheelsOQUO Mountain Control MC32TEAM eBIKEOQUO Mountain Control MC32TEAM eBIKERace Face AR 30c Tubeless ReadyRace Face AR 30c Tubeless ReadyRace Face AR 30c Tubeless Ready
TyresMaxxis Minion DH, Maxx Terra Exo+, 2.6"Maxxis Minion DHF/DHR II, Maxx Terra Exo+, 2.6"Maxxis Minion DH, Maxx Terra Exo+, 2.6"Maxxis Minion DHF/DHR II, Maxx Terra Exo+, 2.6"Maxxis Minion DH, Maxx Terra Exo+, 2.6"
Weight23 kg23 kg25 kg23 kg
Price£7,099£8,099
