Orbea

Urrun 2022

Discontinued✎Lightweight · Cross-CountryLegacy · 0.4/10iFreshness 0.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Efficient full-power alloy hardtail for climbing and easy trail access

Motor

Shimano EP8 (DU-EP800) · 60Nm · 500W↗

Battery

Orbea Internal 540 · 540Wh

Travel F/R

120mm / —

Wheels

29F / 29R✎

Frame

Aluminium✎

Weight

—

Price

From £3,499

View the Orbea Urrun on Orbea’s site

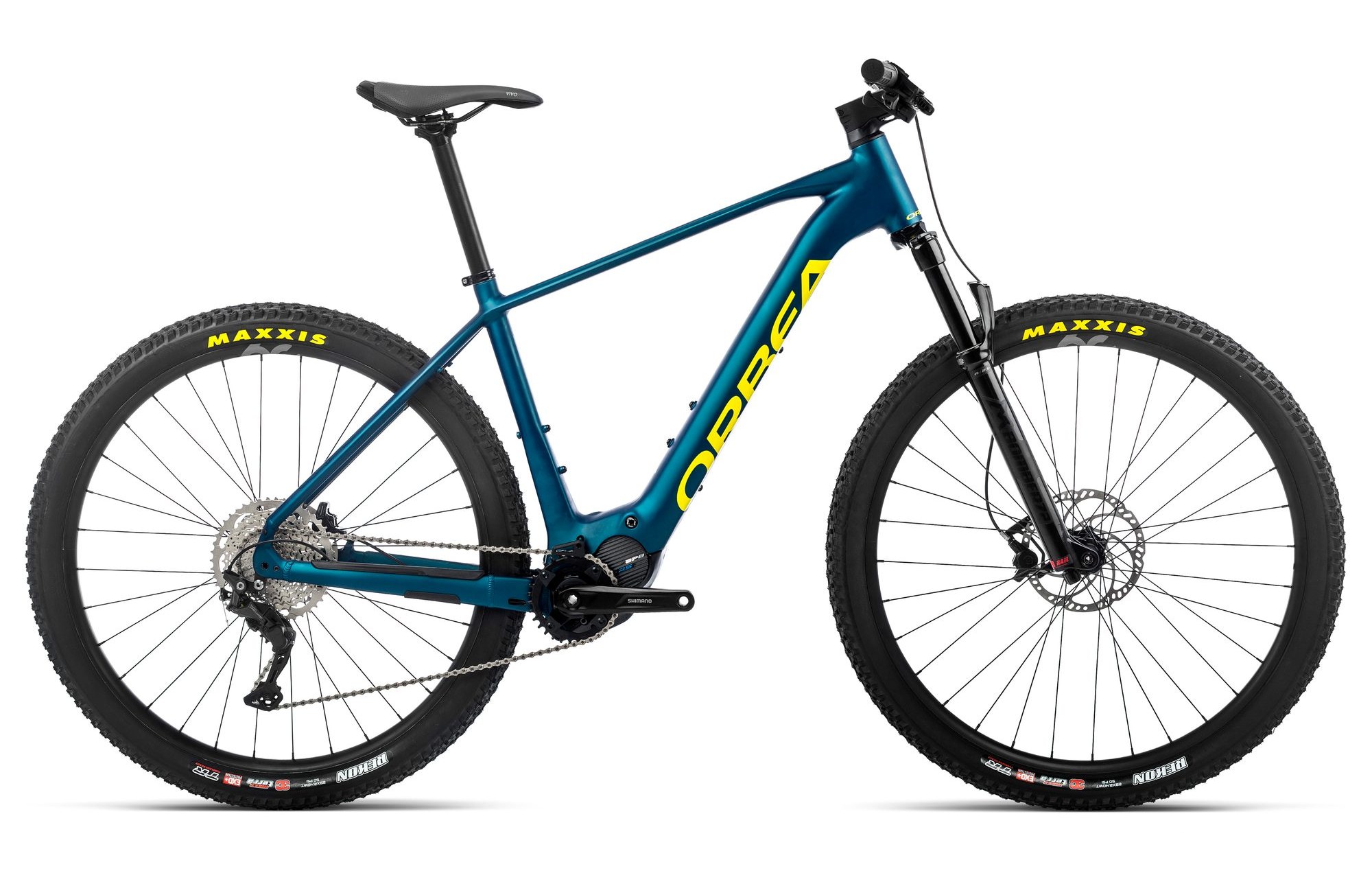

Orbea Urrun 2022

From £3,499

The 2022 Urrun was Orbea's first aluminium trail e-hardtail, launched in May 2022 around a 120mm fork, 29in wheels and the lightweight Shimano EP8-RS motor shared with the Orbea Rise. The RS tune trades outright grunt for a quieter, more natural-feeling 60Nm delivery, and the 540Wh integrated battery (extendable to 792Wh with the optional 252Wh RS range extender) is aimed at long days out rather than lap-shuttle laps.Two builds were sold, both on the same hydroformed 6061 alloy frame. The Urrun 10 at £4,299 is the sharper spec: a Fox 34 Float Performance fork, four-piston Magura MT5 brakes, a 12-speed Shimano XT drivetrain, tubeless Race Face wheels and an OC Mountain Control dropper post. The £3,499 Urrun 30 keeps the frame, motor and battery but steps down to a Marzocchi Bomber Z2 fork, Magura MT30 brakes, a 10-speed Shimano Deore group and a rigid alloy seatpost.Geometry is trail-leaning but restrained by modern standards, with a 66 degree head angle (65.5 on the S), a roughly 74.5 to 74.8 degree effective seat angle and 445mm chainstays across the range. Reach runs from 395mm on the S to 460mm on the XL, so this is an efficient, easy-going distance hardtail rather than an aggressive descender.

EMTB Forums verdict

The 2022 Urrun was Orbea's first aluminium trail e-hardtail, launched in May 2022 around a 120mm fork, 29in wheels and the lightweight Shimano EP8-RS motor shared with the Orbea Rise. The RS tune trades outright grunt for a quieter, more natural-feeling 60Nm delivery, and the 540Wh integrated battery (extendable to 792Wh with the optional 252Wh RS range extender) is aimed at long days out rather than lap-shuttle laps.

Two builds were sold, both on the same hydroformed 6061 alloy frame. The Urrun 10 at £4,299 is the sharper spec: a Fox 34 Float Performance fork, four-piston Magura MT5 brakes, a 12-speed Shimano XT drivetrain, tubeless Race Face wheels and an OC Mountain Control dropper post. The £3,499 Urrun 30 keeps the frame, motor and battery but steps down to a Marzocchi Bomber Z2 fork, Magura MT30 brakes, a 10-speed Shimano Deore group and a rigid alloy seatpost.

Geometry is trail-leaning but restrained by modern standards, with a 66 degree head angle (65.5 on the S), a roughly 74.5 to 74.8 degree effective seat angle and 445mm chainstays across the range. Reach runs from 395mm on the S to 460mm on the XL, so this is an efficient, easy-going distance hardtail rather than an aggressive descender.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (66° head angle, 120mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

Short 445mm rear and a lighter build — easy to pop, manual and throw around.

Size balance

Rear-long with a planted front in L (FC:RC 1.64) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Shimano EP8 (DU-EP800) and a steep 74.6° seat angle keep the weight planted over the front — a proper winch. 500W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toPlayful trail riding — jumps, pumps and tight, techy singletrack.

Easy to throw around; happiest when you're active on the bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Lightweight · Cross-Country bikes (from 70 bikes in the database)

Battery540 Wh90 Wh above average

Motor torque60 Nmabout average torque

Value for money25/100from £3,499 · comparable bikes ~£2,999

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	395 mm	405 mm	440 mm	460 mm
Stack	631 mm	628 mm	647 mm	666 mm
Seattube	400 mm	453 mm	483 mm	533 mm
Chainstay	445 mm	445 mm	445 mm	445 mm
Headtube Angle	65.5°	66°	66°	66°
Seattube Angle (eff)	74.8°	74.6°	74.6°	74.5°
Wheelbase	1143 mm	1150 mm	1173 mm	1220 mm
Headtube	110 mm	115 mm	132 mm	153 mm
BB Height	322 mm	320 mm	320 mm	320 mm
Standover	798 mm	826 mm	848 mm	882 mm
Front Centre	698 mm*	705 mm*	728 mm*	775 mm*
FC:RC	1.57	1.58	1.64	1.74

Trims · 2

	Urrun 30 £3,499	Urrun 10 £4,299
Motor	Shimano EP8 (DU-EP800) · 60 Nm · all trims
Battery	Orbea Internal 540 · 540 Wh · all trims
Travel F/R	120/? mm · all trims
Frame	Aluminium · all trims
Fork	Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized	Fox 34 Float Performance 120 Grip 3-Position QR15x110 E-Bike Optimized
Headset	FSA 1-1/2" Integrated Aluminium Cup · all trims
Stem	OC1 35mm interface -6º · all trims
Handlebar	OC 35mm 20mm Rise 780mm · all trims
Saddle	Selle Royal Vivo · all trims
Seatpost	Alloy 31.6 Offset 0	OC MC20 Mountain Control Dropper, 31.6mm, 100mm travel
Brakes	Magura MT30 Hydraulic Disc Easy Route Connection	Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Rear derailleur	Shimano Deore M5120 SGS Shadow Plus	Shimano XT M8100 SGS Shadow Plus
Crank	Shimano Steps EM600 (Alloy EP8 32t chainring) · all trims
Shifters	Shimano Deore M4100	Shimano XT M8100
Cassette	Shimano CS-M4100 11-46t 10-Speed	Shimano CS-M7100 10-51t 12-Speed
Chain	KMC e10 Turbo Silver	Shimano M6100
Drivetrain	Shimano Deore M5120 SGS Shadow Plus; Shimano Steps EM600 (Alloy EP8 32t chainring); Shimano Deore M4100; Shimano CS-M4100 11-46t 10-Speed; KMC e10 Turbo Silver	Shimano XT M8100 SGS Shadow Plus; Shimano Steps EM600 (Alloy EP8 32t chainring); Shimano XT M8100; Shimano CS-M7100 10-51t 12-Speed; Shimano M6100
Wheels	Orbea OC1 29c Tubeless Ready	Race Face AR 30c Tubeless Ready
Tyres	Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR · all trims
Price	£3,499	£4,299
