Phase Avinox 2026
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

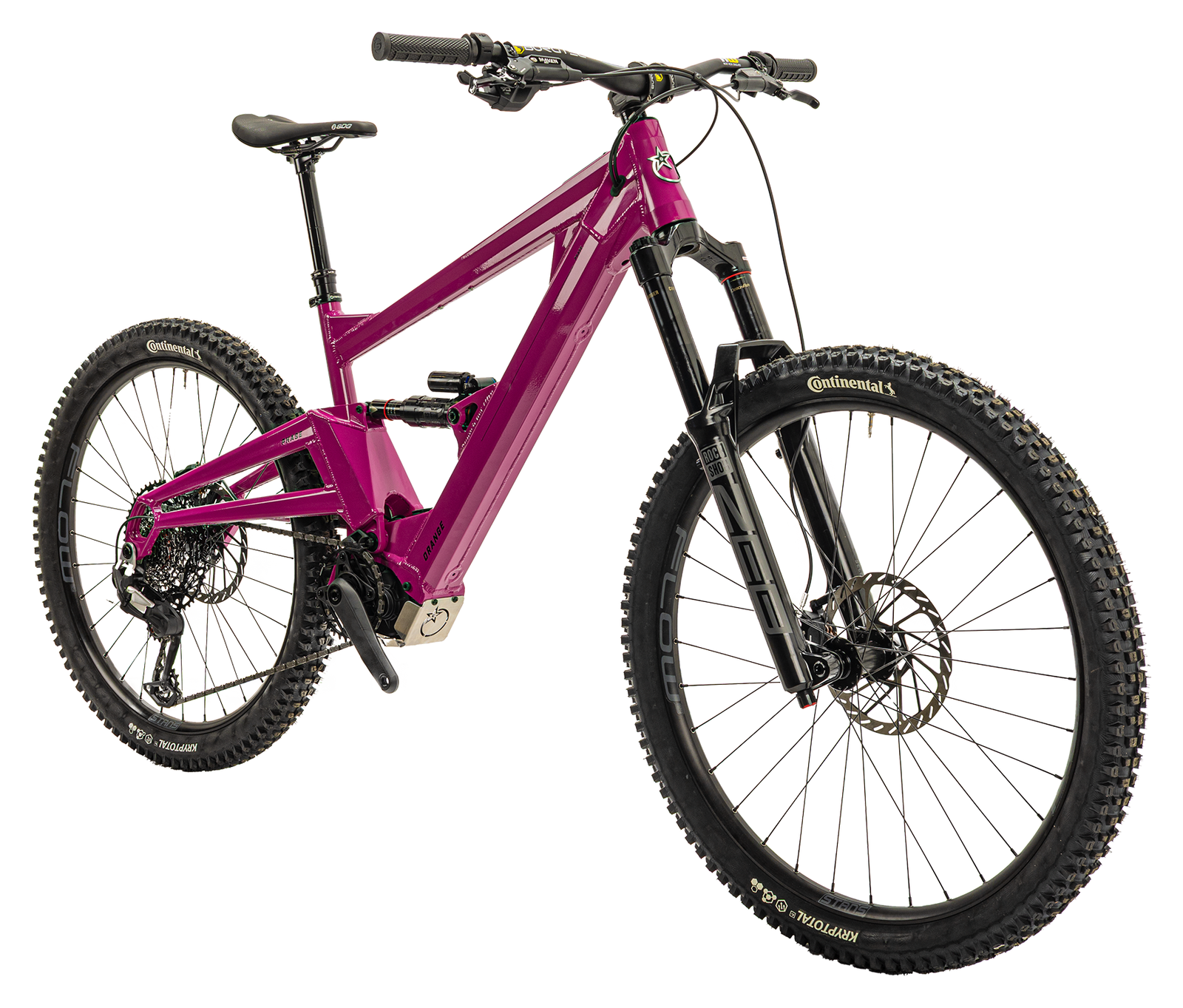

The 2026 Phase is Orange's first DJI Avinox-powered eMTB, replacing the earlier Shimano EP801 Phase models. It keeps the brand's hallmark UK-built 6061-T6 aluminium monocoque frame, now paired with the Avinox M2S motor putting out a claimed 130Nm (150Nm in Boost) and an 800Wh integrated battery. The single-pivot chassis runs 160mm of travel front and rear on a mixed-wheel (29F/27.5R) layout, positioning it as a do-it-all enduro machine.
Geometry is firmly modern enduro: a 64 degree head angle, 76 degree effective seat angle and reaches of 465mm (M), 480mm (L) and 500mm (XL). Chainstays are a long 448mm across all sizes and the BB sits 343mm from the ground, pointing to a stable, planted feel rather than a flickable one.
Two builds are offered. The RS at £8,250 runs RockShox Zeb Select+ and Super Deluxe Select+ suspension, while the £8,750 Factory steps up to Fox 38 Factory Grip X2 and Float X2 Factory with a Fox Transfer Factory dropper. Both share the same SRAM Eagle 90 Transmission drivetrain, Maven Silver brakes with 200/200mm rotors, Hope Pro 5 hubs and Burgtec cockpit, so the £500 premium buys the suspension and dropper upgrade alone.
Geometry · hover a row to highlight the measurement on the bike
| M | L | XL | |
|---|---|---|---|
| Toptube | 635 mm | 635 mm | 665 mm |
| Reach | 464 mm | 477 mm | 500 mm |
| Stack | 642 mm | 649 mm | 659 mm |
| Seattube | 431 mm | 440 mm | 457 mm |
| Chainstay | 448 mm | 447 mm | 448 mm |
| Headtube Angle | 63° | 63.2° | 64° |
| Seattube Angle (eff) | 76° | 75.6° | 76° |
| BB Drop | 27 mm | 27 mm | -11 mm |
| Wheelbase | 1276 mm | 1289 mm | 1303 mm |
| Headtube | 120 mm | 120 mm | 150 mm |
| BB Height | 343 mm | 343 mm | 343 mm |
| Front Centre | 828 mm | 842 mm | 855 mm |
Trims · 2
RS £8,250 | Factory £8,750 | |
|---|---|---|
| Motor | Avinox M2S · 150 Nm · all trims | |
| Battery | Avinox FP800 · 800 Wh · all trims | |
| Travel F/R | 160/160 mm · all trims | |
| Frame | 6061-T6 aluminium · all trims | |
| Fork | RockShox Zeb Select+ 29x160 | Fox 38 Factory Grip X2 29x160 |
| Shock | RockShox Super Deluxe Select+ 205x65 | Fox Float X2 Factory 205x65 |
| Headset | Cane Creek ZS49/ZS56 · all trims | |
| Stem | Burgtec Enduro 40mm · all trims | |
| Handlebar | Burgtec Ridewide 800 x 42.5mm · all trims | |
| Grips | Strange Grappler · all trims | |
| Saddle | SDG Bel Air III · all trims | |
| Seatpost | KS Ragei 170mm | Fox Transfer Factory |
| Brakes | SRAM Maven Silver 200/200 · all trims | |
| Rear derailleur | SRAM Eagle 90 Transmission · all trims | |
| Crank | SRAM Eagle 90 Transmission 165mm 34t · all trims | |
| Shifters | SRAM Eagle 90 Transmission · all trims | |
| Cassette | SRAM 1270 Eagle Transmission 10-52t · all trims | |
| Chain | SRAM Eagle 70 Transmission · all trims | |
| Drivetrain | SRAM Eagle 90 Transmission; SRAM Eagle 90 Transmission 165mm 34t; SRAM Eagle 90 Transmission; SRAM 1270 Eagle Transmission 10-52t; SRAM Eagle 70 Transmission · all trims | |
| Wheels | Stan's Flow S2 rims, Hope Pro 5 hubs | Stan's Flow MK4 rims, Hope Pro 5 hubs |
| Tyres | Continental Kryptotal Soft 2.4 · all trims | |
| Price | £8,250 | £8,750 |
