Shorter and steeper (1212mm, 65.3°) — quick to react but less planted flat-out.
Hybrid All-Mountain 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

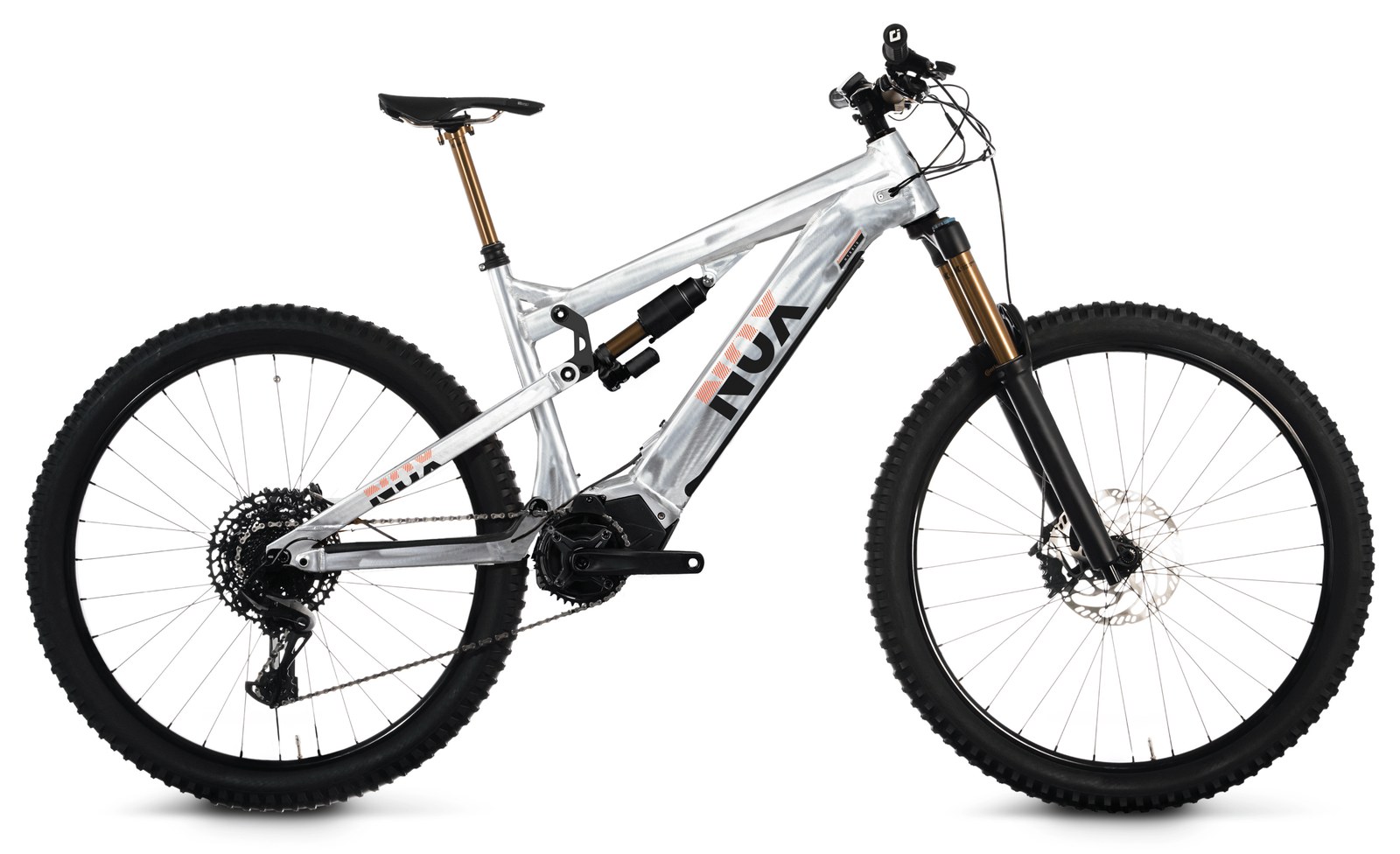

The Nox Hybrid All-Mountain 2025 is the German brand's aluminium full-power all-mountain platform: 160 mm of travel front and rear, the Sachs RS motor delivering 110 Nm of torque and a 700 W peak, and a removable BMZ RS 650Wh (gold-listed at 725 Wh) battery. At a claimed 23.7 kg and £5,999 base price, the bike sits in the upper-mid premium segment and offers an unusual technical proposition: the Sachs-Continental drive system rather than the dominant Bosch, Shimano or DJI offerings. With a 65.3 degree head angle and 466 mm chainstays, this is a confident all-mountain bike rather than a slack enduro sled.
Drive system and range. The Sachs RS motor is the standout technical story. 110 Nm of torque is class-competitive (between Bosch CX Gen 5's 120 Nm and Shimano EP801's 85 Nm), 700 W peak is solid, and the 3.7 kg unit weight is on the heavier side. The motor is built by the Sachs-Continental joint venture and represents one of the few credible alternatives to the Bosch/Shimano/DJI dominance. The 725 Wh removable battery is generous — bigger than the typical 600 Wh found on mid-priced eMTBs in this category — and a meaningful real-world advantage for big-day capability. The Sachs ecosystem is less mature than Bosch's Smart System: fewer dealer touchpoints, smaller OTA-update footprint, and a more limited user-app experience. Real-world range on a Sachs RS with 725 Wh typically delivers 1,300–1,700 m of climbing per charge.
Geometry and handling. A 65.3 degree head angle is balanced, more all-mountain than enduro. Reach progresses cleanly: 415 mm (S), 439 mm (M), 462 mm (L), 486 mm (XL). The 466 mm chainstay is held constant across sizes — long, prioritising climbing traction and stability over the most playful possible feel. Wheelbase grows 1,212 mm to 1,286 mm. The FLS Flex-Linkage is Nox's distinctive flexstay suspension layout, designed to reduce bearing count and frame complexity. The configuration matches the bike's all-mountain rather than full-aggressive-enduro intent.
Build and value. Only the £5,999 base trim is gold-listed. At that price for an aluminium full-power 160/160 platform with 725 Wh battery, the Nox is competitive with Cube Stereo Hybrid One77 (£4,499–8,999), Focus SAM2 (£7,500) and Moustache Game 160 platforms. The Sachs motor differentiation is the main reason to consider Nox over a more mainstream Bosch CX Gen 5-equipped alternative.
Caveats and known gripes. No curated owner quotes or forum excerpts exist for the Nox Hybrid All-Mountain specifically — first-hand long-term ownership data is essentially absent on the eMTB forum. The Sachs motor's UK dealer network is significantly smaller than Bosch, Shimano or even Specialized's: warranty turnaround and spare-part lead times need careful checking before purchase. The 65.3 degree head angle and 466 mm constant chainstay are conservative for a bike now competing with 64-degree, size-progressive-CS rivals at similar money (Norco Sight VLT, Trek Rail+ Gen 5). The aluminium frame at 23.7 kg is heavier than a carbon-front Cube One77 at 22.8 kg. Nox's brand visibility outside Germany is modest; UK retail/distribution should be confirmed before ordering.
Verdict. The Nox Hybrid All-Mountain is a credible alternative for buyers who want a non-Bosch, non-Shimano full-power eMTB and value the differentiation of the Sachs motor system. It will suit riders who prioritise a large 725 Wh removable battery, balanced all-mountain geometry and stand-out drive technology, and who are comfortable buying from a niche German brand with limited UK retail reach. Buyers wanting the latest 120 Nm Bosch CX Gen 5 platform, an established dealer network, slacker enduro geometry, or first-hand community ownership data should look at the Cube Stereo Hybrid One77 SLX or Centurion No Pogo R5000. Production status: current.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 415 mm | 439 mm | 462 mm | 486 mm |
| Stack | 609 mm | 609 mm | 618 mm | 618 mm |
| Chainstay | 466 mm | 466 mm | 466 mm | 466 mm |
| Headtube Angle | 65.3° | 65.3° | 65.3° | 65.3° |
| Seattube Angle (eff) | 74.3° | 74.3° | 74.3° | 74.3° |
| Wheelbase | 1212 mm | 1235 mm | 1263 mm | 1286 mm |
| Front Centre | 746 mm | 769 mm | 797 mm | 820 mm |
| FC:RC | 1.60 | 1.65 | 1.71 | 1.76 |
What the numbers mean on the trail
Computed from this bike's geometry and spec — reach, wheelbase, chainstay, head and seat angles, travel, motor, battery and weight — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
More planted than poppy — better on steep terrain than tight, fiddly singletrack.
Rear-long with a planted front in S (FC:RC 1.60) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
Climbs well — a 74.3° seat keeps the front planted, with 112Nm on tap. That's 4.7 Nm/kg and ~30 W/kg of bike weight.
No single standout trait — a balanced, versatile bike.
Fine at trail pace; ease off on the really fast, rough stuff.
Shorter and steeper (1235mm, 65.3°) — quick to react but less planted flat-out.
More planted than poppy — better on steep terrain than tight, fiddly singletrack.
Rear-long with a planted front in M (FC:RC 1.65) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
Climbs well — a 74.3° seat keeps the front planted, with 112Nm on tap. That's 4.7 Nm/kg and ~30 W/kg of bike weight.
No single standout trait — a balanced, versatile bike.
Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.
Shorter and steeper (1263mm, 65.3°) — quick to react but less planted flat-out.
More planted than poppy — better on steep terrain than tight, fiddly singletrack.
Rear-long with a planted front in L (FC:RC 1.71) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
A workmanlike climber — expect to put in more rider effort on the steep stuff. That's 4.7 Nm/kg and ~30 W/kg of bike weight.
No single standout trait — a balanced, versatile bike.
Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.
Composed enough for fast trails (1286mm, 65.3°) without feeling like a barge.
More planted than poppy — better on steep terrain than tight, fiddly singletrack.
Rear-long with a planted front in XL (FC:RC 1.76) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
A workmanlike climber — expect to put in more rider effort on the steep stuff. That's 4.7 Nm/kg and ~30 W/kg of bike weight.
No single standout trait — a balanced, versatile bike.
Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.
How it stacks up vs other Full Power · Enduro bikes (from 123 bikes in the database)
Trims · 4
Base £5,999 | Core | Pro | Ultra | |
|---|---|---|---|---|
| Motor | Sachs RS · 112 Nm · all trims | |||
| Battery | BMZ RS 650Wh · 650 Wh · all trims | |||
| Travel F/R | 160/160 mm · all trims | |||
| Frame | Aluminium · all trims | |||
| Fork | — | MARZOCCHI Bomber Z1 29in 160 Grip Sweep-Adj Rake YB AM | FOX FLOAT 29in P-S E-Optimized 160 Grip 3Pos | FOX 36 FLOAT 29in F-S E-Optimized 160 Grip 2 HSC LSC HSR LSR |
| Shock | — | FOX FLOAT DPS P-S A 3pos Evol LV Nox Comp | FOX FLOAT X P-S A 2pos Evol LV Nox Expert | FOX FLOAT X F-S K 2pos-Adj Evol LV FOX AM |
| Headset | — | FIRST NOX Components ZS44/56 | FIRST NOX Components ZS44/56 | FIRST NOX Components ZS44/56 |
| Stem | — | REVERSE Stem E-Black-ONE 50mm Ø35mm | REVERSE Stem E-Black-ONE 50mm Ø35mm | REVERSE Stem, Black-One Enduro Titan D Ø35mm L 35mm |
| Handlebar | — | REVERSE Handlebar E-Element 800mm Ø35/R25mm | REVERSE Handlebar E-Element 770mm Ø35/R25mm | REVERSE Handlebar Carbon Seismic Ø35/R20 |
| Grips | — | REVERSE Stamp Single Lock-On | REVERSE Stamp Single Lock-On | REVERSE Stamp Single Lock-On |
| Seatpost | — | LIMOTEC A1 30,9/150mm | FOX Transfer P-SE A Ø 30.9mm 150mm Drop Internal AM | FOX Transfer F-S K Ø 30.9mm 150mm Drop Internal AM |
| Brakes | — | SHIMANO BL-MT401/BR-MT420 | SHIMANO BL-M6100/BR-M6120 | SHIMANO XT BL-M8100/BR-M8120 |
| Rear derailleur | — | SHIMANO DEORE RD-M5130 10-speed LG | SHIMANO XT RD-M8130 11-speed LG | SHIMANO XT RD-M8100 12-speed |
| Crank | — | FSA | FSA | FSA |
| Shifters | — | SHIMANO DEORE SL-M5130 10-speed LG | SHIMANO XT SL-M8130 11-speed LG | SHIMANO XT SL-M8100 12-speed I-spec EV |
| Cassette | — | SHIMANO LinkGlide CS-LG600 10-speed 11-43T | SHIMANO LinkGlide CS-LG600 11-speed 11-50T | SHIMANO XT CS-M8100 12-speed 10-51T |
| Drivetrain | — | SHIMANO DEORE LinkGlide 10-speed | SHIMANO XT LinkGlide 11-speed | SHIMANO XT 12-speed |
| Wheels | — | DT SWISS H1900 29" 30mm | DT SWISS HX1700 29" 30mm | DT SWISS HX1501 29" 30mm |
| Tyres | — | CONTINENTAL Kryptotal-F / Kryptotal-R Trail Endurance foldable skin SL | CONTINENTAL Kryptotal-F / Kryptotal-R Enduro Soft foldable skin SL | CONTINENTAL Kryptotal-F / Kryptotal-R Enduro Soft foldable skin SL |
| Weight | 23.7 kg | — | — | — |
| Price | £5,999 | — | — | — |
