Norco

Sight VLT 2023

Discontinued✎Full Power · TrailLegacy · 0.4/10iFreshness 0.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Shimano EP8 (DU-EP800) · 85Nm · 500W↗

Battery

Norco VLT 900Wh

Travel F/R

160/150mm

Wheels

29F / 29R✎

Frame

Aluminium / Carbon front, aluminium rear

Weight

—

Price

—

View the Norco Sight VLT on Norco’s site

📋Owners’ report 1,379 posts

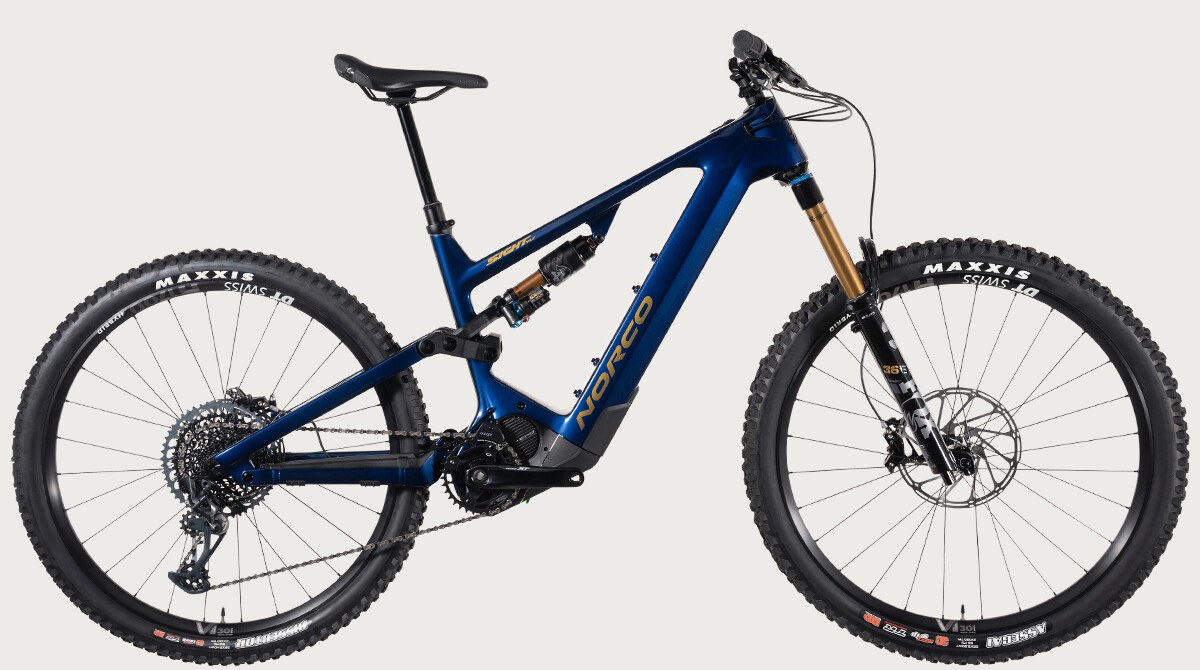

Norco Sight VLT 2023

The 2023 Norco Sight VLT is the Canadian brand's full-power all-mountain e-bike, sitting a step below the longer-travel Range VLT enduro machine. It pairs 160mm up front with 150mm of Horst Link travel on full 29in wheels, built around Norco's Ride Aligned geometry with a 64-degree head angle, size-specific seat angles from 77 to 78 degrees and a shared 462mm rear centre across all four sizes.Power comes from Shimano's STEPS EP8 drive unit (85Nm) feeding a removable Norco VLT in-tube battery, offered in 540Wh, 720Wh and 900Wh capacities so riders can dial range against weight. The big 900Wh pack is among the larger options on an all-mountain platform of this era. Note that Norco listed the battery as a separate purchase from the frame.Four builds spanned the range: alloy A2 and A1, then carbon C2 and C1. The aluminium A2 and A1 keep things sensible with RockShox 35 Gold or Fox Rhythm 36 forks and Shimano drivetrains, while the carbon C2 steps up to a Lyrik and the flagship C1 goes all-in with Fox Factory 36 GRIP2, Float X2, SRAM Code RSC stoppers on a 220mm front rotor and DT Swiss E 1700 wheels. The alloy trims offer the stronger value; the C1 is a premium statement build.The Sight VLT was discontinued after the 2023 model year, so it is now a used-market or run-out proposition rather than a current model.

EMTB Forums verdict

The 2023 Norco Sight VLT is the Canadian brand's full-power all-mountain e-bike, sitting a step below the longer-travel Range VLT enduro machine. It pairs 160mm up front with 150mm of Horst Link travel on full 29in wheels, built around Norco's Ride Aligned geometry with a 64-degree head angle, size-specific seat angles from 77 to 78 degrees and a shared 462mm rear centre across all four sizes.

Power comes from Shimano's STEPS EP8 drive unit (85Nm) feeding a removable Norco VLT in-tube battery, offered in 540Wh, 720Wh and 900Wh capacities so riders can dial range against weight. The big 900Wh pack is among the larger options on an all-mountain platform of this era. Note that Norco listed the battery as a separate purchase from the frame.

Four builds spanned the range: alloy A2 and A1, then carbon C2 and C1. The aluminium A2 and A1 keep things sensible with RockShox 35 Gold or Fox Rhythm 36 forks and Shimano drivetrains, while the carbon C2 steps up to a Lyrik and the flagship C1 goes all-in with Fox Factory 36 GRIP2, Float X2, SRAM Code RSC stoppers on a 220mm front rotor and DT Swiss E 1700 wheels. The alloy trims offer the stronger value; the C1 is a premium statement build.

The Sight VLT was discontinued after the 2023 model year, so it is now a used-market or run-out proposition rather than a current model.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (64° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Rear-long with a planted front in L (FC:RC 1.80) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Shimano EP8 (DU-EP800) and a steep 77.7° seat angle keep the weight planted over the front — a proper winch. 500W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toBig-day all-rounders who climb a lot and still descend hard.

Strong up and composed down — a do-it-all, not a specialist.

Watch out forNot a flickable, playful bike — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Trail bikes (from 223 bikes in the database)

Battery900 Wh193 Wh above average

Motor torque85 Nm13 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

💬 Forum discussion

Norco Sight VLT

282 replies · 100.9k views · last reply 11 months ago

Join the discussion →

“Picked up the Sight today, wow what a bike. Straight off the bat I installed CushCore, riding in Christchurch NZ is quite rocky, bike has E13 rims which are made out of cheese, so wise investment. Rode 36km, mix of eco / trail / boost,…”

— Number29_NZ · ♥ 9 · most-liked post

OWNERS’ REPORT

Norco Sight VLT (Shimano-era / 2025 CX) — what owners actually know

1,379 posts · 292 owners · data through May 2026

14CX: sizing runs big-for-the-number, and the shared Range frame invites long-shock builds · typical onset: At purchase (sizing) and during the first owning months (build changes).

12LEGACY (Shimano-era VLT): carbon chainstay / rocker-link / frame damage · typical onset: Chainstay: after chain jams; rocker link: with age/wear

11LEGACY (Shimano-era VLT, 2019-2024): water / charge-port and wire-harness electrical shutdowns (the used-buyer headline) · typical onset: From new in some cases; far more common in wet seasons / after pressure-washing

✓First ride on the 2025 CX: a 20-mile / 3,000ft loop with 43% battery left, 'insanely quiet descending', the high pivot 'noticeably plush on sharp edge bumps'.

Inside: the community setup plate · numbered field notes · the used-buyer checklist.

Read the full owners’ report →

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	425 mm	455 mm	485 mm	515 mm
Stack	616 mm	625 mm	634 mm	643 mm
Seattube	395 mm	415 mm	440 mm	455 mm
Chainstay	462 mm	462 mm	462 mm	462 mm
Headtube Angle	64°	64°	64°	64°
Seattube Angle (eff)	77°	77.3°	77.7°	78°
Wheelbase	1224 mm	1258 mm	1292 mm	1327 mm
Headtube	100 mm	110 mm	120 mm	130 mm
BB Height	350 mm	350 mm	350 mm	350 mm
Standover	700 mm	703 mm	720 mm	731 mm
Front Centre	762 mm*	796 mm*	830 mm*	865 mm*
FC:RC	1.65	1.72	1.80	1.87

Trims · 4

	A1	A2	C1	C2
Motor	Shimano EP8 (DU-EP800) · 85 Nm · all trims
Battery	Norco VLT 900Wh · 900 Wh · all trims
Travel F/R	160/150 mm · all trims
Frame	Aluminium	Aluminium	Carbon front triangle and seatstay, aluminium chainstay	Carbon front triangle and seatstay, aluminium chainstay
Fork	Fox Rhythm FLOAT 36, 160mm Travel, 44mm Offset, E-Rated	RockShox 35 Gold, 160mm Travel, 44mm Offset, 1.8 Tapered, E-Rated	Fox Factory FLOAT 36, GRIP 2, HSC/LSC, HSR/LSR, 160mm Travel, 44mm Offset, E-Rated	RockShox Lyrik Select, 160mm, 44mm Offset, 1.8" Tapered, E-Rated
Shock	Fox FLOAT X2, Performance Elite Chassis, Custom Factory-Level Spec & Tune, 210x55mm	RockShox Super Deluxe Select+, RT DebonAir 2, MegNeg Air Can, Custom Tune, 210x55mm	Fox Factory FLOAT X2, Custom Tune, 210x55mm	RockShox Super Deluxe Select+, RT DebonAir 2, MegNeg Air Can, Custom Tune, 210x55mm
Headset	FSA No.55R-1 Sealed Bearing	FSA No.55R Sealed Bearing	FSA No.55R-1 Sealed Bearing	FSA No.55R Sealed Bearing
Stem	CNC Alloy, 40mm Length, 35mm Clamp	Alloy 40mm Length, 35mm Clamp	CNC Alloy, 40mm Length, 35mm Clamp	CNC Alloy 40mm Length, 35mm Clamp
Handlebar	Butted 6061 Alloy, 800mm, 25mm Rise	Butted 6061 Alloy, 800mm, 25mm Rise	Deity Skywire Carbon 35, 800mm, 25mm Rise	Butted 6061 Alloy, 800mm, 25mm Rise
Grips	DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)	SDG Thrice Lock-On, Thin (S, M), Thick (L, XL)	DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)	DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)
Saddle	Ergon SM-10 E-Mountain Sport	WTB Volt 250 Sport	Ergon SM-10 E-Mountain Sport	Ergon SM-10 E-Mountain Sport
Seatpost	TranzX YS105 Dropper, 34.9mm, 125mm (S), 150mm (M), 170mm (L), 200mm (XL)	TranzX YS105 Dropper, 34.9mm, 125mm (S), 150mm (M), 170mm (L), 200mm (XL)	OneUp Adjustable Dropper, 34.9mm, 120mm (S), 150mm (M), 170mm (L), 210mm (XL)	TranzX YS105 Dropper, 34.9mm, 125mm (S), 150mm (M), 170mm (L), 200mm (XL)
Brakes	Shimano BR MT520, 4 Piston, Metallic Pads (front and rear)	Shimano BR MT420, 4 Piston, Metallic Pads (front and rear)	SRAM Code RSC, 4 Piston, Metallic Pads (front and rear)	Shimano BR MT520, 4 Piston, Metallic Pads (front and rear)
Rear derailleur	Shimano SLX RD-M7100	Shimano Deore RD-M6100	SRAM XO1 Eagle	SRAM GX Eagle
Crank	Shimano FC-EM600, 34T, 165mm	Shimano, 34T, Narrow Wide, 165mm	Shimano FC-M8150 E-MTB, 34T Eagle Ring, 165mm	Shimano FC-EM600, 34T, 165mm
Shifters	Shimano SLX SL-M7100	Shimano Deore SL-M6100-R	SRAM GX Eagle Single Click	SRAM SX Eagle Single Click
Cassette	Shimano SLX CS-M7100-12, 10-51T, 12 Speed	Shimano Deore CS-M6100-12, 10-51T, 12 Speed	SRAM Eagle XG 1275, 10-52T	SRAM Eagle PG 1210, 11-50T
Chain	Shimano SLX CN-M7100	Shimano Deore CN-M6100	SRAM GX Eagle	SRAM SX Eagle
Drivetrain	Shimano SLX RD-M7100; Shimano FC-EM600, 34T, 165mm; Shimano SLX SL-M7100; Shimano SLX CS-M7100-12, 10-51T, 12 Speed; Shimano SLX CN-M7100	Shimano Deore RD-M6100; Shimano, 34T, Narrow Wide, 165mm; Shimano Deore SL-M6100-R; Shimano Deore CS-M6100-12, 10-51T, 12 Speed; Shimano Deore CN-M6100	SRAM XO1 Eagle; Shimano FC-M8150 E-MTB, 34T Eagle Ring, 165mm; SRAM GX Eagle Single Click; SRAM Eagle XG 1275, 10-52T; SRAM GX Eagle	SRAM GX Eagle; Shimano FC-EM600, 34T, 165mm; SRAM SX Eagle Single Click; SRAM Eagle PG 1210, 11-50T; SRAM SX Eagle
Wheels	e*thirteen LG1 DH, 32H, 29"	Stan's Flow D, 32H, 29"	DT Swiss E 1700 Hybrid E-Rated Wheelset, 29"	e*thirteen LG1 DH, 32H, 29"
Tyres	Front: Maxxis Assegai 2.5" 3C MaxxGrip/D/TR/WT; Rear: Maxxis Disector 2.4" WT 3C MaxxTerra/DD/TR (rear inferred - A1 spec table omits rear tyre row)	Front: Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT; Rear: Maxxis Disector 2.4" WT 3C MaxxTerra/DD/TR	Front: Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT; Rear: Maxxis Disector 2.4" WT 3C MaxxTerra/DD/TR	Front: Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT; Rear: Maxxis Disector 2.4" WT 3C MaxxTerra/DD/TR
