Fluid 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

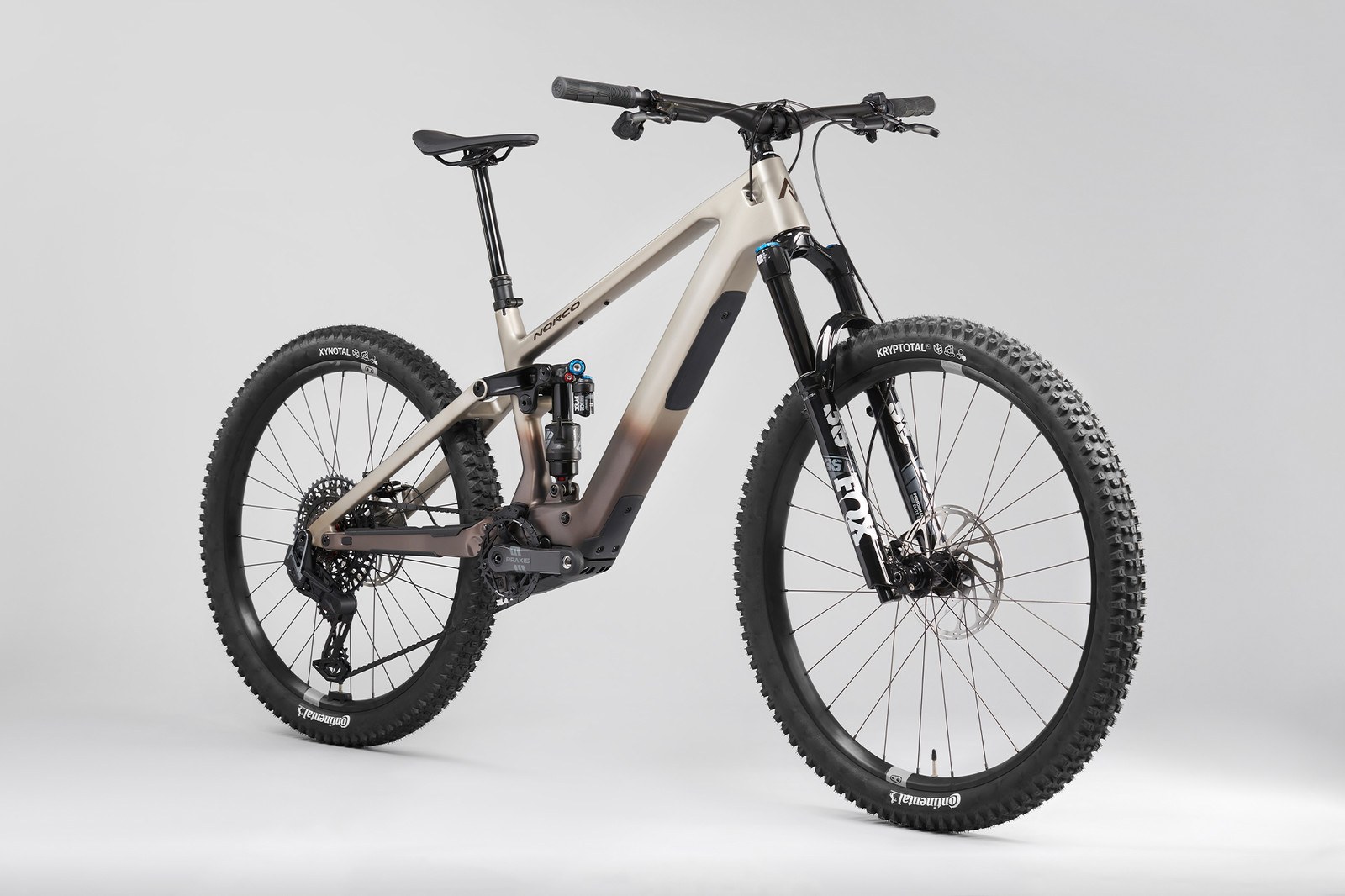

Carbon-frame Bosch SX trail eMTB with Fox Factory suspension and full SRAM Eagle AXS T-Type wireless build.
The Norco Fluid VLT 2025 is the Canadian brand's lightweight trail eMTB: a carbon front triangle and carbon stays around 140 mm of rear travel paired with 150 mm of fork, powered by the Bosch Performance Line SX motor at 55 Nm of torque and 600 W peak, and an integrated 400 Wh CompactTube battery. At a claimed 18.5 kg with mullet 29/27.5 wheels and a 64.5 degree head angle, the Fluid VLT positions itself as a lighter, more agile trail alternative to full-power 800 Wh enduros. Norco's Ride Aligned design system gives a size-progressive geometry with chainstays growing 432 mm (S1) to 444 mm (S5).
Drive system and range. Bosch SX delivers 55 Nm of torque, 600 W peak (post-July 2025 firmware) and 2.0 kg unit weight. @JP-NZ notes Bosch updated SX to 60 Nm in NZ-spec firmware. The 400 Wh CompactTube battery is integrated and not removable. @f1xedgear documents the real-world range character: "Turbo is almost always too much power for singletrack without extreme elevation. eMTB+ is overpowered. Tour+ gives great assistance. Mixing Eco on flat sections gives 30 miles (48 km) range." That is excellent practical data for buyers — the Fluid VLT has all-day capability if ridden in Tour+ rather than Turbo.
Geometry and handling. A 64.5 degree head angle is bang in the modern trail-enduro sweet spot. Norco's Ride Aligned reach progression is class-leading: 422 mm (S1), 447 mm (S2), 472 mm (S3), 497 mm (S4), 522 mm (S5). Chainstays scale with size: 432 mm (S1) through 436 mm (S3), 440 mm (S4), 444 mm (S5) — a genuine size-balanced rear-centre approach that very few rivals match. Wheelbase grows 1,181 mm (S1) to 1,310 mm (S5). The Horst Link suspension is the proven 4-bar layout. The bike's geometry shows real engineering thought.
Build and value. Two trims share the carbon chassis. The £6,499 VLT C2 at 18.5 kg pairs a RockShox Lyrik fork (150 mm), FOX Float X2 Performance Elite shock (185x55 mm), TRP Trail Evo 4-piston brakes (203 mm front / 180 mm rear) and SRAM GX Eagle AXS T-Type wireless 12-speed. The £7,999 VLT C1 at 18.1 kg steps up to FOX 36 Performance Elite fork, SRAM Code Silver Stealth brakes (200/180 mm rotors) and SRAM X0 Eagle AXS T-Type. Both have AXS wireless drivetrains — strong value at the C2 price point.
Community-verified strengths. Bosch SX with Norco's Ride Aligned size-progressive geometry is the practical winning combination. @f1xedgear's detailed real-world Bosch SX usage data is the strongest single piece of forum evidence: 30 mi (48 km) range in mixed-mode use, with Tour+ providing the right level of assistance for general trail riding. The 64.5 degree HA, mullet wheels and size-specific chainstays are well-judged for the bike's all-day trail intent. @Flo7 has built a comprehensive custom Norco Fluid VLT with Lewis LH4 brakes, OneUp dropper, Roval Traverse SL wheels and SRAM XX Transmission, signalling the platform's appeal to high-end builders.
Caveats and known gripes. @rayke on a VLT A1 reports the stock RockShox Silver 35 fork is inadequate for a 220 lb (100 kg) rider, and that fitting a RockShox Domain with FSA crown-race reducer (1.5" to 1.8") results in slop over roots and rocks even with the stem cap torqued to 10 Nm — the oversized 1.8" steerer is a design consideration buyers should understand. @RustyB rented a VLT C3 and preferred the Orbea Wild ST H30 for feel. @Suns_PSD notes Fazua Relay-equipped rivals keep up with full-power bikes on trails but full-power motors away on road climbs — a useful framing for buyers torn between SL and full-power systems. The 400 Wh integrated battery limits big-day range without an extender.
Verdict. The Norco Fluid VLT is a thoughtfully-engineered lightweight trail eMTB: a carbon Bosch SX platform with size-progressive geometry, mullet wheels and AXS wireless drivetrains from £6,499. It will suit riders who want all-day trail capability with a lighter ride feel than full-power 800 Wh alternatives, and who value Norco's reputation for engineering rigour and size-specific chainstays. Buyers wanting maximum power, removable batteries or the slackest possible enduro geometry should look at Cube One77 SLX, Ghost E-Riot or full-power Norco Sight VLT instead. Production status: current.
Frame
Fluid VLT Carbon front triangle with carbon seatstays and chainstays, 140mm rear travel, mullet 29in/27.5in wheels, SRAM UDH/Hangerless interface compatible, Bosch CPT 400Wh battery integration, Ride Aligned design system.
Geometry · hover a row to highlight the measurement on the bike
| S1 | S2 | S3 | S4 | S5 | One Size | |
|---|---|---|---|---|---|---|
| Toptube | 569 mm | 593 mm | 618 mm | 642 mm | 666 mm | — |
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm | 302 mm |
| Stack | 610 mm | 619 mm | 628 mm | 637 mm | 646 mm | 442 mm |
| Seattube | 385 mm | 395 mm | 415 mm | 445 mm | 475 mm | — |
| Chainstay | 432 mm | 432 mm | 436 mm | 440 mm | 444 mm | 355 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 68° |
| Seattube Angle (eff) | 76.5° | 76.75° | 77° | 77.25° | 77.5° | 72° |
| BB Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm | 25 mm |
| Wheelbase | 1181 mm | 1210 mm | 1243 mm | 1277 mm | 1310 mm | 887 mm |
| Headtube | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm | 100 mm |
| Standover | — | — | — | — | — | 570 mm |
| Front Centre | 749 mm | 778 mm | 807 mm | 837 mm | 866 mm | 532 mm |
Trims · 5
VLT C2 £6,499 | C2 140 £6,950 | VLT C1 £7,999 | C1 140 | C3 140 | |
|---|---|---|---|---|---|
| Motor | Bosch Performance Line SX · 60 Nm · all trims | ||||
| Battery | Bosch CompactTube 400 · 400 Wh · all trims | ||||
| Travel F/R | 150/140 mm · all trims | ||||
| Frame | Carbon · all trims | ||||
| Fork | RockShox Lyrik, 29in, 150mm travel | RockShox Lyrik | Fox 36 Performance Elite, 29in, 150mm travel, 44mm offset | Fox 36 Performance Elite 150mm | RockShox Psylo Gold RC, 150mm Travel, 44mm Offset |
| Shock | Fox Float X2 Performance Elite, 185x55mm trunnion | Fox Float X2 Performance Elite | Fox Float X2 Performance Elite, 185x55mm trunnion | Fox Float X2 140mm | RockShox Deluxe Select+, 185x55mm Trunnion |
| Headset | FSA No.57 ZS | FSA No. 57 ZS, Carbon Top Cover | FSA No.57 ZS with carbon top cover | FSA No. 57 ZS, Carbon Top Cover | Sealed ZS |
| Stem | Norco SL 6061 alloy, 40mm length, 35mm clamp · all trims | ||||
| Handlebar | Norco 6061 alloy, 800mm width, 25mm rise, 35mm clamp | 6061 DB Alloy, 800mm, 25mm Rise | OneUp Carbon, 800mm width, 20mm rise, 35mm clamp | OneUp Carbon, 800mm, 20mm Rise | 6061 Butted Alloy, 800mm, 25mm Rise |
| Grips | WTB Wavelength · all trims | ||||
| Saddle | fi'zi:k Ridon | — | fi'zi:k Ridon | Fizik Ridon | Fizik Ridon |
| Seatpost | TranzX YSI08FL RAD+ Travel Adjust dropper, 125-200mm size-specific | TranzX YSI08FL RAD+ Travel Adjust Dropper | OneUp Travel Adjust dropper, 125-200mm size-specific | OneUp Travel Adjust Dropper, 31.6mm | TranzX YSI34 Travel Adjust Dropper |
| Brakes | TRP Trail Evo, 4-piston, 203mm front / 180mm rear rotors | TRP Trail Evo, 4-Piston, TRP TR203 rotors 203mm Front / 180mm Rear | SRAM Code Silver Stealth, 4-piston, metallic pads; SRAM Centreline rotors 200mm front / 180mm rear | SRAM Code Silver Stealth, 4-Piston, Metallic Pads, 200mm / 180mm rotors | TRP Slate Evo, 4-Piston, 203mm Front / 180mm Rear rotors |
| Rear derailleur | SRAM GX Eagle AXS T-Type, 12-speed wireless electronic | SRAM GX Eagle AXS T-Type | SRAM X0 Eagle AXS T-Type, 12-speed wireless electronic | SRAM X0 Eagle AXS T-Type | Shimano Deore RD-M6100 |
| Crank | Praxis HD eMTB alloy, 165mm | Praxis Alloy HD eMTB, 165mm | Praxis Carbon Bosch, 165mm | Praxis Carbon Bosch, 165mm | Praxis Alloy HD eMTB, 165mm |
| Shifters | SRAM AXS Pod Ultimate Controller | SRAM Pod Ultimate Controller | SRAM AXS Pod Ultimate Controller | SRAM Pod Ultimate Controller | Shimano Deore SL-M6100 |
| Cassette | SRAM XS-1275 T-Type, 10-52T | SRAM 1275 T-Type, 10-52T | SRAM XS-1295 T-Type, 10-52T | SRAM 1295 T-Type, 10-52T | Shimano Deore CS-M6100-12, 10-51T, 12-Speed |
| Chain | SRAM GX Eagle Transmission Flattop | SRAM GX Eagle T-Type | SRAM X0 Eagle Transmission Flattop | SRAM XO Eagle T-Type | KMC e12 |
| Drivetrain | SRAM GX Eagle AXS T-Type 12-speed wireless electronic | SRAM GX Eagle AXS T-Type; Praxis Alloy HD eMTB, 165mm; SRAM Pod Ultimate Controller; SRAM 1275 T-Type, 10-52T; SRAM GX Eagle T-Type | SRAM X0 Eagle AXS T-Type 12-speed wireless electronic | SRAM X0 Eagle AXS T-Type; Praxis Carbon Bosch, 165mm; SRAM Pod Ultimate Controller; SRAM 1295 T-Type, 10-52T; SRAM XO Eagle T-Type | Shimano Deore RD-M6100; Praxis Alloy HD eMTB, 165mm; Shimano Deore SL-M6100; Shimano Deore CS-M6100-12, 10-51T, 12-Speed; KMC e12 |
| Wheels | WTB KOM Trail alloy mullet wheelset (29in front / 27.5in rear), 30mm inner width | WTB KOM Trail 32H, 110x15mm Boost front / 148x12mm Boost rear hubs | Crankbrothers Synthesis Alloy Enduro E-Bike wheelset, mullet 29in front / 27.5in rear | Crank Brothers Synthesis Alloy Wheelset Enduro E-Bike, 29" Front / 27.5" Rear | WTB ST Tough 32H, 29" Front / 27.5" Rear, 30mm ID |
| Tyres | Continental Kryptotal 29x2.4in front; Continental Xynotal 27.5x2.4in rear | Maxxis Minion DHF 3C MaxxTerra EXO 29x2.5 Folding front / Maxxis Minion DHR II 3C MaxxTerra EXO+ 27.5x2.4 Folding rear | Continental Kryptotal 29x2.4in front; Continental Xynotal 27.5x2.4in rear | Continental Kryptotal 29x2.4 Trail front / Continental Xynotal 27.5x2.4 Trail rear | Continental Kryptotal 29x2.4 Trail front / Continental Xynotal 27.5x2.4 Trail rear |
| Weight | 18.5 kg | 19.9 kg | 18.1 kg | 19.3 kg | 20.3 kg |
| Price | £6,499 | £6,950 | £7,999 | — | — |
