Fluid VLT 2024
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Lightweight carbon trail eMTB platform built around Bosch SX power and the Fluid VLT 130/140 chassis.

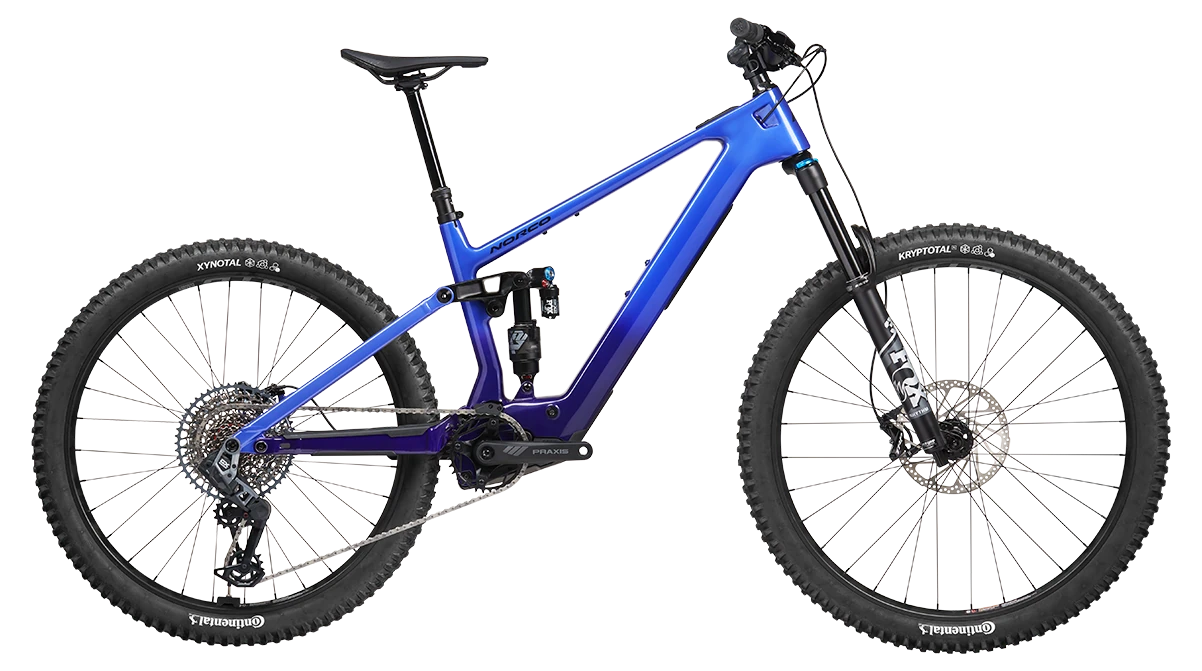

The Norco Fluid VLT 2024 is the Canadian brand's lightweight carbon-and-alloy trail eMTB, built around the Bosch Performance Line SX motor (55 Nm, 250 W rated, 600 W peak, 2.0 kg) and an integrated 400 Wh Bosch CompactTube battery. Travel is 150 mm front and 140 mm rear via Norco's VPS Horst Link layout, head angle a properly slack 64.5°, and Norco quotes 19.3 kg as the claimed weight. Three trims sit at £4,999-£5,999 with C1 and C2 carbon-frame variants alongside the C2 base. The community verdict is positive on ride feel but flags the Bosch SX as overkill for moderate terrain — @f1xedgear reports "Turbo is almost always too much power for singletrack without extreme elevation. eMTB(+) is overpowered. Tour+ gives great assistance."
Drive system and range. The Bosch SX is the lightweight half of Bosch's modular ecosystem, sharing Smart System electronics with the full-power CX. @JP-NZ notes the SX recently updated to 60 Nm via firmware (a useful bump from the launch-day 55 Nm). The 400 Wh integrated battery is the headline compromise — small by 2024 standards and non-removable, which complicates winter storage and off-bike charging. Expect 800-1,200 m of climbing per charge depending on assist level. The PowerMore 250 Wh range extender lifts effective capacity to 650 Wh. Smart System ecosystem brings Kiox display, Flow app and OTA firmware updates. @f1xedgear manages 48 km rides "mixing in some Eco for the really flat bits".
Geometry and handling. The 64.5° head angle is properly modern-trail. Five Norco "S1-S5" sizes provide an excellent fit range: reach 422 mm, 447 mm, 472 mm, 497 mm, 522 mm. Chainstays scale with size: S1 432 mm, S2/S3 436 mm, S4 440 mm, S5 444 mm — Norco's size-specific rear triangles balance weight distribution across rider heights properly. Wheelbase grows from 1,213 mm to 1,299 mm. Mullet 29in front / 27.5in rear wheels add agility without sacrificing rollover. The geometry is competitive against the Whyte E-Lyte 150 and Trek Fuel EXe.
Build and value. The C2 at £4,999 is the entry, the C2 base at £5,999 includes RockShox Pike or Fox 36 Performance Elite with SRAM Code Silver Stealth or Level Ultimate Stealth four-piston brakes plus SRAM Eagle Transmission T-Type. The C1 at £5,999 ups the spec further. @f1xedgear notes both the Fluid VLT C2 140 and Transition Relay Carbon GX AXS have been on sale at $6,000 USD — meaningful end-of-line discounting. The £5,999 base trim is well-equipped for the price.
Community-verified strengths. @f1xedgear rates the Tour+ assist level as "pretty great" with 30 mi (48 km) range when mixing in Eco mode, and reports the suspension is more than capable of the Western Michigan singletrack it's used on. @Flo7 has built a custom Fluid VLT with SRAM XX Transmission, Lewis LH4 brakes and RockShox Lyrik Ultimate — the frame happily accepts premium upgrades. Norco's size-specific rear triangle design draws consistent praise.
Caveats and known gripes. The 400 Wh integrated battery is a clear weakness — riders chasing all-day rides need the £350 PowerMore range extender. @rayke reports the aluminium A1 trim's stock RockShox Silver 35 fork is "inadequate for 220 lbs rider weight" and that the oversized 1.8in steerer creates aftermarket fork-fitment challenges — a 1.5in fork plus FSA reducer "experiences slop over roots and rocks". @Ndanger notes the wider market context: rivals are increasingly offering Avinox/Bosch Gen 5 alternatives that potentially obsolete the SX motor for serious riders. @RustyB compared the Norco directly with an Orbea Wild ST H30 and rated the Wild better in feel. As a Canadian brand, Norco's UK dealer support is thinner than Trek or Specialized.
Verdict. The Fluid VLT is for the trail rider who wants a properly-geometried Bosch SX lightweight eMTB with five sizes and Norco's size-specific rear engineering at sharp end-of-line pricing. It is not for big-day pedallers who need 700+ Wh, riders who want full-power torque numbers or anyone who hates an integrated battery. Production status is current and 2024 stock is widely discounted at the time of writing.
Frame
Carbon front triangle (carbon or alloy rear depending on tier), VPS four-bar suspension, mullet 29in/27.5in wheels, internal cable routing, SRAM UDH dropout, Bosch PowerTube CPT 400Wh battery integration.
Geometry · hover a row to highlight the measurement on the bike
| S1 | S2 | S3 | S4 | S5 | |
|---|---|---|---|---|---|
| Reach | 422 mm | 447 mm | 472 mm | 497 mm | 522 mm |
| Stack | 610 mm | 619 mm | 628 mm | 637 mm | 646 mm |
| Chainstay | 432 mm | 436 mm | 436 mm | 440 mm | 444 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Seattube Angle (eff) | 76.5° | 76.75° | 77° | 77.25° | 77.5° |
| Wheelbase | 1213 mm | 1228 mm | 1243 mm | 1273 mm | 1299 mm |
| Front Centre | 781 mm | 792 mm | 807 mm | 833 mm | 855 mm |
Trims · 5
C2 £4,999 | C1 £5,999 | C1 130 | C2 140 | C3 140 | |
|---|---|---|---|---|---|
| Motor | Bosch Performance Line SX · 60 Nm · all trims | ||||
| Battery | Bosch CompactTube 400Wh · 400 Wh · all trims | ||||
| Travel F/R | 150/140 mm · all trims | ||||
| Frame | Carbon · all trims | ||||
| Fork | RockShox Lyrik Select+, 29", 150 mm Travel | Fox 36 Performance Elite, 29", 150mm Travel, 44mm Offset | RockShox Pike Ultimate, 29", 140mm Travel, 44mm Offset, Fender Included | RockShox Lyrik Select+, 29", 150 mm Travel | RockShox Psylo Gold RC, 150mm Travel, 44mm Offset |
| Shock | Fox FLOAT X2 Performance Elite, 185x55mm Trunnion | Fox FLOAT X2 Performance Elite, 185x55mm Trunnion | RockShox Deluxe Ultimate, 185x50mm Trunnion | Fox FLOAT X2 Performance Elite, 185x55mm Trunnion | RockShox Deluxe Select+, 185x55mm Trunnion |
| Headset | FSA No. 57 ZS, Carbon Top Cover | FSA No. 57 ZS, Carbon Top Cover | FSA No. 57 ZS, Carbon Top Cover | FSA No. 57 ZS, Carbon Top Cover | Sealed ZS |
| Stem | Norco SL 6061 Alloy 40mm Length, 35mm Clamp | Norco SL 6061 Alloy 40mm Length, 35mm Clamp | Norco SL 6061 Alloy 40mm Length, 35mm Clamp | Norco SL 6061 Alloy 40mm Length, 35mm Clamp | 6061 Alloy 40mm Length, 35mm Clamp |
| Handlebar | 6061 DB Alloy, 800mm, 25mm Rise | One Up Carbon 800mm, 20mm Rise | One Up Carbon 800mm, 20mm Rise | 6061 DB Alloy, 800mm, 25mm Rise | 6061 Butted Alloy, 800mm, 25mm Rise |
| Grips | WTB Wavelength · all trims | ||||
| Saddle | Fizik Ridon | Fizik Ridon | Fizik Ridon | Fizik Ridon | WTB Volt Med |
| Seatpost | TranzX YSI08FL RAD+ Travel Adjust Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) | One Up Travel Adjust Dropper, 31.6mm, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) | One Up Travel Adjust Dropper, 31.6mm, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) | TranzX YSI08FL RAD+ Travel Adjust Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) | TranzX YSI34 Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) |
| Brakes | TRP Trail Evo, 4 Piston | SRAM Code Silver Stealth, 4-Piston, Metallic Pads | SRAM Level Ultimate Stealth 4-Piston | TRP Trail Evo, 4 Piston | TRP Slate EVO, 4 Piston |
| Rear derailleur | SRAM GX Eagle AXS T-Type | SRAM X0 Eagle AXS T-Type | SRAM XX SL Eagle AXS T-Type | SRAM GX Eagle AXS T-Type | Shimano Deore RD-M6100 |
| Crank | Praxis Alloy HD eMTB, 165mm | Praxis Carbon Bosch, 165mm | Praxis Carbon Bosch, 165mm | Praxis Alloy HD eMTB, 165mm | Praxis Alloy HD eMTB, 165mm |
| Shifters | SRAM Pod Ultimate Controller | SRAM Pod Ultimate Controller | SRAM Pod Ultimate Controller | SRAM Pod Ultimate Controller | Shimano Deore SL-M6100 |
| Cassette | SRAM 1275 T-Type 10-52T | SRAM 1295 T-Type, 10-52T | SRAM XX Eagle T-Type 10-52T | SRAM 1275 T-Type 10-52T | Shimano Deore CS-M6100-12 11-51T, 12 Speed |
| Chain | SRAM GX Eagle T-Type | SRAM XO Eagle T-Type | SRAM XX Eagle T-Type | SRAM GX Eagle T-Type | KMC e12 |
| Drivetrain | SRAM GX Eagle AXS T-Type | SRAM X0 Eagle AXS T-Type | SRAM XX SL Eagle AXS T-Type | SRAM GX Eagle AXS T-Type | Shimano Deore 12-speed |
| Wheels | WTB KOM Trail 32H rims on Bear Pawls hubs, 27.5" Rear / 29" Front | Crank Brothers Synthesis Alloy Wheelset Enduro E-Bike, 27.5" Rear, 29" Front | Crank Bros. Synthesis Carbon Enduro rims on Industry Nine 101 hubs, 27.5" Rear, 29" Front | WTB KOM Trail 32H rims on Bear Pawls hubs, 27.5" Rear / 29" Front | WTB ST Tough 32H rims on Bear Pawls hubs, 27.5" Rear / 29" Front |
| Tyres | Front: Continental Kryptotal 29" x 2.4" Trail; Rear: Continental Xynotal 27.5" x 2.4" Trail · all trims | ||||
| Weight | 19.9 kg | 19.3 kg | 18.1 kg | 19.9 kg | 20.3 kg |
| Price | £4,999 | £5,999 | — | — | — |
