Mondraker Prime
Mondraker

Prime 2026

CurrentTrail eMTBCurrent · 8.5/10iFreshness 8.5/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Travel F/R
120mm / —
Wheels
29F / 29R
Frame
Aluminium
Price
From £3,799
View the Mondraker Prime on Mondraker’s site

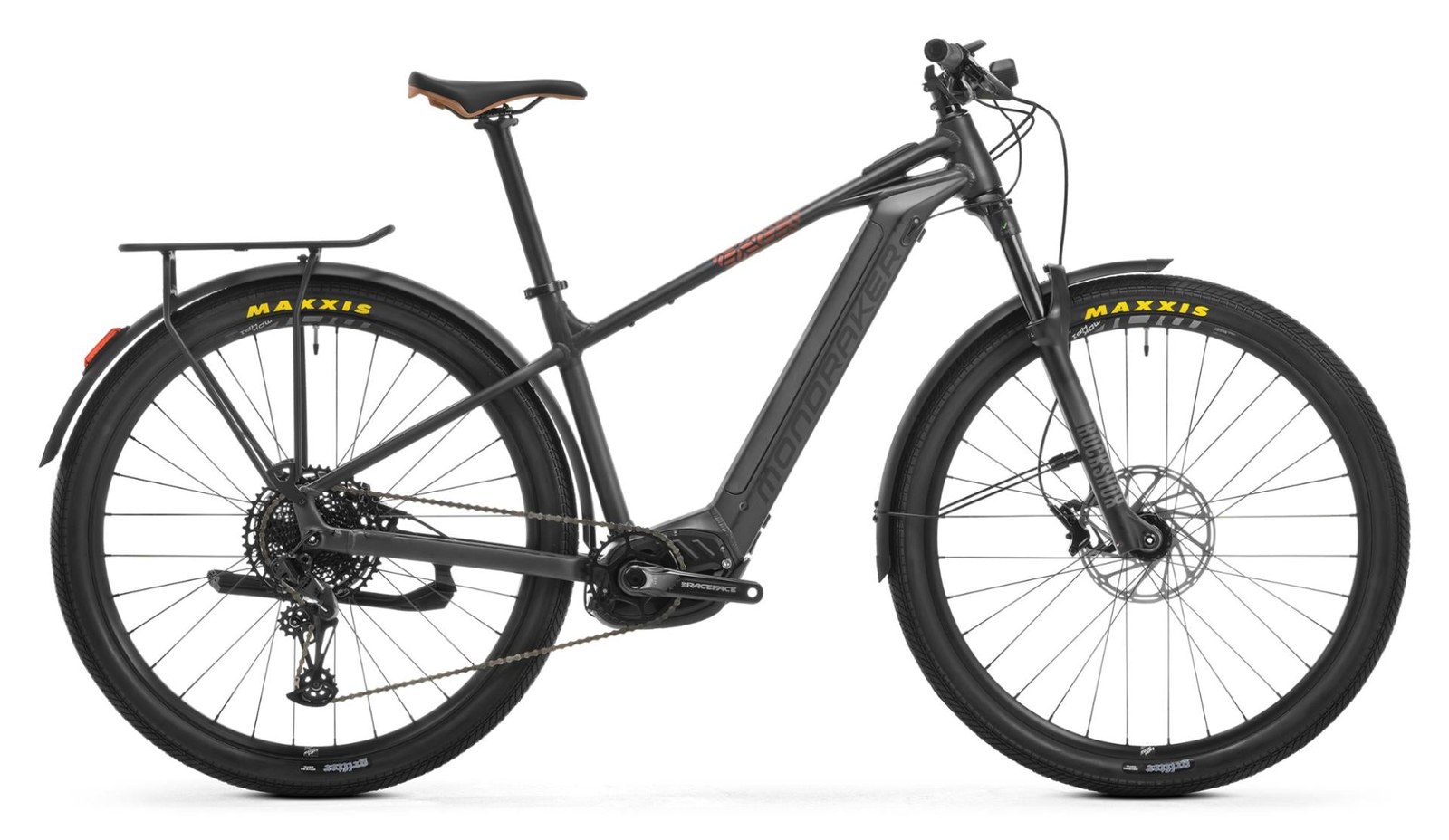

Mondraker Prime 2026
From £3,799
EMTB Forums verdict

The 2026 Prime is Mondraker's aluminium hardtail e-MTB, rebuilt around the latest Bosch Performance Line CX Smart System motor and a removable 800Wh PowerTube battery, the largest pack Bosch currently offers. With a 120mm fork, 29in wheels and Mondraker's Forward Geometry, it sits at the accessible end of the trail category, and the new M/L size brings the range to five fits from S through XL.

The line splits into two strands. The S and R are trail-focused builds on WTB wheels and Maxxis Rekon knobblies, while the X and RX add Mavic E-Access wheels, faster-rolling Maxxis Metropass tyres, integrated lighting, mudguards, front and rear carrier racks and a kickstand for everyday and urban-trail duty. The cheaper S and X get a RockShox Recon Silver RL fork; the R and RX step up to a Fox 29 AWL Sport fork and an X-Fusion Manic dropper in place of the rigid Onoff post.

On price, the S opens at GBP 3,799, the X lands at GBP 3,999, the R sits at GBP 4,199 and the equipment-laden RX tops out at GBP 4,499. Every trim shares the same Bosch motor, 800Wh battery and a full SRAM 70 Eagle T-Type 12-speed drivetrain with four-piston DB6 brakes on 200mm rotors, so the differences come down to fork, dropper and wheel or tyre choice rather than core capability.

Geometry is moderate and trail-friendly rather than aggressive: the standard Prime runs a 67 degree head angle, 74.5 degree effective seat angle and 455mm chainstays across all sizes, with reach growing from 405mm on the S to 500mm on the XL (the urban-leaning X and RX use a slightly steeper 68 degree head angle and shorter reach). The hardtail rear and 120mm of front travel point this at smoother trails, gravel and mixed everyday riding rather than steep technical descents.

💬 Forum discussion
Mondraker Zendit Avinox
359 replies · 31.8k views · last reply today
Join the discussion →
“No. Mondraker’s Wildest eBike Yet? lVxHD8XPcbc”
— Rob Rides EMTB · ♥ 9 · most-liked post

Geometry · hover a row to highlight the measurement on the bike

Bike geometry diagram
SMLXLML
Reach405 mm425 mm475 mm500 mm450 mm
Stack669.1 mm669.1 mm682.9 mm692.1 mm673.7 mm
Seattube370 mm400 mm470 mm510 mm430 mm
Chainstay455 mm455 mm455 mm455 mm455 mm
Headtube Angle67°67°67°67°67°
Seattube Angle (eff)74.5°74.5°74.5°74.5°74.5°
Wheelbase1156.7 mm1176.7 mm1232.5 mm1261.5 mm1183.6 mm
Headtube120 mm120 mm140 mm150 mm130 mm
BB Height308 mm308 mm308 mm308 mm308 mm
Front Centre701.7 mm*721.7 mm*777.5 mm*806.5 mm*728.6 mm*

Trims · 4

S
£3,799
X
£3,999
R
£4,199
RX
£4,499
MotorBosch Performance Line CX Gen 5 · 100 Nm · all trims
BatteryBosch PowerTube 800 · 800 Wh · all trims
Travel F/R120/? mm · all trims
FrameAluminium · all trims
ForkRockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offsetRockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offsetFox 29 AWL Sport, 120mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset, Rail Damper with rebound adjustFox 29 AWL Sport, 120mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset, Rail Damper with rebound adjust
HeadsetAcros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing · all trims
StemOnoff S3 30mm 0 deg, 6061 forged alloy, 31.8mm · all trims
HandlebarOnoff S3 1.0 6061 alloy, rise 25mm, width 800mm, 8 deg backsweep, 5 deg upsweep, 31.8mm (L and XL: 38mm rise) · all trims
GripsOnoff Beehive, lock-on, 135mm · all trims
SaddleErgon SMC10 GelErgon SF10 GelErgon SMC10 GelErgon SF10 Gel
SeatpostOnoff S3 0-R, diameter 31.6mm, length 400mmOnoff S3 0-R, diameter 31.6mm, length 400mmX-Fusion Manic dropper, diameter 31.6mm, 1X remote lever (S: 125mm, M: 150mm, ML: 170mm, L: 190mm, XL: 200mm)X-Fusion Manic dropper, diameter 31.6mm, 1X remote lever (S: 125mm, M: 150mm, ML: 170mm, L: 190mm, XL: 200mm)
BrakesSram DB6, 4-piston caliper, steel-backed organic pads · all trims
Rear derailleurSram 70 Eagle, T-Type, 12s · all trims
CrankE.13 Helix Core E*Spec Plus, All sizes: 160mm · all trims
ShiftersSram Trigger 70, 12s, T-Type Actuation · all trims
CassetteSram XS-1270, 10-52T, 12s · all trims
ChainSram 70 T-Type, 12s Flattop, PowerLock · all trims
DrivetrainSram 70 Eagle, T-Type, 12s; E.13 Helix Core E*Spec Plus, All sizes: 160mm; Sram Trigger 70, 12s, T-Type Actuation; Sram XS-1270, 10-52T, 12s; Sram 70 T-Type, 12s Flattop, PowerLock · all trims
WheelsWTB Sportterra Tough, 6061 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokesMavic E-Access XR27, 29 Boost 27mm internal width, tubeless ready, 28 spokesWTB Sportterra Tough, 6061 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokesMavic E-Access XR27, 29 Boost 27mm internal width, tubeless ready, 28 spokes
TyresMaxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding beadMaxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect / EXO Reflective Stripe, tubeless ready, wire beadMaxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding beadMaxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect / EXO Reflective Stripe, tubeless ready, wire bead
Price£3,799£3,999£4,199£4,499
