Prime 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

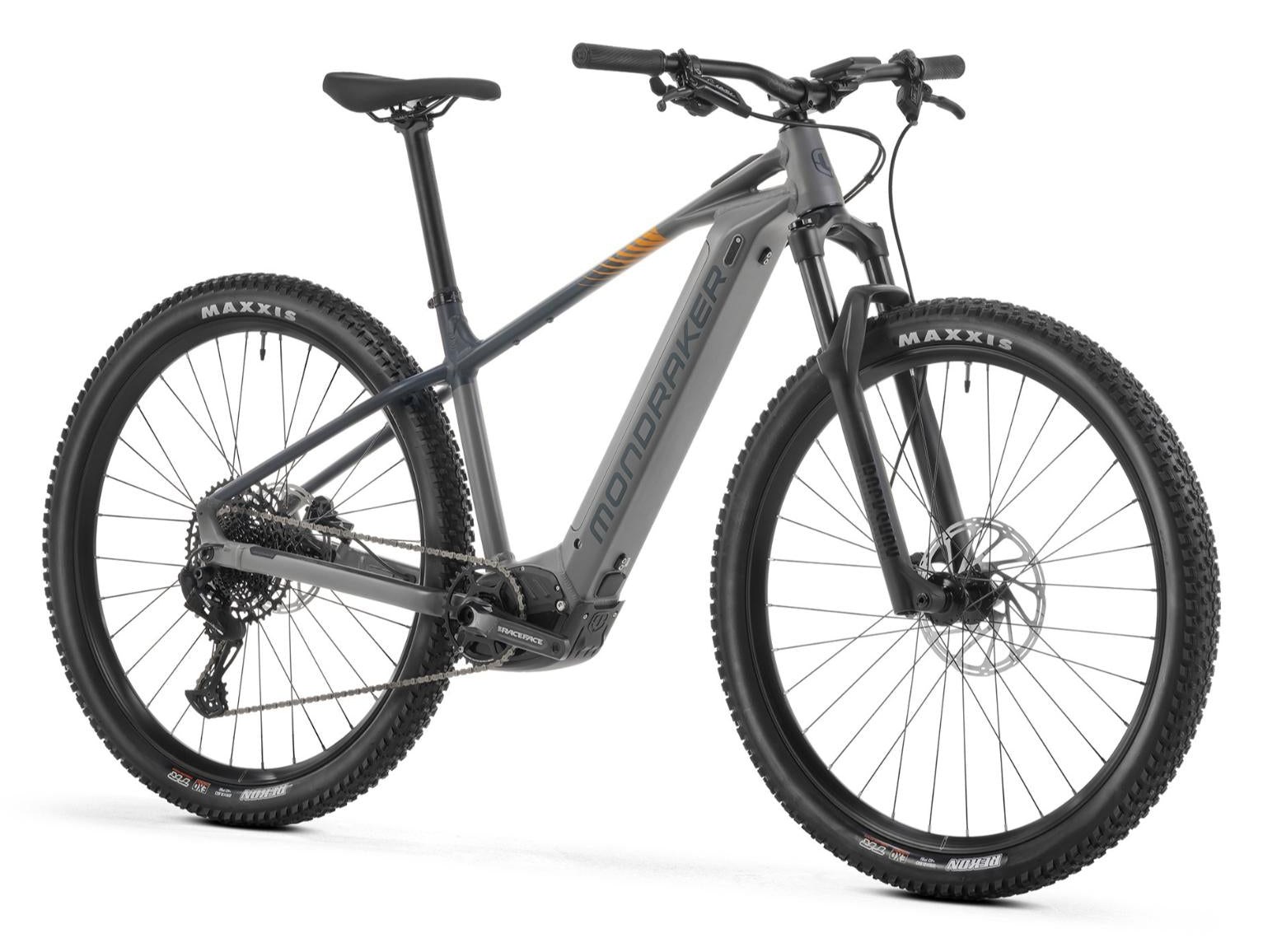

The 2025 Mondraker Prime is an aluminium hardtail eMTB built on Mondraker's Forward Geometry, with a Bosch Performance Line CX Cruise Smart System motor (85Nm) and 120mm of front travel on a RockShox Recon fork. It sits at the more accessible end of the eMTB market, leaning on Bosch's full-power drive unit rather than a lightweight system, and spans two trail builds plus two commuter-focused variants.
On value, the £3,499 Base offers the core package with SRAM Level T two-piston brakes and a 625Wh battery, while the £4,099 R steps up to four-piston SRAM DB8 brakes, a Recon Gold RL remote-lockout fork, an internal dropper post and a larger 750Wh battery. The X (£3,699) and RX (£4,299) shift towards commuting duty with Maxxis Grifter tyres, lights, mudguards, a rear rack and a kickstand; the RX adds the DB8 brakes, dropper and 750Wh pack, where the X keeps Level T brakes, a rigid post and a removable 625Wh battery. The R is the pick for off-road trail use, the RX for loaded adventure and commuting.
Geometry is moderate by modern standards: a 69 degree head angle, 73.5 degree effective seat angle and 455mm chainstays across the range, with reach growing from 410mm in XS to 505mm in XL. Five frame sizes (XS, S, M, L and XL) give a tighter fit spread than most hardtails. The relatively upright front end and 2.5 to 2.6in tyres point to a confident but composed trail and fitness brief rather than aggressive descending.
Geometry · hover a row to highlight the measurement on the bike
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Reach | 410 mm | 425 mm | 455 mm | 480 mm | 505 mm |
| Stack | 640 mm | 640 mm | 640 mm | 658 mm | 658 mm |
| Seattube | 380 mm | 390 mm | 430 mm | 470 mm | 510 mm |
| Chainstay | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Headtube Angle | 69° | 69° | 69° | 69° | 69° |
| Seattube Angle (eff) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Wheelbase | 1138 mm | 1153 mm | 1183 mm | 1210 mm | 1240 mm |
| Headtube | 110 mm | 110 mm | 110 mm | 130 mm | 130 mm |
| BB Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Centre | 683 mm* | 698 mm* | 728 mm* | 755 mm* | 785 mm* |
Trims · 4
Base £3,499 | X £3,699 | R £4,099 | RX £4,299 | |
|---|---|---|---|---|
| Motor | Bosch Performance Line CX Gen 4 · 85 Nm · all trims | |||
| Battery | Bosch PowerTube 625 · 625 Wh · all trims | |||
| Travel F/R | 120/? mm · all trims | |||
| Frame | Aluminium · all trims | |||
| Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload | RockShox Recon Gold RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminium stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload | RockShox Recon Gold RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings · all trims | |||
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore | MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore | MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise · all trims | |||
| Grips | Onoff Beehive, 1lock-on, 135mm · all trims | |||
| Saddle | MDK ebike black | MDK urban | MDK ebike black | MDK urban |
| Seatpost | Onoff S3 0-R, diameter 31.6mm, length 400mm | Onoff S3 0-R, diameter 31.6mm, length 400mm | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing; S: 140-115mm, M: 160-135mm, L: 180-155mm, XL: 210-185mm | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing; S: 140-115mm, M: 160-135mm, L: 180-155mm, XL: 210-185mm |
| Brakes | Sram Level T, 2 piece caliper, steel-backed organic pad (front and rear); Sram Level T, Direct Link actuation, tooled reach adjust | Sram Level T, 2 piece caliper, steel-backed organic pad (front and rear); Sram Level T, Direct Link actuation, tooled reach adjust | Sram DB8, 4-piston caliper, steel-backed organic pads (front and rear); Sram DB8 lever, tool reach adjust | Sram DB8, 4-piston caliper, steel-backed organic pads (front and rear); Sram DB8 lever, tool reach adjust |
| Rear derailleur | Sram SX Eagle, 12s · all trims | |||
| Crank | Race Face Aeffect-R ebike, 160mm; Sram X-Sync 2 Eagle 34T chainring, steel, narrow-wide, 104 BCD | Race Face Aeffect-R ebike, 165mm; Sram X-Sync 2 Eagle 34T chainring, steel, narrow-wide, 104 BCD | Race Face Aeffect-R ebike, 160mm; Sram X-Sync 2 Eagle 34T chainring, steel, narrow-wide, 104 BCD | Race Face Aeffect-R ebike, 165mm; Sram X-Sync 2 Eagle 34T chainring, steel, narrow-wide, 104 BCD |
| Shifters | Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click · all trims | |||
| Cassette | Sram PG-1210, 11-50T, 12s · all trims | |||
| Chain | Sram SX Eagle, 12s, Powerlock · all trims | |||
| Drivetrain | Sram SX Eagle, 12s; Race Face Aeffect-R ebike, 160mm; Sram X-Sync 2 Eagle 34T chainring, steel, narrow-wide, 104 BCD; Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click; Sram PG-1210, 11-50T, 12s; Sram SX Eagle, 12s, Powerlock | Sram SX Eagle, 12s; Race Face Aeffect-R ebike, 165mm; Sram X-Sync 2 Eagle 34T chainring, steel, narrow-wide, 104 BCD; Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click; Sram PG-1210, 11-50T, 12s; Sram SX Eagle, 12s, Powerlock | Sram SX Eagle, 12s; Race Face Aeffect-R ebike, 160mm; Sram X-Sync 2 Eagle 34T chainring, steel, narrow-wide, 104 BCD; Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click; Sram PG-1210, 11-50T, 12s; Sram SX Eagle, 12s, Powerlock | Sram SX Eagle, 12s; Race Face Aeffect-R ebike, 165mm; Sram X-Sync 2 Eagle 34T chainring, steel, narrow-wide, 104 BCD; Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click; Sram PG-1210, 11-50T, 12s; Sram SX Eagle, 12s, Powerlock |
| Wheels | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Tyres | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead (front and rear) | Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead (front and rear) | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead (front and rear) | Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead (front and rear) |
| Weight | 22.7 kg | 24.3 kg | 22.7 kg | 22.7 kg |
| Price | £3,499 | £3,699 | £4,099 | £4,299 |
