Descending
44
Steeper 69° and shorter travel — happiest descending smooth, flowy trail rather than properly rough or steep terrain.
Mondraker
Prime 2024
Discontinued✎Full Power · Cross-CountryLegacy · 1.6/10iFreshness 1.6/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Punchy alloy hardtail with full Bosch power for trail duty
Motor
Bosch Performance Line CX Gen 4 · 85Nm · 600W↗
Battery
Bosch PowerTube 625 · 625Wh
Travel F/R
120mm / —
Wheels
29F / 29R✎
Frame
Aluminium
Weight
22.7 kg
Price
From £3,699
From £3,699
EMTB Forums verdict

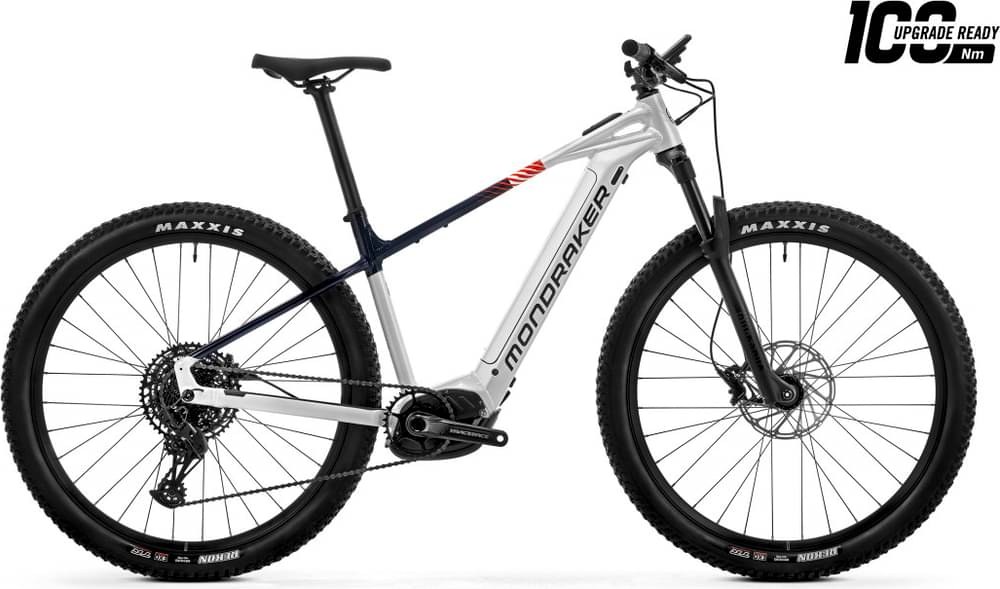

The 2024 Mondraker Prime is the brand's full-power 'Sport' e-MTB: a 29in aluminium hardtail trail eMTB built on Mondraker's Xtralite 6061 frame and Forward Geometry. It is deliberately straightforward, a 120mm RockShox fork up front and no rear suspension, designed as a value, all-conditions trail bike rather than a long-travel enduro machine.
Power comes from a Bosch Performance Line CX Gen 4 motor (85 Nm, 600 W) run through an Intuvia 100 display and Mini Remote. The base Prime carries a removable Bosch PowerTube 625Wh battery, SRAM SX Eagle 12-speed gearing, SRAM Level T 2-piston brakes and Maxxis Rekon 29x2.6 tyres on Mavic E-CrossRide wheels, with a rigid Onoff post. The Prime R steps up to a 750Wh battery, a remote-lockout RockShox Recon Gold fork, SRAM DB8 4-piston brakes and an Onoff Pija dropper.
Geometry is moderate by modern eMTB standards, a 69 degree head angle, 73.5 degree seat angle and 455mm chainstays across the range, with reach growing from 410mm to 505mm. Claimed weight is around 22.7kg. UK RRP was 3,699 GBP for the base Prime and 4,099 GBP for the Prime R.
Two further trims wore the Prime name in 2024, the Prime RX and the separate Prime X, but both are urban-cross / commuter builds on slick-ish Maxxis Grifter tyres and an urban cockpit, so they sit outside this trail-eMTB record.
Geometry read
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
Size
Playfulness
69
Short 455mm rear and a lighter build — easy to pop, manual and throw around.
Size balance
73
Rear-long with a planted front in L (FC:RC 1.66) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
Technical climbing
72
Bosch Performance Line CX Gen 4 and a steep 73.5° seat angle keep the weight planted over the front — a proper winch. 600W of peak power and 85Nm of torque — a strong full-power motor.
Easy to throw around; happiest when you're active on the bike.
Fine at trail pace; it'll feel out of its depth on properly rough, steep tracks.
How it stacks up vs other Full Power · Cross-Country bikes (from 130 bikes in the database)
Weight22.7 kg1.0 kg lighter than average
Battery625 Wh61 Wh below average
Motor torque85 Nmabout average torque
Value for money41/100from £3,699 · most Bosch Performance Line CX Gen 4 bikes ~£3,499
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Geometry · hover a row to highlight the measurement on the bike
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Reach | 410 mm | 425 mm | 455 mm | 480 mm | 505 mm |
| Stack | 640 mm | 640 mm | 640 mm | 658 mm | 658 mm |
| Seattube | 380 mm | 390 mm | 430 mm | 470 mm | 510 mm |
| Chainstay | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Headtube Angle | 69° | 69° | 69° | 69° | 69° |
| Seattube Angle (eff) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Wheelbase | 1138 mm | 1153 mm | 1183 mm | 1210 mm | 1240 mm |
| Headtube | 110 mm | 110 mm | 110 mm | 130 mm | 130 mm |
| BB Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Centre | 683 mm* | 698 mm* | 728 mm* | 755 mm* | 785 mm* |
| FC:RC | 1.50 | 1.53 | 1.60 | 1.66 | 1.73 |
Trims · 2
Prime £3,699 | Prime R £4,099 | |
|---|---|---|
| Motor | Bosch Performance Line CX Gen 4 · 85 Nm · all trims | |
| Battery | Bosch PowerTube 625 · 625 Wh · all trims | |
| Travel F/R | 120/? mm · all trims | |
| Frame | Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor, SRAM UDH derailleur hanger | Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor, SRAM UDH derailleur hanger |
| Fork | RockShox Recon Silver RL 29, 120mm, Motion Control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload | RockShox Recon Gold RL Remote 29, 120mm, Motion Control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminium stanchions, 42mm offset. Settings: OneLoc 2-position remote compression (open/lock), rebound, air preload |
| Shock | None (hardtail) · all trims | |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45x45, bottom 52x40x8x45x45 · all trims | |
| Stem | Onoff S3 30mm 0 deg, 6061 forged alloy, 31.8mm bar bore · all trims | |
| Handlebar | Onoff S3 1.0 6061 alloy, rise 25mm, width 800mm, 8 deg backsweep, 5 deg upsweep, 31.8mm bar bore. L and XL: 1.5 rise · all trims | |
| Grips | Onoff Beehive, 1 lock-on, 135mm · all trims | |
| Saddle | MDK ebike black · all trims | |
| Seatpost | Onoff S3 0-R, diameter 31.6mm, length 400mm (rigid) | Onoff Pija dropper internal, diameter 31.6mm, 1x remote lever with bearing. S 140-115mm (388-235mm), M 160-135mm (428-255mm), L 180-155mm (468-275mm), XL 210-185mm (528-305mm) |
| Brakes | SRAM Level T, 2-piston caliper, Centerline one-piece IS 6-bolt rotors, steel-backed organic pads. Front 200mm, rear 180mm. Lever: SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings | SRAM DB8, 4-piston caliper, Centerline one-piece IS 6-bolt rotors, steel-backed organic pads. Front 200mm, rear 180mm. Lever: SRAM DB8, tool reach adjust, lever pivot bushings |
| Rear derailleur | SRAM SX Eagle, 12s · all trims | |
| Crank | Race Face Aeffect-R ebike, 160mm. Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD · all trims | |
| Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click · all trims | |
| Cassette | SRAM PG-1210, 11-50T, 12s · all trims | |
| Chain | SRAM SX Eagle, 12s, Powerlock · all trims | |
| Drivetrain | SRAM SX Eagle, 12s; Race Face Aeffect-R ebike, 160mm. Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD; SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click; SRAM PG-1210, 11-50T, 12s; SRAM SX Eagle, 12s, Powerlock · all trims | |
| Wheels | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes. Spokes: Mavic J-bend double butted, contactless lacing. Hubs: Mavic Boost (front 15x110mm IS 6-bolt, rear 12x148mm ID360 Ratchet IS 6-bolt HG freehub) · all trims | |
| Tyres | Front: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead. Rear: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead · all trims | |
| Weight | 22.7 kg · all trims | |
| Price | £3,699 | £4,099 |
