Neat 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

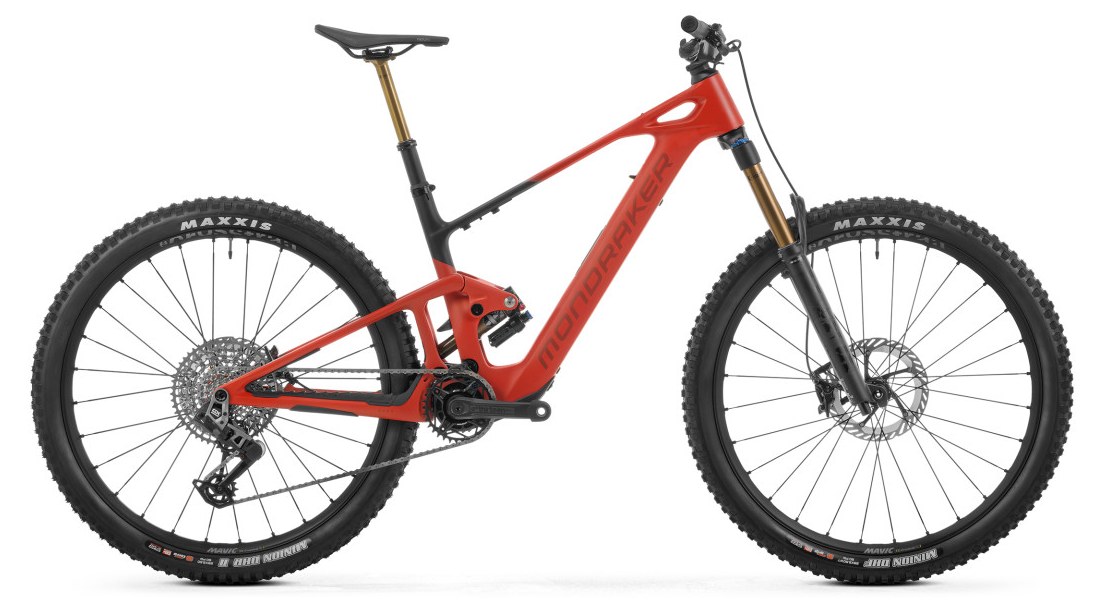

The Neat is Mondraker's full-carbon light e-MTB, built around the lightweight TQ HPR-50 motor (50 Nm) with a 360Wh integrated, removable battery and an optional 160Wh range extender. With 160mm up front and 150mm out back on the updated Zero Suspension System, it sits at the enduro-capable end of the lightweight category rather than chasing all-out range.
Geometry is consistently aggressive across the four sizes, with a 64.5 degree head angle, 76.5 degree effective seat angle and 450mm chainstays at every size. Reach runs from 450mm on the S to 515mm on the XL, reflecting Mondraker's Forward Geometry philosophy of long front centres and short stems (a 30mm Onoff unit throughout).
The three trims share frame, geometry and motor, so the choice is purely about kit and weight. The R (£7,399) pairs a RockShox Lyrik/Super Deluxe with SRAM DB8 brakes and S1000 AXS at a claimed 18.9kg. The RR (£8,499) steps up to Fox 36 Factory/Float X, Shimano XT four-piston brakes and GX AXS at 18.7kg. The RR SL (£10,499) tops the range with XTR brakes, XX Eagle AXS, carbon Mavic wheels and a Reverb AXS dropper at a claimed 18.3kg.
For most riders the RR is the value sweet spot, bringing the Factory-level Fox suspension and XT braking that define the bike's descending intent without the considerable jump to the SL's drivetrain and wheel upgrades.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 450 mm | 470 mm | 495 mm | 515 mm |
| Stack | 626 mm | 626 mm | 642 mm | 650 mm |
| Seattube | 380 mm | 420 mm | 450 mm | 490 mm |
| Chainstay | 450 mm | 450 mm | 450 mm | 450 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seattube Angle (eff) | 76.5° | 76.5° | 76.5° | 76.5° |
| Wheelbase | 1235 mm | 1255 mm | 1275 mm | 1295 mm |
| Headtube | 110 mm | 110 mm | 130 mm | 140 mm |
| BB Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Centre | 785 mm* | 805 mm* | 825 mm* | 845 mm* |
Trims · 3
R £7,399 | RR £8,499 | RR SL £10,499 | |
|---|---|---|---|
| Motor | TQ HPR50 · 50 Nm · all trims | ||
| Battery | TQ HPR50 360Wh · 360 Wh · all trims | ||
| Travel F/R | 160/150 mm · all trims | ||
| Frame | Carbon · all trims | ||
| Fork | RockShox LYRIK Select Charger RC 29, 160mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Shock | Rock Shox Super Deluxe Select, 185x55mm, Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock · all trims | ||
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise |
| Grips | Onoff Forest, CNC lock-on, 135mm | Onoff Forest, CNC lock-on, 135mm | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Saddle | Fizik Terra Aidon Slim X5 · all trims | ||
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S: 140-115mm, M: 160-135mm, L: 180-155mm, XL: 210-185mm | Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm, S: 95-120mm, M: 125-150mm, L: 155-180mm, XL: 185-210mm | RockShox Reverb Stealth AXS, diameter 31.6mm, S: 340x125mm, M: 390x150mm, L: 440x170mm, XL: 440x170mm |
| Brakes | Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads (front and rear) | Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin (front and rear); Shimano XT M8100 levers with servo wave | Shimano XTR M9120, 4 piston caliper, RTMT905 ICE-Tech 203mm IS 6 bolts one-piece rotor, resin pads with fin (front and rear); Shimano XTR M9120 levers with servo wave |
| Rear derailleur | Sram S1000 Eagle AXS T-Type, 12s | Sram GX Eagle AXS T-Type, 12s | Sram XX Eagle AXS, T-Type, 12s |
| Crank | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm; Sram X-Sync 2 Eagle 34T ring, steel, narrow-wide, 104 BCD | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm; Sram X-Sync 2 Eagle 34T T-Type ring, steel, narrow-wide, 104 BCD | e*Thirteen TRS Race carbon ebike, All sizes: 160mm; Sram X-Sync 2 Eagle 34T T-Type ring, steel, narrow-wide, 104 BCD |
| Shifters | Sram Eagle AXS Pod MMX, 12s · all trims | ||
| Cassette | Sram XS-1270, 10-52T, T-Type, 12s | Sram XS-1275, 10-52T, T-Type, 12s | Sram XG-1295, 10-52T, T-Type, 12s |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock | Sram GX Eagle T-Type, 12s, Powerlock | Sram X0 Eagle T-Type, 12s, Powerlock |
| Drivetrain | Sram S1000 Eagle AXS T-Type, 12s; e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm; Sram X-Sync 2 Eagle 34T ring, steel, narrow-wide, 104 BCD; Sram Eagle AXS Pod MMX, 12s; Sram XS-1270, 10-52T, T-Type, 12s; Sram GX Eagle T-Type, 12s, Powerlock | Sram GX Eagle AXS T-Type, 12s; e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm; Sram X-Sync 2 Eagle 34T T-Type ring, steel, narrow-wide, 104 BCD; Sram Eagle AXS Pod MMX, 12s; Sram XS-1275, 10-52T, T-Type, 12s; Sram GX Eagle T-Type, 12s, Powerlock | Sram XX Eagle AXS, T-Type, 12s; e*Thirteen TRS Race carbon ebike, All sizes: 160mm; Sram X-Sync 2 Eagle 34T T-Type ring, steel, narrow-wide, 104 BCD; Sram Eagle AXS Pod MMX, 12s; Sram XG-1295, 10-52T, T-Type, 12s; Sram X0 Eagle T-Type, 12s, Powerlock |
| Wheels | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes | Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes | Mavic E-CrossTrail SL Carbon, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes |
| Tyres | Maxxis Minion DHF 29x2.5 WT 3C MAXX GRIP EXO+ front / Maxxis Minion DHR II 29x2.5 WT 3C MAXX TERRA EXO+ rear, tubeless ready, 60TPI, folding bead · all trims | ||
| Weight | 18.9 kg | 18.7 kg | 18.3 kg |
| Price | £7,399 | £8,499 | £10,499 |
