Mondraker

Neat 2024

Discontinued✎Lightweight · TrailLegacy · 1.4/10iFreshness 1.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

TQ HPR50 · 50Nm · 300W↗

Battery

TQ HPR-50 360Wh

Travel F/R

160/150mm

Wheels

29F / 29R✎

Frame

Full carbon✎

Weight

17.9 kg

Price

From £6,799

View the Mondraker Neat on Mondraker’s site

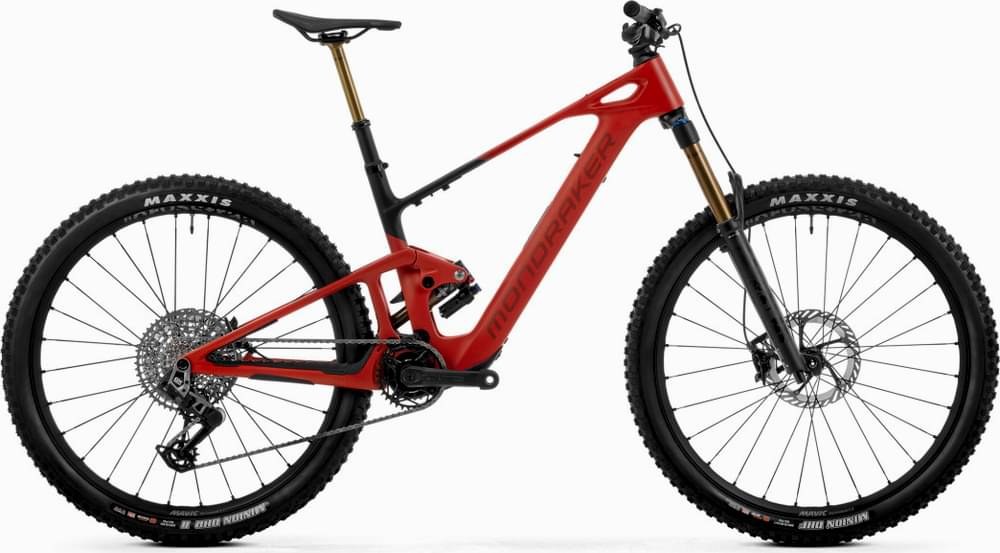

Mondraker Neat 2024

From £6,799

The 2024 Mondraker Neat is the Spanish brand's first lightweight e-MTB, pairing a full-carbon Stealth Air frame and the Zero Suspension System with the quiet, low-assistance TQ HPR50 motor (50Nm, 300W) and a removable 360Wh battery. With 160mm up front and 150mm out back on full 29in wheels, it sits in Mondraker's favoured trail/all-mountain bracket and shares the long, slack Forward Geometry of the bigger Crafty, running a 64.5 degree head angle and 450mm chainstays across all four sizes.Three builds spanned the range. The Neat R (£6,799, 18.9kg) paired a Fox 36 Performance fork and Float X Performance shock with mechanical SRAM GX Eagle shifting, SRAM G2 R brakes and Mavic E-CrossRide alloy wheels. The Neat RR (£8,499, 18.3kg) stepped up to Fox 36 GRIP2 Factory and Float X Factory suspension, SRAM GX AXS Transmission, SRAM Level Bronze brakes and Mavic E-DeeMax SL alloy wheels. The flagship Neat RR SL (£10,499, 17.9kg) ran SRAM XX AXS Transmission, Level Ultimate brakes, a RockShox Reverb AXS post and Mavic E-CrossMax Carbon wheels.Buyers should note the modest 360Wh capacity, though an optional 160Wh TQ range extender is available, and that the production bikes run a matched 29in front and rear wheel rather than a mullet setup.

EMTB Forums verdict

The 2024 Mondraker Neat is the Spanish brand's first lightweight e-MTB, pairing a full-carbon Stealth Air frame and the Zero Suspension System with the quiet, low-assistance TQ HPR50 motor (50Nm, 300W) and a removable 360Wh battery. With 160mm up front and 150mm out back on full 29in wheels, it sits in Mondraker's favoured trail/all-mountain bracket and shares the long, slack Forward Geometry of the bigger Crafty, running a 64.5 degree head angle and 450mm chainstays across all four sizes.

Three builds spanned the range. The Neat R (£6,799, 18.9kg) paired a Fox 36 Performance fork and Float X Performance shock with mechanical SRAM GX Eagle shifting, SRAM G2 R brakes and Mavic E-CrossRide alloy wheels. The Neat RR (£8,499, 18.3kg) stepped up to Fox 36 GRIP2 Factory and Float X Factory suspension, SRAM GX AXS Transmission, SRAM Level Bronze brakes and Mavic E-DeeMax SL alloy wheels. The flagship Neat RR SL (£10,499, 17.9kg) ran SRAM XX AXS Transmission, Level Ultimate brakes, a RockShox Reverb AXS post and Mavic E-CrossMax Carbon wheels.

Buyers should note the modest 360Wh capacity, though an optional 160Wh TQ range extender is available, and that the production bikes run a matched 29in front and rear wheel rather than a mullet setup.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (64.5° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance

Balanced front-to-rear in L (FC:RC 1.83) — weight sits evenly between the wheels.

Technical climbing

Climbs well — a 76.5° seat keeps the front planted. 300W of peak power and 50Nm of torque.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Lightweight · Trail bikes (from 82 bikes in the database)

Weight17.9 kg1.1 kg lighter than average

Battery360 Wh77 Wh below average

Motor torque50 Nm8 Nm below average

Value for money5/100from £6,799 · most TQ HPR50 bikes ~£5,199

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	450 mm	470 mm	495 mm	515 mm
Stack	626 mm	626 mm	642 mm	650 mm
Seattube	380 mm	420 mm	450 mm	490 mm
Chainstay	450 mm	450 mm	450 mm	450 mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°
Seattube Angle (eff)	76.5°	76.5°	76.5°	76.5°
Wheelbase	1235 mm	1255 mm	1275 mm	1295 mm
Headtube	110 mm	110 mm	130 mm	140 mm
BB Height	348 mm	348 mm	348 mm	348 mm
Front Centre	785 mm*	805 mm*	825 mm*	845 mm*
FC:RC	1.74	1.79	1.83	1.88

Trims · 3

	Neat R £6,799	Neat RR £8,499	Neat RR SL £10,499
Motor	TQ HPR50 · 50 Nm · all trims
Battery	TQ HPR-50 360Wh · 360 Wh · all trims
Travel F/R	160/150 mm · all trims
Frame	Carbon · all trims
Fork	Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload	Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload	Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Shock	Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings	Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings	Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Headset	Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing · all trims
Stem	Onoff Krypton FG 30mm, CNC, 31.8mm barbore · all trims
Handlebar	Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore	Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore	Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore
Grips	Onoff Desert, lock-on, 135mm · all trims
Saddle	Fizik Terra Aidon Slim X5 · all trims
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm	Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size: 475.1x200mm	RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 340x125mm, M size: 390x150mm, L size: 440x170mm, XL size: 440x170mm
Brakes	Front: Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. Rear: Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads	Front: Sram Level Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. Rear: Sram Level Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads	Front: Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. Rear: Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear derailleur	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1	Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s	Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Crank	E.13 E*Spec Plus, S size: 165mm, M size: 165mm, L size: 170mm, XL size: 170mm, Rings: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD	E.13 E*Spec Plus, S size: 165mm, M size: 165mm, L size: 170mm, XL size: 170mm, Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD	E.13 TRS Race carbon ebike, S size: 165mm, M size: 165mm, L size: 170mm, XL size: 170mm, Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Shifters	Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click	Sram Eagle AXS Pod MMX, 12s	Sram Eagle AXS Pod MMX, 12s
Cassette	Sram PG-1230, 11-50T, 12s	Sram XS-1275, 10-52T, T-Type, 12s	Sram XG-1295, 10-52T, T-Type, 12s
Chain	Sram NX Eagle, 12s, Powerlock	Sram GX Eagle T-Type, 12s, Powerlock	Sram X0 Eagle T-Type, 12s, Powerlock
Drivetrain	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1; E.13 E*Spec Plus, S size: 165mm, M size: 165mm, L size: 170mm, XL size: 170mm, Rings: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD; Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click; Sram PG-1230, 11-50T, 12s; Sram NX Eagle, 12s, Powerlock	Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s; E.13 E*Spec Plus, S size: 165mm, M size: 165mm, L size: 170mm, XL size: 170mm, Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD; Sram Eagle AXS Pod MMX, 12s; Sram XS-1275, 10-52T, T-Type, 12s; Sram GX Eagle T-Type, 12s, Powerlock	Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s; E.13 TRS Race carbon ebike, S size: 165mm, M size: 165mm, L size: 170mm, XL size: 170mm, Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD; Sram Eagle AXS Pod MMX, 12s; Sram XG-1295, 10-52T, T-Type, 12s; Sram X0 Eagle T-Type, 12s, Powerlock
Wheels	Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes	Mavic E-DeeMax SL 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes	Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Tyres	Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead. Rear: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead · all trims
Weight	18.9 kg	18.3 kg	17.9 kg
Price	£6,799	£8,499	£10,499
