Descending
58
A solid all-round descender (65.5° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.
Mondraker
Dusk 2024
Discontinued✎Full Power · TrailLegacy · 1.7/10iFreshness 1.7/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Motor
Shimano EP6 (DU-EP600) · 85Nm · 500W↗
Battery
Simplo internal 720Wh
Travel F/R
160/150mm
Wheels
29F / 29R✎
Frame
Aluminium✎
Weight
—
Price
—
EMTB Forums verdict

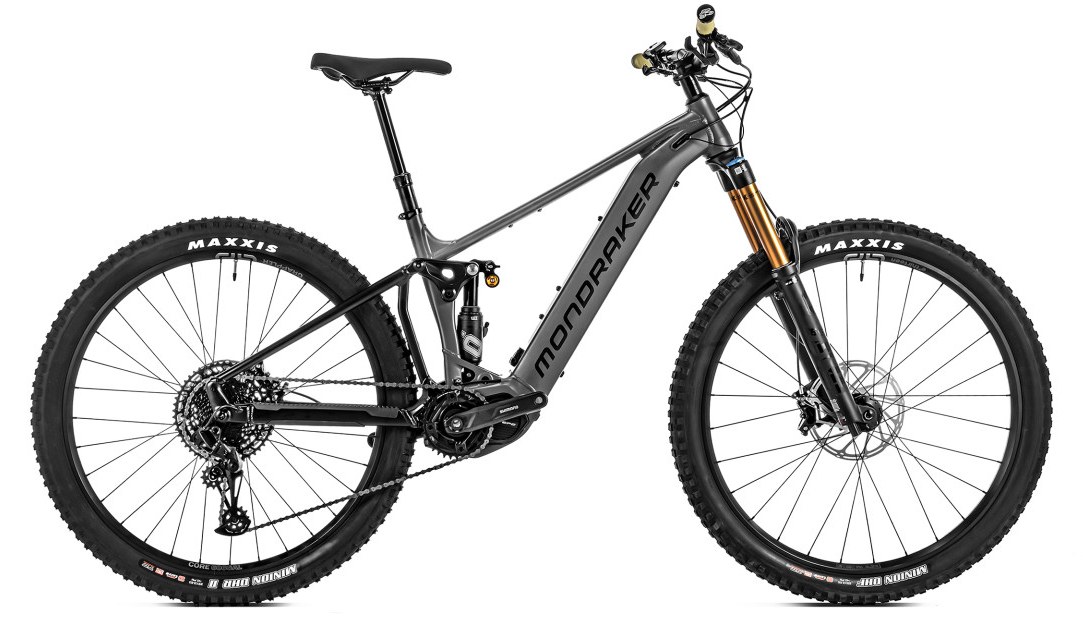

The 2024 Mondraker Dusk was the brand's aluminium full-power enduro eMTB, built around the Zero Suspension System with 150mm of rear travel, a 160mm fork and Mondraker's signature long-reach Forward Geometry. The two-trim 2024 range, Dusk S and Dusk SR, shared a 6061 Alloy Stealth Evo frame, a Shimano STEPS EP600 motor (85Nm) and a non-removable 720Wh internal battery, with an optional 360Wh range-extender for bigger days.
Geometry was identical across both trims and four sizes (S to XL), running a 65.5 degree head angle, a 76 degree effective seat angle, a fixed 455mm chainstay and reaches from 450mm to 510mm. Those reach numbers are long for the size, which is normal for Forward Geometry rather than a data error, and the 350mm bottom bracket height keeps it planted on steep descents. All builds rolled on full 29in wheels.
Spec separated the two trims. The Dusk S paired an Ohlins RXF 38 fork and Ohlins TTX Air shock with SRAM G2 R brakes, while the pricier Dusk SR swapped to a Fox 36 GRIP2 Factory fork, kept the Ohlins TTX Air shock and stepped up to SRAM Code RSC stoppers. Both used a budget-friendly SRAM SX Eagle drivetrain and e*thirteen Grappler Core alloy wheels, a slightly mixed value proposition of high-end suspension and brakes over an entry-level transmission.
The Dusk has since been discontinued. Mondraker did not carry it into 2025 or 2026, folding its full-power enduro role into the redesigned Crafty (now on the Bosch Performance Line CX motor) while the lighter Dune covers the lightweight enduro slot.
Geometry read
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
Size
Playfulness
34
More planted than poppy — better on steep terrain than tight, fiddly singletrack.
Size balance
98
Rear-long with a planted front in L (FC:RC 1.78) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
Technical climbing
75
Shimano EP6 (DU-EP600) and a steep 76° seat angle keep the weight planted over the front — a proper winch. 500W of peak power and 85Nm of torque — a strong full-power motor.
Strong up and composed down — a do-it-all, not a specialist.
Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.
How it stacks up vs other Full Power · Trail bikes (from 223 bikes in the database)
Battery720 Whabout average capacity
Motor torque85 Nm13 Nm below average
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Stack | 622 mm | 622 mm | 640 mm | 640 mm |
| Seattube | 380 mm | 420 mm | 450 mm | 490 mm |
| Chainstay | 455 mm | 455 mm | 455 mm | 455 mm |
| Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Seattube Angle (eff) | 76° | 76° | 76° | 76° |
| Wheelbase | 1225 mm | 1245 mm | 1265 mm | 1285 mm |
| Headtube | 110 mm | 110 mm | 130 mm | 130 mm |
| BB Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Centre | 770 mm* | 790 mm* | 810 mm* | 830 mm* |
| FC:RC | 1.69 | 1.74 | 1.78 | 1.82 |
Trims · 2
Dusk S | Dusk SR | |
|---|---|---|
| Motor | Shimano EP6 (DU-EP600) · 85 Nm · all trims | |
| Battery | Simplo internal 720Wh · 720 Wh · all trims | |
| Travel F/R | 160/150 mm · all trims | |
| Frame | Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery · all trims | |
| Fork | Ohlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber | Fox 36 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Shock | Ohlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings. Shock settings: C20 compression, R35 rebound, volume reducers 12.000 (2xF+1D) · all trims | |
| Headset | Onoff Saturn tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41x30.2x7x45x45, bottom 51.9x40x8x45x45 · all trims | |
| Stem | Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise 20mm, width 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore · all trims | |
| Grips | Onoff Twin, lock-on, 135mm · all trims | |
| Saddle | MDK ebike black · all trims | |
| Seatpost | Onoff Pija dropper internal, 31.6mm (S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 498x140-170mm) · all trims | |
| Brakes | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads (front and rear). Brake lever: Sram G2 R, tool-free reach adjust, lever pivot bushings | Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads (front and rear). Brake lever: Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Rear derailleur | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-Actuation 1:1 · all trims | |
| Crank | Shimano Steps FC-EM600 ebike, 165mm. Chainring: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD · all trims | |
| Shifters | Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click · all trims | |
| Cassette | Sram PG-1210, 11-50T, 12s · all trims | |
| Chain | Sram SX Eagle, 12s, Powerlock · all trims | |
| Drivetrain | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-Actuation 1:1; Shimano Steps FC-EM600 ebike, 165mm. Chainring: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD; Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click; Sram PG-1210, 11-50T, 12s; Sram SX Eagle, 12s, Powerlock · all trims | |
| Wheels | e*thirteen Grappler Core, hookless 6069 welded aluminium, 30mm internal width, tubeless ready, 28 spokes, 29 front and rear. Hubs: e*thirteen Boost (front 15x110mm, rear 12x148mm w/6-degree engagement, HG Freehub). Spokes: e*thirteen custom J-bend, triple-butted steel · all trims | |
| Tyres | Maxxis Minion DHF 29x2.6 3C MAXX TERRA EXO+ (front) / Maxxis Minion DHR II 29x2.6 3C MAXX TERRA EXO+ (rear), tubeless ready, 120TPI, folding bead · all trims | |
