Mondraker

Dune 2024

Discontinued✎Lightweight · EnduroAgeing · 3.2/10iFreshness 3.2/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Bosch Performance Line SX · 55Nm · 600W↗

Battery

Bosch Compact Powertube 400Wh

Travel F/R

170/165mm

Wheels

MX (29F / 27.5R)✎

Frame

Full carbon✎

Weight

19.9 kg

Price

From £6,799

View the Mondraker Dune on Mondraker’s site

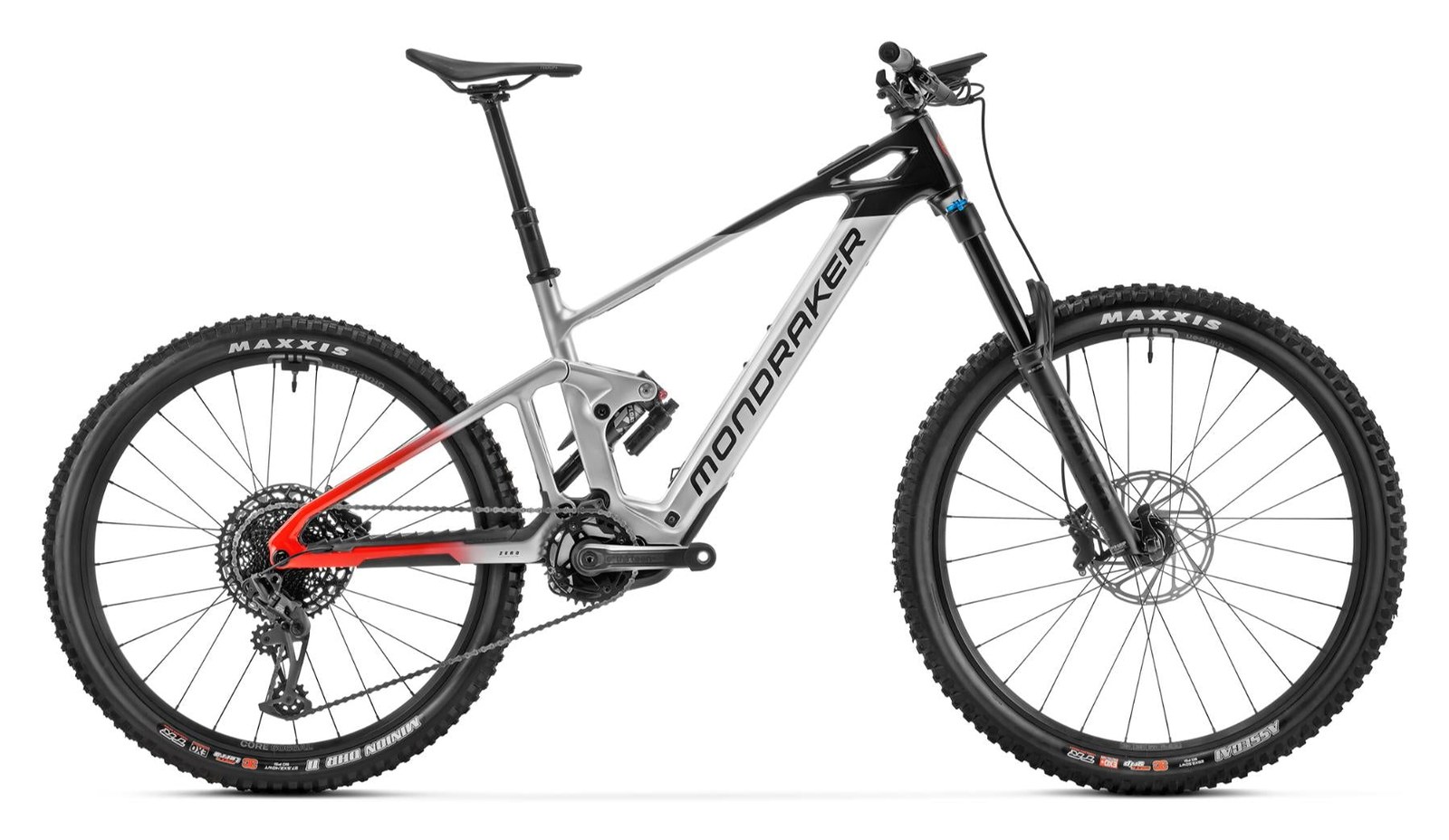

Mondraker Dune 2024

From £6,799

The 2024 Mondraker Dune marks the rebirth of a famous enduro name as a lightweight e-MTB. Where the old Dune was a pedal-only enduro bike, this generation is built around Bosch's compact Performance Line SX motor (55Nm, 600W peak) and a 400Wh integrated battery, keeping claimed weight just under 20kg on the entry Dune R. The full-carbon Stealth Air frame uses Mondraker's Zero Suspension System for 165mm of rear travel, paired with a 170mm fork (180mm on the XR), a mullet wheel setup and the brand's long, low Forward Geometry.Three carbon builds share the same frame. The Dune R (6,799 GBP) runs a Fox 38 Performance fork and Float X shock with a SRAM GX Eagle mechanical drivetrain and DB8 brakes. The RR (8,499 GBP) steps up to Ohlins RXF 38 and TTX Air suspension, SRAM GX AXS T-Type wireless shifting and Code Bronze brakes. The flagship XR (11,999 GBP) gets a 180mm Ohlins RXF 38 fork with a coil TTX22 shock, SRAM X0 AXS T-Type, Code Ultimate brakes, e*thirteen carbon wheels and a RockShox Reverb AXS post.Geometry is aggressive for the class, with a 64-degree head angle on the 170mm R and RR builds slackening to 63.5 degrees on the 180mm XR, a steep 77 to 77.5-degree effective seat angle and 445mm chainstays across all four sizes. The 400Wh battery is integrated and non-removable, but the Dune accepts Bosch's 250Wh PowerMore range extender for longer days. It was discontinued and replaced by a later Dune for the following model year.

EMTB Forums verdict

The 2024 Mondraker Dune marks the rebirth of a famous enduro name as a lightweight e-MTB. Where the old Dune was a pedal-only enduro bike, this generation is built around Bosch's compact Performance Line SX motor (55Nm, 600W peak) and a 400Wh integrated battery, keeping claimed weight just under 20kg on the entry Dune R. The full-carbon Stealth Air frame uses Mondraker's Zero Suspension System for 165mm of rear travel, paired with a 170mm fork (180mm on the XR), a mullet wheel setup and the brand's long, low Forward Geometry.

Three carbon builds share the same frame. The Dune R (6,799 GBP) runs a Fox 38 Performance fork and Float X shock with a SRAM GX Eagle mechanical drivetrain and DB8 brakes. The RR (8,499 GBP) steps up to Ohlins RXF 38 and TTX Air suspension, SRAM GX AXS T-Type wireless shifting and Code Bronze brakes. The flagship XR (11,999 GBP) gets a 180mm Ohlins RXF 38 fork with a coil TTX22 shock, SRAM X0 AXS T-Type, Code Ultimate brakes, e*thirteen carbon wheels and a RockShox Reverb AXS post.

Geometry is aggressive for the class, with a 64-degree head angle on the 170mm R and RR builds slackening to 63.5 degrees on the 180mm XR, a steep 77 to 77.5-degree effective seat angle and 445mm chainstays across all four sizes. The 400Wh battery is integrated and non-removable, but the Dune accepts Bosch's 250Wh PowerMore range extender for longer days. It was discontinued and replaced by a later Dune for the following model year.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Setting

Descending

Slack 63.5° head angle, 165mm travel and a long 1290mm wheelbase — composed in the chunk, confident when it gets steep, and stable through fast corners.

Playfulness

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance

Front-long in L: 845mm front centre on 445mm stays (FC:RC 1.90). Planted and composed; rewards a forward, attacking stance.

Technical climbing

A workmanlike climber — expect to put in more rider effort on the steep stuff. 600W of peak power and 60Nm of torque.

Best suited toFast, steep, rough tracks — and riders who want maximum composure.

Rewards commitment; it should feel calmer as the speed rises.

Watch out forL runs front-long (FC:RC 1.90).

A 845mm front centre on 445mm stays means taller riders must actively weight the front to keep it gripping. The chainstay stays 445mm on every size, so L feels more front-long than the smaller sizes.

How it stacks up vs other Lightweight · Enduro bikes (from 16 bikes in the database)

Weight19.9 kgabout average weight

Battery400 Whabout average capacity

Motor torque55 Nmabout average torque

Value for money50/100from £6,799 · most Bosch Performance Line SX bikes ~£6,799

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

💬 Forum discussion

Mondraker Dune XR Demo

10 replies · 2.1k views · last reply 16 months ago

Join the discussion →

“Just collected this for a weeks demo from Rotec. No reason other than next week we could really do with 2 Eebs for some riding we have planned and this was the easiest way to facilitate it. However, it's a hell of a spec and i'm…”

— Weeksy · ♥ 7 · most-liked post

Geometry · hover a row to highlight the measurement on the bike

Flip-chip position

geometry changes with the chip

	S	M	L	XL
Reach	445 mm	465 mm	485 mm	505 mm
Stack	621 mm	630 mm	648 mm	658 mm
Seattube	380 mm	420 mm	450 mm	490 mm
Chainstay	445 mm	445 mm	445 mm	445 mm
Headtube Angle	64°	64°	64°	64°
Seattube Angle (eff)	77.5°	77.5°	77.5°	77.5°
Wheelbase	1232 mm	1260 mm	1285 mm	1309 mm
Headtube	100 mm	110 mm	130 mm	140 mm
BB Height	352 mm	352 mm	352 mm	352 mm
Front Centre	787 mm*	815 mm*	840 mm*	864 mm*
FC:RC	1.77	1.83	1.89	1.94

Trims · 3

	Dune R £6,799	Dune RR £8,499	Dune XR £11,999
Motor	Bosch Performance Line SX · 55 Nm · all trims
Battery	Bosch Compact Powertube 400Wh · 400 Wh · all trims
Travel F/R	170/165 mm · all trims
Frame	Stealth Air full carbon fibre · all trims
Fork	FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload	Ohlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber	Ohlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Shock	Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings	Ohlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings	Ohlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Headset	Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock · all trims
Stem	Onoff S6 30mm 0deg, 6061 forged alloy + CNC, 31.8mm barbore	Onoff S6 30mm 0deg, 6061 forged alloy + CNC, 31.8mm barbore	Onoff S9 30mm 0deg, Full CNC, 31.8mm barbore
Handlebar	Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8deg backsweep, 5deg upsweep, 31.8mm barbore. L and XL size: 1.5 rise.	Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8deg backsweep, 5deg upsweep, 31.8mm barbore. L and XL size: 1.5 rise.	Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8deg backsweep, 5deg upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips	Onoff Forest, CNC lock-on, 135mm	Onoff Forest, CNC lock-on, 135mm	Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Saddle	Fizik Terra Aidon Slim X5 · all trims
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)	RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Brakes	Front: SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads	Front: SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads	Front: SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear derailleur	SRAM GX Eagle,12s	SRAM GX Eagle AXS T-Type,12s	SRAM X0 Eagle AXS T-Type,12s
Crank	eThirteen Helix Core ESpec Plus, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD	eThirteen Helix Core ESpec Plus, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55	e*Thirteen TRS Race carbon ebike, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Shifters	SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click	SRAM Eagle AXS Pod MMX, 12s	SRAM Eagle AXS Pod MMX, 12s
Chain	SRAM NX Eagle, 12s, Powerlock	SRAM GX Eagle T-Type, 12s, Powerlock	SRAM X0 Eagle T-Type, 12s, Powerlock
Drivetrain	SRAM GX Eagle,12s; eThirteen Helix Core ESpec Plus, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD; SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click; SRAM NX Eagle, 12s, Powerlock	SRAM GX Eagle AXS T-Type,12s; eThirteen Helix Core ESpec Plus, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55; SRAM Eagle AXS Pod MMX, 12s; SRAM GX Eagle T-Type, 12s, Powerlock	SRAM X0 Eagle AXS T-Type,12s; e*Thirteen TRS Race carbon ebike, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55; SRAM Eagle AXS Pod MMX, 12s; SRAM X0 Eagle T-Type, 12s, Powerlock
Wheels	e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27.5 rear	e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27.5 rear	e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27.5 rear
Tyres	Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Minion DHR II 27.5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead · all trims
Weight	19.9 kg	—	—
Price	£6,799	£8,499	£11,999
