Descending
59
A solid all-round descender (65° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.
Mondraker
Crusher 2024
Discontinued✎Full Power · TrailLegacy · 1.7/10iFreshness 1.7/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Motor
Shimano EP801 · 85Nm · 600W↗
Battery
Simplo internal 720Wh G3
Travel F/R
160/150mm
Wheels
29F / 29R✎
Frame
Carbon front, aluminium rear✎
Weight
23.4 kg
Price
From £6,299
From £6,299
EMTB Forums verdict

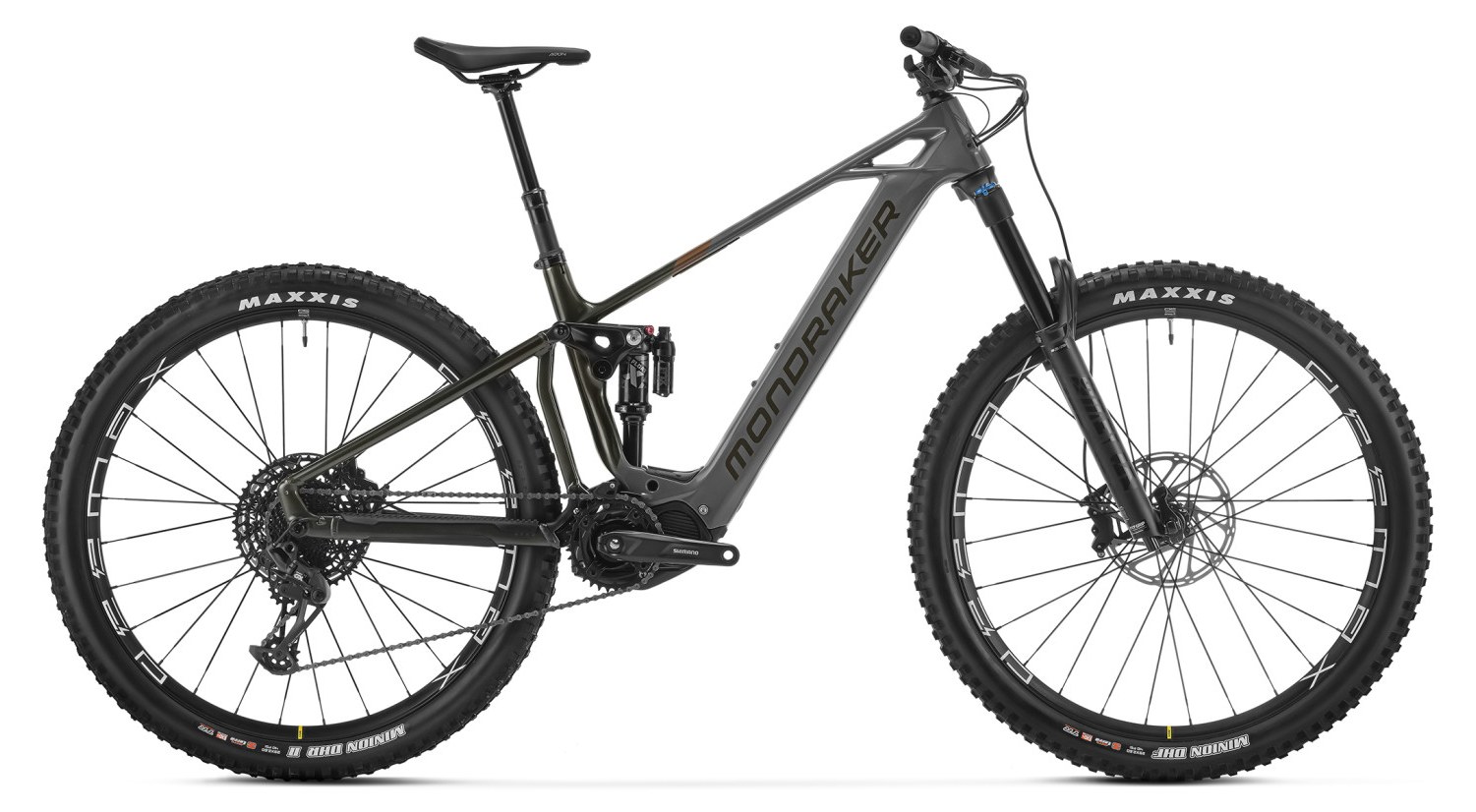

The 2024 Mondraker Crusher was the reborn, Shimano-powered version of Mondraker's enduro e-MTB, slotting between the lightweight Neat and the longer-travel Crafty. It pairs a Stealth Air Carbon front triangle with a Stealth Alloy rear end and Mondraker's Zero Suspension System for 150mm of rear travel, matched to a 160mm fork on full 29in wheels. Power comes from a Shimano EP801 motor (85Nm) fed by an integrated, non-removable Simplo 720Wh battery with a Shimano EN600 display.
It built on Mondraker's Forward Geometry, so reach is long (450 to 510mm across S to XL) and the supplied stem is a short 30mm, with a 65 degree head angle, 77 degree effective seat angle and consistent 455mm chainstays. Three builds were offered in the UK: the Crusher at 6,299 GBP (Fox 38 Float and Float-X Performance, SRAM DB8 brakes, SRAM GX/NX Eagle), the Crusher R at 7,499 GBP (Ohlins RXF 38 fork and TTX Air shock, SRAM Code Bronze brakes, SRAM X01 Eagle) and the flagship Crusher RR at 8,799 GBP (Ohlins suspension, Shimano XT Di2 with Free Shift, Mavic E-Deemax S wheels). Claimed weights ran from 24.6kg on the base bike down to 23.4kg on the RR.
This is a discontinued model year. Mondraker has since refreshed the Crusher, so the live product pages now show a newer bike, and the 2024 versions are only found on the used and clearance market. Buyers should note the battery is internal and not removable, which affects charging and storage logistics.
Geometry read
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
Size
Playfulness
33
More planted than poppy — better on steep terrain than tight, fiddly singletrack.
Size balance
98
Rear-long with a planted front in L (FC:RC 1.78) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
Technical climbing
79
Shimano EP801 and a steep 77° seat angle keep the weight planted over the front — a proper winch. 600W of peak power and 85Nm of torque — a strong full-power motor.
Strong up and composed down — a do-it-all, not a specialist.
Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.
How it stacks up vs other Full Power · Trail bikes (from 223 bikes in the database)
Weight23.4 kgabout average weight
Battery720 Whabout average capacity
Motor torque85 Nm13 Nm below average
Value for money54/100from £6,299 · most Shimano EP801 bikes ~£6,480
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Stack | 622 mm | 622 mm | 640 mm | 640 mm |
| Seattube | 380 mm | 420 mm | 450 mm | 490 mm |
| Chainstay | 455 mm | 455 mm | 455 mm | 455 mm |
| Headtube Angle | 65° | 65° | 65° | 65° |
| Seattube Angle (eff) | 77° | 77° | 77° | 77° |
| Wheelbase | 1227 mm | 1247 mm | 1267 mm | 1387 mm |
| Headtube | 110 mm | 110 mm | 130 mm | 130 mm |
| BB Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Centre | 772 mm* | 792 mm* | 812 mm* | 932 mm* |
| FC:RC | 1.70 | 1.74 | 1.78 | 2.05 |
Trims · 3
Crusher £6,299 | Crusher R £7,499 | Crusher RR £8,799 | |
|---|---|---|---|
| Motor | Shimano EP801 · 85 Nm · all trims | ||
| Battery | Simplo internal 720Wh G3 · 720 Wh · all trims | ||
| Travel F/R | 160/150 mm · all trims | ||
| Frame | Stealth Air Carbon front triangle with Stealth Alloy rear triangle · all trims | ||
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload | Ohlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber | Ohlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings. Factory setup: medium compression, medium rebound, air volume spacer 0.2 | Ohlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings | Ohlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings. Factory: C20 compression, R35 rebound, volume reducers 12.000 (2xF+1D) |
| Headset | Acros AZF-601 R1 Block Lock 120deg, ZS44/28.6 top, ZS56/40 bottom · all trims | ||
| Stem | Onoff Sulfur FG 30mm 0deg, 6061 forged alloy, 31.8mm barbore | Onoff Krypton FG 30mm, CNC, 31.8mm barbore | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9deg backsweep, 5deg upsweep, 31.8mm barbore | Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9deg backsweep, 5deg upsweep, 31.8mm barbore | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9deg backsweep, 5deg upsweep, 31.8mm barbore |
| Grips | Onoff Desert, 1 lock-on, 135mm · all trims | ||
| Saddle | Fizik Terra Aidon X5 145mm · all trims | ||
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing. S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing. S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm | Onoff Pija dropper internal, diameter 31.6mm. S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm + Shimano SL-MT800-IL lever |
| Brakes | SRAM DB8, 4-piston caliper front and rear, steel-backed organic pads. SRAM DB8 levers with tool reach adjust and lever pivot bushings. Centerline 200mm IS 6-bolt one-piece rotors front and rear | SRAM Code Bronze Stealth, oversized 4-piston caliper front and rear, steel-backed metal sintered pads. SRAM Code Bronze Stealth levers with SwingLink, lever pivot bushings and tool-free reach adjust. Centerline 200mm IS 6-bolt one-piece rotors front and rear | Shimano Deore XT M8120, 4-piston caliper front and rear, with Shimano Deore XT M8120 brake levers. MT-800 Ice-Tech 203mm Center Lock front rotor, MT-810 Ice-Tech 203mm Center Lock rear rotor |
| Rear derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 | SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 | Shimano Deore XT M8150-GS Di2 12s Shadow Plus, direct mount |
| Crank | Shimano Steps FC-EM600 ebike, 165mm. Rings: SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD | Shimano Steps FC-EM600 ebike, 165mm. Rings: SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD | Shimano Steps XT FC-8150 ebike, 165mm. Rings: Shimano EP801, 34T, 104 BCD |
| Shifters | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click | Shimano XT Di2 SW-M8150 |
| Cassette | SRAM PG-1210, 11-50T, 12s (HG freehub) | SRAM Eagle 12-speed cassette on XD driver (exact model not printed on the 2024 spec sheet read) | Shimano Deore XT M8100, 10-51T, 12s |
| Chain | SRAM SX Eagle, 12s, Powerlock | SRAM NX Eagle, 12s, Powerlock | Shimano Deore XT M8100 |
| Drivetrain | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1; Shimano Steps FC-EM600 ebike, 165mm. Rings: SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD; SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click; SRAM PG-1210, 11-50T, 12s (HG freehub); SRAM SX Eagle, 12s, Powerlock | SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1; Shimano Steps FC-EM600 ebike, 165mm. Rings: SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD; SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click; SRAM Eagle 12-speed cassette on XD driver (exact model not printed on the 2024 spec sheet read); SRAM NX Eagle, 12s, Powerlock | Shimano Deore XT M8150-GS Di2 12s Shadow Plus, direct mount; Shimano Steps XT FC-8150 ebike, 165mm. Rings: Shimano EP801, 34T, 104 BCD; Shimano XT Di2 SW-M8150; Shimano Deore XT M8100, 10-51T, 12s; Shimano Deore XT M8100 |
| Wheels | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes; Mavic J-bend double butted spokes | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes; Mavic J-bend double butted spokes. Rear hub Mavic Boost 12x148mm ID360 Ratchet, XD freehub | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes; Mavic straight-pull double butted spokes, contactless lacing. Rear hub Mavic Boost 12x148mm ID360 Ratchet, MS freehub |
| Tyres | Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead. Rear: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead · all trims | ||
| Weight | 24.6 kg | 24.1 kg | 23.4 kg |
| Price | £6,299 | £7,499 | £8,799 |
