Mondraker

Chaser 2022

Discontinued✎Full Power · TrailLegacy · 1/10iFreshness 1/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Stable, slack-geometry alloy enduro with dependable Bosch power

Motor

Bosch Performance Line CX Gen 4 · 85Nm · 600W↗

Battery

Bosch PowerTube 750 · 750Wh

Travel F/R

160/150mm

Wheels

29F / 29R✎

Frame

Aluminium✎

Weight

24.6 kg

Price

From £4,799

View the Mondraker Chaser on Mondraker’s site

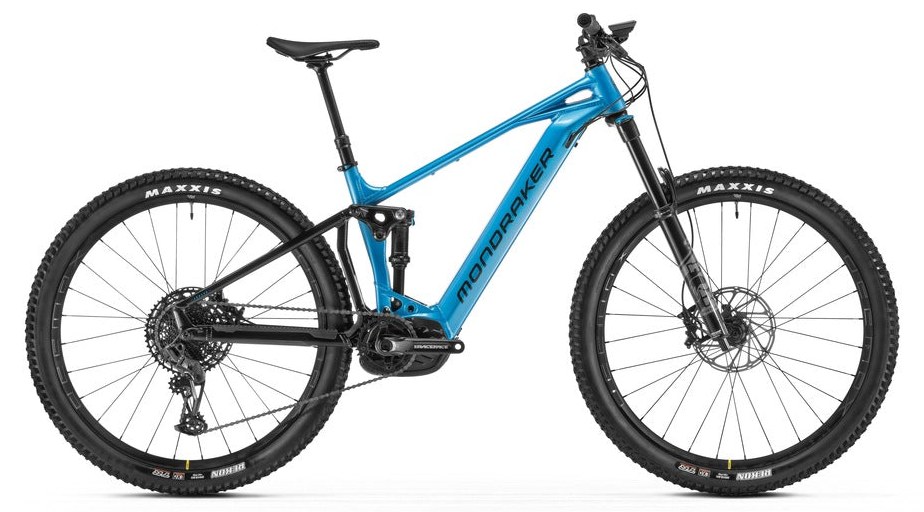

Mondraker Chaser 2022

From £4,799

The 2022 Mondraker Chaser was the brand's most accessible full-power eMTB, an aluminium (6061 Stealth Evo) enduro machine running 160mm up front and 150mm out back on 29in wheels, driven by a Bosch Performance Line CX Gen 4 motor (85 Nm). Mondraker's Zero Suspension System and long, low Forward Geometry give it a properly aggressive stance for a bike aimed at newcomers, with a 65.5° head angle, 76° effective seat angle and reach stretching from 450mm on the S to 510mm on the XL.Three builds shared the same frame and geometry. The flagship Chaser R (£5,499) got a Fox 36 Rhythm fork, Fox Float DPS Performance shock, Mavic E-Deemax wheels, a mixed SRAM GX/SX Eagle drivetrain and a 750Wh battery with the Kiox 300 display. The Chaser 750 (£4,999) kept the 750Wh pack and Fox 36 fork but stepped down to a RockShox Deluxe Select R shock, MDK-HP1 rims on Formula hubs and a full SRAM SX Eagle drivetrain. The entry Chaser 29 (£4,799) used a RockShox 35 Silver TK fork, a smaller 625Wh battery and the simpler Bosch Purion display.All three ran SRAM G2 R four-piston brakes on 200mm rotors, Maxxis Rekon 29x2.6 tyres and ONOFF finishing kit, with claimed weights around 24.6-24.8kg. The R is the value pick if you want the Fox damper and Mavic wheels; the 29 trims cost by dropping fork, battery and display rather than gutting the build.This 2022 Chaser is discontinued. Mondraker has since moved the Chaser onto the newer Bosch Smart System platform (later Chaser R, 750 and X builds) with revised electronics, so this generation now lives on the used market.

EMTB Forums verdict

The 2022 Mondraker Chaser was the brand's most accessible full-power eMTB, an aluminium (6061 Stealth Evo) enduro machine running 160mm up front and 150mm out back on 29in wheels, driven by a Bosch Performance Line CX Gen 4 motor (85 Nm). Mondraker's Zero Suspension System and long, low Forward Geometry give it a properly aggressive stance for a bike aimed at newcomers, with a 65.5° head angle, 76° effective seat angle and reach stretching from 450mm on the S to 510mm on the XL.

Three builds shared the same frame and geometry. The flagship Chaser R (£5,499) got a Fox 36 Rhythm fork, Fox Float DPS Performance shock, Mavic E-Deemax wheels, a mixed SRAM GX/SX Eagle drivetrain and a 750Wh battery with the Kiox 300 display. The Chaser 750 (£4,999) kept the 750Wh pack and Fox 36 fork but stepped down to a RockShox Deluxe Select R shock, MDK-HP1 rims on Formula hubs and a full SRAM SX Eagle drivetrain. The entry Chaser 29 (£4,799) used a RockShox 35 Silver TK fork, a smaller 625Wh battery and the simpler Bosch Purion display.

All three ran SRAM G2 R four-piston brakes on 200mm rotors, Maxxis Rekon 29x2.6 tyres and ONOFF finishing kit, with claimed weights around 24.6-24.8kg. The R is the value pick if you want the Fox damper and Mavic wheels; the 29 trims cost by dropping fork, battery and display rather than gutting the build.

This 2022 Chaser is discontinued. Mondraker has since moved the Chaser onto the newer Bosch Smart System platform (later Chaser R, 750 and X builds) with revised electronics, so this generation now lives on the used market.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (65.5° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance

Rear-long with a planted front in L (FC:RC 1.78) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Bosch Performance Line CX Gen 4 and a steep 76° seat angle keep the weight planted over the front — a proper winch. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toBig-day all-rounders who climb a lot and still descend hard.

Strong up and composed down — a do-it-all, not a specialist.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Trail bikes (from 271 bikes in the database)

Weight24.6 kg1.6 kg heavier than average

Battery750 Whabout average capacity

Motor torque85 Nm13 Nm below average

Value for money50/100from £4,799 · most Bosch Performance Line CX Gen 4 bikes ~£4,800

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

💬 Forum discussion

Mondraker Crafty R & Chaser 29, Same bike?

7 replies · 8.8k views · last reply 66 months ago

Join the discussion →

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	450 mm	470 mm	490 mm	510 mm
Stack	622 mm	622 mm	640 mm	640 mm
Seattube	380 mm	420 mm	450 mm	490 mm
Chainstay	455 mm	455 mm	455 mm	445 mm
Headtube Angle	65.5°	65.5°	65.5°	65.5°
Seattube Angle (eff)	76°	76°	76°	76°
Wheelbase	1225 mm	1245 mm	1265 mm	1285 mm
Headtube	110 mm	110 mm	130 mm	130 mm
BB Height	336 mm	336 mm	336 mm	336 mm
Front Centre	770 mm*	790 mm*	810 mm*	840 mm*
FC:RC	1.69	1.74	1.78	1.89

Trims · 3

	Chaser 29 £4,799	Chaser 750 £4,999	Chaser R £5,499
Motor	Bosch Performance Line CX Gen 4 · 85 Nm · all trims
Battery	Bosch PowerTube 750 · 750 Wh · all trims
Travel F/R	160/150 mm · all trims
Frame	Aluminium (6061 Stealth Evo) · all trims
Fork	RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload	Fox 36 29 Float FIT GRIP EVOL Rythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload	Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload
Shock	RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings	RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings	Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Headset	ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º · all trims
Stem	ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore · all trims
Handlebar	ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore · all trims
Grips	ONOFF Diamond, 1lock-on, 135mm · all trims
Saddle	FIZIK Terra Aidon X5 145mm · all trims
Seatpost	ONOFF Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm · all trims
Brakes	Front: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. Rear: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads · all trims
Rear derailleur	SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1	SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1	SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Crank	Race Face Aeffect ebike, 165mm. Chainring: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD · all trims
Shifters	SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click · all trims
Cassette	SRAM PG-1210, 11-50T, 12s · all trims
Chain	SRAM SX Eagle, 12s, Powerlock · all trims
Drivetrain	SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1; Race Face Aeffect ebike, 165mm. Chainring: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD; SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click; SRAM PG-1210, 11-50T, 12s; SRAM SX Eagle, 12s, Powerlock	SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1; Race Face Aeffect ebike, 165mm. Chainring: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD; SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click; SRAM PG-1210, 11-50T, 12s; SRAM SX Eagle, 12s, Powerlock	SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1; Race Face Aeffect ebike, 165mm. Chainring: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD; SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click; SRAM PG-1210, 11-50T, 12s; SRAM SX Eagle, 12s, Powerlock
Wheels	MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes (Formula DC711 front hub, Formula EHL148 rear hub, Boost 15x110mm / 12x148mm)	MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes (Formula DC711 front hub, Formula EHL148 rear hub, Boost 15x110mm / 12x148mm)	Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Tyres	Front: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead. Rear: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead · all trims
Weight	24.8 kg	24.8 kg	24.6 kg
Price	£4,799	£4,999	£5,499
