Descending
53
A solid all-round descender (66.5° head angle, 133mm) — capable in the rough and steep without being an all-out bruiser.

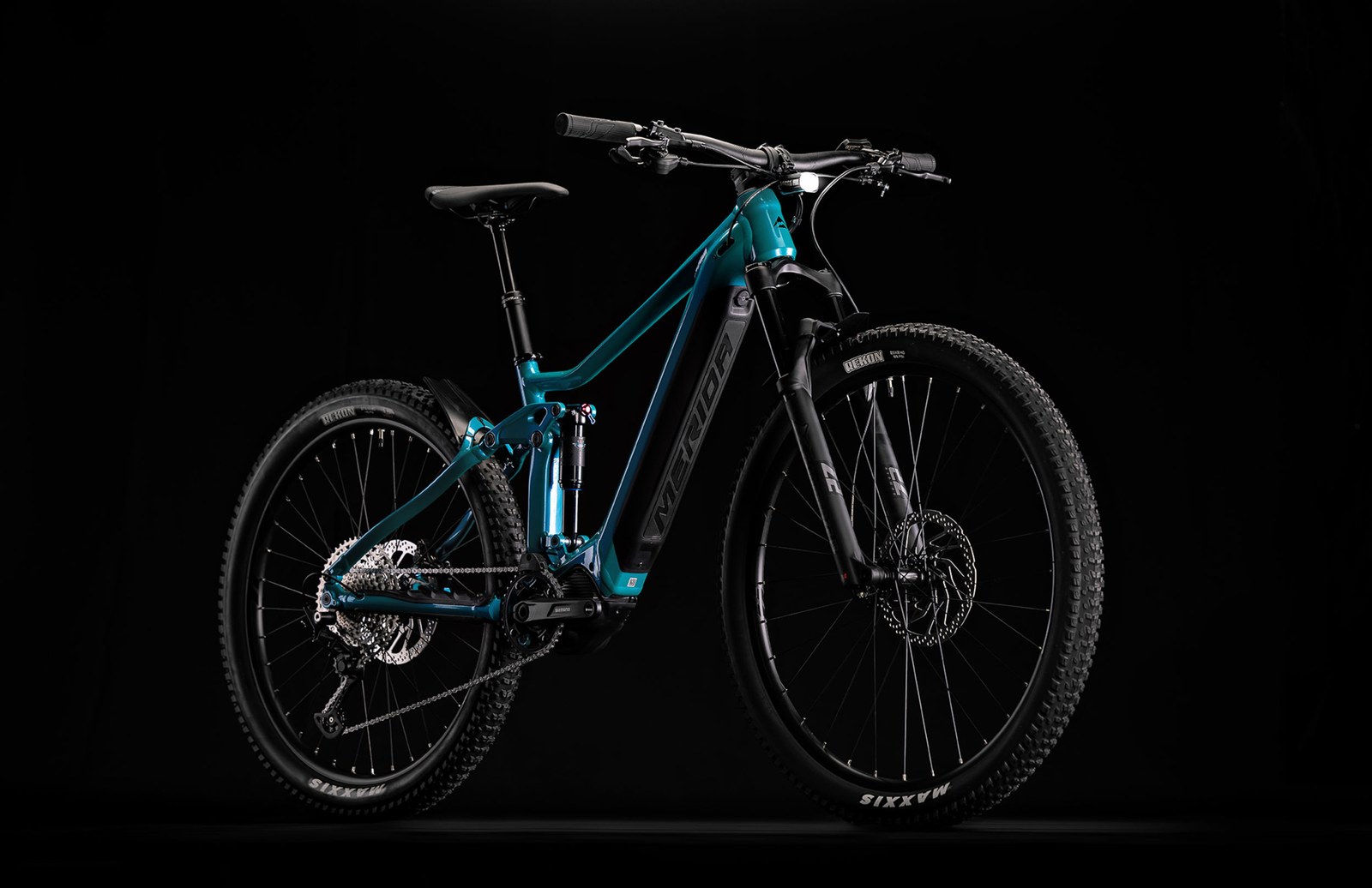

Merida
eONE-FORTY 2022
Discontinued✎Full Power · Cross-CountryLegacy · 0.4/10iFreshness 0.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Approachable mixed-wheel trail bike with dependable Shimano power
Motor
Shimano EP8 (DU-EP800) · 85Nm · 500W↗
Battery
Shimano BT-E8036 630Wh
Travel F/R
140/133mm
Wheels
MX (29F / 27.5R)✎
Frame
Carbon front, aluminium rear
Weight
—
Price
From £0
From £4,650
EMTB Forums verdict
The 2022 Merida eONE-FORTY is the trail-focused little sibling of the eONE-SIXTY, built around a mixed-wheel 29er front / 27.5in rear platform with 140 mm of front and 133 mm of rear travel. Every trim runs Shimano's EP8 (85 Nm) motor. The core range used a 630 Wh integrated pack (500, 700, 8000 and the base EQ), while the 750 Wh builds (475, 575, 775 and 675 EQ) carried a Simplo internal battery for extra range. It is now discontinued, superseded by the later 630 Wh/750 Wh eONE-FORTY generations.
Geometry is consistent across all five sizes (S to XXL): a 66.5 degree head angle, 76.5 degree seat angle, 439.5 mm chainstays and a 25 mm bottom bracket drop, with reach spanning 410 mm (S) to 489 mm (XXL). That is a moderate, trail-oriented stance rather than an aggressive enduro number, matching Merida's Category 4 (AM + Enduro) billing.
Spec walks up cleanly. The 475/500/575 sit on Marzocchi/SR Suntour suspension with Shimano Deore 10/11-speed and M4100 brakes; the 700/775 step up to a Fox Rhythm 34 fork, RockShox Deluxe Select+ shock, Shimano XT 12-speed and SLX brakes. The range-topping carbon-front 8000 pairs a Fox Rhythm 34 with a Fox Performance Float DPS shock and Shimano's LinkGlide (XT M8130) drivetrain plus Continental Trail King tyres. The EQ variants add mudguards, rack, lights and a kickstand for commuting duty.
UK RRPs at launch were confirmed for the 500 (GBP 4,650) and 700 (GBP 5,650); the remaining trims were not offered with a GBP price on Merida's UK archive. No owner ride data is included here.
Geometry read
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
Size
Playfulness
87
Short 439mm rear and a lighter build — easy to pop, manual and throw around.
Size balance
91
Rear-long with a planted front in L (FC:RC 1.74) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
Technical climbing
76
Shimano EP8 (DU-EP800) and a steep 76.5° seat angle keep the weight planted over the front — a proper winch. 500W of peak power and 85Nm of torque — a strong full-power motor.
Easy to throw around; happiest when you're active on the bike.
The numbers are well balanced for its category.
How it stacks up vs other Full Power · Cross-Country bikes (from 130 bikes in the database)
Battery630 Wh56 Wh below average
Motor torque85 Nmabout average torque
Value for money84/100from £4,650 · comparable bikes ~£6,030
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
💬 Forum discussion
Merida eOne-Forty incoming
6 replies · 4.9k views · last reply 64 months ago
Join the discussion →
“Picked up today. Absolutely love it. The motor is so quiet compared to the Bosch and the Brose. Feels a lot more natural. Just on local trails today, can’t wait to get this to my local trail centre.”
— Hugh74 · ♥ 5 · most-liked post
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 410 mm | 430 mm | 450 mm | 469 mm | 489 mm |
| Stack | 622 mm | 627 mm | 631 mm | 635 mm | 640 mm |
| Seattube | 405 mm | 415 mm | 430 mm | 450 mm | 470 mm |
| Chainstay | 439.5 mm | 439.5 mm | 439.5 mm | 439.5 mm | 439.5 mm |
| Headtube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| Seattube Angle (eff) | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
| Wheelbase | 1160 mm | 1182 mm | 1204 mm | 1226 mm | 1248 mm |
| Headtube | 110 mm | 115 mm | 120 mm | 125 mm | 130 mm |
| Standover | 729 mm | 730 mm | 727 mm | 733 mm | 747 mm |
| Front Centre | 720.5 mm* | 742.5 mm* | 764.5 mm* | 786.5 mm* | 808.5 mm* |
| FC:RC | 1.64 | 1.69 | 1.74 | 1.79 | 1.84 |
Trims · 8
500 £4,650 | 700 £5,650 | 475 £0 | 575 £0 | 675 EQ £0 | 775 £0 | 8000 £0 | EQ £0 | |
|---|---|---|---|---|---|---|---|---|
| Motor | Shimano EP8 (DU-EP800) · 85 Nm · all trims | |||||||
| Battery | Shimano BT-E8036 630Wh · 630 Wh · all trims | |||||||
| Travel F/R | 140/133 mm · all trims | |||||||
| Frame | Aluminium (carbon front triangle on 8000) | Aluminium (carbon front triangle on 8000) | Aluminium (carbon front triangle on 8000) | Aluminium (carbon front triangle on 8000) | Aluminium (carbon front triangle on 8000) | Aluminium (carbon front triangle on 8000) | eONE-FORTY CFA II (carbon front / aluminium rear) | Aluminium (carbon front triangle on 8000) |
| Fork | Marzocchi Z2 eMTB+ | FOX Rhythm 34 Float eMTB+ | SR Suntour XCR34 LOR DS | Marzocchi Z2 eMTB+ | SR Suntour ZERON 35-Boost LOR | FOX Rhythm 34 Float eMTB+ | FOX Rhythm 34 Float eMTB+ | SR Suntour ZERON 35-Boost LOR |
| Shock | SR Suntour EDGE | Rock Shox Deluxe Select+ | SR Suntour EDGE | SR Suntour EDGE | SR Suntour EDGE | Rock Shox Deluxe Select+ | FOX Performance Float DPS | SR Suntour EDGE |
| Headset | MERIDA 8152 | — | — | — | — | — | — | — |
| Stem | MERIDA EXPERT eTRII | MERIDA EXPERT eTRII | MERIDA EXPERT eTRII | MERIDA EXPERT eTRII | — | MERIDA EXPERT eTRII | MERIDA EXPERT eTRII | — |
| Handlebar | MERIDA EXPERT eTR | MERIDA EXPERT eTR | MERIDA EXPERT eTR | MERIDA EXPERT eTR | — | MERIDA EXPERT eTR | MERIDA EXPERT eTR | — |
| Grips | MERIDA EXPERT EC | MERIDA EXPERT EC | MERIDA EXPERT EC | MERIDA EXPERT EC | — | MERIDA EXPERT EC | MERIDA EXPERT EC | — |
| Saddle | MERIDA COMP SL | MERIDA EXPERT CC | MERIDA COMP SL | MERIDA COMP SL | — | MERIDA EXPERT CC | MERIDA EXPERT CC | MERIDA EXPERT CC |
| Seatpost | MERIDA COMP TR | MERIDA EXPERT TR | MERIDA COMP TR | MERIDA COMP TR | — | MERIDA EXPERT TR | MERIDA EXPERT TR | MERIDA COMP TR |
| Brakes | Shimano M4100 | Shimano SLX | Shimano M4100 | Shimano M4100 | Shimano M4100 | Shimano SLX | Shimano SLX | Shimano M4100 |
| Rear derailleur | Shimano Deore RDM5100 11 | Shimano XT RDM8100 Shadow+ 12 | Shimano Deore RDM5120 10 | Shimano Deore RDM5100 11 | Shimano Deore RDM5100 11 | Shimano XT RDM8100 Shadow+ 12 | Shimano XT RDM8130 Shadow+ 11 | Shimano Deore RDM5100 11 |
| Crank | Shimano FCEM600 · all trims | |||||||
| Shifters | Shimano SL-MT500-IL / Shimano Deore M5100 | Shimano SL-MT500-IL / Shimano Deore M6100 | Shimano SL-MT500-L clamp band / Shimano Deore M4100 | Shimano SL-MT500-IL / Shimano Deore M5100 | Shimano SL-MT500-IL / Shimano Deore M5100 | Shimano SL-MT500-IL / Shimano Deore M6100 | Shimano SL-MT500-IL / Shimano XT M8130 | Shimano SL-MT500-IL / Shimano Deore M5100 |
| Cassette | Shimano M5100 | Shimano M6100 | Shimano M4100 | Shimano M5100 | Shimano M5100 | Shimano M6100 | Shimano LG600 | — |
| Chain | KMC e11S EPT | KMC e12T EPT | KMC e10s | KMC e11S EPT | KMC e11S EPT | KMC e12T EPT | CNLG500 | KMC e11S EPT |
| Drivetrain | Shimano Deore RDM5100 11; Shimano FCEM600; Shimano SL-MT500-IL / Shimano Deore M5100; Shimano M5100; KMC e11S EPT | Shimano XT RDM8100 Shadow+ 12; Shimano FCEM600; Shimano SL-MT500-IL / Shimano Deore M6100; Shimano M6100; KMC e12T EPT | Shimano Deore RDM5120 10; Shimano FCEM600; Shimano SL-MT500-L clamp band / Shimano Deore M4100; Shimano M4100; KMC e10s | Shimano Deore RDM5100 11; Shimano FCEM600; Shimano SL-MT500-IL / Shimano Deore M5100; Shimano M5100; KMC e11S EPT | Shimano Deore RDM5100 11; Shimano FCEM600; Shimano SL-MT500-IL / Shimano Deore M5100; Shimano M5100; KMC e11S EPT | Shimano XT RDM8100 Shadow+ 12; Shimano FCEM600; Shimano SL-MT500-IL / Shimano Deore M6100; Shimano M6100; KMC e12T EPT | Shimano XT RDM8130 Shadow+ 11; Shimano FCEM600; Shimano SL-MT500-IL / Shimano XT M8130; Shimano LG600; CNLG500 | Shimano Deore RDM5100 11; Shimano FCEM600; Shimano SL-MT500-IL / Shimano Deore M5100; KMC e11S EPT |
| Wheels | MERIDA COMP TR | MERIDA EXPERT TR | MERIDA COMP TR | MERIDA COMP TR | MERIDA COMP TR | MERIDA EXPERT TR | MERIDA EXPERT TR | MERIDA COMP TR |
| Tyres | Maxxis Rekon (front) / Maxxis Rekon (rear) | Maxxis Rekon (front) / Maxxis Rekon (rear) | Maxxis Rekon (front) / Maxxis Rekon (rear) | Maxxis Rekon (front) / Maxxis Rekon (rear) | Maxxis Rekon (front) / Maxxis Rekon (rear) | Maxxis Rekon (front) / Maxxis Rekon (rear) | Continental Trail King (front) / Continental Trail King B+ (rear) | Maxxis Rekon (front) / Maxxis Rekon (rear) |
| Price | £4,650 | £5,650 | £0 | £0 | £0 | £0 | £0 | £0 |
