Megamo

Ryal 2026

Current✎Full Power · Enduro🔥 Hot · 10/10iFreshness 10/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Alloy enduro riding the punchy Avinox full-power motor

Motor

Avinox M2S · 150Nm · 1300W↗

Battery

Avinox FP800 · 800Wh

Travel F/R

160/160mm

Wheels

29F / 29R✎

Frame

Aluminium✎

Weight

—

Price

From €3,999

View the Megamo Ryal on Megamo’s site

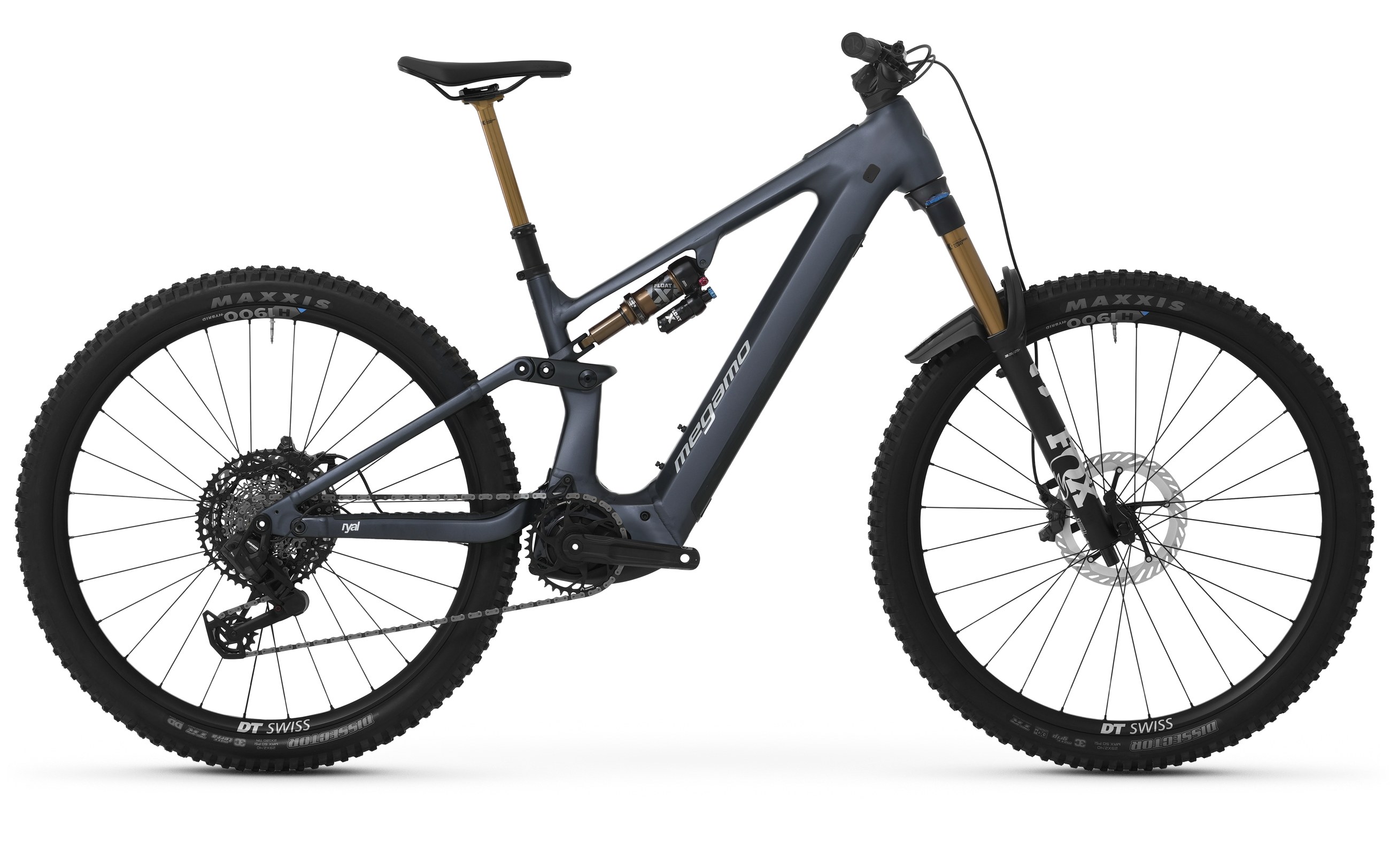

Megamo Ryal 2026

The Ryal is Megamo's bid to make Avinox power affordable. It is a 160/160 mm alloy enduro e-MTB built around a removable 800 Wh battery and the Megamo ASP four-bar linkage, and it sits below the carbon Reason in the range with a deliberately more relaxed geometry: shorter reach, higher stack and longer 455 mm-plus chainstays for everyday composure rather than outright race aggression. A flip-chip offers High and Low positions, swinging the head angle between 63.7 and 63.5 degrees and dropping the BB from 351 to 348 mm.Four alloy builds share the same frame, battery and travel. The 03 AXS is the halo bike with Fox 38 Factory and Float X Factory suspension, full SRAM S1000 Eagle AXS wireless shifting, DT Swiss H 1900 wheels and a Fox Transfer Factory dropper, all on the flagship Avinox M2S (150 Nm / 1500 W in Boost). The 05 keeps the M2S but steps to Fox 38 Performance, a Float Rhythm shock and mechanical SRAM 90 Eagle T-Type. The 08 and 10 move to the lighter Avinox M2 (125 Nm / 1100 W in Boost): the 08 pairs a RockShox Zeb with SRAM 70 Eagle and powerful Maven brakes, while the 10 is the EUR 3,999 entry point on a RockShox Psylo, Shimano XT mechanical shifting and a Deore cassette.Worth noting for buyers: the 05, 08 and 10 are listed with a fixed Megamo Ø31.6 mm seatpost rather than a dropper, so only the 03 AXS ships with a dropper as standard. Brake rotor sizing is 203 mm front on the 03 AXS, 05 and 10, and 200 mm on the SRAM Maven-equipped 08.This is a brand-new 2026 launch, so there is no long-term owner or reliability data yet. The headline value case is strong on paper, getting a removable-battery Avinox motor into an enduro chassis at prices well below most M2S rivals, but ride feel and durability remain unproven until bikes are in customers' hands.

EMTB Forums verdict

The Ryal is Megamo's bid to make Avinox power affordable. It is a 160/160 mm alloy enduro e-MTB built around a removable 800 Wh battery and the Megamo ASP four-bar linkage, and it sits below the carbon Reason in the range with a deliberately more relaxed geometry: shorter reach, higher stack and longer 455 mm-plus chainstays for everyday composure rather than outright race aggression. A flip-chip offers High and Low positions, swinging the head angle between 63.7 and 63.5 degrees and dropping the BB from 351 to 348 mm.

Four alloy builds share the same frame, battery and travel. The 03 AXS is the halo bike with Fox 38 Factory and Float X Factory suspension, full SRAM S1000 Eagle AXS wireless shifting, DT Swiss H 1900 wheels and a Fox Transfer Factory dropper, all on the flagship Avinox M2S (150 Nm / 1500 W in Boost). The 05 keeps the M2S but steps to Fox 38 Performance, a Float Rhythm shock and mechanical SRAM 90 Eagle T-Type. The 08 and 10 move to the lighter Avinox M2 (125 Nm / 1100 W in Boost): the 08 pairs a RockShox Zeb with SRAM 70 Eagle and powerful Maven brakes, while the 10 is the EUR 3,999 entry point on a RockShox Psylo, Shimano XT mechanical shifting and a Deore cassette.

Worth noting for buyers: the 05, 08 and 10 are listed with a fixed Megamo Ø31.6 mm seatpost rather than a dropper, so only the 03 AXS ships with a dropper as standard. Brake rotor sizing is 203 mm front on the 03 AXS, 05 and 10, and 200 mm on the SRAM Maven-equipped 08.

This is a brand-new 2026 launch, so there is no long-term owner or reliability data yet. The headline value case is strong on paper, getting a removable-battery Avinox motor into an enduro chassis at prices well below most M2S rivals, but ride feel and durability remain unproven until bikes are in customers' hands.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Setting

Descending

Slack 63.5° head angle, 160mm travel and a long 1317mm wheelbase — composed in the chunk, confident when it gets steep, and stable through fast corners.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Balanced front-to-rear in L (FC:RC 1.88) — weight sits evenly between the wheels.

Technical climbing

Avinox M2S and a steep 77° seat angle keep the weight planted over the front — a proper winch. 1300W of peak power and 150Nm of torque — among the most powerful e-bike motors made.

Best suited toFast, steep, rough tracks — and riders who want maximum composure.

Rewards commitment; it should feel calmer as the speed rises.

Watch out forNot a flickable, playful bike — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Enduro bikes (from 160 bikes in the database)

Battery800 Wh75 Wh above average

Motor torque150 Nmclass-leading torque

⚙️ Adjustable geometry: this frame has a high/low setting — low drops the BB and slackens the head angle for more descending stability; high lifts the BB and steepens slightly for clearance and a perkier, more playful feel.

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

Flip-chip position

geometry changes with the chip

	S	M	L	XL
Reach	444 mm	472 mm	502 mm	514 mm
Stack	615 mm	633 mm	651 mm	662 mm
Seattube	400 mm	420 mm	455 mm	460 mm
Chainstay	449 mm	453 mm	457 mm	457 mm
Headtube Angle	63.7°	63.7°	63.7°	63.7°
Seattube Angle (eff)	77.2°	77.2°	77.2°	77.2°
Wheelbase	1232 mm	1273 mm	1316 mm	1333 mm
Headtube	100 mm	120 mm	140 mm	152 mm
BB Height	351 mm	351 mm	351 mm	351 mm
Front Centre	783 mm*	820 mm*	859 mm*	876 mm*
FC:RC	1.74	1.81	1.88	1.92

Trims · 4

	03 AXS €6,999	05 €5,499	08 €4,499	10 €3,999
Motor	Avinox M2S · 150 Nm	Avinox M2S · 150 Nm	Avinox M2 · 150 Nm	Avinox M2 · 150 Nm
Battery	Avinox FP800 · 800 Wh · all trims
Travel F/R	160/160 mm · all trims
Frame	Aluminium · all trims
Fork	Fox 38 Float Factory E-Bike Optimized, 160mm Travel, Grip X2	Fox 38 Float Performance E-Bike Optimized, 160mm Travel, Grip	Rock Shox Zeb Base, 160 mm Travel	Rock Shox Psylo Silver RC, 160 mm Travel
Shock	Fox Float X Factory, 210 x 55 mm	Fox Float Rhythm, Evol LV, 210x55mm, 2 Position	Rock Shox Deluxe Select+, 210 x 55 mm	Rock Shox Deluxe Select+, 210 x 55 mm
Headset	Acros blocklock 135 degrees · all trims
Stem	Satori New Ursa, 35 x 50 mm	Satori New Ursa, 35 x 50 mm	Megamo, 35 x 50 mm	Megamo, 35 x 50 mm
Handlebar	Carbon Race Face ERA 35x800, Rise 20mm	Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6 degrees Back Sweep	Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6 degrees Back Sweep	Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6 degrees Back Sweep
Saddle	Fizik Terra Aidon X5, 145 mm	Fizik Terra Aidon X5, 145 mm	Selle Royal SRX Open	Selle Royal SRX Open
Seatpost	Fox Transfer Factory Ø31.6 mm, S size 150 mm Drop / M size 180 mm Drop / L and XL size 210 mm Drop	Megamo Ø31.6 mm	Megamo Ø31.6 mm	Megamo Ø31.6 mm
Brakes	Shimano XT M8220, Hydraulic Disc 4-Piston, RT-CL800 203 mm (front rotor 203 mm)	Shimano XT M8220, Hydraulic Disc 4-Piston, SM-RT86 203 mm (front rotor 203 mm)	Sram Maven Base, G2 Cleansweep 200 mm (front rotor 200 mm)	Shimano MT520, SM-RT66 203 mm (front rotor 203 mm)
Rear derailleur	Sram S1000 EAGLE AXS T-TYPE, 12-Speed	Sram 90 EAGLE T-TYPE, 12-Speed	Sram 70 EAGLE T-TYPE, 12-Speed	Shimano XT M8100, Shadow Plus 12-Speed
Crank	Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm	Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm	Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm	FSA Avinox Chainring 34T 12-Speed, Crankset 160 mm
Shifters	Sram AXS POD	Sram 90 EAGLE T-TYPE	Sram 70 EAGLE T-TYPE	—
Cassette	Sram XS 1270 T-TYPE, 10-52T	Sram XS 1270 T-TYPE, 10-52T	Sram XS 1270 T-TYPE, 10-52T	Shimano Deore M6100, 10-51T
Drivetrain	Sram S1000 EAGLE AXS T-TYPE, 12-Speed; Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm; Sram AXS POD; Sram XS 1270 T-TYPE, 10-52T	Sram 90 EAGLE T-TYPE, 12-Speed; Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm; Sram 90 EAGLE T-TYPE; Sram XS 1270 T-TYPE, 10-52T	Sram 70 EAGLE T-TYPE, 12-Speed; Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm; Sram 70 EAGLE T-TYPE; Sram XS 1270 T-TYPE, 10-52T	Shimano XT M8100, Shadow Plus 12-Speed; FSA Avinox Chainring 34T 12-Speed, Crankset 160 mm; Shimano Deore M6100, 10-51T
Wheels	DT Swiss H 1900 SPLINE, 30mm Tubeless ready Aluminium rim, 370 Ratchet LN 18	Megamo 29 SL 30 ASY, Aluminium Rim, 15x110/12x148 mm	Megamo 29 SL 30 ASY, Aluminium Rim, 15x110/12x148 mm	Megamo 29 SL 30 ASY, Aluminium Rim, 15x110/12x148 mm
Tyres	Maxxis New Dissector 29.4 EXO+ 3C MaxxGrip (front) / Maxxis New Dissector 29.4 DD 3C MaxxTerra (rear)	Maxxis New Dissector 29.4 EXO+ 3C MaxxGrip (front) / Maxxis New Dissector 29.4 DD 3C MaxxTerra (rear)	Maxxis Assegai 29x2.5 EXO+ 3C MaxxTerra (front) / Maxxis Minion DHR II 29x2.4 EXO+ 3C MaxxTerra (rear)	Maxxis Assegai 29x2.5 EXO+ 3C MaxxTerra (front) / Maxxis Minion DHR II 29x2.4 EXO+ 3C MaxxTerra (rear)
Price	€6,999	€5,499	€4,499	€3,999
