Flame AL 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

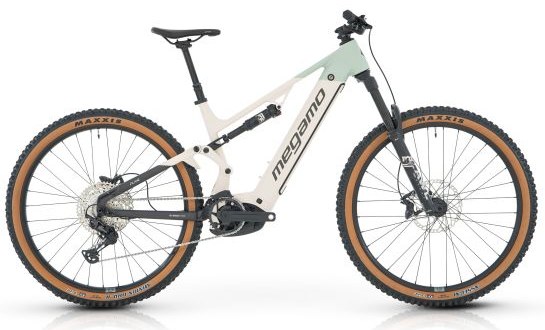

The Megamo Flame AL is the aluminium sibling to the carbon Flame CRB, a full-power 160mm enduro eMTB built around the Bosch Performance Line CX Gen 5 motor (100Nm, 750W peak) and a removable 800Wh PowerTube battery that accepts an optional 250Wh PowerMore extender for a 1,050Wh total. The frame is ASTM Category 5 rated, mullet compatible, and uses a Horst Link four-bar layout with a horizontal shock.
Geometry is consistent across the S to L range, with a slack 65-degree head angle, a 76-degree effective seat angle and a 346mm BB height. Reach runs from 435mm on the S to 484mm on the L, and chainstays stay at 460mm across all sizes, giving a long, stable footprint aimed squarely at steep descending rather than agility.
The four builds share frame, motor and 800Wh battery (the 20 drops to a 600Wh pack), so the differences are suspension and drivetrain. The 03 is the flagship with Fox 38 Factory fork, Fox Float X shock and a full Shimano XT 12-speed groupset. The 05 steps to a Fox 36 AWL fork and Deore/XT mix, the 10 swaps to RockShox Psylo, and the 20 is the value entry on SR Suntour suspension and a 10-speed Shimano CUES drivetrain.
Note that Megamo publishes pricing in euros only, so the figures recorded here are the EUR RRP rather than a UK GBP price.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | |
|---|---|---|---|
| Reach | 435 mm | 453 mm | 484 mm |
| Stack | 620 mm | 629 mm | 647 mm |
| Seattube | 410 mm | 435 mm | 470 mm |
| Chainstay | 460 mm | 460 mm | 460 mm |
| Headtube Angle | 65° | 65° | 65° |
| Seattube Angle (eff) | 76° | 76° | 76° |
| Wheelbase | 1219 mm | 1241 mm | 1280 mm |
| Headtube | 110 mm | 120 mm | 140 mm |
| BB Height | 346 mm | 346 mm | 346 mm |
| Standover | 783 mm | 783 mm | 783 mm |
| Front Centre | 759 mm* | 781 mm* | 820 mm* |
Trims · 4
03 | 05 | 10 | 20 | |
|---|---|---|---|---|
| Motor | Bosch Performance Line CX Gen 5 · 100 Nm · all trims | |||
| Battery | Bosch PowerTube 800 · 800 Wh · all trims | |||
| Travel F/R | 150/160 mm · all trims | |||
| Frame | Aluminium · all trims | |||
| Fork | FOX 38 Kashima, FLOAT, 29in, 160mm, Grip X2, HSC, LSC, HSR, LSR, 15QRx110, 1.5 T, 68HT, 44mm Rake | Fox 36 FLOAT AWL HD Sport 29, 150mm, 15QRx110 Boost, 1.5T, 68HT, 44mm rake | Rock Shox 35 Psylo Silver RC, 150mm Travel, 15x110mm BOOST, 1.8" Tapered, 44mm offset | SUNTOUR Zeron 36X, 150mm Travel, Boost, Air |
| Shock | Fox Float X, Factory-Series, Kashima, 2pos-Adj, Evol LV, 230x60 | Fox Float Rhythm, Evol LV, 230x57,5mm | Rock Shox Deluxe Select R, 230x57.5mm, LNL1 SS9 | SUNTOUR RS25 Edge Evo 2CR, 230x57,5mm, Metric, LVN |
| Headset | Acros AZX-589 ZS56 blocklock 150 deg · all trims | |||
| Stem | Race Face Aeffect R / S 35 x 50 mm / M 35 x 50 mm / L 35 x 70 mm | Megamo 3D Forged Alloy, +/-7 deg Rise, S 60mm / M 60mm / L 70mm | Megamo 3D Forged Alloy, +/-7 deg Rise, S 60mm / M 60mm / L 70mm | Megamo 3D Forged Alloy, +/-7 deg Rise, S 60mm / M 60mm / L 70mm |
| Handlebar | Race Face Turbine R, 35 x 800 x 20 mm | Megamo Alloy Butted 31,8 x 780 mm, 12 mm Rise, 6 deg Back Sweep | Megamo Alloy Butted 31,8 x 780 mm, 12 mm Rise, 6 deg Back Sweep | Megamo Alloy Butted 31,8 x 780 mm, 12 mm Rise, 6 deg Back Sweep |
| Saddle | Selle San Marco Ground Short Open-fit Titanium | Fizik Terra Aidon X5 | Fizik Terra Aidon X5 | Fizik Terra Aidon X5 |
| Seatpost | Fox Transfer Kashima 31,6mm dropper, remote / S 125mm / M 150mm / L 175mm drop | Megamo 31,6mm dropper, remote / S 125mm / M 150mm / L 170mm drop | Megamo 31,6mm dropper, remote / S 125mm / M 150mm / L 170mm drop | Megamo 31,6mm dropper, remote / S 125mm / M 150mm / L 170mm drop |
| Brakes | Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm | Shimano MT520 hydraulic disc 4-Piston, 203mm | Shimano MT520 hydraulic disc 4-Piston, 203mm | Shimano MT420 hydraulic disc 4-Piston, 203mm |
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed | Shimano CUES TD-U6000-GS, ShadowPlus 10-Speed |
| Crank | FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm · all trims | |||
| Shifters | Shimano XT M8100, 12-Speed | Shimano Deore 6100 Speed Rapidfire Plus 12-Speed | Shimano Deore 6100 Speed Rapidfire Plus 12-Speed | Shimano CUES 6000 Speed Rapidfire Plus 10-Speed |
| Cassette | Shimano XT M8100 10-51T | Shimano Deore 6100 10-51T | Shimano Deore 6100 10-51T | Shimano CUES 300 11-48T |
| Drivetrain | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed; FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm; Shimano XT M8100, 12-Speed; Shimano XT M8100 10-51T | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed; FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm; Shimano Deore 6100 Speed Rapidfire Plus 12-Speed; Shimano Deore 6100 10-51T | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed; FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm; Shimano Deore 6100 Speed Rapidfire Plus 12-Speed; Shimano Deore 6100 10-51T | Shimano CUES TD-U6000-GS, ShadowPlus 10-Speed; FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm; Shimano CUES 6000 Speed Rapidfire Plus 10-Speed; Shimano CUES 300 11-48T |
| Wheels | DT Swiss M 1900 SP, 30mm Tubeless ready Aluminium rim | Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim | Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim | Megamo 29 SL 30 ASY - HG, 30 mm Tubeless ready Aluminium rim |
| Tyres | Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II | Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II | Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II | MAXXIS 29 x 2.6 Rekon |
