Megamo

Crave CRB 2023

Discontinued✎Full Power · EnduroLegacy · 1/10iFreshness 1/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Shimano EP801 · 85Nm · 600W↗

Battery

Integrated 762Wh

Travel F/R

160/160mm

Wheels

29F / 29R✎

Frame

Full carbon✎

Weight

—

Price

—

View the Megamo Crave CRB on Megamo’s site

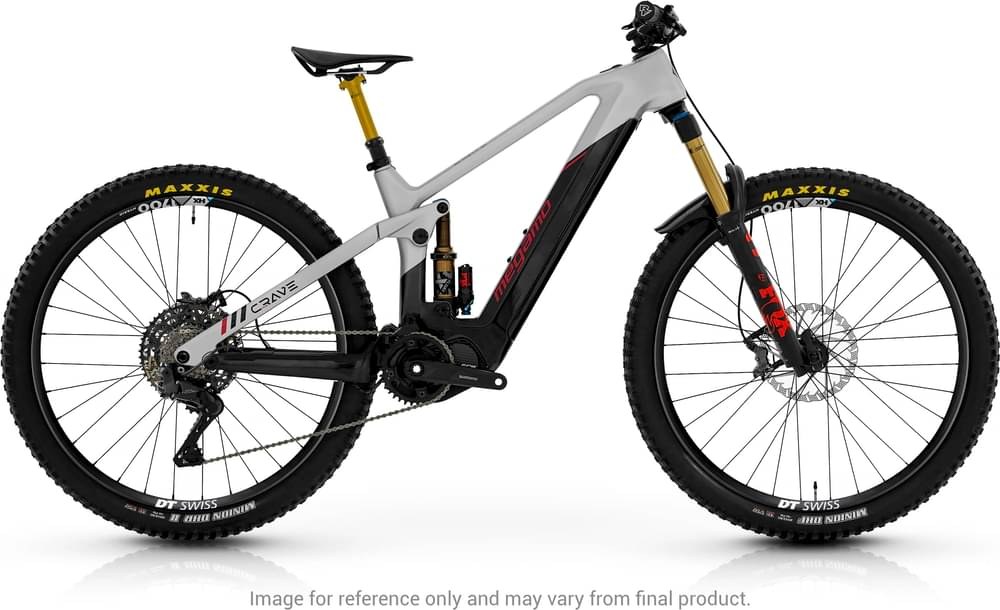

Megamo Crave CRB 2023

The Megamo Crave CRB is the carbon-framed full-suspension all-mountain/enduro eMTB from Spanish brand Megamo, built on its Full Carbon FSC Technology frame with a carbon swingarm. For 2023 it ran a Shimano EP801 motor (85 Nm) fed by an integrated 762 Wh battery, with 160 mm of travel front and rear on 29in wheels. Geometry is shared across the whole range: a 65 degree head angle, 76 degree effective seat angle and 455 mm chainstays in every size (S/M/L), with reach growing 435 / 459 / 489 mm.The 2023 line comprised five trims on that common frame, motor and battery, differing only on kit. The CRB 05 (5,549 EUR) used a 150 mm Fox 36 Rhythm fork, Fox Float DPS shock, mixed Shimano XT/Deore drivetrain and MT520 brakes. The CRB 03 (6,749 EUR) and CRB 02 (6,099 EUR) stepped up to a 160 mm Fox 38 Factory fork and Fox Float X shock with XT four-piston brakes, the 02 adding Shimano CUES AUTO Di2 electronic shifting and DT Swiss wheels. The flagship ALL-MTN (9,299 EUR) and ENDURO (9,649 EUR) paired the Fox 38 Factory with SRAM XX Eagle AXS T-Type wireless shifting and DT Swiss 1501 wheels, the ENDURO upgrading to a Fox Float X2 shock. All five roll on 29 x 2.6 Maxxis Minion DHF/DHR II tyres.This is a discontinued 2023 model: the Crave CRB has been dropped from Megamo's current lineup and its product URL on megamo.com now returns a 404. Note that the CRB (carbon) badge distinguishes it from the alloy Crave AL, a separate frame. Pricing is given in euros from the Spanish manufacturer's per-trim spec sheets; no UK retailer RRP was found, so price_gbp is null (no FX conversion).

EMTB Forums verdict

The Megamo Crave CRB is the carbon-framed full-suspension all-mountain/enduro eMTB from Spanish brand Megamo, built on its Full Carbon FSC Technology frame with a carbon swingarm. For 2023 it ran a Shimano EP801 motor (85 Nm) fed by an integrated 762 Wh battery, with 160 mm of travel front and rear on 29in wheels. Geometry is shared across the whole range: a 65 degree head angle, 76 degree effective seat angle and 455 mm chainstays in every size (S/M/L), with reach growing 435 / 459 / 489 mm.

The 2023 line comprised five trims on that common frame, motor and battery, differing only on kit. The CRB 05 (5,549 EUR) used a 150 mm Fox 36 Rhythm fork, Fox Float DPS shock, mixed Shimano XT/Deore drivetrain and MT520 brakes. The CRB 03 (6,749 EUR) and CRB 02 (6,099 EUR) stepped up to a 160 mm Fox 38 Factory fork and Fox Float X shock with XT four-piston brakes, the 02 adding Shimano CUES AUTO Di2 electronic shifting and DT Swiss wheels. The flagship ALL-MTN (9,299 EUR) and ENDURO (9,649 EUR) paired the Fox 38 Factory with SRAM XX Eagle AXS T-Type wireless shifting and DT Swiss 1501 wheels, the ENDURO upgrading to a Fox Float X2 shock. All five roll on 29 x 2.6 Maxxis Minion DHF/DHR II tyres.

This is a discontinued 2023 model: the Crave CRB has been dropped from Megamo's current lineup and its product URL on megamo.com now returns a 404. Note that the CRB (carbon) badge distinguishes it from the alloy Crave AL, a separate frame. Pricing is given in euros from the Spanish manufacturer's per-trim spec sheets; no UK retailer RRP was found, so price_gbp is null (no FX conversion).

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (65° head angle, 160mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Balanced front-to-rear in L (FC:RC 1.82) — weight sits evenly between the wheels.

Technical climbing

Climbs well — a 76° seat keeps the front planted. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNot a flickable, playful bike — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Enduro bikes (from 137 bikes in the database)

Battery762 Whabout average capacity

Motor torque85 Nm18 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L
Reach	435 mm	459 mm	489 mm
Stack	615 mm	625 mm	647 mm
Seattube	400 mm	420 mm	480 mm
Chainstay	455 mm	455 mm	455 mm
Headtube Angle	65°	65°	65°
Seattube Angle (eff)	76°	76°	76°
Wheelbase	1215 mm	1244 mm	1284 mm
Headtube	100 mm	110 mm	135 mm
Front Centre	760 mm*	789 mm*	829 mm*
FC:RC	1.67	1.73	1.82

Trims · 5

	CRB 02	CRB 03	CRB 05	CRB ALL-MTN	CRB ENDURO
Motor	Shimano EP801 · 85 Nm · all trims
Battery	Integrated 762Wh · 762 Wh · all trims
Travel F/R	160/160 mm · all trims
Frame	Carbon · all trims
Fork	Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake	Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake	FOX 36 RHYTHM E-Bike, FLOAT 29, 150mm, Grip, Sweep-Adj, 15QRx110 Boost, 44mm Rake	Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake	Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake
Shock	Fox FLOAT X, Factory Series, Kashima 2pos-adj, Trunnion, Evol LV, 205x65	Fox FLOAT X, Factory Series, Kashima 2pos-adj, Trunnion, Evol LV, 205x65	FOX Float DPS, Performance Series, 3pos, Trunnion, Evol LV, 205x65	Fox FLOAT X, Factory Series, Kashima 2pos-adj, Trunnion, Evol LV, 205x65	Fox Float X2, Factory Series, Kashima 2pos-adj, Trunnion, Evol LV, 205x65
Headset	Integrated, Full Internal Cable Routing · all trims
Stem	Race Face Aeffect	3D Forged Alloy, Ext.: 60-70-90 mm, Rise: +/-7deg	3D Forged Alloy, Ext.: 60-70-90 mm, Rise: +/-7deg	Race Face Aeffect	Race Face Aeffect
Handlebar	Race Face Turbine R	Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6deg	Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6deg	Race Face Turbine R	Race Face Turbine R
Saddle	Selle San Marco GrouND Short Open-fit Titanium	Selle Italia Model X	Selle Italia Model X	Selle San Marco GrouND Short Open-fit Titanium	Selle San Marco GrouND Short Open-fit Titanium
Seatpost	Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment	Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment	Megamo 31,6mm telescopic seat post, remote adjustment	Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment	Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment
Brakes	Shimano XT M8020 Hydraulic disc 4-Piston, 203mm	Shimano XT M8020 Hydraulic disc 4-Piston, 203mm	Shimano MT520 hydraulic disc 4-Piston, 203mm	Shimano XT M8020 Hydraulic disc 4-Piston, 203mm	Shimano XT M8020 Hydraulic disc 4-Piston, 203mm
Rear derailleur	Shimano CUES AUTO Di2 11s	Shimano XT 12s	Shimano XT 12s	SRAM XX Eagle AXS T-Type 12s	SRAM XX Eagle AXS T-Type 12s
Crank	Shimano 36t	Shimano 36t	Shimano 36t	SRAM E-Bike 36t	SRAM E-Bike 36t
Shifters	Shimano CUES AUTO Di2 11s	Shimano Deore 12s	Shimano Deore 12s	SRAM XX Eagle AXS 12s	SRAM XX Eagle AXS 12s
Cassette	Shimano CUES AUTO Di2 11s	Shimano Deore 12s 10-51t	Shimano Deore 12s 10-51t	SRAM XX Eagle AXS T-Type 10-52 12s	SRAM XX Eagle AXS T-Type 10-52 12s
Drivetrain	Shimano CUES AUTO Di2 11s; Shimano 36t; Shimano CUES AUTO Di2 11s; Shimano CUES AUTO Di2 11s	Shimano XT 12s; Shimano 36t; Shimano Deore 12s; Shimano Deore 12s 10-51t	Shimano XT 12s; Shimano 36t; Shimano Deore 12s; Shimano Deore 12s 10-51t	SRAM XX Eagle AXS T-Type 12s; SRAM E-Bike 36t; SRAM XX Eagle AXS 12s; SRAM XX Eagle AXS T-Type 10-52 12s	SRAM XX Eagle AXS T-Type 12s; SRAM E-Bike 36t; SRAM XX Eagle AXS 12s; SRAM XX Eagle AXS T-Type 10-52 12s
Wheels	DT Swiss 1700 HX 30 - Mspline	29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready	29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready	DT Swiss 1501 HXC 30	DT Swiss 1501 HXC 30 - XD
Tyres	Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Enduro S HardWALL · all trims
