Megamo

Crave AL 2024

Discontinued✎Full Power · TrailLegacy · 1.7/10iFreshness 1.7/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Shimano EP801 · 85Nm · 600W↗

Battery

Integrated 762Wh

Travel F/R

160/150mm

Wheels

29F / 29R✎

Frame

Aluminium✎

Weight

—

Price

—

View the Megamo Crave AL on Megamo’s site

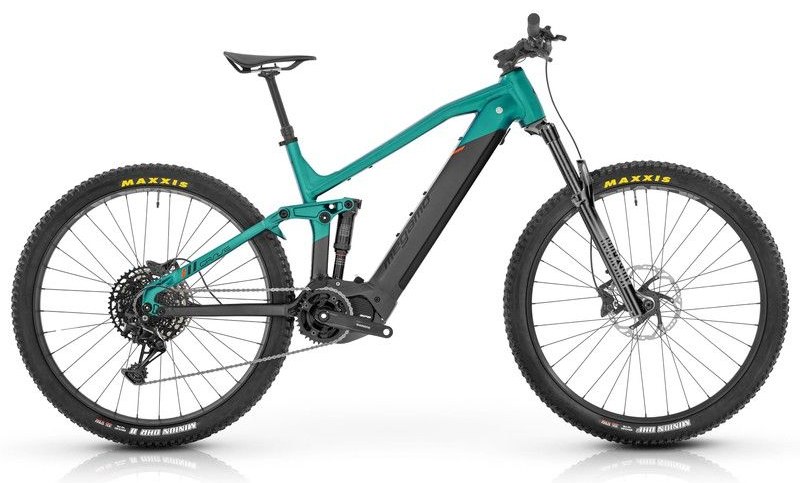

Megamo Crave AL 2024

The Megamo Crave AL 2024 is the aluminium-framed version of the Spanish brand's trail and all-mountain eMTB. The shared chassis is built around a Horst Link 4-bar layout with 160 mm of frame travel up front (150 mm at the rear) and a fully integrated battery, running 29in wheels with generous 2.6in Maxxis Minion DHF/DHR II rubber. Geometry is consistent across the range, with a 64.3-degree head angle, 73-degree seat angle and 451 mm chainstays in every size.Most trims use a Shimano EP801 motor (85 Nm) paired with a sizeable 762 Wh battery, so range was never the limiting factor. The line spans a wide spread: the AL 10 at 4,999 EUR runs a RockShox 35 Silver fork and SRAM SX Eagle, the AL 05 steps up to Fox 36 Rhythm and Shimano Deore, the AL 03 adds a Fox 38 Factory and Shimano XT, and the range-topping Gravity at 7,149 EUR pairs the Fox 38 with a coil Fox Float DHX2 shock and Race Face cockpit. The cheaper AL 40 is a different proposition, dropping to a Shimano EP6 motor, a 630 Wh battery, a 130 mm Suntour fork and a 10-speed Shimano CUES build.Megamo has limited UK retail presence, so pricing here is quoted in euros from the manufacturer's own catalogue. This is a discontinued 2024 model, superseded by the 2025 Crave AL, which simplified the line to the AL 40 and AL 10 trims.

EMTB Forums verdict

The Megamo Crave AL 2024 is the aluminium-framed version of the Spanish brand's trail and all-mountain eMTB. The shared chassis is built around a Horst Link 4-bar layout with 160 mm of frame travel up front (150 mm at the rear) and a fully integrated battery, running 29in wheels with generous 2.6in Maxxis Minion DHF/DHR II rubber. Geometry is consistent across the range, with a 64.3-degree head angle, 73-degree seat angle and 451 mm chainstays in every size.

Most trims use a Shimano EP801 motor (85 Nm) paired with a sizeable 762 Wh battery, so range was never the limiting factor. The line spans a wide spread: the AL 10 at 4,999 EUR runs a RockShox 35 Silver fork and SRAM SX Eagle, the AL 05 steps up to Fox 36 Rhythm and Shimano Deore, the AL 03 adds a Fox 38 Factory and Shimano XT, and the range-topping Gravity at 7,149 EUR pairs the Fox 38 with a coil Fox Float DHX2 shock and Race Face cockpit. The cheaper AL 40 is a different proposition, dropping to a Shimano EP6 motor, a 630 Wh battery, a 130 mm Suntour fork and a 10-speed Shimano CUES build.

Megamo has limited UK retail presence, so pricing here is quoted in euros from the manufacturer's own catalogue. This is a discontinued 2024 model, superseded by the 2025 Crave AL, which simplified the line to the AL 40 and AL 10 trims.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (64.3° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Balanced front-to-rear in L (FC:RC 1.85) — weight sits evenly between the wheels.

Technical climbing

Climbs well — a 73° seat keeps the front planted. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNot a flickable, playful bike — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Trail bikes (from 223 bikes in the database)

Battery762 Wh55 Wh above average

Motor torque85 Nm13 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L
Reach	455 mm	470 mm	490 mm
Stack	627 mm	632 mm	636 mm
Seattube	410 mm	460 mm	510 mm
Chainstay	451 mm	451 mm	451 mm
Headtube Angle	64.3°	64.3°	64.3°
Seattube Angle (eff)	73°	73°	73°
Wheelbase	1246 mm	1263 mm	1285 mm
Headtube	135 mm	140 mm	145 mm
BB Height	361 mm	361 mm	361 mm
Front Centre	795 mm*	812 mm*	834 mm*
FC:RC	1.76	1.80	1.85

Trims · 5

	AL 03	AL 05	AL 10	AL 40	Gravity
Motor	Shimano EP801 · 85 Nm	Shimano EP801 · 85 Nm	Shimano EP801 · 85 Nm	Shimano EP6 (DU-EP600) · 85 Nm	Shimano EP801 · 85 Nm
Battery	Integrated 762Wh · 762 Wh · all trims
Travel F/R	160/150 mm · all trims
Frame	Aluminium (Triple Butted alloy, integrated battery) · all trims
Fork	Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake	Fox 36 Rhythm E-Bike, FLOAT 29, 150mm, Grip, Sweep-Adj, 15QRx110 Boost, 44mm Rake	Rock Shox 35 Silver R 29' Boost 15x110mm 160mm E-MTB Tapered Steerer	Suntour XCR 34 E-Bike+, Travel 130mm, Boost 15x110, Mini-Fender Included	Fox 38 Factory e-bike+, Kashima 29, 160mm, grip 2, 15QRx110, 44mm rake
Shock	Fox FLOAT X, Factory Series, Kashima 2pos-adj, Trunnion, Evol LV, 205x65	FOX Float DPS, Performance Series, 3pos, Trunnion, Evol LV, 205x65	Rock Shox Deluxe Select R 205x65 Debonair Tune Trunnion	Rock Shox Deluxe Select R 205x65 Debonair Tune Trunnion	FOX Float DHX2, Factory Series, Kashima 3pos-Adj, Trunnion
Headset	FSA Orbit 1,5 E ZS 1-1/8" 1,5" · all trims
Stem	3D Forged Alloy, Ext.: 60-70-90 mm, Rise: +/-7deg	3D Forged Alloy, Ext.: 60-70-90 mm, Rise: +/-7deg	3D Forged Alloy, Ext.: 60-70-90 mm, Rise: +/-7deg	3D Forged Alloy, Ext.: 60-70-90 mm, Rise: +/-7deg	Race Face Aeffect
Handlebar	Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6deg	Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6deg	Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6deg	Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6deg	Race Face Turbine R
Saddle	Selle Italia Model X Superflow	Selle Italia Model X	Selle Italia Model X	Selle Italia Model X	Selle San Marco GrouND Short Open-fit Titanium
Seatpost	FOX Transfer, Factory series (Kashima), 30.9mm, Internal Routing, Remote	Megamo 30.9mm telescopic seat post, remote adjustment	Megamo 30.9mm telescopic seat post, remote adjustment	Megamo 30.9mm telescopic seat post, remote adjustment	FOX Transfer, Factory series (Kashima), 30.9mm, Internal Routing, Remote
Brakes	Shimano XT M8020 Hydraulic disc 4-Piston (203mm)	Shimano MT520 hydraulic disc 4-Piston (203mm)	Shimano MT420 hydraulic disc 4-Piston (203mm)	Shimano MT420 hydraulic disc 4-Piston (203mm)	Shimano XT M8020 Hydraulic disc 4-Piston (203mm)
Rear derailleur	Shimano XT 12s	Shimano Deore 12s	Sram SX Eagle 12s	Shimano CUES 10s	Shimano XT 12s
Crank	Shimano 36t · all trims
Shifters	Shimano Deore 12s	Shimano Deore 12s	Sram SX Eagle 12s	Shimano CUES 10s	Shimano Deore 12s
Cassette	Shimano Deore 12s 10-51t	Shimano Deore 12s 10-51t	Sram SX Eagle 12s	Shimano CUES 10s	Shimano Deore 12s 10-51t
Drivetrain	Shimano XT 12s; Shimano 36t; Shimano Deore 12s; Shimano Deore 12s 10-51t	Shimano Deore 12s; Shimano 36t; Shimano Deore 12s; Shimano Deore 12s 10-51t	Sram SX Eagle 12s; Shimano 36t; Sram SX Eagle 12s; Sram SX Eagle 12s	Shimano CUES 10s; Shimano 36t; Shimano CUES 10s; Shimano CUES 10s	Shimano XT 12s; Shimano 36t; Shimano Deore 12s; Shimano Deore 12s 10-51t
Wheels	29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready · all trims
Tyres	Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Enduro S HardWALL	Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Enduro S HardWALL	Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Enduro S HardWALL	Maxxis Rekon 29 x 2,60 EXO Foldable	Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Enduro S HardWALL
