Quercus 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Bosch CX Gen 5 carbon all-mountain eMTB

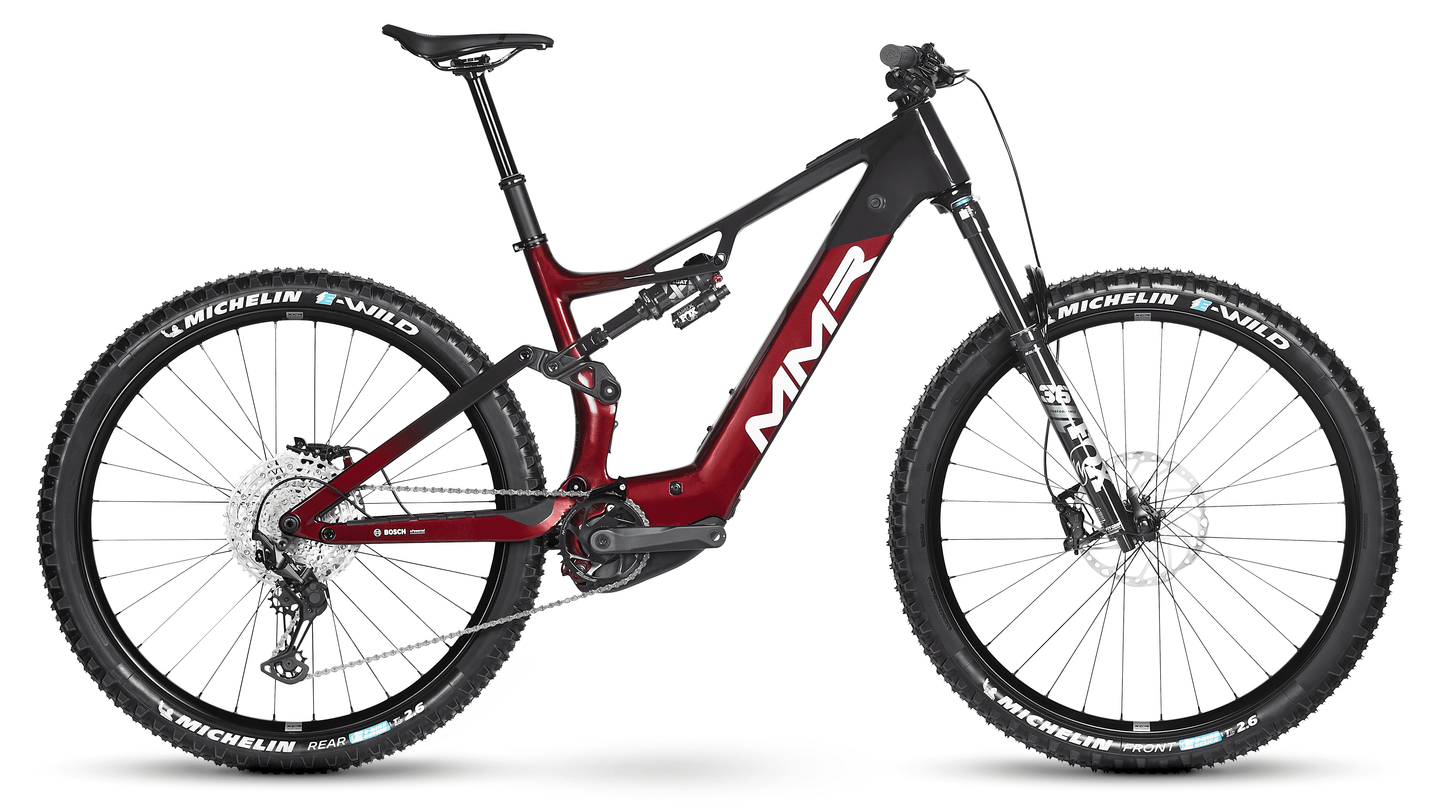

The MMR Quercus 2025 is a Spanish-built carbon all-mountain eMTB from MMR (Madrid-based mountain bike specialist). Headline numbers: 160mm fork, 150mm rear, Bosch Performance Line CX Gen 5 motor at 120Nm and 750W peak with a 2.8kg motor mass, an 800Wh battery, 65.0 degree head angle and reach 435 to 485mm across S, M and L. Priced from EUR 4,999. This is one of the most aggressively priced full-power Bosch CX Gen 5 carbon eMTBs in the European market in 2025, undercutting equivalent Cube, Whyte and Canyon offerings by a meaningful margin. With no curated community quotes on file yet, this verdict draws on the gold spec and known Bosch CX platform behaviour.
Drive system and range. The Bosch Performance Line CX Gen 5 is the headline. Following Bosch's PU2.0 firmware push, the legacy 85Nm Gen 4 has been retired and Gen 5 sits at 120Nm of torque and 750W peak with a refined dynamic mode that ramps assist more naturally than its predecessor. The 800Wh battery is generous for a 160/150mm platform: real-world range will sit at two and a half to four hours of mixed trail riding in Trail/eMTB modes, with 1,800 to 2,400m of vertical achievable for typical riders. Battery removability is not specified in the gold spec: buyers should confirm with their dealer. Bosch's well-mapped Flow app, Kiox 300 display and OTA firmware updates come as standard.
Geometry and handling. 65.0 degrees up front is bang on the modern all-mountain norm: confident on steeps without being overslack for European singletrack. Reach steps cleanly: 435 (S), 460 (M), 485 (L). Chainstays are a uniform 455mm and wheelbase tops out at 1277mm on L. The package is biased toward composure and stability rather than ultra-snappy cornering: a sensible choice for a 150/160mm all-mountain rig with a 800Wh battery aboard.
Build and value. One trim at EUR 4,999. The price-spec story is the headline: a carbon frame, 120Nm Bosch CX Gen 5 and 800Wh battery at under EUR 5,000 is genuinely market-disruptive. Build kit at this price will typically pair a RockShox 35-class or Marzocchi Z2-class fork with a Shimano Deore or CUES drivetrain and four-piston brakes; specific component spec varies by region and stock. Standout: carbon frame plus full-power Bosch Gen 5 plus 800Wh under EUR 5,000 is exceptional. Questionable: the spec sheet has not been fully detailed in the gold record, so buyers should verify fork, brake and drivetrain specifics before purchase.
Caveats and known gripes.
- Three sizes only. S (435mm reach), M (460mm) and L (485mm): no XS or XL. Riders under 1.65m or over 1.92m should fit-check carefully.
- Limited UK dealer network. MMR is well-distributed in Spain and Portugal but thinner outside the Iberian peninsula; warranty routing and parts for proprietary frame components may take time outside the EU.
- Battery removability not specified. Confirm at point of sale: integrated batteries impact storage and travel logistics.
- No curated community signal yet. The Quercus has limited owner reporting on the eMTB Forums community as of mid-2026; long-term motor and frame reliability data is yet to mature.
- One trim point. Buyers wanting upgraded suspension or AXS drivetrains may need to pay for aftermarket fitment versus brands like Cube or Whyte that offer trim ladders.
- Brand awareness. MMR is recognised in Spanish racing circles (Buff-MMR XC team) but less known to broader European eMTB buyers, which can affect resale value.
Verdict. The MMR Quercus is one of the most aggressively-priced carbon Bosch CX Gen 5 all-mountain eMTBs on the market in 2025, with full-power 120Nm torque, an 800Wh battery and modern 160/150mm trail/all-mountain geometry at EUR 4,999. It suits price-conscious buyers in Spain and Portugal who want a carbon Bosch platform with serious motor and battery for the spend, and who can access an MMR dealer. Buyers outside the Iberian peninsula needing strong local service support, or buyers needing XS/XL sizes or upgraded factory spec, should look at Cube, Canyon or Whyte. Production status: current.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | |
|---|---|---|---|
| Toptube | 570 mm | 599 mm | 627 mm |
| Reach | 435 mm | 460 mm | 485 mm |
| Stack | 615 mm | 630 mm | 645 mm |
| Seattube | 406 mm | 457 mm | 508 mm |
| Chainstay | 455 mm | 455 mm | 455 mm |
| Headtube Angle | 65° | 65° | 65° |
| Seattube Angle (eff) | 77° | 77° | 77° |
| Wheelbase | 1213 mm | 1245 mm | 1277 mm |
| Headtube | 110 mm | 127 mm | 133 mm |
| Front Centre | 758 mm | 790 mm | 822 mm |
Trims · 5
10 £7,394 | 00 Plus £7,649 | Q 00 | Q 30 | Q 50 | |
|---|---|---|---|---|---|
| Motor | Bosch Performance Line CX Gen 5 · 120 Nm · all trims | ||||
| Battery | 800 Wh · all trims | ||||
| Travel F/R | 150/150 mm · all trims | ||||
| Frame | Carbon · all trims | ||||
| Fork | Fox Performance 36 | Fox Float 36 Factory 150 mm | Fox Float 36 Factory | Rock Shox Psylo RL | Rock Shox Psylo RL 150 |
| Shock | Fox Float X Performance | Fox Float X Factory | Fox Float X Factory | Rock Shox Deluxe Select + | Rock Shox Deluxe Select+ 210x52.5 |
| Headset | Acros ICR Headset 1.5-1.8 w/blocksystem 120º · all trims | ||||
| Stem | Race Face Ride | FSA Gradient 50 mm | FSA Gradient 50 mm | Race Face Ride | Ritchey Trail |
| Handlebar | Race Face Turbine 35 | FSA Gradient Carbon | FSA Gradient Carbon | Race Face Turbine 35 | Ritchey Comp Trail Rizer |
| Saddle | San Marco GND Dynamic | San Marco GND Dynamic | San Marco GND Dynamic | San Marco GND Dynamic Wide | Selle Italia Model X |
| Seatpost | Fox Transfer Performance 34.9 150mm | Fox Transfer Factory 150mm | Fox Transfer Factory 150mm | One UP V3 34.9 150mm | TranzX YSI34 34.9 150mm |
| Brakes | Shimano XT-M8120 | Sram Maven Ultimate | Shimano XT 8220 | Sram DB8 Stealth | Sram DB4 |
| Rear derailleur | Shimano XT M8100 12v | Sram X0 AXS Eagle | Shimano XT M8260 DI2 | Sram Eagle 70 | Sram GX Lunar 12S |
| Crank | FSA Alloy 34T | Sram X0 Eagle E-MTB 170 mm 34T | FSA Alloy SL 34T | Sram Eagle 70 36T | FSA E-Bike Forged 34T |
| Shifters | Shimano XT M8100 12v | Sram AXS Pod Ultimate | Shimano XT M8250 DI2 | Sram Eagle 70 | Sram SX |
| Cassette | Shimano Deore M6100 10-51 | Sram XS-1275 Eagle | Shimano Deore M6100 10-51 | Sram XS1270 10-52 | Sram SX PG-1210 11-50 |
| Chain | Shimano M6100 | Sram X0 T-Type | Shimano M6100 | Sram Eagle 70 | Sram SX A1 |
| Drivetrain | Shimano XT M8100 12-speed | Sram X0 AXS Eagle; Sram X0 Eagle E-MTB 170 mm 34T; Sram AXS Pod Ultimate; Sram XS-1275 Eagle; Sram X0 T-Type | Shimano XT M8260 DI2; FSA Alloy SL 34T; Shimano XT M8250 DI2; Shimano Deore M6100 10-51; Shimano M6100 | Sram Eagle 70; Sram Eagle 70 36T; Sram Eagle 70; Sram XS1270 10-52; Sram Eagle 70 | Sram GX Lunar 12S; FSA E-Bike Forged 34T; Sram SX; Sram SX PG-1210 11-50; Sram SX A1 |
| Wheels | XCR-10 / 35 Hybrid MS | FSA Gradient i30 Carbon | FSA Gradient I30 Carbon MS | XCR-10 / 35 Hybrid HG | XCR-10 / 35 Hybrid HG |
| Tyres | Michelin E-Wild Competition Line | Michelin E-Wild Racing Line TR 29x2.6" | Michelin E-Wild Racing Line 29x2.6" | Michelin E-Wild Competition Line TLR 29x2.6" | Hutchinson Griffus |
| Weight | 24.28 kg | — | — | — | — |
| Price | £7,394 | £7,649 | — | — | — |
