MAXX

Jinxx ELF 2025

Current✎Lightweight · TrailAgeing · 4.4/10iFreshness 4.4/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Fazua Ride 60 · 60Nm · 450W↗

Battery

Fazua Energy 430 · 430Wh

Travel F/R

140/140mm

Wheels

29F / 29R✎

Frame

Aluminium✎

Weight

—✎

Price

£4,320✎

View the MAXX Jinxx ELF on MAXX’s site

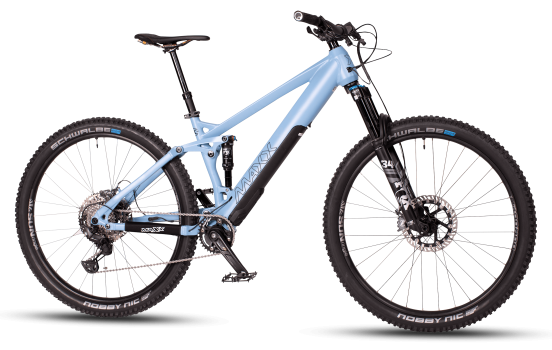

MAXX Jinxx ELF 2025

From £4,320

The MAXX Jinxx ELF is a German hand-built lightweight trail eMTB centred on the Fazua Ride 60 motor (60 Nm, 450 W peak) paired with a removable 430 Wh down-tube battery. The 6061-T6 aluminium frame keeps system weight low, aimed at riders who want moderate, natural-feeling assistance rather than the heft of a full-power drive.MAXX sells the Jinxx ELF as a custom configurator bike, so the listed build is the standard specification rather than a range of fixed trims. It is a sensible, function-first kit: a RockShox Pike Select fork and Fox Float X TR shock front the suspension, with Shimano XT/SLX 11-speed Linkglide shifting and four-piston Shimano Deore brakes on 203/180mm rotors. Wheels are hand-built on Miche/Newmen rims, and finishing kit is mostly MAXX's own components.Geometry is consistent and trail-oriented across the size run, with a 66-degree head angle and a 75 to 75.5-degree effective seat angle throughout. Reach grows from 443mm on the S to 505mm on the XL. The S size runs 27.5in wheels with 130mm rear travel, while M, L and XL move to 29in wheels and 140mm rear travel, giving smaller riders a more manageable stance and taller riders the rollover of the bigger hoops.

EMTB Forums verdict

The MAXX Jinxx ELF is a German hand-built lightweight trail eMTB centred on the Fazua Ride 60 motor (60 Nm, 450 W peak) paired with a removable 430 Wh down-tube battery. The 6061-T6 aluminium frame keeps system weight low, aimed at riders who want moderate, natural-feeling assistance rather than the heft of a full-power drive.

MAXX sells the Jinxx ELF as a custom configurator bike, so the listed build is the standard specification rather than a range of fixed trims. It is a sensible, function-first kit: a RockShox Pike Select fork and Fox Float X TR shock front the suspension, with Shimano XT/SLX 11-speed Linkglide shifting and four-piston Shimano Deore brakes on 203/180mm rotors. Wheels are hand-built on Miche/Newmen rims, and finishing kit is mostly MAXX's own components.

Geometry is consistent and trail-oriented across the size run, with a 66-degree head angle and a 75 to 75.5-degree effective seat angle throughout. Reach grows from 443mm on the S to 505mm on the XL. The S size runs 27.5in wheels with 130mm rear travel, while M, L and XL move to 29in wheels and 140mm rear travel, giving smaller riders a more manageable stance and taller riders the rollover of the bigger hoops.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Wheels

Descending

A solid all-round descender (66° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Rear-long with a planted front in L (FC:RC 1.75) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Climbs well — a 75° seat keeps the front planted. 450W of peak power and 60Nm of torque.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNot a flickable, playful bike — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Lightweight · Trail bikes (from 87 bikes in the database)

Battery430 Whabout average capacity

Motor torque60 Nmabout average torque

Value for money70/100from £4,320 · comparable bikes ~£4,999

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	443 mm	458 mm	481 mm	505 mm
Stack	589 mm	625 mm	635 mm	653 mm
Seattube	380 mm	420 mm	460 mm	500 mm
Chainstay	445 mm	461 mm	461 mm	461 mm
Headtube Angle	66°	66°	66°	66°
Seattube Angle (eff)	75°	75°	75°	75.5°
Wheelbase	1197 mm	1240 mm	1266 mm	1298 mm
Headtube	110 mm	120 mm	140 mm	150 mm
BB Height	342 mm	345 mm	345 mm	345 mm
Front Centre	752 mm*	779 mm*	805 mm*	837 mm*
FC:RC	1.69	1.69	1.75	1.82

Trims · 1

	Base £4,320
Motor	Fazua Ride 60 · 60 Nm
Battery	Fazua Energy 430 · 430 Wh
Travel F/R	140/140 mm
Frame	Aluminium 6061-T6 MAXX Custom tubing
Fork	RockShox Pike Select, 140mm, 27.5", black
Shock	Fox Float X TR 185x55 XXL setup
Headset	FSA Block-Lock 180°, ZS44/28.6 \| ZS56/40, ICR (Acros)
Stem	MAXX Flat Oversize 0°, 35mm, Ø35mm
Handlebar	MAXX Low Riser, 35mm Ø, 740mm width, 15mm rise, 9°
Grips	MAXX Race Grip Lock-On
Saddle	Ergon SMC10, 149mm, black
Seatpost	MAXX Premium rigid, 31.6x350mm
Brakes	Shimano Deore BL-M6100/BR-M6120, 4-piston
Rear derailleur	Shimano XT LINKGLIDE RD-M8130 SGS, 11-speed
Crank	Samox Crank Arms EC38F, Fazua Ride 60, 165mm
Shifters	Shimano XT Link Glide SL-M8130 11-speed
Cassette	Shimano CS-LG700, 11-50T, 11-speed Linkglide
Chain	Shimano SLX CN-HG601, 11-speed
Drivetrain	Shimano XT LINKGLIDE RD-M8130 SGS, 11-speed; Samox Crank Arms EC38F, Fazua Ride 60, 165mm; Shimano XT Link Glide SL-M8130 11-speed; Shimano CS-LG700, 11-50T, 11-speed Linkglide; Shimano SLX CN-HG601, 11-speed
Wheels	Miche XM-H 550 / Newmen Performance 30 Base, 27.5", 28H (hand-built)
Tyres	Schwalbe Nobby Nic 62-584 / 27.5x2.4", Performance, folding
Price	£4,320
