Bike Finder · Kona

Kona Remote
Kona

Remote 2022

DiscontinuedLightweight · Cross-CountryLegacy · 0/10iFreshness 0/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Simple alloy hardtail with modest Shimano assistance for casual trail use

Motor
Shimano E7000 · 60Nm · 250W
Battery
Shimano BT-E8035 · 504Wh
Travel F/R
140mm / —
Wheels
29F / 29R
Frame
Aluminium
Weight
Price
$4,799
View the Kona Remote on Kona’s site
Kona Remote 2022
EMTB Forums verdict

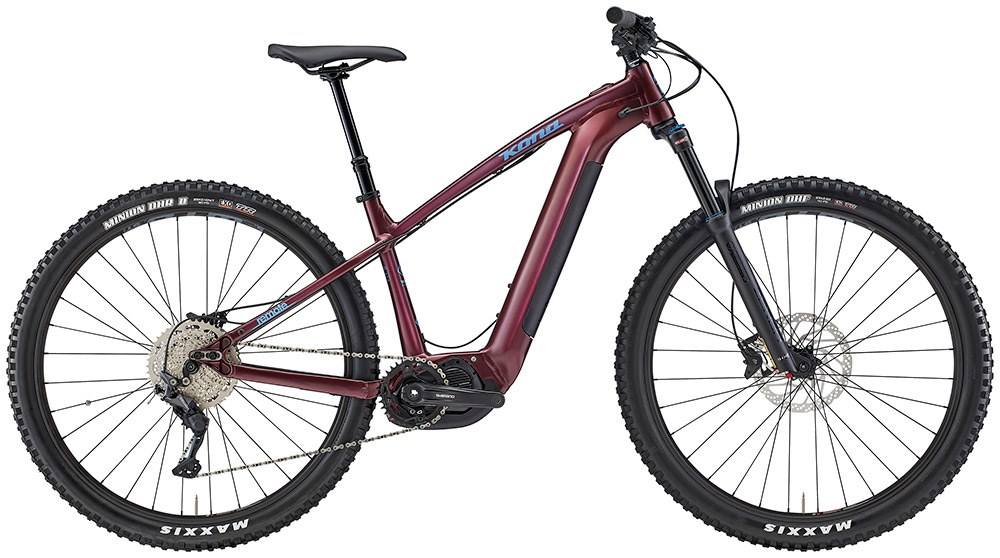

The 2022 Kona Remote is a 29in aluminium hardtail trail eMTB built on a Kona 6061 butted alloy frame derived from the Honzo. It runs a Shimano STEPS E7000 motor (250W, 60Nm) with an in-tube 504Wh battery, and pairs 140mm of Suntour Zeron35 front travel with a hardtail rear for a simple, practical package aimed at riders dipping a toe into e-MTB.

The single build is value-focused Shimano throughout: a 1x10 Deore drivetrain with an 11-46t cassette and 34t chainring, MT410 hydraulic brakes on a 203mm front and 180mm rear rotor, and a TranzX internal dropper. Rolling kit is WTB ST i35 rims wrapped in Maxxis Minion DHF 2.6in front and DHR II 2.4in rear, giving it more grip and descending intent than a typical entry hardtail.

Geometry is trail-oriented but conservative by later standards, with a fixed 66 degree head angle and 76.1 degree seat angle across all four sizes, reach growing from 425mm on the S to 510mm on the XL, short 435mm chainstays and a 320mm BB height. It sits below the full-suspension Remote 160 and shorter-travel Remote 130 in Kona's 2022 e-MTB range.

This bike is discontinued and was only sold as one unnamed build, so availability is limited to remaining stock and the used market. There is no owner forum history captured here, so no reliability or long-term ride data is asserted. Launch price was listed at 4,799 USD; a genuine GBP RRP was not verified this session.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size
Descending
62

A solid all-round descender (66° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness
73

Short 435mm rear and a lighter build — easy to pop, manual and throw around.

Size balance
89

Balanced front-to-rear in L (FC:RC 1.83) — weight sits evenly between the wheels.

Technical climbing
59

Climbs well — a 76.1° seat keeps the front planted. 250W of peak power and 60Nm of torque.

Best suited toPlayful trail riding — jumps, pumps and tight, techy singletrack.

Easy to throw around; happiest when you're active on the bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Lightweight · Cross-Country bikes (from 70 bikes in the database)

Battery504 Wh54 Wh above average
Motor torque60 Nmabout average torque
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Paste into any thread to embed this live, interactive panel.
💬 Forum discussion
Kona Remote 160
42 replies · 18.1k views · last reply 70 months ago
Join the discussion →
“Kona’s got a bike worth looking at. Definitely real Trail Bike geometry in keeping with their Process series. Not very many eMTB truly this progressive in the geometry. Rides great. Fits 27+ or 29 widetrail. Rides great! Shimano drive.…”
— sparrow · ♥ 6 · most-liked post

Geometry · hover a row to highlight the measurement on the bike

Bike geometry diagram
SMLXL
Reach425 mm450 mm475 mm510 mm
Stack645 mm650 mm659 mm668 mm
Seattube385 mm410 mm450 mm485 mm
Chainstay435 mm435 mm435 mm435 mm
Headtube Angle66°66°66°66°
Seattube Angle (eff)76.1°76.1°76.1°76.1°
Wheelbase1175 mm1202 mm1231 mm1270 mm
Headtube115 mm120 mm130 mm140 mm
BB Height320 mm320 mm320 mm320 mm
Standover736 mm736 mm736 mm736 mm
Front Centre740 mm*767 mm*796 mm*835 mm*
FC:RC1.701.761.831.92

Trims · 1

Base
$4,799
MotorShimano E7000 · 60 Nm
BatteryShimano BT-E8035 · 504 Wh
Travel F/R140/? mm
FrameKona 6061 Aluminum Butted
ForkSuntour Zeron35 140mm Tapered 110 Spacing
HeadsetFSA No.57B
StemKona XC/BC 35
HandlebarKona XC/BC 35
GripsKona Key Grip
SaddleWTB Volt
SeatpostTranzX Dropper Internal 31.6mm
BrakesShimano MT410 Hydraulic (Shimano Deore Hydraulic Disc); front rotor Shimano RT30 203mm, rear rotor Shimano RT30 180mm
Rear derailleurShimano Deore
CrankShimano E8000 crankarms, 34t chainring
ShiftersShimano Deore
CassetteShimano Deore 11-46t 10spd
ChainKMC X10
DrivetrainShimano Deore; Shimano E8000 crankarms, 34t chainring; Shimano Deore; Shimano Deore 11-46t 10spd; KMC X10
WheelsWTB ST i35 TCS 2.0
TyresFront: Maxxis Minion DHF EXO TR DUAL 29x2.6"; Rear: Maxxis Minion DHR II EXO TR DUAL 29x2.4" WT
Price$4,799

Rides similarly

Other eMTBs with the closest geometry to this one.

Spot a mistake?

Suggest a correction. We review every submission before publishing.
