KTM

Macina Prowler 2026

Current✎Enduro eMTBCurrent · 8.9/10iFreshness 8.9/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Bosch Performance Line CX-R Gen 5 · 120Nm · 750W↗

Battery

Bosch PowerTube 800 · 800Wh

Travel F/R

180/170mm

Wheels

MX (29F / 27.5R)✎

Frame

Full carbon✎

Weight

24.9 kg

View the KTM Macina Prowler on KTM’s site

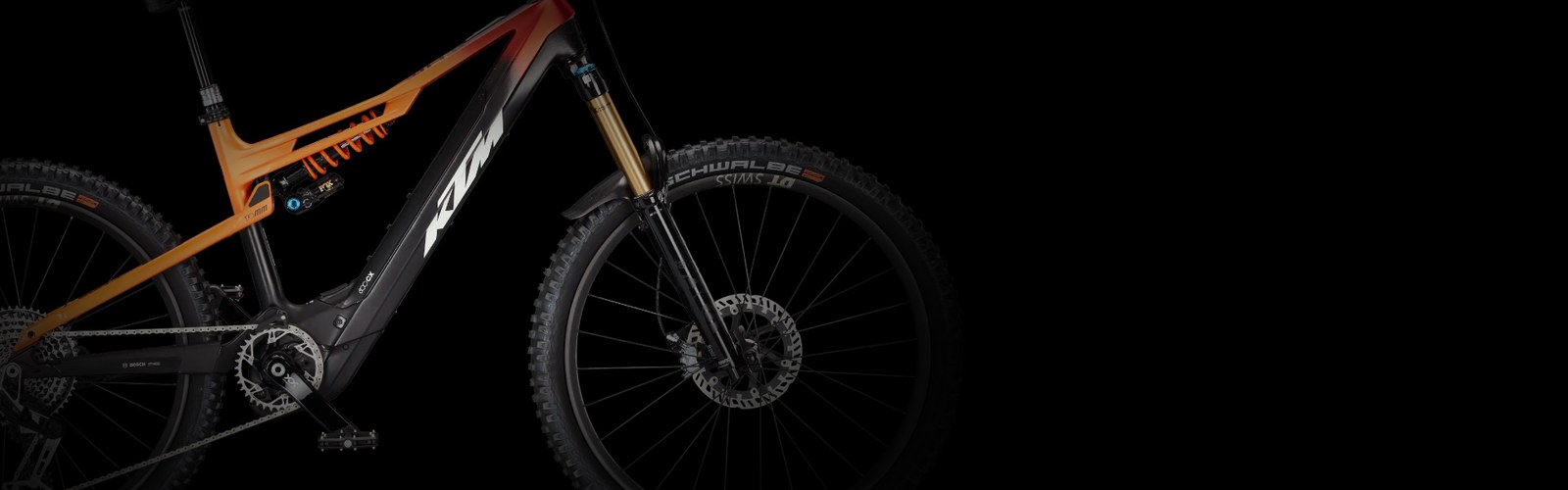

KTM Macina Prowler 2026

EMTB Forums verdict

The 2026 KTM Macina Prowler is a carbon-framed enduro eMTB built around 180 mm of FOX 38 fork travel and 170 mm at the rear via KTM's Straight-Line-Link suspension. Every trim runs the DiMMiX mullet setup, a 29in front wheel paired with a 27.5in rear, with a slack 64.1 degree head angle and reach growing from 443 mm in M to 483 mm in XL across the three sizes.

The range spans a wide ten-build, four-motor ladder. The flagship Exonic CX-R and Prestige CX-R carry the new 120 Nm Bosch Performance Line CX-R Gen 5 with an 800 Wh PowerTube, while the race-bred Exonic uses the lighter 85 Nm Bosch Performance Line CX Race on a 750 Wh pack. The mid and entry builds run the standard 85 Nm CX Gen 4 (Prestige, Master, Master GX, Elite XT, Elite), with the Elite Di2 stepping up to the 120 Nm CX Gen 5 and an 800 Wh battery. All use KTM's Power Tube Top Loader removable battery.

Value steps are clear within the EUR pricing. The 4,999 EUR Elite undercuts the rest with a RockShox Domain fork, Shimano Deore XT mech and basic 750 Wh CX Gen 4 system, whereas the Prestige CX-R at 8,399 EUR adds the headline CX-R motor, 800 Wh battery, Shimano XT Di2 shifting and an Eightpins integrated dropper for less than the SRAM GX-equipped Prestige above it. Spec choices, not just price, separate the two Master and three Elite builds.

Geometry · hover a row to highlight the measurement on the bike

	M	L	XL
Reach	443 mm	461 mm	483 mm
Stack	618 mm	627 mm	641 mm
Seattube	430 mm	450 mm	480 mm
Chainstay	448 mm	448 mm	448 mm
Headtube Angle	64.1°	64.1°	64.1°
Seattube Angle (eff)	73.9°	73.9°	74°
Wheelbase	1237 mm	1259 mm	1287 mm
Headtube	100 mm	110 mm	125 mm
Standover	836 mm	840 mm	844 mm
Front Centre	789 mm*	811 mm*	839 mm*

Trims · 9

	Elite	Elite Di2	Elite XT	Exonic	Exonic CX-R	Master	Master GX	Prestige	Prestige CX-R
Motor	Bosch Performance Line CX Gen 4 · 120 Nm	Bosch Performance Line CX Gen 5 · 120 Nm	Bosch Performance Line CX Gen 4 · 120 Nm	Bosch Performance Line CX Race · 120 Nm	Bosch Performance Line CX-R Gen 5 · 120 Nm	Bosch Performance Line CX Gen 4 · 120 Nm	Bosch Performance Line CX Gen 4 · 120 Nm	Bosch Performance Line CX Gen 4 · 120 Nm	Bosch Performance Line CX-R Gen 5 · 120 Nm
Battery	Bosch PowerTube 800 · 800 Wh · all trims
Travel F/R	180/170 mm · all trims
Frame	Carbon · all trims
Fork	RockShox Domain RC 29" 180mm 15x110	FOX 38 Float 29" Rhythm E 180mm 15x110	RockShox Domain RC 29" 180mm 15x110 taper	FOX 38 Float 29" Factory e-bike 180mm FIT4 15x110	FOX 38 Float 29" Factory E 180mm 15x110	FOX 38 Float 29" Rhythm e-bike 180mm	FOX 38 Float 29" Rhythm E 180mm	FOX 38 Float 29" Performance e-bike 180mm 15x110 taper	FOX 38 Float 29" Factory E 180mm 15x110
Shock	FOX Float X Performance 250x75	FOX Float X Performance 2Pos 250x75	FOX Float X Performance 2-Pos 250x75	FOX DHX2 Factory 2Position 250x75	FOX Float X NEO Factory 250x75	FOX Float X Performance 2-Pos 250x75	FOX Float X Performance 250x75	FOX DHX2 PerformanceElite 2-Pos 250x75	FOX DHX2 PerformanceElite 2-Pos 250x75
Headset	Acros AICR internal 1.1/8"-1.5" angle limit · all trims
Stem	KTM TEAM Trail35	KTM TEAM Trail35	KTM TEAM II Trail35	KTM TEAM II Trail35	KTM TEAM Trail35	KTM TEAM II Trail35	KTM TEAM Trail35	KTM TEAM II Trail35	KTM TEAM Trail35
Handlebar	KTM TEAM Trail35 rizer25 800mm	KTM TEAM Trail35 rizer25 800mm	KTM Team Trail35 rizer25 800mm	KTM Prime Trail35 Carbon rizer20 800mm	KTM PRIME Trail35 Carbon rizer20 800mm	KTM Team Trail35 rizer25 800mm	KTM TEAM Trail35 rizer25 800mm	KTM Prime Trail35 Carbon rizer20 800mm	KTM TEAM Trail35 rizer25 800mm
Grips	Ergon GA20	Ergon GE10	Ergon GA20	Ergon GA20	Ergon GE10	Ergon GA20	Ergon GA20	Ergon GA20	Ergon GE10
Saddle	Selle San Marco Ground Short Open Fit Narrow	Selle San Marco Ground Short Open Fit Narrow	Selle San Marco Ground Short Open Fit Narrow	Selle San Marco GND Open Fit Supercomfort Manganese Rails	Fizik Terra Aidon X5 SAlloy	Selle San Marco Ground Short Open Fit Narrow	Selle San Marco Ground Short Open Fit Narrow	Selle San Marco Ground Short Open Fit Narrow	Fizik Terra Aidon X5 SAlloy
Seatpost	KTM COMP dropper internal 30.9 T:120	KTM COMP II dropper internal 34.9 T:125	KTM COMP II dropper internal	RockShox Reverb AXS wireless	RockShox Reverb AXS wireless T125	KTM COMP II dropper internal	KTM COMP dropper internal 30.9 T:120	FOX Transfer Performance internal	Eightpins H01 Hydraulic -6X-XS
Brakes	—	—	Shimano M4100 / MT420 4-Piston	Magura MT7 4-Piston	—	Shimano Saint M820 / M820 4-Piston	—	Shimano Saint M820 / M820 4-Piston	—
Rear derailleur	Shimano Deore XT M8100-12 SGS shadow+	Shimano Deore Di2 M6260-11 LG SGS shadow+	Shimano Deore XT M8100-12 SGS shadow+	SRAM XX Eagle T-Type 12speed	SRAM XX Eagle Transmission 12speed	Shimano Deore XT M8100-12 SGS shadow+	SRAM GX Eagle Transmission 12speed	SRAM GX Eagle T-Type 12speed	Shimano Deore XT Di2 M8260-11 LG SGS
Crank	KTM E-TRAIL ISIS 160mm Q16	KTM E-TRAIL2 ISIS 160mm Q12	KTM E-TRAIL ISIS 160mm Q16; FSA Megatooth steel 36T 12speed Direct Mount chainring	FSA CK-702/IS Carbon 160mm; SRAM Eagle Transmission 36T Direct Mount chainring	SRAM XX T-Type E-MTB 165 mm ISIS	KTM E-TRAIL ISIS 160mm Q16; FSA Megatooth steel 36T 12speed Direct Mount chainring	KTM E-TRAIL ISIS 160mm Q16	KTM E-TRAIL ISIS 160mm Q16; SRAM Eagle Transmission E-MTB 36T Direct Mount chainring	KTM E-TRAIL2 ISIS 160mm Q12
Shifters	Shimano Deore M6100-12	Shimano Deore Di2 M6250	Shimano Deore M6100-12	SRAM POD Ultimate AXS Controller	SRAM POD Ultimate AXS Controller	Shimano Deore XT M8100-12	SRAM POD AXS Controller	SRAM POD AXS Controller	Shimano XT Di2 SW-M8250
Cassette	Shimano Deore M6100-12 / 10-51	Shimano LG400-11 / 11-50	Shimano Deore M6100-12 / 10-51	SRAM XX Eagle T-Type XS-1297 / 10-52	SRAM XX T-Type XS-1297 / 10-52	Shimano Deore M6100-12 / 10-51	SRAM GX T-Type XS-1275 / 10-52	SRAM GX Eagle T-Type XS-1275 / 10-52	Shimano LG700-11 / 11-50
Chain	Shimano M6100-12	KMC e11 Sport EPT e-bike	Shimano M6100-12	SRAM XX Eagle T-Type 12s	SRAM XX Eagle T-Type 12s	Shimano M6100-12	SRAM GX T-Type 12s	SRAM GX Eagle T-Type 12s	KMC e11 Sport EPT e-bike
Drivetrain	Shimano Deore XT M8100-12 SGS shadow+; KTM E-TRAIL ISIS 160mm Q16; Shimano Deore M6100-12; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	Shimano Deore Di2 M6260-11 LG SGS shadow+; KTM E-TRAIL2 ISIS 160mm Q12; Shimano Deore Di2 M6250; Shimano LG400-11 / 11-50; KMC e11 Sport EPT e-bike	Shimano Deore XT M8100-12 SGS shadow+; KTM E-TRAIL ISIS 160mm Q16; FSA Megatooth steel 36T 12speed Direct Mount chainring; Shimano Deore M6100-12; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	SRAM XX Eagle T-Type 12speed; FSA CK-702/IS Carbon 160mm; SRAM Eagle Transmission 36T Direct Mount chainring; SRAM POD Ultimate AXS Controller; SRAM XX Eagle T-Type XS-1297 / 10-52; SRAM XX Eagle T-Type 12s	SRAM XX Eagle Transmission 12speed; SRAM XX T-Type E-MTB 165 mm ISIS; SRAM POD Ultimate AXS Controller; SRAM XX T-Type XS-1297 / 10-52; SRAM XX Eagle T-Type 12s	Shimano Deore XT M8100-12 SGS shadow+; KTM E-TRAIL ISIS 160mm Q16; FSA Megatooth steel 36T 12speed Direct Mount chainring; Shimano Deore XT M8100-12; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	SRAM GX Eagle Transmission 12speed; KTM E-TRAIL ISIS 160mm Q16; SRAM POD AXS Controller; SRAM GX T-Type XS-1275 / 10-52; SRAM GX T-Type 12s	SRAM GX Eagle T-Type 12speed; KTM E-TRAIL ISIS 160mm Q16; SRAM Eagle Transmission E-MTB 36T Direct Mount chainring; SRAM POD AXS Controller; SRAM GX Eagle T-Type XS-1275 / 10-52; SRAM GX Eagle T-Type 12s	Shimano Deore XT Di2 M8260-11 LG SGS; KTM E-TRAIL2 ISIS 160mm Q12; Shimano XT Di2 SW-M8250; Shimano LG700-11 / 11-50; KMC e11 Sport EPT e-bike
Wheels	—	—	KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC front; Shimano MT410B CL 32H 148-12TA / Ambrosio E35 Trail 32H 584x35TC rear	DT Swiss HXC 1501 SPLINE 29 CL 110/15TA 622x30TSS / DT Swiss HXC 1501 SPLINE 27 CL 148/12TA 584x35TSS	DT HXC 1200 Spline Carbon CL 110/15TA 622x30TSS TLR / DT HXC 1200 Spline Carbon CL 148/12TA 584x30TSS XD TLR	KTM E-Comp Trail 29 CL 110/15TA 622x30TC by DT Swiss / KTM E-Comp Trail 27 CL 148/12TA 584x35TC by DT Swiss	KTM E-COMP Trail 29 CL 110/15TA 622x30TC TLR by DT / KTM E-COMP Trail 27 CL 148/12TA 584x35TC TLR by DT	KTM E-Team Trail 29 CL 110/15TA 622x30TC by DT Swiss / KTM E-Team Trail 27 CL 148/12TA 622x35TC by DT Swiss	KTM E-TEAM Trail 29 CL 110/15TA 622x30TC TLR by DT / KTM E-TEAM Trail 27 CL 148/12TA 584x30TC SS TLR by DT
Tyres	Front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622; Rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584	Front: Maxxis Minion DHF 3C-MaxxTerra NEXO+/TR 63-622; Rear: Maxxis Minion DHR II 3C-MaxxTerra NEXO+/TR 65-584	Front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622; Rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584	Front: Schwalbe Eddy Current Front Evo SuperTrail TLE 65-622; Rear: Schwalbe Eddy Current Rear Evo SuperGravity TLE 70-584	Front: Schwalbe Magic Mary Evo SuperTrail TLE 65-622; Rear: Schwalbe Big Betty Evo SuperGravity TLE 65-584	Front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622; Rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584	Front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622; Rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584	Front: Schwalbe Eddy Current Front Evo SuperTrail TLE 65-622; Rear: Schwalbe Eddy Current Rear Evo SuperGravity TLE 70-584	Front: Schwalbe Magic Mary Evo SuperTrail TLE 65-622; Rear: Schwalbe Big Betty Evo SuperGravity TLE 65-584
Weight	25.9 kg	26.2 kg	25.8 kg	24.9 kg	25.4 kg	25.4 kg	25.8 kg	26.2 kg	26.5 kg
