KTM

Macina Prowler 2023

Discontinued✎Full Power · GravityLegacy · 1/10iFreshness 1/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Bosch Performance Line CX Gen 4 · 85Nm · 600W↗

Battery

Bosch PowerTube 750 · 750Wh

Travel F/R

180/170mm

Wheels

MX (29F / 27.5R)✎

Frame

Full carbon✎

Weight

24.9 kg

Price

—

View the KTM Macina Prowler on KTM’s site

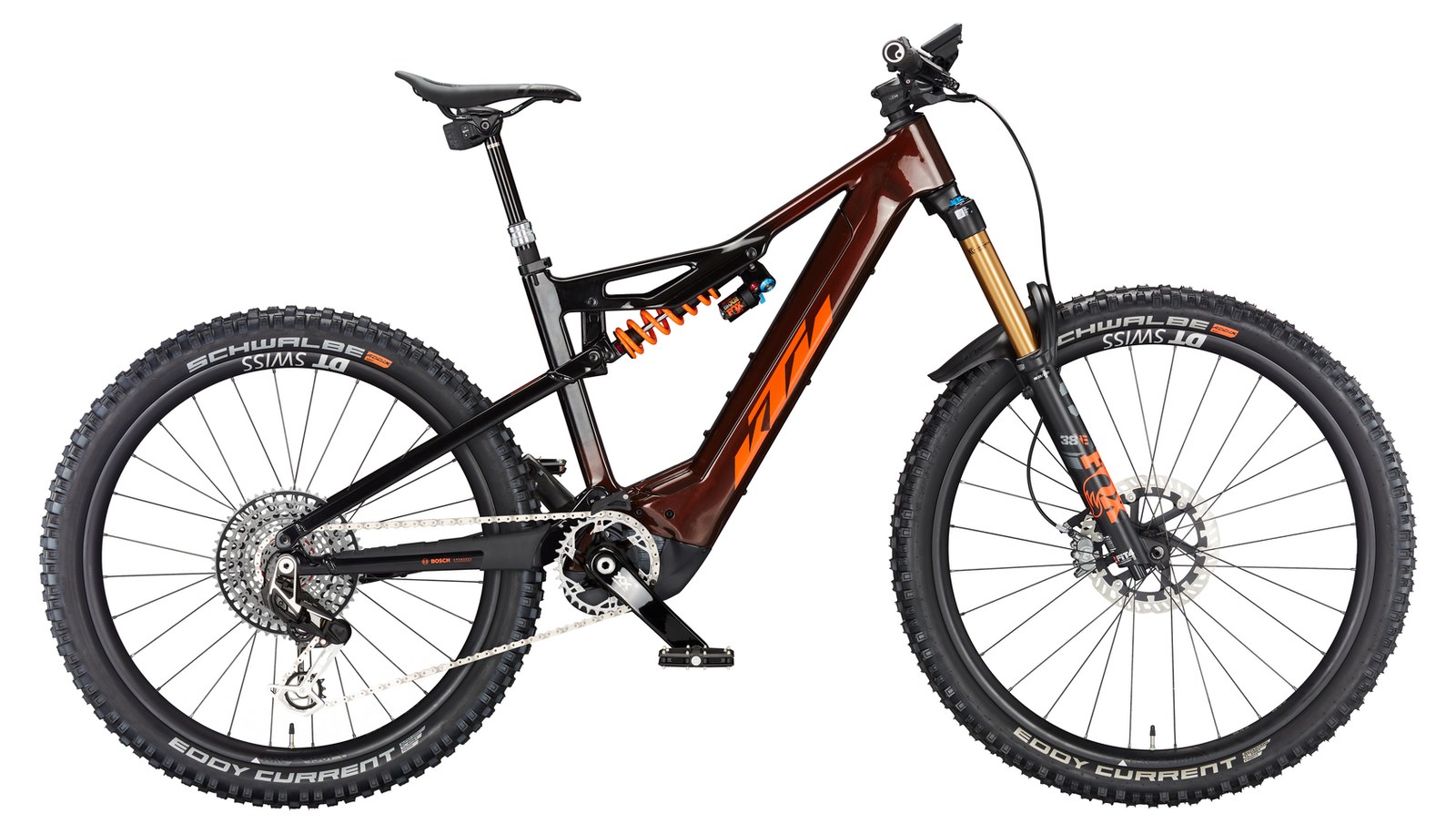

KTM Macina Prowler 2023

The 2023 KTM Macina Prowler was the Austrian brand's flagship carbon enduro eMTB, built around a 180mm Fox 38 fork, 170mm of STRAIGHT-LINE-LINK rear travel and KTM's DiMMiX mullet wheel layout (29in front, 27.5in PLUS rear). All four trims share the same Bosch Smart System platform with a 750Wh PowerTube and the 85Nm Performance Line CX motor.The range topped out with the Exonic, which swapped in the race-tuned Bosch Performance Line CX Race motor, Fox Factory suspension, SRAM XX Eagle Transmission, Magura MT7 brakes and a RockShox Reverb AXS post for a claimed 24.9kg. Below it, the Prestige (Fox Performance, SRAM GX Transmission, Shimano Saint brakes) and the Shimano-equipped Master and Elite stepped progressively down to a RockShox Domain fork and four-piston Shimano brakes on the entry Elite.Geometry was middle-of-the-road enduro for its era: a 64.1 degree head angle, 75.3 degree effective seat angle and a 450mm reach on the L frame, with consistent 442mm chainstays across the M, L and XL sizes. Schwalbe Eddy Current rubber featured on the carbon-wheeled models, with Maxxis Minion DHF/DHR II on the Master and Elite.This model year is discontinued and the Macina Prowler has since moved on to newer Bosch hardware, so 2023 examples are now found only on the used market or as old retailer stock.

EMTB Forums verdict

The 2023 KTM Macina Prowler was the Austrian brand's flagship carbon enduro eMTB, built around a 180mm Fox 38 fork, 170mm of STRAIGHT-LINE-LINK rear travel and KTM's DiMMiX mullet wheel layout (29in front, 27.5in PLUS rear). All four trims share the same Bosch Smart System platform with a 750Wh PowerTube and the 85Nm Performance Line CX motor.

The range topped out with the Exonic, which swapped in the race-tuned Bosch Performance Line CX Race motor, Fox Factory suspension, SRAM XX Eagle Transmission, Magura MT7 brakes and a RockShox Reverb AXS post for a claimed 24.9kg. Below it, the Prestige (Fox Performance, SRAM GX Transmission, Shimano Saint brakes) and the Shimano-equipped Master and Elite stepped progressively down to a RockShox Domain fork and four-piston Shimano brakes on the entry Elite.

Geometry was middle-of-the-road enduro for its era: a 64.1 degree head angle, 75.3 degree effective seat angle and a 450mm reach on the L frame, with consistent 442mm chainstays across the M, L and XL sizes. Schwalbe Eddy Current rubber featured on the carbon-wheeled models, with Maxxis Minion DHF/DHR II on the Master and Elite.

This model year is discontinued and the Macina Prowler has since moved on to newer Bosch hardware, so 2023 examples are now found only on the used market or as old retailer stock.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

Slack 64.1° head angle, 170mm travel and a long 1248mm wheelbase — composed in the chunk, confident when it gets steep, and stable through fast corners.

Playfulness

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance

Balanced front-to-rear in L (FC:RC 1.82) — weight sits evenly between the wheels.

Technical climbing

Climbs well — a 75.3° seat keeps the front planted. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toFast, steep, rough tracks — and riders who want maximum composure.

Rewards commitment; it should feel calmer as the speed rises.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Gravity bikes (from 117 bikes in the database)

Weight24.9 kg1.1 kg heavier than average

Battery750 Whabout average capacity

Motor torque85 Nm18 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	M	L	XL
Reach	432 mm	450 mm	467 mm
Stack	612 mm	622 mm	636 mm
Seattube	430 mm	450 mm	480 mm
Chainstay	442 mm	442 mm	442 mm
Headtube Angle	64.1°	64.1°	64.1°
Seattube Angle (eff)	75.3°	75.3°	75.3°
Wheelbase	1226 mm	1248 mm	1271 mm
Headtube	100 mm	110 mm	125 mm
Standover	816 mm	818 mm	820 mm
Front Centre	784 mm*	806 mm*	829 mm*
FC:RC	1.77	1.82	1.88

Trims · 4

	Elite	Exonic	Master	Prestige
Motor	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Race · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm
Battery	Bosch PowerTube 750 · 750 Wh · all trims
Travel F/R	180/170 mm · all trims
Frame	Carbon · all trims
Fork	RockShox Domain RC 29" 180mm 15x110 taper	FOX 38 Float 29" Factory e-bike 180mm FIT4 15x110	FOX 38 Float 29" Rhythm e-bike 180mm	FOX 38 Float 29" Performance e-bike 180mm 15x110 taper
Shock	FOX Float X Performance 2-Pos 250x75	FOX DHX2 Factory 2Position 250x75	FOX Float X Performance 2-Pos 250x75	FOX DHX2 PerformanceElite 2-Pos 250x75
Headset	Acros AICR internal 1.1/8"-1.5" angle limit · all trims
Stem	KTM TEAM II Trail35 · all trims
Handlebar	KTM Team Trail35 rizer25 800mm	KTM Prime Trail35 Carbon rizer20 800mm	KTM Team Trail35 rizer25 800mm	KTM Prime Trail35 Carbon rizer20 800mm
Grips	Ergon GA20 · all trims
Saddle	Selle San Marco Ground Short Open Fit Narrow	Selle San Marco GND Open Fit Supercomfort Manganese Rails	Selle San Marco Ground Short Open Fit Narrow	Selle San Marco Ground Short Open Fit Narrow
Seatpost	KTM COMP II dropper internal	RockShox Reverb AXS wireless	KTM COMP II dropper internal	FOX Transfer Performance internal
Brakes	Shimano M4100 / MT420 4-Piston	Magura MT7 4-Piston	Shimano Saint M820 / M820 4-Piston	Shimano Saint M820 / M820 4-Piston
Rear derailleur	Shimano Deore XT M8100-12 SGS shadow+	SRAM XX Eagle T-Type 12speed	Shimano Deore XT M8100-12 SGS shadow+	SRAM GX Eagle T-Type 12speed
Crank	KTM E-TRAIL ISIS 160mm Q16 (FSA Megatooth steel 36T 12speed Direct Mount chainring)	FSA CK-702/IS Carbon 160mm (SRAM Eagle Transmission 36T Direct Mount chainring)	KTM E-TRAIL ISIS 160mm Q16 (FSA Megatooth steel 36T 12speed Direct Mount chainring)	KTM E-TRAIL ISIS 160mm Q16 (SRAM Eagle Transmission E-MTB 36T Direct Mount chainring)
Shifters	Shimano Deore M6100-12	SRAM POD Ultimate AXS Controller	Shimano Deore XT M8100-12	SRAM POD AXS Controller
Cassette	Shimano Deore M6100-12 / 10-51	SRAM XX Eagle T-Type XS-1297 / 10-52	Shimano Deore M6100-12 / 10-51	SRAM GX Eagle T-Type XS-1275 / 10-52
Chain	Shimano M6100-12	SRAM XX Eagle T-Type 12s	Shimano M6100-12	SRAM GX Eagle T-Type 12s
Drivetrain	Shimano Deore XT M8100-12 SGS shadow+; KTM E-TRAIL ISIS 160mm Q16 (FSA Megatooth steel 36T 12speed Direct Mount chainring); Shimano Deore M6100-12; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	SRAM XX Eagle T-Type 12speed; FSA CK-702/IS Carbon 160mm (SRAM Eagle Transmission 36T Direct Mount chainring); SRAM POD Ultimate AXS Controller; SRAM XX Eagle T-Type XS-1297 / 10-52; SRAM XX Eagle T-Type 12s	Shimano Deore XT M8100-12 SGS shadow+; KTM E-TRAIL ISIS 160mm Q16 (FSA Megatooth steel 36T 12speed Direct Mount chainring); Shimano Deore XT M8100-12; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	SRAM GX Eagle T-Type 12speed; KTM E-TRAIL ISIS 160mm Q16 (SRAM Eagle Transmission E-MTB 36T Direct Mount chainring); SRAM POD AXS Controller; SRAM GX Eagle T-Type XS-1275 / 10-52; SRAM GX Eagle T-Type 12s
Wheels	Front: KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black; Rear: KTM Line - Shimano MT410B CL 32H 148-12TA / Ambrosio E35 Trail 32H 584x35TC / DT Alpine II 2.34 black	Front: DT Swiss HXC 1501 SPLINE 29 CL 110/15TA / 622x30TSS; Rear: DT Swiss HXC 1501 SPLINE 27 CL 148/12TA / 584x35TSS	Front: KTM E-Comp Trail 29 CL 110/15TA / 622x30TC made by DT Swiss; Rear: KTM E-Comp Trail 27 CL 148/12TA / 584x35TC made by DT Swiss	Front: KTM E-Team Trail 29 CL 110/15TA / 622x30TC made by DT Swiss; Rear: KTM E-Team Trail 27 CL 148/12TA / 622x35TC made by DT Swiss
Tyres	Front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622; Rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584	Front: Schwalbe Eddy Current Front Evo SuperTrail TLE 65-622; Rear: Schwalbe Eddy Current Rear Evo SuperGravity TLE 70-584	Front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622; Rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584	Front: Schwalbe Eddy Current Front Evo SuperTrail TLE 65-622; Rear: Schwalbe Eddy Current Rear Evo SuperGravity TLE 70-584
Weight	25.8 kg	24.9 kg	25.4 kg	26.2 kg
