KTM

Macina Lycan 2023

Discontinued✎Full Power · TrailLegacy · 1/10iFreshness 1/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Bosch Performance Line CX Gen 4 · 85Nm · 600W↗

Battery

Bosch PowerTube 750 · 750Wh

Travel F/R

140/140mm

Wheels

27.5F / 27.5R✎

Frame

Aluminium✎

Weight

24.7 kg

Price

From €3,499

View the KTM Macina Lycan on KTM’s site

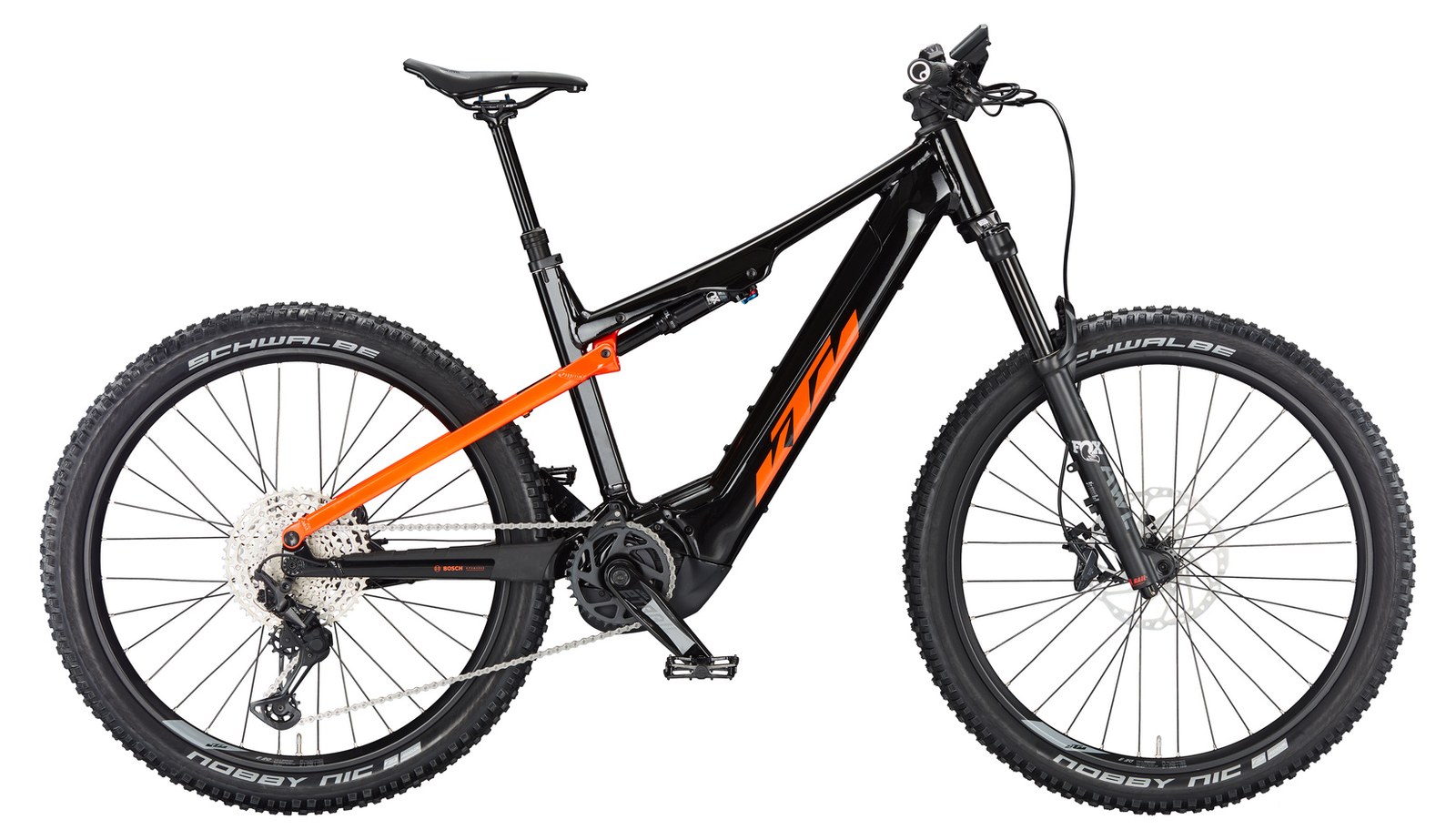

KTM Macina Lycan 2023

The 2023 KTM Macina Lycan is a 27.5in aluminium trail eMTB built around KTM's Straight-Line-Link suspension giving 140mm of travel front and rear. Every 2023 trim runs the Bosch Performance Line CX Gen 4 motor (85Nm) on the Bosch Smart System, with a 750Wh PowerTube on the 771, 772 and their women's Glorious editions, and a 500Wh PowerTube on the entry 571 Glorious. KTM's Power Tube Top Loader lets you drop the battery out of the down tube.The range splits cleanly on kit. The 771 (and 771 Glorious) is the flagship build with a FOX 34 Float AWL fork, FOX Float DPS Performance shock, Shimano Deore XT 12-speed and four-piston Deore brakes, claimed at 26.6kg. The 772 trims swap to a Suntour XCR 34 Air fork, RockShox Deluxe Select+ shock, Shimano Deore 11-speed and Tektro brakes. The 571 Glorious is the budget option with Shimano 10-speed, the smaller 500Wh battery and a rigid seatpost rather than a dropper, but it is the lightest at 24.7kg.Geometry is conservative and unisex across the standard sizes: a 67-degree head angle (66.5 on the smallest frame), roughly 74.5-degree effective seat angle, a fixed 450mm chainstay and reach growing from 397mm (S) to 468mm (XL). The Glorious models are the women's line and start from the smaller 40cm frame.This model year is now discontinued and was a European-market bike, so UK availability was limited and sizing is on the steeper, shorter side of the modern trail norm. It suits riders after a do-it-all Bosch-powered 27.5in trail bike rather than a long, slack enduro machine.

EMTB Forums verdict

The 2023 KTM Macina Lycan is a 27.5in aluminium trail eMTB built around KTM's Straight-Line-Link suspension giving 140mm of travel front and rear. Every 2023 trim runs the Bosch Performance Line CX Gen 4 motor (85Nm) on the Bosch Smart System, with a 750Wh PowerTube on the 771, 772 and their women's Glorious editions, and a 500Wh PowerTube on the entry 571 Glorious. KTM's Power Tube Top Loader lets you drop the battery out of the down tube.

The range splits cleanly on kit. The 771 (and 771 Glorious) is the flagship build with a FOX 34 Float AWL fork, FOX Float DPS Performance shock, Shimano Deore XT 12-speed and four-piston Deore brakes, claimed at 26.6kg. The 772 trims swap to a Suntour XCR 34 Air fork, RockShox Deluxe Select+ shock, Shimano Deore 11-speed and Tektro brakes. The 571 Glorious is the budget option with Shimano 10-speed, the smaller 500Wh battery and a rigid seatpost rather than a dropper, but it is the lightest at 24.7kg.

Geometry is conservative and unisex across the standard sizes: a 67-degree head angle (66.5 on the smallest frame), roughly 74.5-degree effective seat angle, a fixed 450mm chainstay and reach growing from 397mm (S) to 468mm (XL). The Glorious models are the women's line and start from the smaller 40cm frame.

This model year is now discontinued and was a European-market bike, so UK availability was limited and sizing is on the steeper, shorter side of the modern trail norm. It suits riders after a do-it-all Bosch-powered 27.5in trail bike rather than a long, slack enduro machine.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (67° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance

Rear-long with a planted front in L (FC:RC 1.65) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Bosch Performance Line CX Gen 4 and a steep 74.7° seat angle keep the weight planted over the front — a proper winch. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Trail bikes (from 245 bikes in the database)

Weight24.7 kg1.7 kg heavier than average

Battery750 Whabout average capacity

Motor torque85 Nm13 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	397 mm	418 mm	442 mm	468 mm
Stack	600 mm	602 mm	612 mm	621 mm
Seattube	400 mm	430 mm	450 mm	480 mm
Chainstay	450 mm	450 mm	450 mm	450 mm
Headtube Angle	66.5°	67°	67°	67°
Seattube Angle (eff)	74.4°	74.5°	74.7°	74.9°
Wheelbase	1151 mm	1165 mm	1192 mm	1218 mm
Headtube	120 mm	120 mm	130 mm	140 mm
BB Height	340 mm	340 mm	340 mm	340 mm
Standover	786 mm	785 mm	790 mm	791 mm
Front Centre	701 mm*	715 mm*	742 mm*	768 mm*
FC:RC	1.56	1.59	1.65	1.71

Trims · 5

	571 Glorious €3,499	771 €5,799	771 Glorious €5,799	772 €5,299	772 Glorious €5,299
Motor	Bosch Performance Line CX Gen 4 · 85 Nm · all trims
Battery	Bosch PowerTube 750 · 750 Wh · all trims
Travel F/R	140/140 mm · all trims
Frame	Aluminium 6061 · all trims
Fork	Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper	FOX 34 Float AWL 27.5" e-bike 140mm 15x110	FOX 34 Float AWL 27.5" e-bike 140mm 15x110	Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper	Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper
Shock	RockShox Deluxe Select 230x62.5	FOX Float DPS Performance 230x62.5	FOX Float DPS Performance 230x62.5	RockShox Deluxe Select+ 230x62.5	RockShox Deluxe Select+ 230x62.5
Headset	Acros AICR internal 1.1/8"-1.5" angle limit · all trims
Stem	KTM TEAM II Trail35 · all trims
Handlebar	KTM COMP II Trail35 rizer15 760mm · all trims
Grips	KTM Comp Lock	Ergon GA20	Ergon GA20	KTM Comp Lock	KTM Comp Lock
Saddle	KTM Line Sport	Selle San Marco Ground Short Open Fit Narrow	Selle San Marco Ground Short Open Fit Narrow	KTM Line Sport	KTM Line Sport
Seatpost	KTM COMP II 30.9/400 (rigid, non-dropper)	KTM COMP II dropper internal	KTM COMP II dropper internal	KTM COMP II dropper internal	KTM COMP II dropper internal
Brakes	Shimano MT401 / MT420 4-Piston	Shimano Deore M6100 / M6120 4-Piston	Shimano Deore M6100 / M6120 4-Piston	Tektro HD-M750 / E730 4-Piston	Tektro HD-M750 / E730 4-Piston
Rear derailleur	Shimano Deore M5120-11/10 SGS shadow+	Shimano Deore XT M8100-12 SGS shadow+	Shimano Deore XT M8100-12 SGS shadow+	Shimano Deore M5100-11 SGS shadow+	Shimano Deore M5100-11 SGS shadow+
Crank	KTM E-TRAIL ISIS 170mm Q16; chainring FSA steel 36T Direct Mount	KTM E-TRAIL ISIS 170mm Q16; chainring FSA Megatooth steel 36T 12speed Direct Mount	KTM E-TRAIL ISIS 170mm Q16; chainring FSA Megatooth steel 36T 12speed Direct Mount	KTM E-TRAIL ISIS 170mm Q16; chainring FSA steel 36T Direct Mount	KTM E-TRAIL ISIS 170mm Q16; chainring FSA steel 36T Direct Mount
Shifters	Shimano Deore M4100-10	Shimano Deore M6100-12 display	Shimano Deore M6100-12 display	Shimano Deore M5100-11	Shimano Deore M5100-11
Cassette	Shimano Deore M4100-10 / 11-46	Shimano Deore M6100-12 / 10-51	Shimano Deore M6100-12 / 10-51	Shimano Deore M5100-11 / 11-51	Shimano Deore M5100-11 / 11-51
Chain	KMC e10 EPT e-bike	Shimano M6100-12	Shimano M6100-12	KMC e11 Sport EPT e-bike	KMC e11 Sport EPT e-bike
Drivetrain	Shimano Deore M5120-11/10 SGS shadow+; KTM E-TRAIL ISIS 170mm Q16; chainring FSA steel 36T Direct Mount; Shimano Deore M4100-10; Shimano Deore M4100-10 / 11-46; KMC e10 EPT e-bike	Shimano Deore XT M8100-12 SGS shadow+; KTM E-TRAIL ISIS 170mm Q16; chainring FSA Megatooth steel 36T 12speed Direct Mount; Shimano Deore M6100-12 display; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	Shimano Deore XT M8100-12 SGS shadow+; KTM E-TRAIL ISIS 170mm Q16; chainring FSA Megatooth steel 36T 12speed Direct Mount; Shimano Deore M6100-12 display; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	Shimano Deore M5100-11 SGS shadow+; KTM E-TRAIL ISIS 170mm Q16; chainring FSA steel 36T Direct Mount; Shimano Deore M5100-11; Shimano Deore M5100-11 / 11-51; KMC e11 Sport EPT e-bike	Shimano Deore M5100-11 SGS shadow+; KTM E-TRAIL ISIS 170mm Q16; chainring FSA steel 36T Direct Mount; Shimano Deore M5100-11; Shimano Deore M5100-11 / 11-51; KMC e11 Sport EPT e-bike
Wheels	Ambrosio E30 Trail 32H 584x30TC (KTM Line, Shimano MT410B front / MT400B rear hubs, DT spokes)	Ambrosio E30 Trail 32H 584x30TC (KTM Line, Shimano MT410B CL hubs, DT spokes)	Ambrosio E30 Trail 32H 584x30TC (KTM Line, Shimano MT410B CL hubs, DT spokes)	Ambrosio E30 Trail 32H 584x30TC (KTM Line, Shimano MT410B front / MT400B rear hubs, DT spokes)	Ambrosio E30 Trail 32H 584x30TC (KTM Line, Shimano MT410B front / MT400B rear hubs, DT spokes)
Tyres	Schwalbe Nobby Nic Perf. Folding 65-584 (front and rear) · all trims
Weight	24.7 kg	26.6 kg	26.2 kg	26.6 kg	26.3 kg
Price	€3,499	€5,799	€5,799	€5,299	€5,299
