KTM

Macina Lycan 2022

Discontinued✎Full Power · TrailLegacy · 1/10iFreshness 1/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Do-everything alloy all-mountain bike on smaller, playful wheels

Motor

Bosch Performance Line CX Gen 4 · 85Nm · 600W↗

Battery

Bosch PowerTube 750 · 750Wh

Travel F/R

140/140mm

Wheels

27.5F / 27.5R✎

Frame

Aluminium✎

Weight

24.9 kg

Price

From €4,699

View the KTM Macina Lycan on KTM’s site

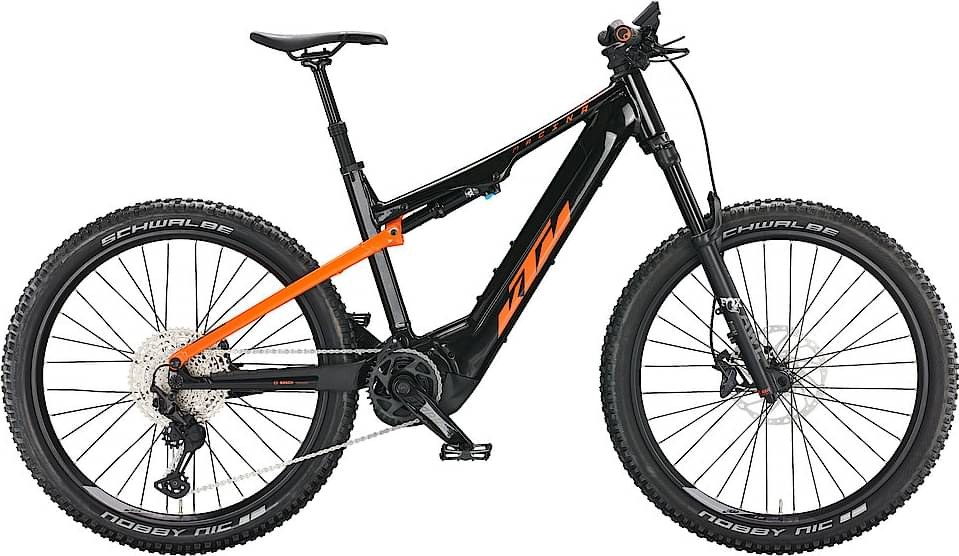

KTM Macina Lycan 2022

The 2022 KTM Macina Lycan is a rare all-mountain eMTB that stuck with 27.5in wheels while most of the market chased 29ers. On KTM's Straight-Line-Link (SLL-E) frame with 140mm of travel front and rear, it aims to be the playful, chuckable counterpoint to the 29in Macina Chacana trail bikes and the longer, more aggressive Macina Kapoho enduro platform.All six 2022 builds run the Bosch Performance Line CX Gen 4 motor (85Nm). The 771 and 772 step up to the Bosch Smart System with a 750Wh PowerTube and the top-loading PTTL battery, while the value-focused 671 LTD keeps the older non-smart system and a 625Wh pack with a Purion display. Spec separates the trims cleanly: the 771 gets a FOX 34 fork, FOX DPS shock and SRAM DB8 brakes; the 772 and 671 LTD drop to a Suntour XCR 34 fork and RockShox Deluxe Select+ shock. The women's Glorious editions mirror the standard builds with a dedicated saddle and colourway.All builds are on the heavy side for the category at roughly 24.9 to 25.9kg, and the Schwalbe Nobby Nic Performance tyres are a fair-weather choice rather than an aggressive all-mountain pairing. Geometry is moderate by 2022 standards, with a 66 to 67 degree head angle and a consistent 450mm chainstay across every size.Now discontinued, the Lycan is worth considering used for riders who specifically want a nimble 27.5in Bosch eMTB with a big 750Wh battery on the 771 and 772. Pricing here is drawn from mainland-Europe RRP in euros, as no UK/GBP listing was available at source, so treat second-hand values accordingly.

EMTB Forums verdict

The 2022 KTM Macina Lycan is a rare all-mountain eMTB that stuck with 27.5in wheels while most of the market chased 29ers. On KTM's Straight-Line-Link (SLL-E) frame with 140mm of travel front and rear, it aims to be the playful, chuckable counterpoint to the 29in Macina Chacana trail bikes and the longer, more aggressive Macina Kapoho enduro platform.

All six 2022 builds run the Bosch Performance Line CX Gen 4 motor (85Nm). The 771 and 772 step up to the Bosch Smart System with a 750Wh PowerTube and the top-loading PTTL battery, while the value-focused 671 LTD keeps the older non-smart system and a 625Wh pack with a Purion display. Spec separates the trims cleanly: the 771 gets a FOX 34 fork, FOX DPS shock and SRAM DB8 brakes; the 772 and 671 LTD drop to a Suntour XCR 34 fork and RockShox Deluxe Select+ shock. The women's Glorious editions mirror the standard builds with a dedicated saddle and colourway.

All builds are on the heavy side for the category at roughly 24.9 to 25.9kg, and the Schwalbe Nobby Nic Performance tyres are a fair-weather choice rather than an aggressive all-mountain pairing. Geometry is moderate by 2022 standards, with a 66 to 67 degree head angle and a consistent 450mm chainstay across every size.

Now discontinued, the Lycan is worth considering used for riders who specifically want a nimble 27.5in Bosch eMTB with a big 750Wh battery on the 771 and 772. Pricing here is drawn from mainland-Europe RRP in euros, as no UK/GBP listing was available at source, so treat second-hand values accordingly.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Setting

Descending

A solid all-round descender (67° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance

Rear-long with a planted front in L (FC:RC 1.65) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Climbs well — a 74° seat keeps the front planted. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Trail bikes (from 271 bikes in the database)

Weight24.9 kg1.9 kg heavier than average

Battery750 Whabout average capacity

Motor torque85 Nm13 Nm below average

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

Flip-chip position

geometry changes with the chip

	S	MD	L	XL
Reach	400 mm	419 mm	438 mm	465 mm
Stack	595 mm	598 mm	603 mm	614 mm
Seattube	400 mm	430 mm	450 mm	480 mm
Chainstay	450 mm	450 mm	450 mm	450 mm
Headtube Angle	66°	67°	67°	67°
Seattube Angle (eff)	74°	74°	74°	74°
Wheelbase	1150 mm	1164 mm	1185 mm	1217 mm
Headtube	120 mm	120 mm	125 mm	137 mm
BB Height	340 mm	340 mm	340 mm	340 mm
Standover	767 mm	766 mm	770 mm	773 mm
Front Centre	700 mm*	714 mm*	735 mm*	767 mm*
FC:RC	1.56	1.59	1.63	1.70

Trims · 6

	671 LTD €4,699	671 LTD Glorious €4,699	771 €5,599	771 Glorious €5,599	772 €4,999	772 Glorious €4,999
Motor	Bosch Performance Line CX Gen 4 · 85 Nm · all trims
Battery	Bosch PowerTube 750 · 750 Wh · all trims
Travel F/R	140/140 mm · all trims
Frame	Aluminum · all trims
Fork	Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper	Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper	FOX 34 Float AWL 27.5" e-bike 140mm	FOX 34 Float AWL 27.5" e-bike 140mm	Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper	Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper
Shock	RockShox Deluxe Select+ 230x62.5	RockShox Deluxe Select+ 230x62.5	FOX Float DPS Performance 230x62.5	FOX Float DPS Performance 230x62.5	RockShox Deluxe Select+ 230x62.5	RockShox Deluxe Select+ 230x62.5
Headset	KTM Team MTB 1.1/8"-1.5" angle limit	KTM Team MTB 1.1/8"-1.5" angle limit	Acros AICR internal 1.1/8>1.5" angle limit	Acros AICR internal 1.1/8>1.5" angle limit	Acros AICR internal 1.1/8>1.5" angle limit	Acros AICR internal 1.1/8>1.5" angle limit
Stem	KTM Comp 7°	KTM Comp 7°	KTM Team Trail35	KTM Team Trail35	KTM Team Trail35	KTM Team Trail35
Handlebar	KTM Comp rizer25 740mm	KTM Comp rizer25 740mm	KTM Comp Trail35 rizer15 760mm	KTM Comp Trail35 rizer15 760mm	KTM Comp Trail35 rizer15 760mm	KTM Comp Trail35 rizer15 760mm
Grips	KTM Comp Lock	KTM Comp Lock	Ergon GE10 Evo ergonomic	Ergon GE10 Evo ergonomic	KTM Comp Lock	KTM Comp Lock
Saddle	KTM Line Sport	KTM Line Sport	Selle San Marco RND Manganese Rails	Selle Italia X3 XP Lady (women's-specific)	KTM Line Sport	KTM Line Sport
Seatpost	KTM Comp 30.9/400	KTM Comp 30.9/400	KTM Comp dropper internal	KTM Comp dropper internal	KTM Comp 30.9/400	KTM Comp 30.9/400
Brakes	Shimano M4100 / MT420 4-Piston, Shimano RT64 CL 203 / EM600 CL 180 rotors	Shimano M4100 / MT420 4-Piston, Shimano RT64 CL 203 / EM600 CL 180 rotors	SRAM DB8 4-Piston, SRAM Centerline CL 203 / 180 rotors	SRAM DB8 4-Piston, SRAM Centerline CL 203 / 180 rotors	Shimano M4100 / MT420 4-Piston, Shimano RT64 CL 203 / EM600 CL 180 rotors	Shimano M4100 / MT420 4-Piston, Shimano RT64 CL 203 / EM600 CL 180 rotors
Rear derailleur	Shimano Deore M5100-11 SGS shadow+	Shimano Deore M5100-11 SGS shadow+	Shimano Deore XT M8100-12 SGS shadow+	Shimano Deore XT M8100-12 SGS shadow+	Shimano Deore M5100-11 SGS shadow+	Shimano Deore M5100-11 SGS shadow+
Crank	KTM TRAIL ISIS 170mm Q16 · all trims
Shifters	Shimano Deore M5100-11	Shimano Deore M5100-11	Shimano Deore M6100-12	Shimano Deore M6100-12	Shimano Deore M5100-11	Shimano Deore M5100-11
Cassette	Shimano Deore M5100-11 / 11-51	Shimano Deore M5100-11 / 11-51	Shimano Deore M6100-12 / 10-51	Shimano Deore M6100-12 / 10-51	Shimano Deore M5100-11 / 11-51	Shimano Deore M5100-11 / 11-51
Chain	KMC e11 Sport EPT e-bike	KMC e11 Sport EPT e-bike	Shimano M6100-12	Shimano M6100-12	KMC e11 Sport EPT e-bike	KMC e11 Sport EPT e-bike
Drivetrain	Shimano Deore M5100-11 SGS shadow+; KTM TRAIL ISIS 170mm Q16; Shimano Deore M5100-11; Shimano Deore M5100-11 / 11-51; KMC e11 Sport EPT e-bike	Shimano Deore M5100-11 SGS shadow+; KTM TRAIL ISIS 170mm Q16; Shimano Deore M5100-11; Shimano Deore M5100-11 / 11-51; KMC e11 Sport EPT e-bike	Shimano Deore XT M8100-12 SGS shadow+; KTM TRAIL ISIS 170mm Q16; Shimano Deore M6100-12; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	Shimano Deore XT M8100-12 SGS shadow+; KTM TRAIL ISIS 170mm Q16; Shimano Deore M6100-12; Shimano Deore M6100-12 / 10-51; Shimano M6100-12	Shimano Deore M5100-11 SGS shadow+; KTM TRAIL ISIS 170mm Q16; Shimano Deore M5100-11; Shimano Deore M5100-11 / 11-51; KMC e11 Sport EPT e-bike	Shimano Deore M5100-11 SGS shadow+; KTM TRAIL ISIS 170mm Q16; Shimano Deore M5100-11; Shimano Deore M5100-11 / 11-51; KMC e11 Sport EPT e-bike
Wheels	KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black · all trims
Tyres	Schwalbe Nobby Nic Perf. Folding 65-584 (front and rear) · all trims
Weight	24.9 kg	24.9 kg	25.9 kg	25.9 kg	25.7 kg	25.7 kg
Price	€4,699	€4,699	€5,599	€5,599	€4,999	€4,999
