Descending
96
Slack 63.5° head angle, 180mm travel and a long 1305mm wheelbase — composed in the chunk, confident when it gets steep, and stable through fast corners.
Haibike
Nduro 2022
Discontinued✎Full Power · GravityLegacy · 0.5/10iFreshness 0.5/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Heavy-hitting 180mm alloy enduro on punchy Yamaha power
Motor
Yamaha PW-X3 · 85Nm · 500W↗
Battery
Yamaha InTube 630Wh
Travel F/R
180/180mm
Wheels
MX (29F / 27.5R)✎
Frame
Aluminium✎
Weight
—
Price
From £4,899
From £4,899
EMTB Forums verdict

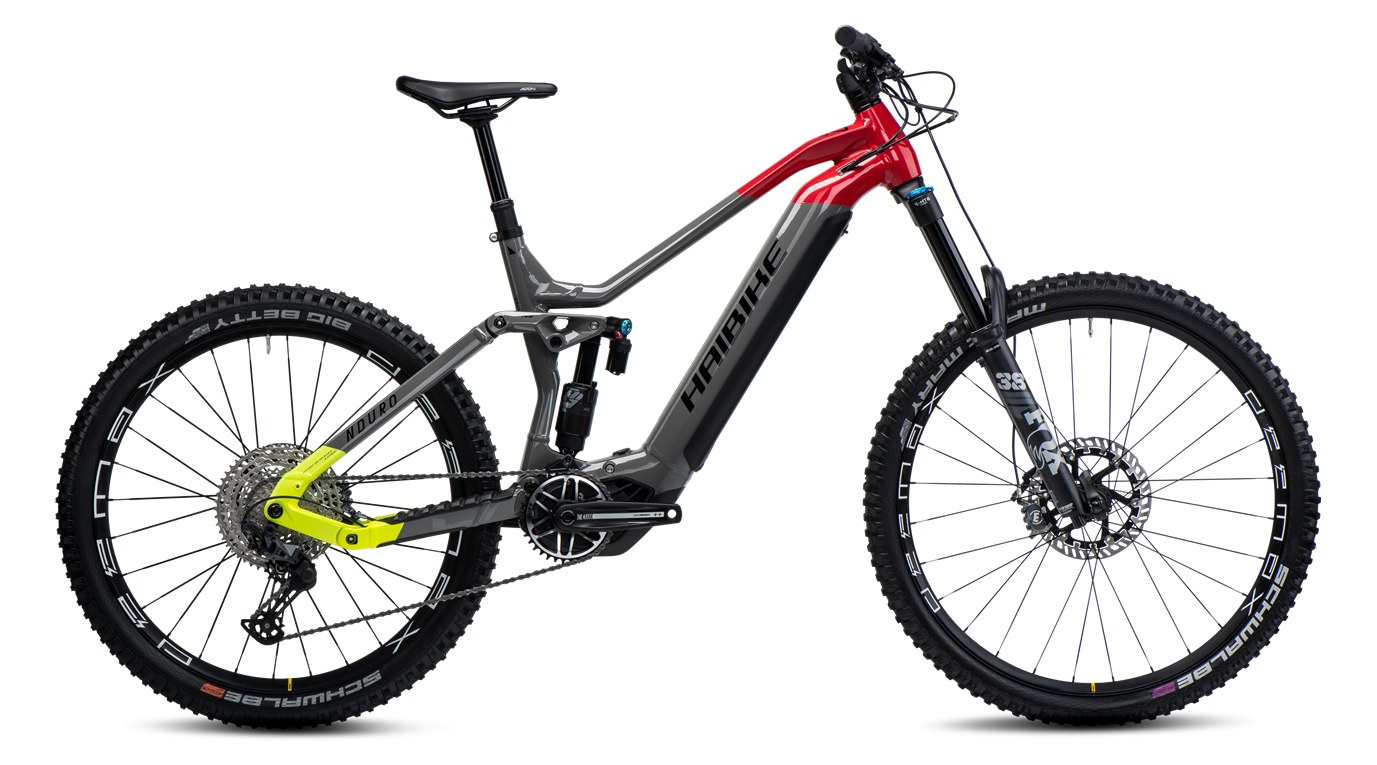

The Haibike Nduro (2022) is a gravity-focused enduro and freeride eMTB built on a new aluminium frame with a four-bar linkage, 180mm of travel front and rear and a mullet wheel setup running a 29in front wheel and a 27.5in rear. Power comes from Yamaha's compact PW-X3 motor rated at 85Nm, fed by an in-tube battery of 630Wh on the Nduro 6 and 750Wh on the Nduro 7 and Nduro 8 Freeride. This model has been discontinued, so there is no long-term owner data to draw on here.
The range spans three builds. The Nduro 6 is the value entry point at 4,899 pounds, with a RockShox Domain R fork, Super Deluxe Select shock, two-piston TRP Slate brakes and a SRAM SX Eagle 12-speed drivetrain. The Nduro 7 steps up to 5,599 pounds with a Fox Performance 38 fork, Fox Float X2 shock, four-piston Magura MT7 brakes, a Shimano SLX drivetrain and Mavic E-Deemax wheels. The Nduro 8 Freeride tops the range at 6,699 pounds with premium Öhlins DH38 M.1 fork and TTX 22 M coil shock, Magura MT7 brakes on a 220mm front rotor, a SRAM GX Eagle drivetrain and a Raceface cockpit.
Geometry is firmly descent-biased across the four frame sizes: a slack 63.5 degree head angle, reach growing from 425mm on the S to 510mm on the XL, a tall stack, a consistent 460mm chainstay and wheelbases from 1,245mm to 1,339mm. That points the Nduro squarely at steep, technical descents, bike park laps and long-travel freeride use while the Yamaha motor handles the climb back up.
Geometry read
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
Size
Playfulness
10
More planted than poppy — better on steep terrain than tight, fiddly singletrack.
Size balance
87
Balanced front-to-rear in L (FC:RC 1.84) — weight sits evenly between the wheels.
Technical climbing
57
Climbs well — a 75° seat keeps the front planted. 500W of peak power and 85Nm of torque — a strong full-power motor.
Rewards commitment; it should feel calmer as the speed rises.
Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.
How it stacks up vs other Full Power · Gravity bikes (from 135 bikes in the database)
Battery630 Wh79 Wh below average
Motor torque85 Nm16 Nm below average
Value for money75/100from £4,899 · comparable bikes ~£5,889
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
💬 Forum discussion
Haibike Flyon Xduro Nduro 8.0 battery Charge
27 replies · 5.9k views · last reply 32 months ago
Join the discussion →
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Stack | 644 mm | 644 mm | 653 mm | 662 mm |
| Chainstay | 460 mm | 460 mm | 460 mm | 460 mm |
| Headtube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Seattube Angle (eff) | 75° | 75° | 75° | 75° |
| Wheelbase | 1245 mm | 1275 mm | 1305 mm | 1339 mm |
| Headtube | 120 mm | 120 mm | 130 mm | 140 mm |
| BB Height | 369 mm | 369 mm | 369 mm | 369 mm |
| Front Centre | 785 mm* | 815 mm* | 845 mm* | 879 mm* |
| FC:RC | 1.71 | 1.77 | 1.84 | 1.91 |
Trims · 3
6 £4,899 | 7 £5,599 | 8 £6,699 | |
|---|---|---|---|
| Motor | Yamaha PW-X3 · 85 Nm · all trims | ||
| Battery | Yamaha InTube 630Wh · 630 Wh · all trims | ||
| Travel F/R | 180/180 mm · all trims | ||
| Frame | Aluminium · all trims | ||
| Fork | RockShox Domain R, Air, 180 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost | FOX Performance 38, Air, 180 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost | Öhlins DH38 M.1, Air, 180 mm travel, Aluminium steerer tube 1 1/8", 20 x 110mm thru-axle |
| Shock | RockShox Super Deluxe Select, Air, Trunnion | FOX Performance Float X2, Air, Trunnion Mount | Öhlins TTX 22 M, Steel spring, Trunnion |
| Headset | Acros BlockLock, Aluminium | Acros BlockLock, Aluminium | Feimin A-Head Alloy 1 1/8", Cartridge |
| Stem | Haibike Components TheStem 2, A-head, 31.8 mm | Haibike Components TheStem 2, A-head, 31.8 mm | Raceface Chester 35, Direct mount, 35.0 mm |
| Handlebar | Haibike Components TheBar +++, 780 mm | Haibike Components TheBar +++, 780 mm | Raceface Atlas Alu, 820 mm |
| Grips | Haibike MTB grips | Haibike MTB grips | Raceface Half Nelson |
| Saddle | Selle Royal Vivo | fi'zi:k Terra Aidon X5-160 | fi'zi:k Terra Aidon X5-160 |
| Seatpost | Haibike Components Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm · all trims | ||
| Brakes | TRP Slate G-Spec, 2-piston disc brake (front and rear) | Magura MT7, 4-piston disc brake (front and rear) | Magura MT7, 4-piston disc brake (front and rear) |
| Rear derailleur | Sram SX Eagle | Shimano SLX M7100 | Sram GX Eagle |
| Crank | Haibike Components The Crank ++, Aluminium, 38 teeth | Haibike Components The Crank +++, Aluminium, 36 teeth | Haibike Components The Crank +++, Aluminium, 38 teeth |
| Shifters | Sram SX Eagle, Trigger switch | Shimano Deore SLX M7100 | Sram GX Eagle, Trigger switch |
| Cassette | Sram Eagle PG1230, 11 - 50 teeth | Shimano M6100, 10 - 51 teeth | Sram GX 1275 Eagle, 10 - 50 teeth |
| Chain | Sram SX Eagle | Shimano CN-M6100 | Sram GX Eagle |
| Drivetrain | Sram SX Eagle; Haibike Components The Crank ++, Aluminium, 38 teeth; Sram SX Eagle, Trigger switch; Sram Eagle PG1230, 11 - 50 teeth; Sram SX Eagle | Shimano SLX M7100; Haibike Components The Crank +++, Aluminium, 36 teeth; Shimano Deore SLX M7100; Shimano M6100, 10 - 51 teeth; Shimano CN-M6100 | Sram GX Eagle; Haibike Components The Crank +++, Aluminium, 38 teeth; Sram GX Eagle, Trigger switch; Sram GX 1275 Eagle, 10 - 50 teeth; Sram GX Eagle |
| Wheels | WTB ST i30 TCS Double Wall (front), WTB ST i35 TCS Double Wall (rear) | Mavic E-Deemax wheelset | Mavic E-Deemax wheelset |
| Tyres | Schwalbe Magic Mary Evo TLE 29 x 2.4 (front), Schwalbe Big Betty 27.5 x 2.6 (rear) | Schwalbe Magic Mary Evo TLE 29 x 2.4 (front), Schwalbe Big Betty Evo Gravity 27.5 x 2.6 (rear) | Schwalbe Magic Mary Evo TLE 29 x 2.4 (front), Schwalbe Big Betty Evo Gravity 27.5 x 2.6 (rear) |
| Price | £4,899 | £5,599 | £6,699 |
