Haibike

AllTrail 2022

Discontinued✎Full Power · Cross-CountryLegacy · 0.5/10iFreshness 0.5/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Easygoing alloy trail bike with punchy Yamaha assist

Motor

Yamaha PW-X3 · 85Nm · 500W↗

Battery

Yamaha InTube · 720Wh

Travel F/R

140/120mm

Wheels

29F / 29R✎

Frame

Aluminium✎

Weight

27.5 kg

Price

From €4,399

View the Haibike AllTrail on Haibike’s site

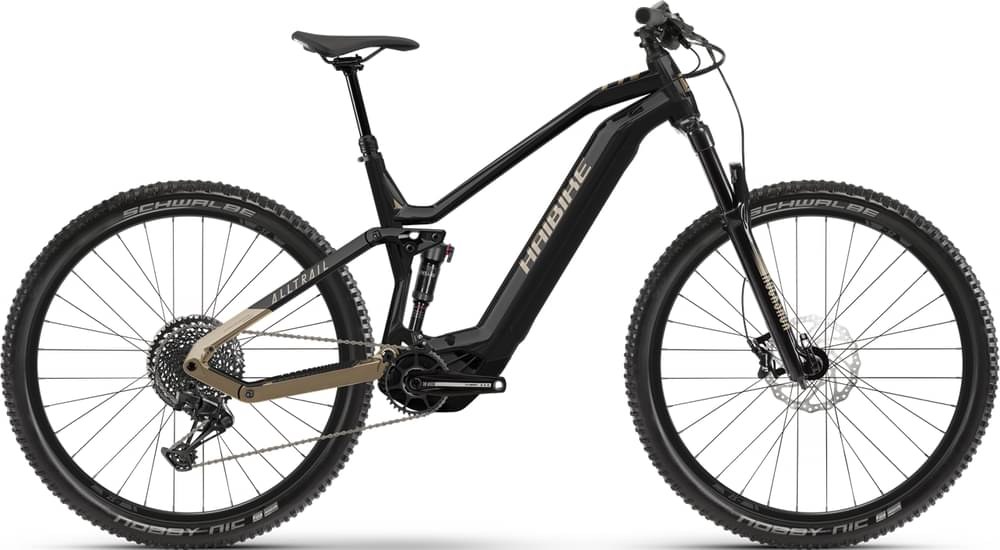

Haibike AllTrail 2022

The 2022 Haibike AllTrail is the German brand's mainstream full-suspension trail eMTB, and it is firmly a mountain bike rather than the trekking or SUV crossover the name might suggest. Every trim runs an aluminium frame with knobby Schwalbe rubber, a proper suspension fork and a rear shock. The 29in builds get 140mm front and 120mm rear travel, while the 27.5in builds are pitched slightly more gravity-orientated with 140mm up front and 150mm at the rear.Power comes from one of two camps. The volume trims (AllTrail 4, 5 and 6) use Yamaha's torquey but modest PW-ST unit (70Nm) with a 630Wh InTube pack, the AllTrail 7 and 9 step up to the punchier Yamaha PW-X3 (85Nm) with a 630 to 720Wh battery, and the AllTrail 8 swaps in Bosch's Performance Line CX (Gen 4, 85Nm) fed by a 625Wh PowerTube. Geometry is deliberately middle of the road: a 65 degree head angle and 75 degree seat angle on the 7/8/9 frames give balanced, intuitive handling rather than slack enduro aggression, and the AllTrail 4 sits even more upright at 66.5 degrees.Componentry is honest rather than flashy. Drivetrains run SRAM SX or NX Eagle or Shimano Deore, braking comes from TRP, Shimano or Tektro four-piston stoppers, and finishing kit is mostly Haibike's own house brand. At a claimed 27.5 to 28kg these are not light bikes, and reviewers consistently flag the mid-tier RockShox 35 chassis and average range as the main compromises. As a discontinued 2022 model it now appeals mainly as a value used buy: a dependable, do-it-all trail eMTB for tours and moderate singletrack rather than a bike park weapon.

EMTB Forums verdict

The 2022 Haibike AllTrail is the German brand's mainstream full-suspension trail eMTB, and it is firmly a mountain bike rather than the trekking or SUV crossover the name might suggest. Every trim runs an aluminium frame with knobby Schwalbe rubber, a proper suspension fork and a rear shock. The 29in builds get 140mm front and 120mm rear travel, while the 27.5in builds are pitched slightly more gravity-orientated with 140mm up front and 150mm at the rear.

Power comes from one of two camps. The volume trims (AllTrail 4, 5 and 6) use Yamaha's torquey but modest PW-ST unit (70Nm) with a 630Wh InTube pack, the AllTrail 7 and 9 step up to the punchier Yamaha PW-X3 (85Nm) with a 630 to 720Wh battery, and the AllTrail 8 swaps in Bosch's Performance Line CX (Gen 4, 85Nm) fed by a 625Wh PowerTube. Geometry is deliberately middle of the road: a 65 degree head angle and 75 degree seat angle on the 7/8/9 frames give balanced, intuitive handling rather than slack enduro aggression, and the AllTrail 4 sits even more upright at 66.5 degrees.

Componentry is honest rather than flashy. Drivetrains run SRAM SX or NX Eagle or Shimano Deore, braking comes from TRP, Shimano or Tektro four-piston stoppers, and finishing kit is mostly Haibike's own house brand. At a claimed 27.5 to 28kg these are not light bikes, and reviewers consistently flag the mid-tier RockShox 35 chassis and average range as the main compromises. As a discontinued 2022 model it now appeals mainly as a value used buy: a dependable, do-it-all trail eMTB for tours and moderate singletrack rather than a bike park weapon.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Setting

Descending

A solid all-round descender (66° head angle, 120mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Rear-long with a planted front in L (FC:RC 1.60) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Yamaha PW-X3 and a steep 75° seat angle keep the weight planted over the front — a proper winch. 500W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNot a flickable, playful bike at 27.5kg — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Cross-Country bikes (from 130 bikes in the database)

Weight27.5 kg3.8 kg heavier than average

Battery720 Whabout average capacity

Motor torque85 Nmabout average torque

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

Flip-chip position

geometry changes with the chip

	M	L	XL
Reach	420 mm	440 mm	470 mm
Stack	635 mm	649 mm	662 mm
Chainstay	477 mm	477 mm	477 mm
Headtube Angle	66°	66°	66°
Seattube Angle (eff)	75°	75°	75°
Wheelbase	1213 mm	1240 mm	1275 mm
Headtube	130 mm	145 mm	160 mm
BB Height	344 mm	344 mm	344 mm
Front Centre	736 mm*	763 mm*	798 mm*
FC:RC	1.54	1.60	1.67

Trims · 12

	AllTrail 4 27.5 €4,399	AllTrail 4 29 €4,399	AllTrail 5 27.5 €4,599	AllTrail 5 29 €4,499	AllTrail 6 27.5 €4,799	AllTrail 6 29 €4,699	AllTrail 7 27.5 €5,299	AllTrail 7 29 €5,299	AllTrail 8 27.5 €4,999	AllTrail 8 29 €4,999	AllTrail 9 27.5 €5,199	AllTrail 9 29 €5,199
Motor	Yamaha PW-ST · 85 Nm	Yamaha PW-ST · 85 Nm	Yamaha PW-ST · 85 Nm	Yamaha PW-ST · 85 Nm	Yamaha PW-ST · 85 Nm	Yamaha PW-ST · 85 Nm	Yamaha PW-X3 · 85 Nm	Yamaha PW-X3 · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm	Yamaha PW-X3 · 85 Nm	Yamaha PW-X3 · 85 Nm
Battery	Yamaha InTube · 720 Wh · all trims
Travel F/R	140/120 mm · all trims
Frame	Aluminium · all trims
Fork	SR Suntour, Air, 140mm travel	SR Suntour, Air, 120mm travel	RockShox 35 Silver, Air, 140mm travel	RockShox 35 Silver, Air, 120mm travel	RockShox 35 Silver, Air, 140mm travel	RockShox 35 Silver, Air, 120mm travel	RockShox 35 Gold RL, Air, 140mm travel	RockShox 35 Gold RL, Air, 140mm travel, tapered, 15x110 Boost	RockShox 35 Silver, Air, 150mm travel	RockShox 35 Silver, Air, 140mm travel, tapered, 15x110 Boost	RockShox 35 Gold RL, Air, 140mm travel	RockShox 35 Gold RL, Air, 140mm travel
Shock	RockShox Deluxe Select, Air, 150mm	RockShox Deluxe Select, Air, 120mm	RockShox Deluxe Select Plus, Air, 150mm	RockShox Deluxe Select Plus, Air, 120mm	RockShox Deluxe Select Plus, Air, 150mm	RockShox Deluxe Select Plus, Air, 120mm	RockShox Deluxe Select Plus, Air, Trunnion, 150mm	RockShox Deluxe Select Plus, Air, 120mm	RockShox Deluxe Select, Air, Trunnion, 150mm	RockShox Super Deluxe Select Plus, Air, Trunnion, 120mm	RockShox Deluxe Select Plus, Air, Trunnion, 150mm	RockShox Deluxe Select Plus, Air, Trunnion, 120mm
Headset	Aluminium, tapered	Aluminium, tapered	Aluminium, tapered	Aluminium, tapered	Aluminium, tapered	Aluminium, tapered	Acros BlockLock, aluminium	Acros BlockLock, aluminium	Feimin A-Head, alloy tapered, cartridge	Feimin A-Head, alloy tapered, cartridge	Acros BlockLock, aluminium	Acros BlockLock, aluminium
Stem	Haibike Components TheStem, 31.8mm	Haibike Components TheStem, 31.8mm	Haibike Components TheStem, 31.8mm	Haibike Components TheStem, 31.8mm	Haibike Components TheStem, 31.8mm	Haibike Components TheStem, 31.8mm	Haibike Components TheStem ++, A-head, 31.8mm, 7 degrees	Haibike Components TheStem ++, A-head, 31.8mm, 7 degrees	Haibike Components TheStem ++, 31.8mm, 7 degrees	Haibike Components TheStem ++, 31.8mm, 7 degrees	Haibike Components TheStem ++, 31.8mm, 7 degrees	Haibike Components TheStem ++, 31.8mm, 7 degrees
Handlebar	Haibike Components TheBar, 780mm · all trims
Grips	Haibike MTB grips · all trims
Saddle	Selle Royal	Selle Royal	Selle Royal	Selle Royal	Selle Royal	Selle Royal	Selle Royal Vivo	Selle Royal Vivo	XLC MTB	XLC MTB	Selle Royal Vivo	Selle Royal Vivo
Seatpost	Haibike Dropper-Post Remote, aluminium telescopic	Haibike Dropper-Post Remote, aluminium telescopic	Haibike Dropper-Post Remote, aluminium telescopic	Haibike Dropper-Post Remote, aluminium telescopic	Haibike Dropper-Post Remote, aluminium telescopic	Haibike Dropper-Post Remote, aluminium telescopic	Haibike Components Dropper-Post Remote 34.9, aluminium telescopic, 34.9mm	Haibike Components Dropper-Post Remote 34.9, aluminium telescopic, 34.9mm	Haibike Dropper-Post Remote, aluminium telescopic, 31.6mm	Haibike Dropper-Post Remote, aluminium telescopic, 31.6mm	Haibike Components Dropper-Post Remote, aluminium telescopic, 34.9mm	Haibike Components Dropper-Post Remote, aluminium telescopic, 34.9mm
Brakes	Shimano hydraulic disc	Shimano hydraulic disc	Tektro Orion M745, 4-piston hydraulic disc	Tektro Orion M745, 4-piston hydraulic disc	Hydraulic disc	Hydraulic disc	TRP Slate T4, hydraulic disc	TRP Slate T4, hydraulic disc, 203/203mm	Shimano MT420, 4-piston hydraulic disc	Shimano MT420, 4-piston hydraulic disc, 200/200mm	Shimano MT420, 4-piston hydraulic disc	Shimano MT420, 4-piston hydraulic disc
Rear derailleur	Shimano Deore 1x12	Shimano Deore 1x12	Shimano Deore 1x12	Shimano Deore 1x12	SRAM SX Eagle 1x12	SRAM SX Eagle 1x12	SRAM SX Eagle 1x12	SRAM SX Eagle 1x12	SRAM SX Eagle 1x12	SRAM SX Eagle 1x12	SRAM NX Eagle 1x12	SRAM NX Eagle 1x12
Crank	Haibike Components, aluminium (38t chainring)	Haibike Components, aluminium (38t chainring)	Haibike Components, aluminium (38t chainring)	Haibike Components, aluminium (38t chainring)	Haibike Components, aluminium (38t chainring)	Haibike Components, aluminium (38t chainring)	Haibike Components TheCrank ++, aluminium (SRAM 38t chainring)	Haibike Components TheCrank ++, aluminium (SRAM 38t chainring)	Haibike Components TheCrank ++, aluminium (38t chainring)	Haibike Components TheCrank ++, aluminium (38t chainring)	Haibike Components TheCrank ++, aluminium (38t chainring)	Haibike Components TheCrank ++, aluminium (38t chainring)
Shifters	Shimano Deore trigger	Shimano Deore trigger	Shimano Deore trigger	Shimano Deore trigger	SRAM SX Eagle trigger	SRAM SX Eagle trigger	SRAM SX Eagle trigger	SRAM SX Eagle trigger	SRAM SX Eagle trigger	SRAM SX Eagle trigger	SRAM NX Eagle trigger	SRAM NX Eagle trigger
Cassette	Shimano Deore, 10-51t	Shimano Deore, 10-51t	Shimano Deore, 10-51t	Shimano Deore, 10-51t	SRAM Eagle PG1210, 11-50t	SRAM Eagle PG1210, 11-50t	SRAM Eagle PG1210, 11-50t	SRAM Eagle PG1210, 11-50t	SRAM Eagle PG1210, 11-50t	SRAM Eagle PG1210, 11-50t	SRAM Eagle PG1210, 11-50t	SRAM Eagle PG1210, 11-50t
Chain	Shimano	Shimano	Shimano	Shimano	SRAM SX Eagle	SRAM SX Eagle	SRAM SX Eagle	SRAM SX Eagle	SRAM SX Eagle	SRAM SX Eagle	SRAM SX Eagle	SRAM SX Eagle
Drivetrain	Shimano Deore 1x12; Haibike Components, aluminium (38t chainring); Shimano Deore trigger; Shimano Deore, 10-51t; Shimano	Shimano Deore 1x12; Haibike Components, aluminium (38t chainring); Shimano Deore trigger; Shimano Deore, 10-51t; Shimano	Shimano Deore 1x12; Haibike Components, aluminium (38t chainring); Shimano Deore trigger; Shimano Deore, 10-51t; Shimano	Shimano Deore 1x12; Haibike Components, aluminium (38t chainring); Shimano Deore trigger; Shimano Deore, 10-51t; Shimano	SRAM SX Eagle 1x12; Haibike Components, aluminium (38t chainring); SRAM SX Eagle trigger; SRAM Eagle PG1210, 11-50t; SRAM SX Eagle	SRAM SX Eagle 1x12; Haibike Components, aluminium (38t chainring); SRAM SX Eagle trigger; SRAM Eagle PG1210, 11-50t; SRAM SX Eagle	SRAM SX Eagle 1x12; Haibike Components TheCrank ++, aluminium (SRAM 38t chainring); SRAM SX Eagle trigger; SRAM Eagle PG1210, 11-50t; SRAM SX Eagle	SRAM SX Eagle 1x12; Haibike Components TheCrank ++, aluminium (SRAM 38t chainring); SRAM SX Eagle trigger; SRAM Eagle PG1210, 11-50t; SRAM SX Eagle	SRAM SX Eagle 1x12; Haibike Components TheCrank ++, aluminium (38t chainring); SRAM SX Eagle trigger; SRAM Eagle PG1210, 11-50t; SRAM SX Eagle	SRAM SX Eagle 1x12; Haibike Components TheCrank ++, aluminium (38t chainring); SRAM SX Eagle trigger; SRAM Eagle PG1210, 11-50t; SRAM SX Eagle	SRAM NX Eagle 1x12; Haibike Components TheCrank ++, aluminium (38t chainring); SRAM NX Eagle trigger; SRAM Eagle PG1210, 11-50t; SRAM SX Eagle	SRAM NX Eagle 1x12; Haibike Components TheCrank ++, aluminium (38t chainring); SRAM NX Eagle trigger; SRAM Eagle PG1210, 11-50t; SRAM SX Eagle
Wheels	Double-wall aluminium	Double-wall aluminium	Double-wall aluminium	Double-wall aluminium	Double-wall aluminium	Double-wall aluminium	WTB ST i35 TCS, double wall	WTB ST i30 TCS, double wall	Rodi Tryp 30, eyeleted, double-wall aluminium	Rodi Tryp 30, eyeleted, double-wall aluminium	WTB ST i35 TCS, double wall	WTB ST i30 TCS, double wall
Tyres	Schwalbe, 27.5 x 2.6in	Schwalbe, 29 x 2.6in	Schwalbe, 27.5 x 2.6in	Schwalbe, 29 x 2.6in	Schwalbe, 27.5 x 2.6in	Schwalbe, 29 x 2.6in	Schwalbe Nobby Nic Evo SuperTrail, 65-584, 27.5 x 2.6in (f&r)	Schwalbe Nobby Nic Evo SuperTrail, 65-622, 29 x 2.6in (f&r)	Schwalbe Magic Mary Evo TLE, 65-584, 27.5 x 2.6in	front Schwalbe Magic Mary Evo TLE 29 x 2.6in; rear Schwalbe Hans Dampf Evo TLE 29 x 2.6in	Schwalbe Magic Mary Evo TLE, 65-584, 27.5 x 2.6in	Schwalbe Magic Mary Evo TLE, 65-622, 29 x 2.6in
Weight	27.5 kg	27.5 kg	—	—	—	—	27.5 kg	28 kg	28 kg	28 kg	28 kg	28 kg
Price	€4,399	€4,399	€4,599	€4,499	€4,799	€4,699	€5,299	€5,299	€4,999	€4,999	€5,199	€5,199
