ECA 2024
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

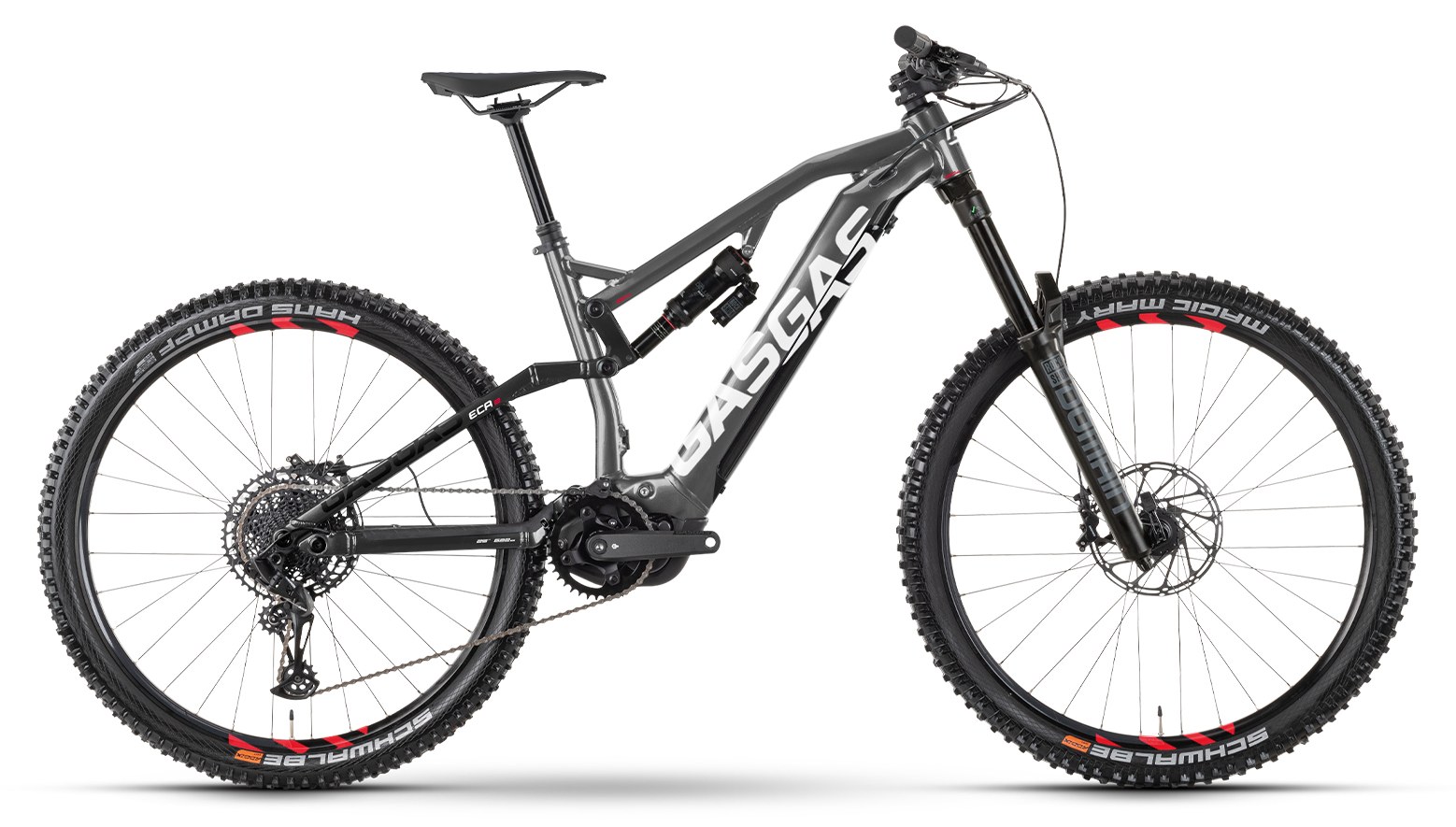

The GasGas ECA 2 is the middle rung of GasGas's aluminium enduro e-bike range. In the US line-up it sits between the cheaper ECA 1 (Yamaha PW-S2 75 Nm motor, RockShox Deluxe Select shock) and the Fox Factory-suspended ECA 3, sharing the same alloy 6061 frame, 170mm front / 160mm rear travel, full 29in wheels and the Yamaha PW-X3 motor (85 Nm) drawing on a 720 Wh Simplo battery. In the UK catalogue this same build (Domain R fork, Super Deluxe Select shock, PW-X3) is sold as the ECA 1 at GBP 4,199, with the Fox-equipped model labelled ECA 3.
For the money the ECA 2 leans on dependable rather than flashy parts: a RockShox Domain R fork and Super Deluxe Select shock, SRAM DB8 four-piston brakes on 200mm rotors front and rear, and a Shimano Deore 10-speed drivetrain with an 11-43 cassette. It is a workhorse spec aimed at bike-park laps and rough descents rather than weight saving, reflected in the 25.5 kg claimed weight.
Geometry is firmly in enduro territory: a slack 64 degree head angle, 72 degree seat angle, 460mm chainstays across all sizes and reach growing from 445mm (S) to 485mm (L). The long wheelbase, up to 1285mm, points to stability on steep, fast terrain over low-speed agility.
The ECA 2 is a 2024 model and is no longer a current-year offering, with GasGas having since reshuffled the ECA range.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | |
|---|---|---|---|
| Reach | 445 mm | 460 mm | 485 mm |
| Stack | 620 mm | 625 mm | 629 mm |
| Seattube | 410 mm | 440 mm | 460 mm |
| Chainstay | 460 mm | 460 mm | 460 mm |
| Headtube Angle | 64° | 64° | 64° |
| Seattube Angle (eff) | 72° | 72° | 72° |
| Wheelbase | 1241 mm | 1258 mm | 1285 mm |
| Headtube | 100 mm | 105 mm | 110 mm |
| BB Height | 352.5 mm | 352.5 mm | 352.5 mm |
| Front Centre | 781 mm* | 798 mm* | 825 mm* |
Trims · 1
ECA 2 £4,199 | |
|---|---|
| Motor | Yamaha PW-X3 · 85 Nm |
| Battery | Simplo 720 · 720 Wh |
| Travel F/R | 170/160 mm |
| Frame | Aluminium |
| Fork | RockShox Domain R, DebonAir, Air, 170 mm, tapered |
| Shock | RockShox Super Deluxe Select, Air, 230x65 mm |
| Headset | FSA Orbit ZS56/ZS56 |
| Stem | GASGAS 35, 0 degrees, Ahead |
| Handlebar | GASGAS Riser 35 mm, 780 mm, sweep 9 degrees, rise 20 mm |
| Grips | GASGAS MTB, lock-on grips |
| Saddle | GASGAS MTB |
| Seatpost | GASGAS, 34.9 mm, dropper post |
| Brakes | SRAM DB8, 4-piston, hydraulic disc brake (front and rear) |
| Rear derailleur | Shimano Deore LG, RD-M5130, Shadow Plus, 10-speed |
| Crank | GASGAS EC40, aluminium forged, ISIS; GASGAS Narrow Wide 38 T chainring |
| Shifters | Shimano Deore, SL-M5130, Rapidfire Plus |
| Cassette | Shimano CS-LG400, 11-43 T |
| Chain | Shimano CN-LG500 |
| Drivetrain | Shimano Deore LG, RD-M5130, Shadow Plus, 10-speed; GASGAS EC40, aluminium forged, ISIS; GASGAS Narrow Wide 38 T chainring; Shimano Deore, SL-M5130, Rapidfire Plus; Shimano CS-LG400, 11-43 T; Shimano CN-LG500 |
| Wheels | Mach 1 TRUCKY 30, with eyelets, tubeless ready (GASGAS DA210F front / DA210R rear hubs) |
| Tyres | Continental Trail King, 60-622, 29 x 2.4, tubeless ready |
| Weight | 25.5 kg |
| Price | £4,199 |
