Focus

JAM2 2023

Discontinued✎Full Power · TrailLegacy · 1/10iFreshness 1/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Bosch Performance Line CX Gen 4 · 85Nm · 600W↗

Battery

Bosch PowerTube 750 · 750Wh

Travel F/R

160/150mm

Wheels

29F / 29R✎

Frame

Aluminium / Carbon front, aluminium rear

Weight

—

Price

From £4,899

View the Focus JAM2 on Focus’s site

Focus JAM2 2023

From £4,899

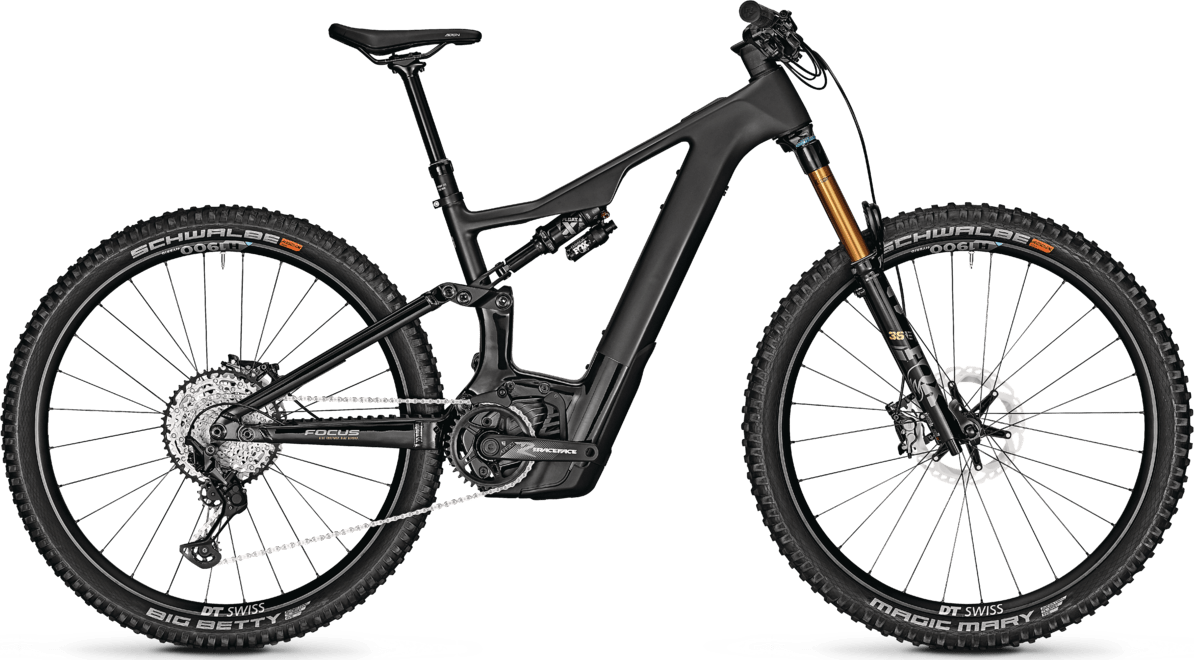

The 2023 JAM2 is Focus's full-power all-mountain e-MTB, built around the brand's F.O.L.D. GEN2 four-bar linkage giving 150 mm of rear travel paired to a 160 mm fork on 29in wheels. The Bosch range splits into a carbon 8. series (carbon front triangle, alloy rear) and an aluminium 6. series (7005 hydroformed alloy), both driven by the Bosch Performance Line CX (Gen 4) Smart System rated at 85 Nm, with a tool-free slide-out PowerTube battery of 750 Wh on most trims and 625 Wh on the entry 8.7 and 6.7.The seven-bike Bosch ladder uses Focus's reverse numbering, where a lower second digit marks a higher spec. It runs from the alloy 6.7 at 4,899 GBP on a DVO Diamond fork, Shimano Deore drivetrain and MT520 brakes, up through the 6.8, 6.9, carbon 8.7, 8.8 and 8.9, to the flagship 8.0 at 7,799 GBP. The 8.0 is the standout, swapping the standard CX for the limited, lighter Bosch Performance Line CX Race unit with its exclusive Race mode, plus a FOX 36 Factory fork, Float X shock and Shimano XT four-piston brakes.Geometry is contemporary trail-enduro: a 76.5 degree seat tube angle, a fixed 450 mm chainstay across all four sizes, and reach growing from 430 mm on the S to 515 mm on the XL. The head angle is adjustable through one degree by rotating the headset cups, from 65.5 degrees steep to 64.5 degrees slack, without altering the seat angle or bottom-bracket drop. There is no flip-chip or mullet option on the Bosch full-power bike; the FLIP CHIP geometry adjust belongs to the separate Shimano-powered JAM2 7. series.This generation is discontinued. Focus has since replaced it with a redesigned JAM2 that moved to a 600 or 800 Wh battery and the updated Bosch Performance Line CX Smart System (now offering a 120 Nm software update via the Bosch Flow app). As a broad, removable-battery spec ladder spanning alloy and carbon, the 2023 JAM2 remains a sensible used buy across all seven Bosch price points.

EMTB Forums verdict

The 2023 JAM2 is Focus's full-power all-mountain e-MTB, built around the brand's F.O.L.D. GEN2 four-bar linkage giving 150 mm of rear travel paired to a 160 mm fork on 29in wheels. The Bosch range splits into a carbon 8. series (carbon front triangle, alloy rear) and an aluminium 6. series (7005 hydroformed alloy), both driven by the Bosch Performance Line CX (Gen 4) Smart System rated at 85 Nm, with a tool-free slide-out PowerTube battery of 750 Wh on most trims and 625 Wh on the entry 8.7 and 6.7.

The seven-bike Bosch ladder uses Focus's reverse numbering, where a lower second digit marks a higher spec. It runs from the alloy 6.7 at 4,899 GBP on a DVO Diamond fork, Shimano Deore drivetrain and MT520 brakes, up through the 6.8, 6.9, carbon 8.7, 8.8 and 8.9, to the flagship 8.0 at 7,799 GBP. The 8.0 is the standout, swapping the standard CX for the limited, lighter Bosch Performance Line CX Race unit with its exclusive Race mode, plus a FOX 36 Factory fork, Float X shock and Shimano XT four-piston brakes.

Geometry is contemporary trail-enduro: a 76.5 degree seat tube angle, a fixed 450 mm chainstay across all four sizes, and reach growing from 430 mm on the S to 515 mm on the XL. The head angle is adjustable through one degree by rotating the headset cups, from 65.5 degrees steep to 64.5 degrees slack, without altering the seat angle or bottom-bracket drop. There is no flip-chip or mullet option on the Bosch full-power bike; the FLIP CHIP geometry adjust belongs to the separate Shimano-powered JAM2 7. series.

This generation is discontinued. Focus has since replaced it with a redesigned JAM2 that moved to a 600 or 800 Wh battery and the updated Bosch Performance Line CX Smart System (now offering a 120 Nm software update via the Bosch Flow app). As a broad, removable-battery spec ladder spanning alloy and carbon, the 2023 JAM2 remains a sensible used buy across all seven Bosch price points.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (64.5° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Balanced front-to-rear in L (FC:RC 1.83) — weight sits evenly between the wheels.

Technical climbing

Climbs well — a 76.5° seat keeps the front planted. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNot a flickable, playful bike — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Trail bikes (from 223 bikes in the database)

Battery750 Whabout average capacity

Motor torque85 Nm13 Nm below average

Value for money50/100from £4,899 · most Bosch Performance Line CX Gen 4 bikes ~£4,899

⚙️ Adjustable geometry: this frame has a high/low setting — low drops the BB and slackens the head angle for more descending stability; high lifts the BB and steepens slightly for clearance and a perkier, more playful feel.

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

💬 Forum discussion

Focus Jam2 LTD Charging problem

266 replies · 69.8k views · last reply 50 months ago

Join the discussion →

“Love the logo on the chainstay which says "Engineered in Germany". Maybe on the other chainstay it should say "With questionable Chinese components"”

— Peaky Rider · ♥ 3 · most-liked post

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	430 mm	460 mm	485 mm	515 mm
Stack	616 mm	616 mm	634 mm	652 mm
Seattube	390 mm	420 mm	440 mm	460 mm
Chainstay	450 mm	450 mm	450 mm	450 mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°
Seattube Angle (eff)	76.5°	76.5°	76.5°	76.5°
Wheelbase	1210 mm	1240 mm	1273 mm	1312 mm
Headtube	100 mm	100 mm	120 mm	140 mm
BB Height	349 mm	349 mm	349 mm	349 mm
Standover	800 mm	800 mm	800 mm	800 mm
Front Centre	760 mm*	790 mm*	823 mm*	862 mm*
FC:RC	1.69	1.76	1.83	1.92

Trims · 7

	6.7 £4,899	8.7 £5,299	6.8 £5,699	8.8 £6,399	6.9 £6,499	8.9 £7,499	8.0 £7,799
Motor	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Gen 4 · 85 Nm	Bosch Performance Line CX Race · 85 Nm
Battery	Bosch PowerTube 750 · 750 Wh · all trims
Travel F/R	160/150 mm · all trims
Frame	7005 hydroformed aluminium	Carbon front triangle, aluminium rear triangle	7005 hydroformed aluminium	Carbon front triangle, aluminium rear triangle	7005 hydroformed aluminium	Carbon front triangle, aluminium rear triangle	Carbon front triangle, aluminium rear triangle
Fork	DVO Diamond E3, 110x15 mm, 44 mm rake, 160 mm	DVO Diamond E3, 110x15 mm, 44 mm rake, 160 mm	FOX 36 Float Rhythm 29 E-Bike, Grip, 110 x 15 mm, 44 mm rake, 160 mm	FOX 36 Float Rhythm 29 E-Bike, Grip, 110 x 15 mm, 44 mm rake, 160 mm	FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake, 160 mm	FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake, 160 mm	FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake, 160 mm
Shock	RockShox Deluxe Select, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing	RockShox Deluxe Select, 210/55 mm, hardware: 25.0 x 25.0 mm	FOX Float DPS, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing	FOX Float DPS, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing	FOX Float X Performance, 210/55 mm, hardware: 25.0 x 8.0, no Bushing	FOX Float X Performance, 210/55 mm, hardware: 25.0 x 8.0, no Bushing	FOX Float X Performance, 210/55 mm, hardware: 25.0 x 8.0, no Bushing
Headset	ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8 in angle headset · all trims
Stem	FOCUS C.I.S., 50 mm, 0 deg, 35 mm, aluminium	FOCUS C.I.S. 2.0 MTB, 35 mm, aluminium	FOCUS C.I.S., 50 mm, 0 deg, 35 mm, aluminium	FOCUS C.I.S. 2.0 MTB, 35 mm, aluminium	FOCUS C.I.S., 50 mm, 0 deg, 35 mm, aluminium	FOCUS C.I.S. 2.0 MTB, 35 mm, aluminium	FOCUS C.I.S. integrated, 50 mm, 0 deg, 35 mm, aluminium
Handlebar	Aluminium, 800 mm, rise 30 mm, backsweep 9 deg	Aluminium, 800 mm, rise 30 mm, backsweep 9 deg	Aluminium, 800 mm, rise 30 mm, backsweep 9 deg	Aluminium, 800 mm, rise 30 mm, backsweep 9 deg	RaceFace Atlas 35, aluminium, 820 mm, rise 35 mm, backsweep 8 deg	RaceFace Atlas 35, aluminium, 820 mm, rise 35 mm, backsweep 8 deg	RaceFace Atlas 35, aluminium, 820 mm, rise 35 mm, backsweep 8 deg
Grips	Herrmans DD 41B	Herrmans DD 41B	Herrmans DD 41B	Herrmans DD 41B	RaceFace Getta Grip	VP Lock-On Grips	RaceFace Getta Grip
Saddle	Selle Royal Groove SRX	Selle Royal Groove SRX	Selle Italia X3	Selle Italia X3	Fizik Terra Aidon	Fizik Terra Aidon	Fizik Terra Aidon
Seatpost	Post Moderne dropper post PM-214, 34.9 mm · all trims
Brakes	Shimano MT520, 4-piston hydraulic disc (levers Shimano BR-MT520), front \| rear	SRAM Guide T, front \| rear	SRAM DB8, 4-piston hydraulic disc (levers Shimano BR-MT520), front \| rear	Magura MT5, front \| rear	SRAM DB8, 4-piston hydraulic disc (levers Shimano XT M8120, 4-piston), front \| rear	Shimano XT M8120, 4-piston, front \| rear	Shimano XT M8120, 4-piston (203 mm rotors front and rear), front \| rear
Rear derailleur	Shimano Deore RD-M6100, 12-speed	SRAM NX Eagle, 12-speed	Shimano Deore XT M8100, 12-speed	Shimano Deore XT M8100, 12-speed	Shimano Deore XT M8100, 12-speed	Shimano Deore XT M8100	Shimano Deore XT M8100, 12-speed
Crank	Samox EC40 ISIS	Samox EC40 ISIS	Samox EC40 ISIS	Samox EC40 ISIS	RaceFace Aeffect R e-Optimized Bosch G4	RaceFace Aeffect R e-Optimized Bosch G4	RaceFace Aeffect R e-Optimized Bosch G4
Shifters	Shimano Deore M6100, 12-speed	SRAM SX Eagle, 12-speed	Shimano Deore XT SL-M8100, 12-speed	Shimano Deore XT SL-M8100, 12-speed	Shimano Deore XT M8100, 12-speed	Shimano Deore XT M8100	Shimano Deore XT M8100, 12-speed
Cassette	Shimano Deore CS-M6100, 12-speed	SRAM PG-1230 NX Eagle, 12-speed	Shimano Deore CS-M6100, 12-speed	Shimano Deore CS-M6100, 12-speed	Shimano SLX M7100, 12-speed	Shimano SLX M7100, 12-speed	Shimano SLX M7100, 12-speed
Chain	Shimano Deore CN-M6100, 12-speed	SRAM SX Eagle, 12-speed	Shimano Deore CN-M6100, 12-speed	Shimano Deore CN-M6100, 12-speed	Shimano SLX CN-M7100, 12-speed	Shimano SLX CN-M7100	Shimano SLX CN-M7100, 12-speed
Drivetrain	Shimano Deore RD-M6100, 12-speed; Samox EC40 ISIS; Shimano Deore M6100, 12-speed; Shimano Deore CS-M6100, 12-speed; Shimano Deore CN-M6100, 12-speed	SRAM NX Eagle, 12-speed; Samox EC40 ISIS; SRAM SX Eagle, 12-speed; SRAM PG-1230 NX Eagle, 12-speed; SRAM SX Eagle, 12-speed	Shimano Deore XT M8100, 12-speed; Samox EC40 ISIS; Shimano Deore XT SL-M8100, 12-speed; Shimano Deore CS-M6100, 12-speed; Shimano Deore CN-M6100, 12-speed	Shimano Deore XT M8100, 12-speed; Samox EC40 ISIS; Shimano Deore XT SL-M8100, 12-speed; Shimano Deore CS-M6100, 12-speed; Shimano Deore CN-M6100, 12-speed	Shimano Deore XT M8100, 12-speed; RaceFace Aeffect R e-Optimized Bosch G4; Shimano Deore XT M8100, 12-speed; Shimano SLX M7100, 12-speed; Shimano SLX CN-M7100, 12-speed	Shimano Deore XT M8100; RaceFace Aeffect R e-Optimized Bosch G4; Shimano Deore XT M8100; Shimano SLX M7100, 12-speed; Shimano SLX CN-M7100	Shimano Deore XT M8100, 12-speed; RaceFace Aeffect R e-Optimized Bosch G4; Shimano Deore XT M8100, 12-speed; Shimano SLX M7100, 12-speed; Shimano SLX CN-M7100, 12-speed
Wheels	RODI TRYP30, 30-622; Novatec D041 front (15x110) / D462SB rear (12x148) hubs, Niro black spokes	RaceFace AR30 Offset; Novatec D041 front (15x110) / D462 rear (12x148) hubs, Niro black spokes	RaceFace AR30 Offset; Novatec D041 front (15x110) / D462 rear (12x148) hubs, Niro black spokes	RaceFace AR30 Offset; Novatec D041 front (15x110) / D462 rear (12x148) hubs, Niro black spokes	DT Swiss H1900, 30-622, 15x110 mm / 12x148 mm	DT Swiss H1900, 622-30, 148x12 mm / 110x15 mm	DT Swiss H1900, 30-622, 15x110 mm / 12x148 mm
Tyres	Maxxis Minion DHF, EXO, 63-622 (29 x 2.6 in), front \| rear	Maxxis Minion DHF, Dual EXO TR, 29 x 2.6 in, front \| rear	Maxxis Minion DHR II, 2.6, 66-622, EXO+ (29 x 2.6 in), front \| rear	Maxxis Minion DHR II, 29 x 2.6 in, front \| rear	Schwalbe Magic Mary 2.6 Super Trail Soft (front) / Schwalbe Big Betty 2.6 Super Trail Soft (rear), 65-622 (29 x 2.6 in)	Schwalbe Magic Mary, Super Trail Soft (front) / Schwalbe Big Betty, Super Trail Soft (rear), 29 x 2.6 in	Schwalbe Magic Mary, Super Trail Soft, 29 x 2.6 in, front \| rear
Price	£4,899	£5,299	£5,699	£6,399	£6,499	£7,499	£7,799
