E-Troy Lite 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

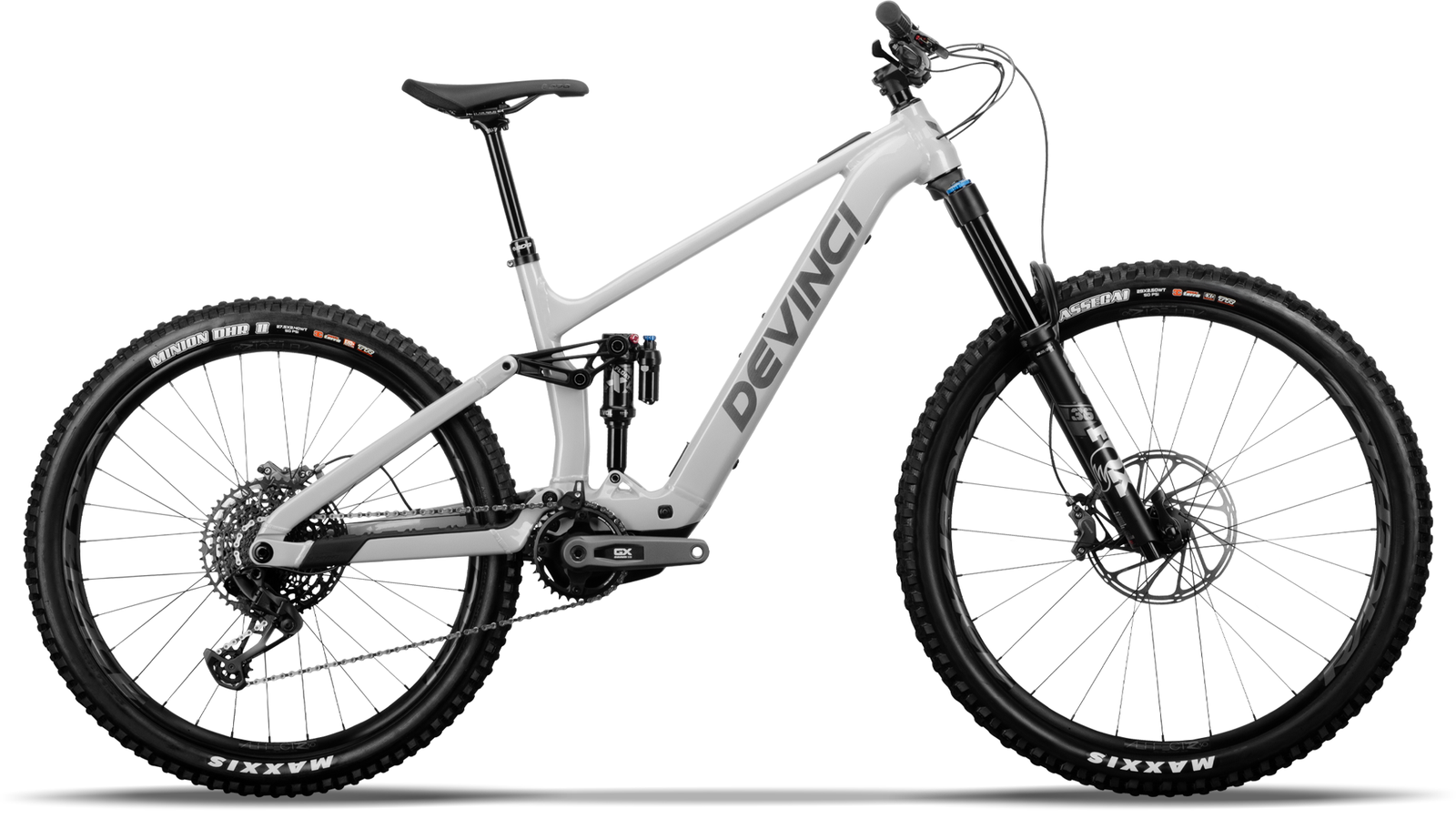

The E-Troy Lite is Devinci's lightweight take on its Troy trail platform, built around the compact Bosch Performance Line SX motor (55 Nm, 600 W peak) and a 400 Wh CompactTube battery. It pairs 160 mm of fork travel with 150 mm out back via the Split Pivot suspension, runs a mixed-wheel setup as standard and is welded from 6061-T6 aluminium in Devinci's own Canadian factory. The geometry is firmly modern-trail: a 63.6 degree head angle across every size, steep effective seat angles around 77.5 to 77.9 degrees, a consistent 438 mm chainstay and a 461 mm reach on the medium.
Three builds make up the 2025 range, all sharing the same frame, motor and battery. The GX 12S (6,399 USD) is the value entry, with a Fox 36 fork, Fox Float X Performance Elite shock, SRAM Code Bronze brakes and a mechanical SRAM GX Eagle drivetrain. The S1000 AXS 12S (6,599 USD) swaps to RockShox Lyrik Select+ and Super Deluxe Ultimate suspension and adds wireless SRAM S1000 Eagle AXS T-Type shifting for only a small premium, which makes it the standout on paper. The GX AXS 12S (7,399 USD) tops the range with a Lyrik Ultimate fork, four-piston Magura MT5 HCW brakes on 203 mm rotors, RaceFace ARC30 wheels and SRAM GX Eagle AXS T-Type, and is also the lightest at a claimed 19.5 kg.
The small SX motor and 400 Wh pack mean this is a light-assist bike rather than a full-power eMTB, so range is modest at a claimed 40 km average, though the optional Bosch PowerMore 250 range extender adds 250 Wh for longer days. Buyers chasing maximum torque or all-day battery will look elsewhere, but for riders who want a Canadian-made alloy trail bike that handles close to its non-assisted sibling, the E-Troy Lite covers the brief.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 441 mm | 461 mm | 481 mm | 501 mm |
| Stack | 608 mm | 617 mm | 626 mm | 635 mm |
| Seattube | 400 mm | 420 mm | 460 mm | 495 mm |
| Chainstay | 438 mm | 438 mm | 438 mm | 438 mm |
| Headtube Angle | 63.6° | 63.6° | 63.6° | 63.6° |
| Seattube Angle (eff) | 77.9° | 77.8° | 77.6° | 77.5° |
| Wheelbase | 1216 mm | 1240 mm | 1264 mm | 1289 mm |
| Headtube | 95 mm | 105 mm | 115 mm | 125 mm |
| BB Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Standover | 740 mm | 740 mm | 740 mm | 740 mm |
| Front Centre | 778 mm* | 802 mm* | 826 mm* | 851 mm* |
Trims · 3
GX 12S | GX AXS 12S | S1000 AXS 12S | |
|---|---|---|---|
| Motor | Bosch Performance Line SX · 55 Nm · all trims | ||
| Battery | Bosch CompactTube 400 · 400 Wh · all trims | ||
| Travel F/R | 160/150 mm · all trims | ||
| Frame | Aluminium · all trims | ||
| Fork | Fox 36 PSE | Grip2 | 29 | 160 | 110x15 | 44 OS | RockShox Lyrik Ultimate | DB | 29 | 160 | 110x15 | 44 OS | RockShox Lyrik Select+ | Charger 3.1 | RC2 | DB | 160 | 44 Offset |
| Shock | Fox Float X Performance Elite | 185 x 55 Trunnion | RockShox Super Deluxe Ultimate | 185 x 55 Trunnion | RockShox Super Deluxe Ultimate | 185 x 55 Trunnion |
| Headset | FSA Orbit | 1.5 | Zero Stack · all trims | ||
| Stem | V2 Pro | B:35mm | L:40mm | 0deg | RaceFace Turbine R35 | B:35mm | L:40mm | 0deg | V2 Pro | B:35mm | L:40mm | 0deg |
| Handlebar | RaceFace Turbine R35 | B:35mm | R:35mm | W:800mm | RaceFace Next R35 | B:35mm | R:20mm | W:800mm | RaceFace Turbine R35 | B:35mm | R:35mm | W:800mm |
| Grips | Devinci | w/lock-on | Devinci Performance | w/lock-on | Devinci | w/lock-on |
| Saddle | SDG BELAIR Max eMTB | SDG BELAIR 3.0 | SDG BELAIR Max eMTB |
| Seatpost | SDG Tellis 31.6mm dropper (S 150 / M 170 / L 200 / XL 200 mm), SDG Tellis Matchmaker 1x lever | SDG Tellis 31.6mm dropper (S 150 / M 170 / L 200 / XL 200 mm), SDG Tellis lever | SDG Tellis 31.6mm dropper (S 125 / M 150 / L 170 / XL 200 mm), SDG Tellis Matchmaker 1x lever |
| Brakes | SRAM Code Bronze (4-piston) | Magura MT5 HCW (4-piston) | SRAM Code Bronze (4-piston) |
| Rear derailleur | SRAM GX Eagle | 12s | SRAM GX Eagle AXS | T-Type | 12s | SRAM S1000 Eagle AXS | T-Type | 12s |
| Crank | SRAM GX Bosch | 165mm, Sram X-Sync Eagle 34T eMTB chainring | SRAM X0 Bosch | 165mm, Sram Eagle T-Type 34T eMTB chainring | SRAM GX Bosch | 165mm, Sram XX Eagle 34T Bosch eMTB chainring |
| Shifters | SRAM GX Eagle 12s Single Click | SRAM AXS POD | 12s | SRAM AXS POD | 12s |
| Cassette | SRAM PG1230 | 12s | 11-50T | HG | SRAM XS1275 T-TYPE | 12s | 10-52T | SRAM XS1270 T-TYPE | 12s | 10-52T |
| Chain | SRAM NX Eagle | 12s | SRAM GX | T-Type | 12s | SRAM |
| Drivetrain | SRAM GX Eagle | 12s; SRAM GX Bosch | 165mm, Sram X-Sync Eagle 34T eMTB chainring; SRAM GX Eagle 12s Single Click; SRAM PG1230 | 12s | 11-50T | HG; SRAM NX Eagle | 12s | SRAM GX Eagle AXS | T-Type | 12s; SRAM X0 Bosch | 165mm, Sram Eagle T-Type 34T eMTB chainring; SRAM AXS POD | 12s; SRAM XS1275 T-TYPE | 12s | 10-52T; SRAM GX | T-Type | 12s | SRAM S1000 Eagle AXS | T-Type | 12s; SRAM GX Bosch | 165mm, Sram XX Eagle 34T Bosch eMTB chainring; SRAM AXS POD | 12s; SRAM XS1270 T-TYPE | 12s | 10-52T; SRAM |
| Wheels | RaceFace Aeffect R30 (29 front / 27.5 rear) | 30mm inner | RaceFace ARC30 (29 front / 27.5 rear) | 30mm inner | TR, RaceFace Vault hubs (6-bolt), Sapim Stainless 14G spokes | RaceFace AR30 (29 front / 27.5 rear) | 30mm inner | TR, DT Swiss 370 Classic hubs, Sapim Stainless 14G spokes |
| Tyres | Maxxis Assegai 29x2.5WT 3C Exo TR MaxxTerra (front) / Maxxis Minion DHRII 27.5x2.4WT 3C Exo+ TR MaxxTerra (rear) | Maxxis Minion DHF 29x2.5WT 3C Exo TR MaxxTerra (front) / Maxxis Dissector 27.5x2.4WT 3C Exo+ TR MaxxTerra (rear) | Maxxis Assegai 29x2.5WT 3C Exo+ TR MaxxTerra (front) / Maxxis Minion DHR II 27.5x2.5 3CT EXO+ TR (rear) |
| Weight | 20.2 kg | 19.5 kg | — |
